Home >> Acura >> 2007 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

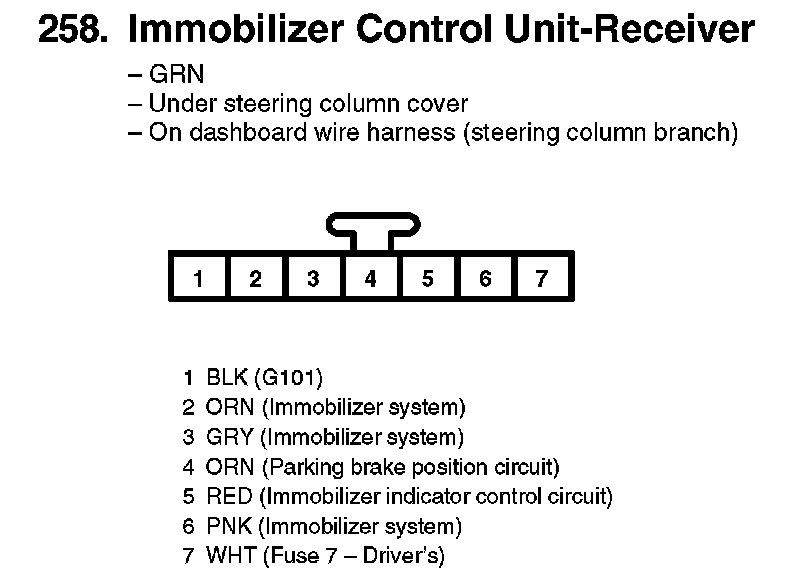

258. Immobilizer Control Unit-Receiver:

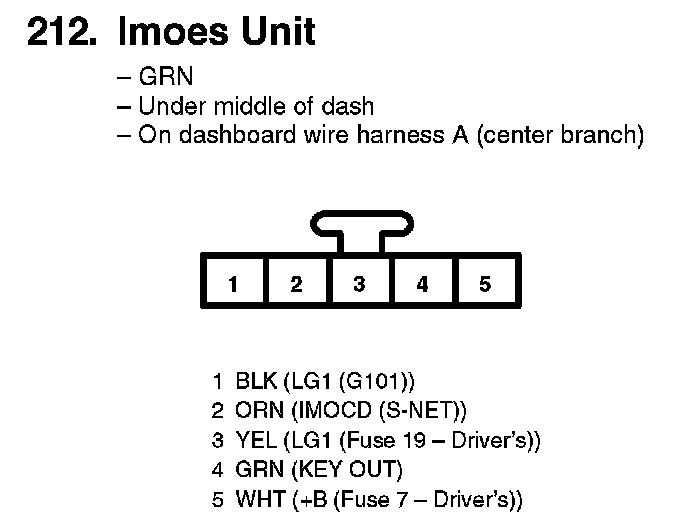

212. Imoes Unit:
