Home >> Acura >> 2007 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

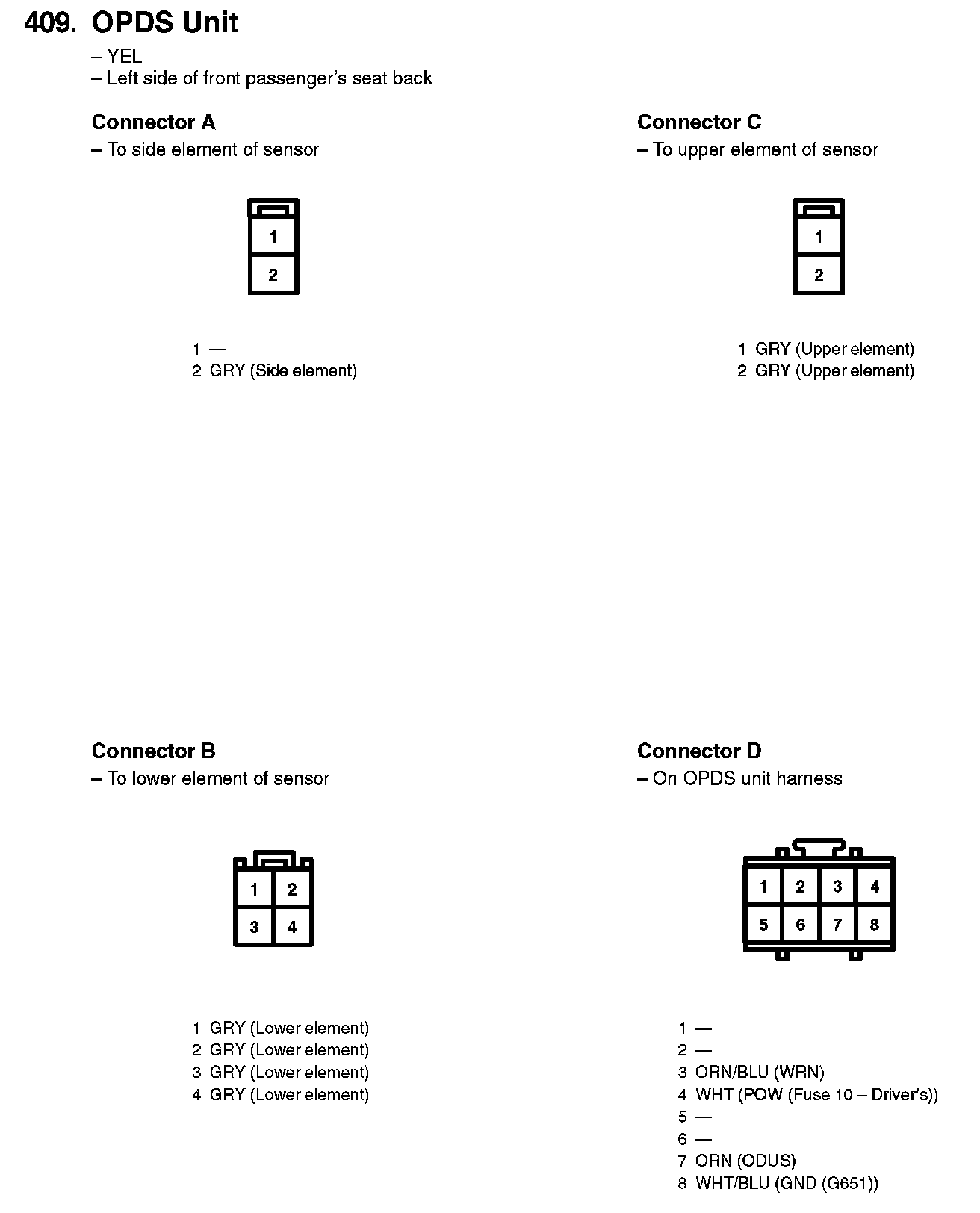

409. OPDS Unit:

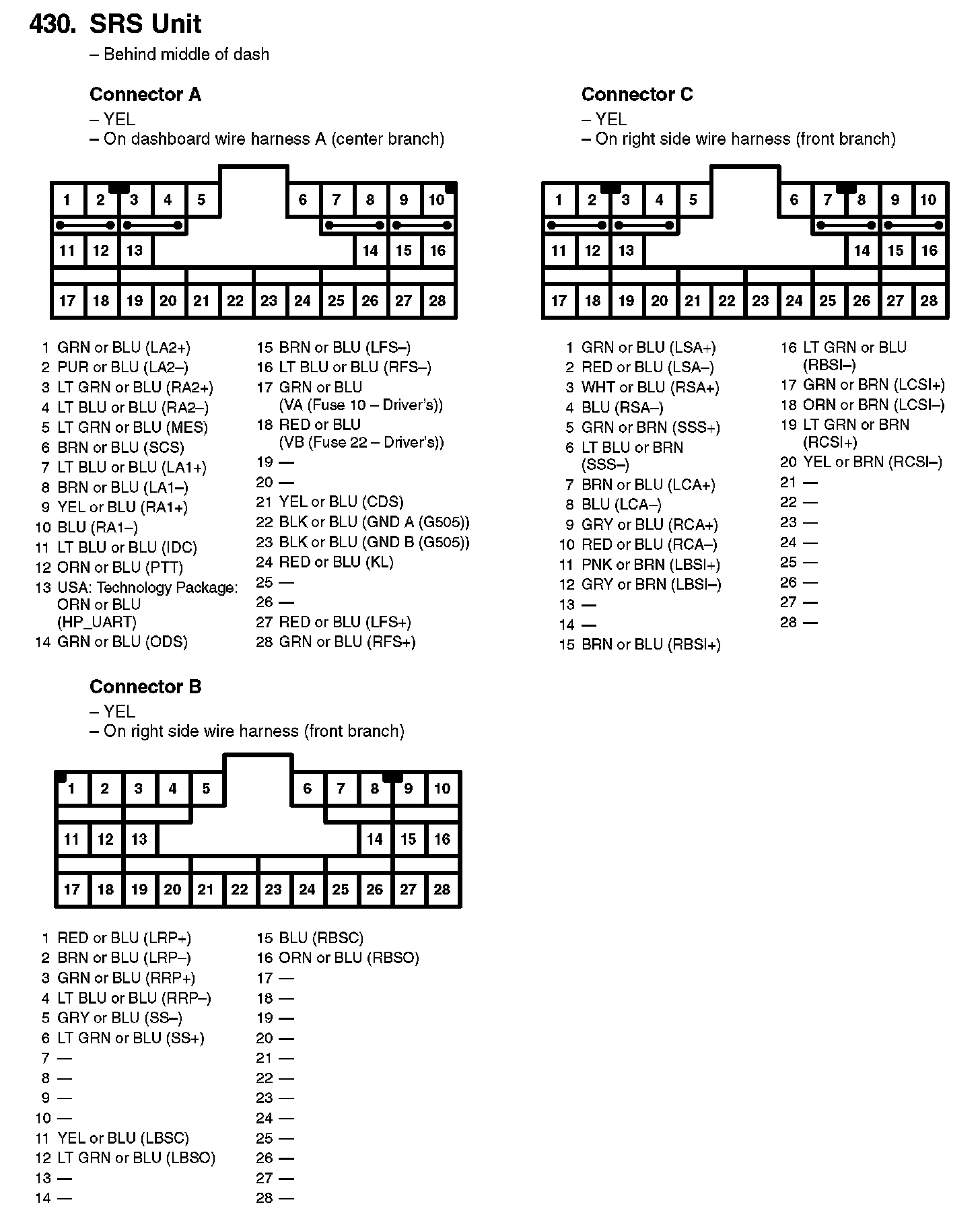

430. SRS Unit:
