Component Locations

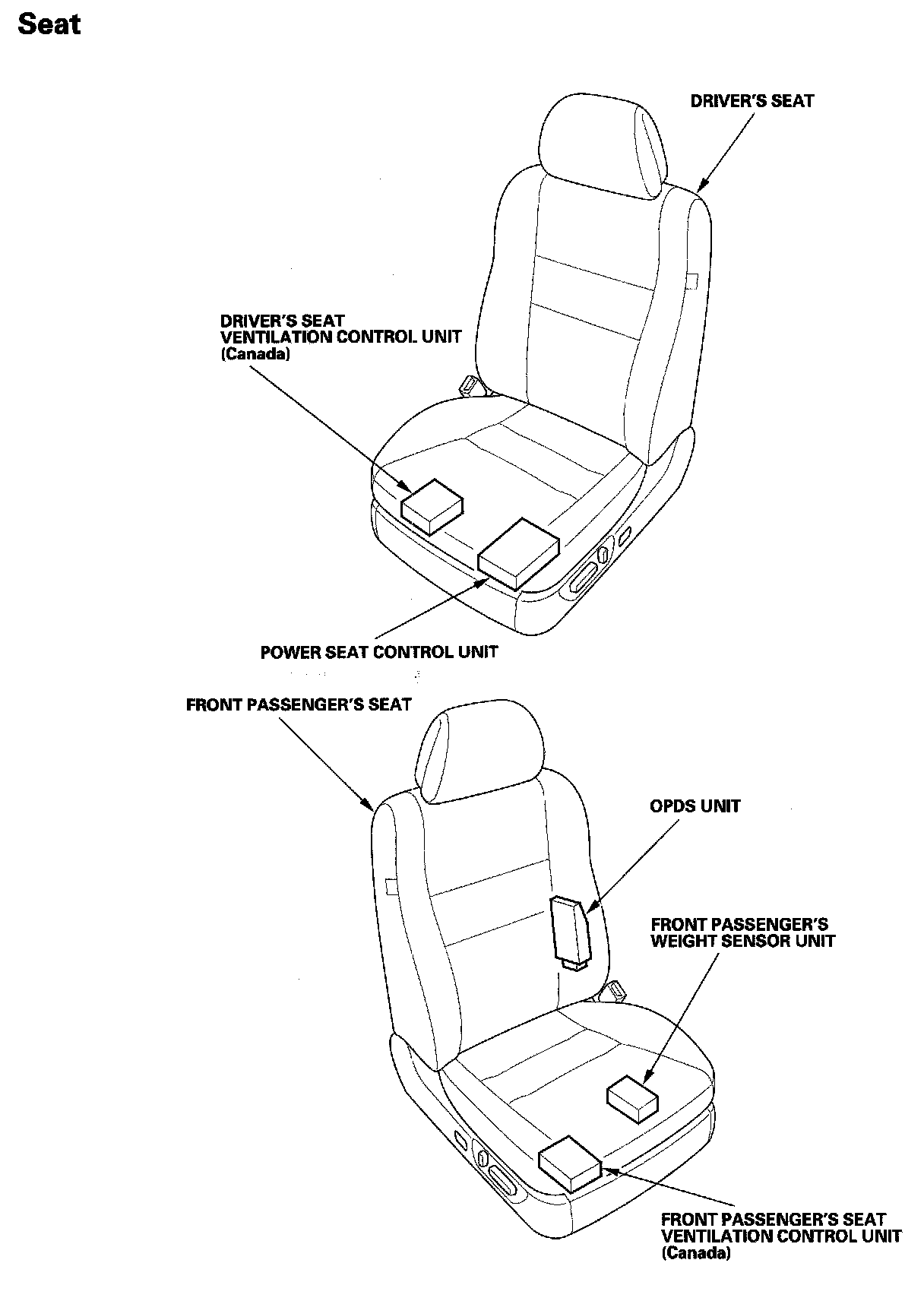

Relay And Control Unit Locations Seat:

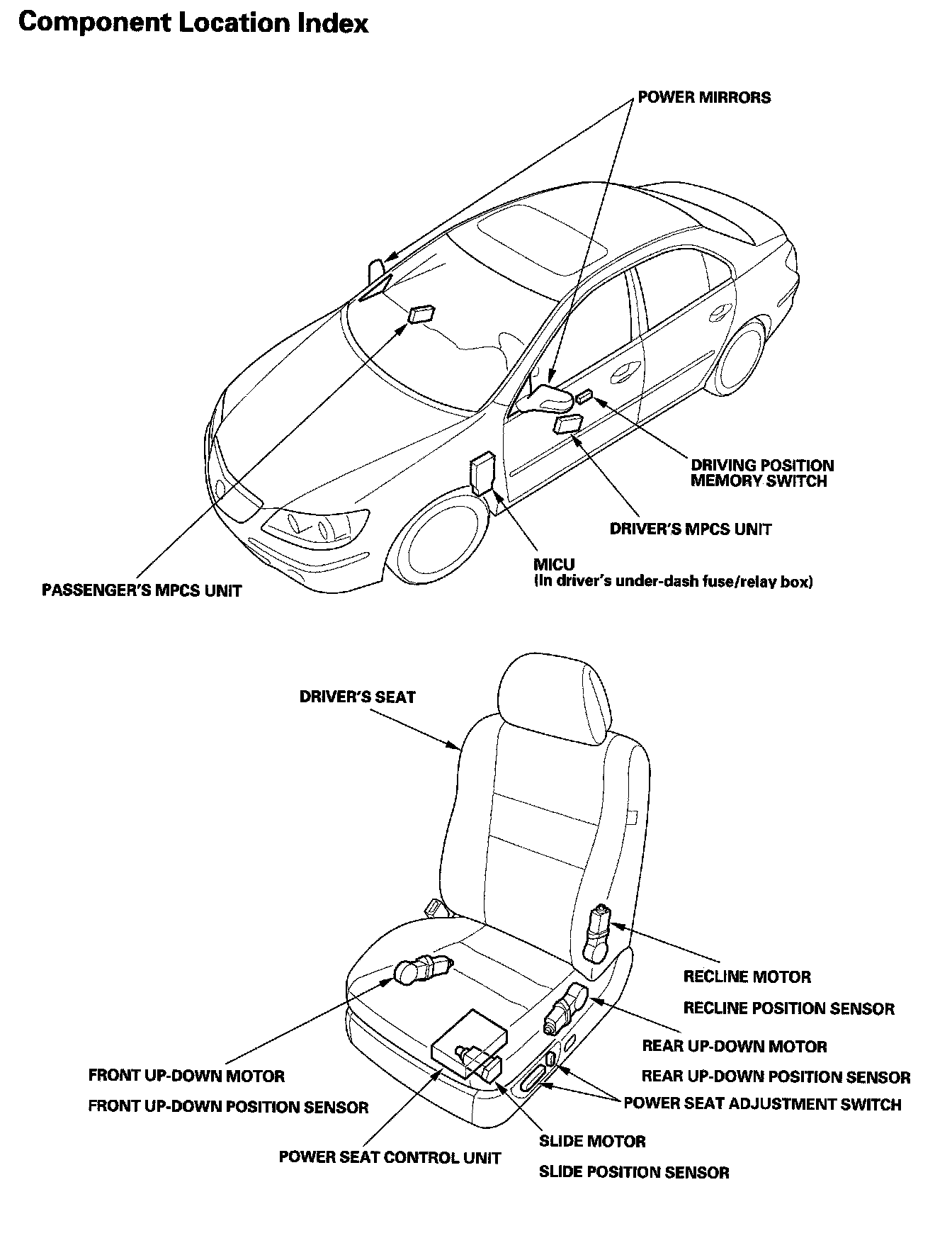

Multiplex Integrated Control System Component Location Index:

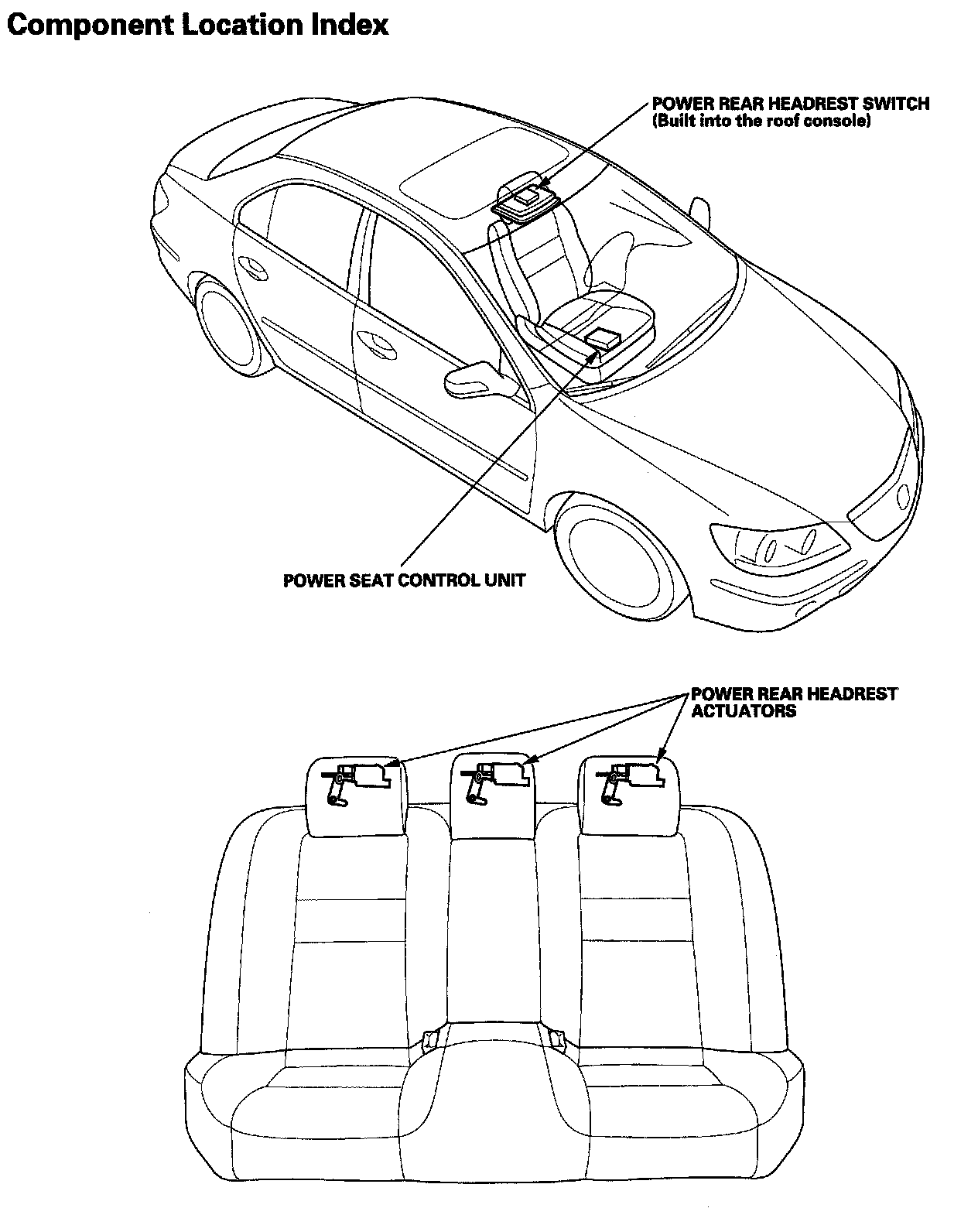

Power Rear Headrests Component Location Index:



Driving Position Memory System (DPMS) Component Location Index:
