Home >> Acura >> 2007 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold

Intake Manifold

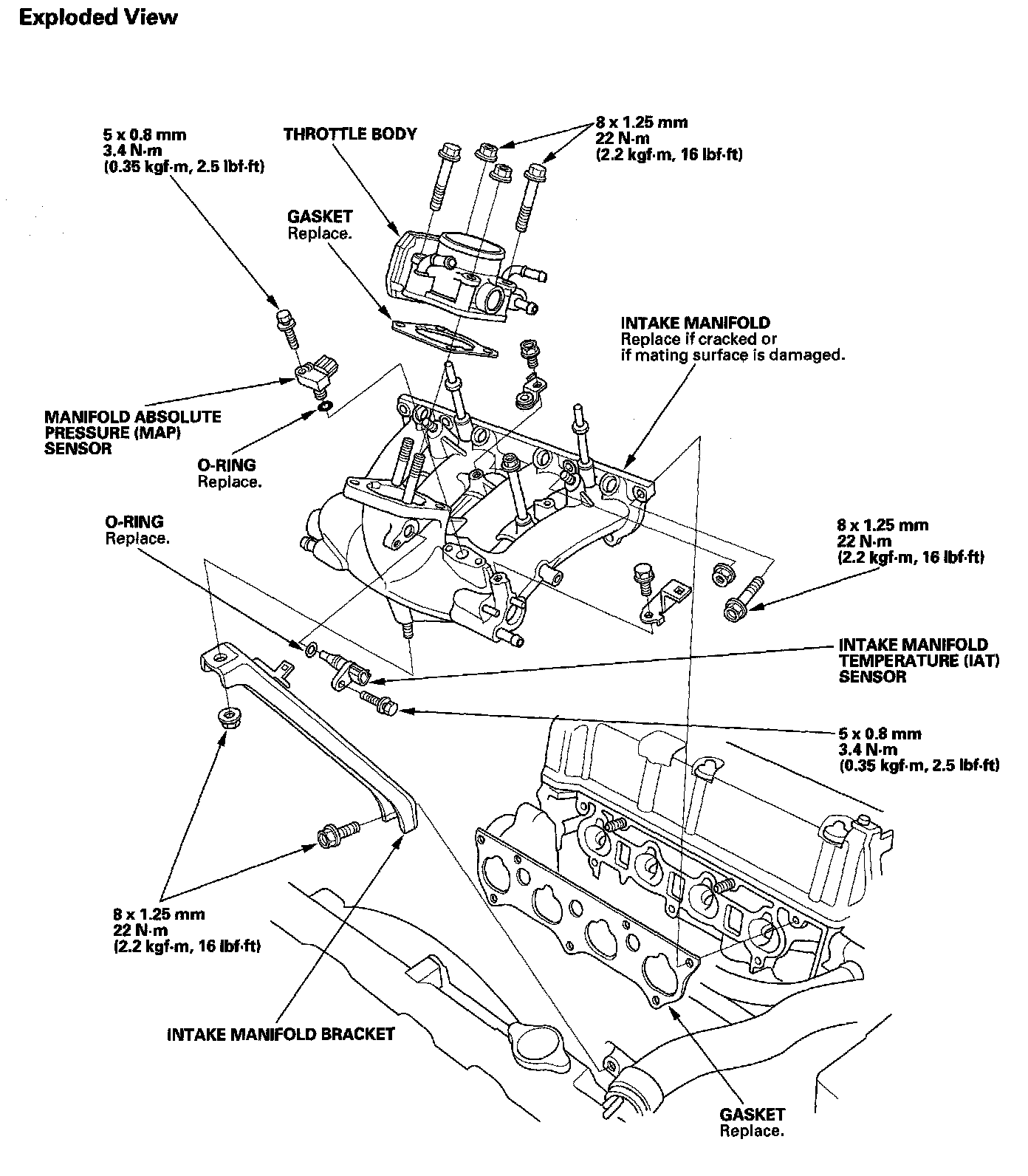

Exploded View

Intake Manifold:
