Home >> Acura >> 2007 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Module

Traction Control Module

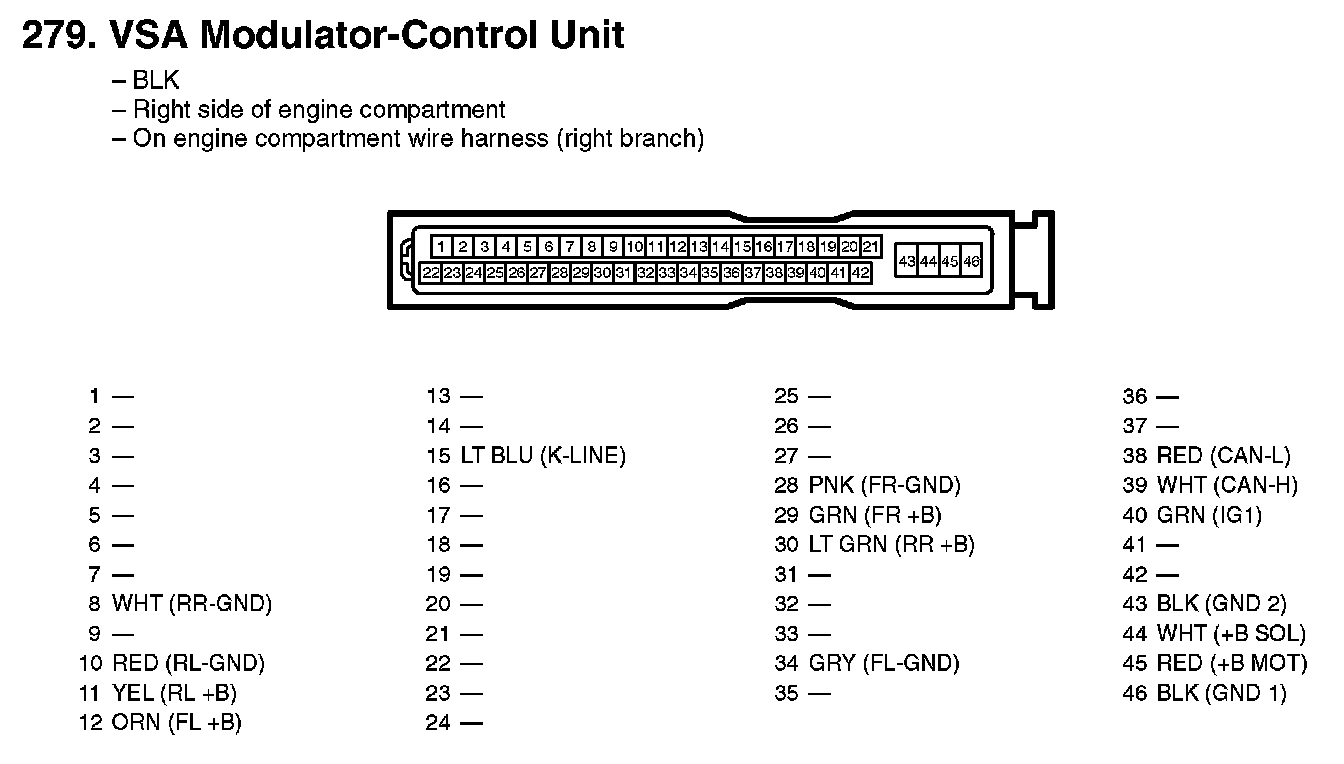

279. VSA Modulator-Control Unit:

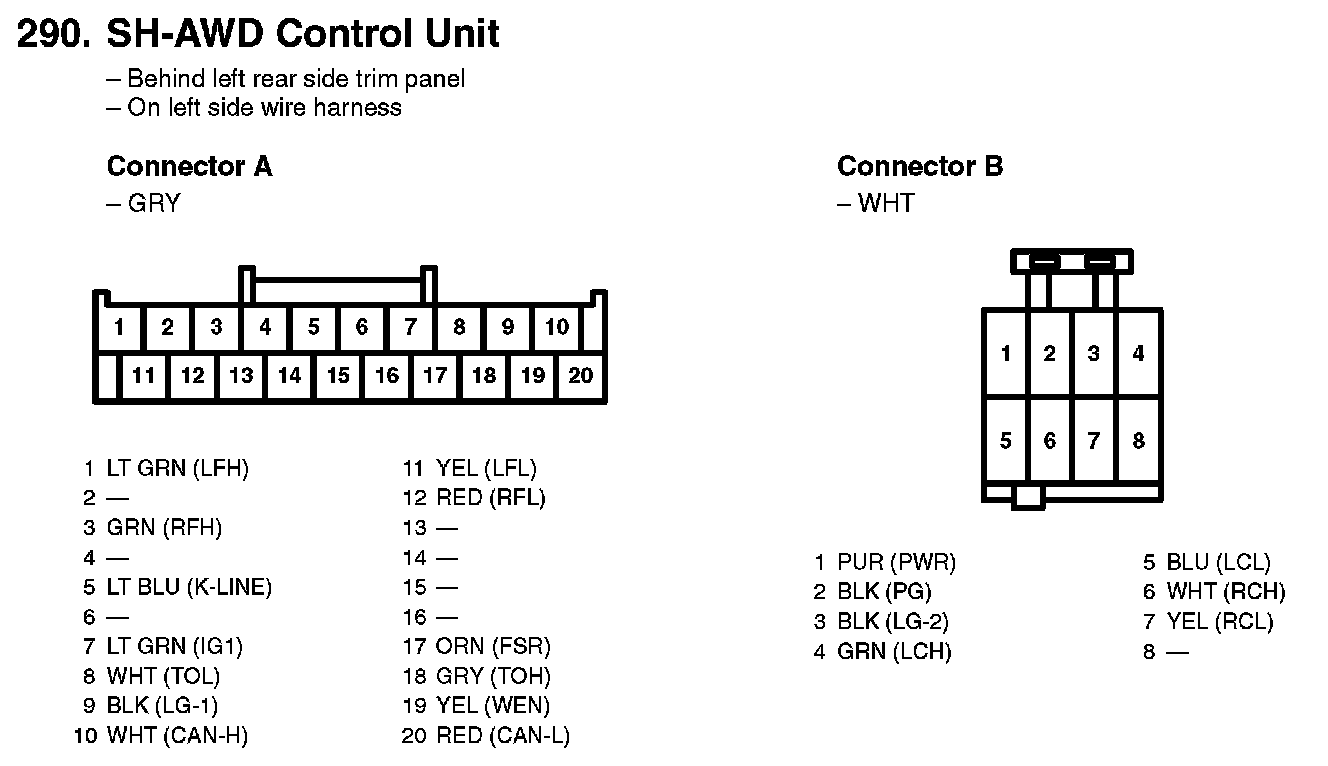

290. SH-AWD Control Unit:
