Home >> Acura >> 2007 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Navigation Module

Navigation Module

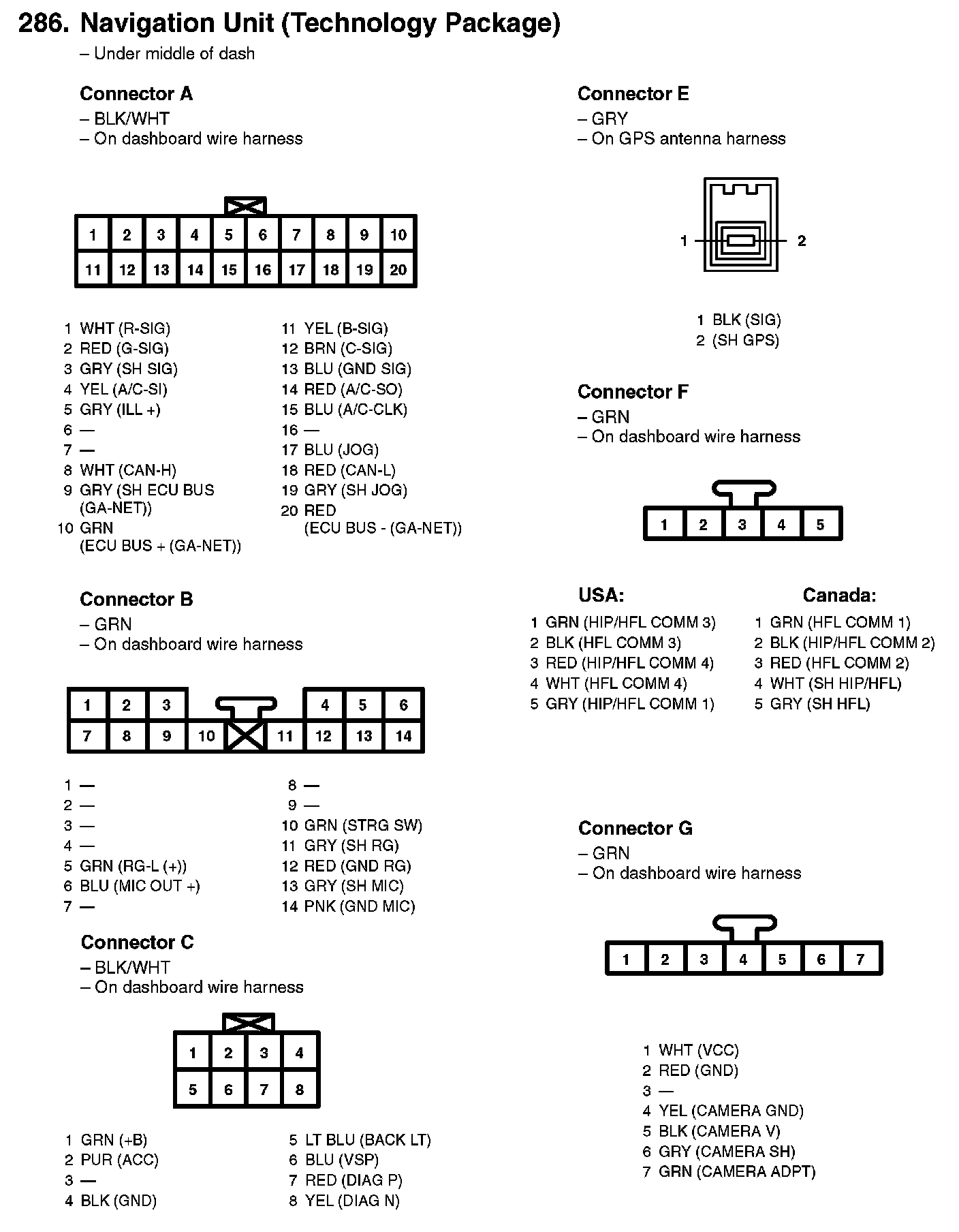

286. Navigation Unit (Technology Package):
