Pinout Values and Diagnostic Parameters

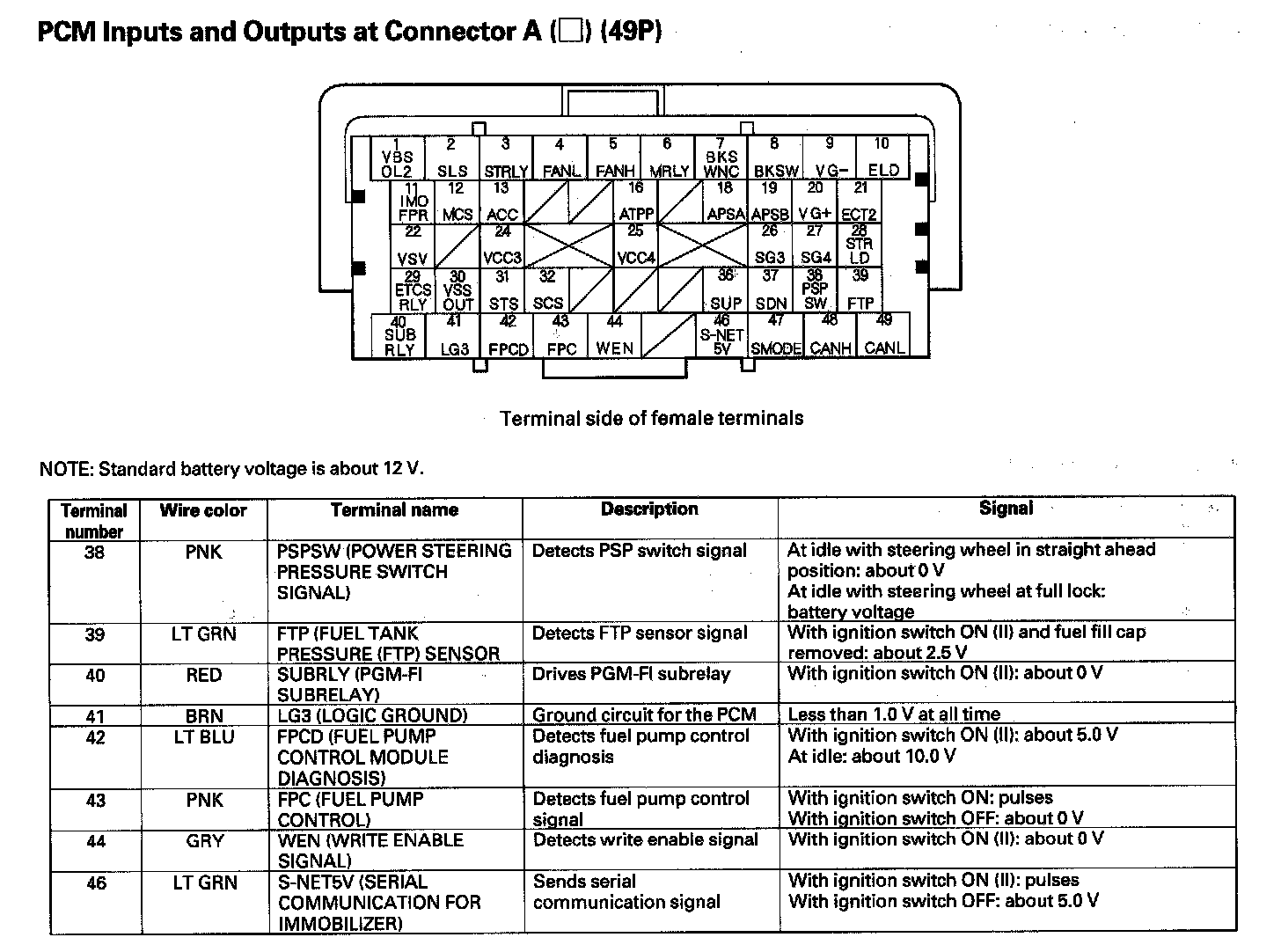

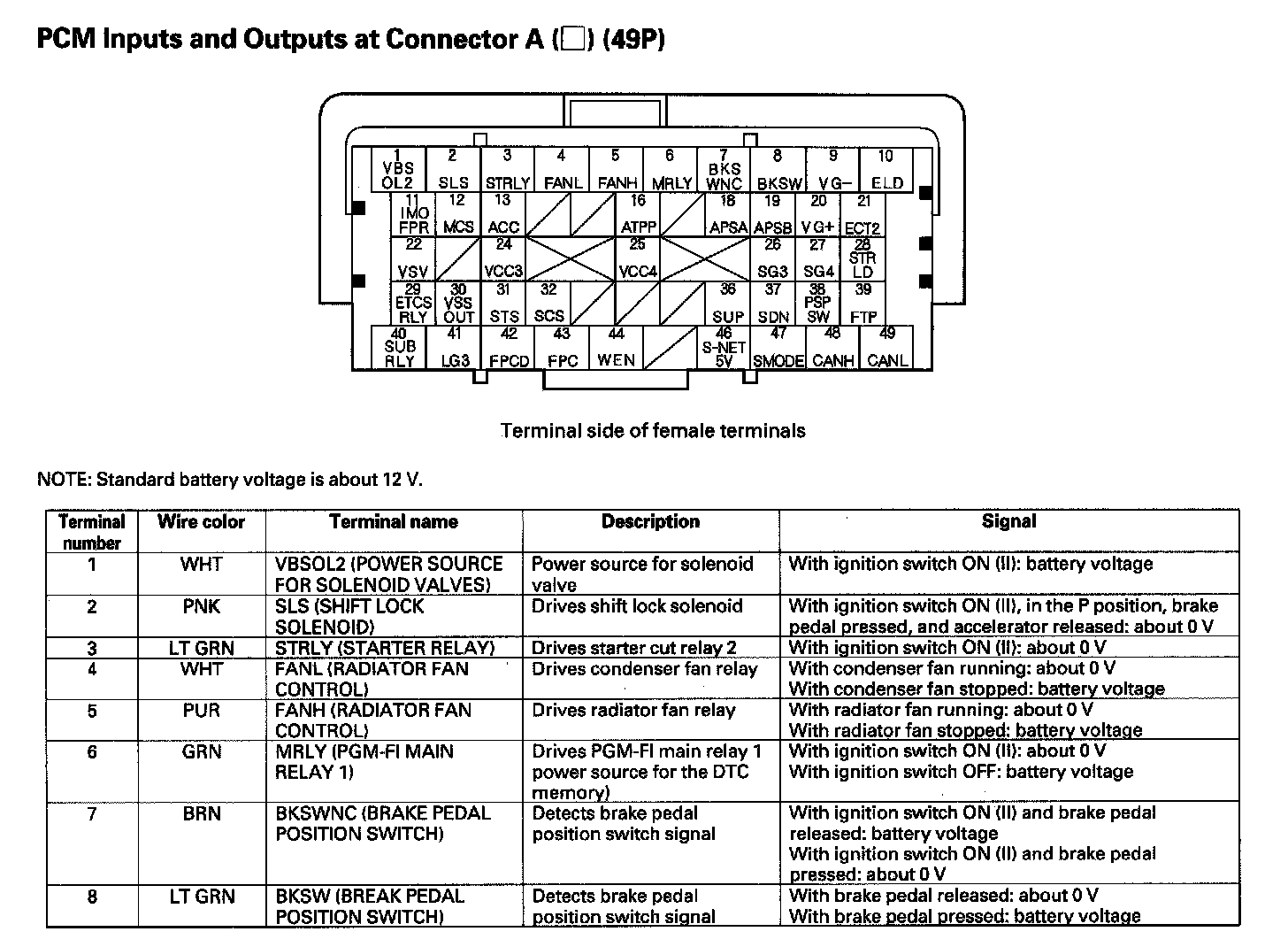

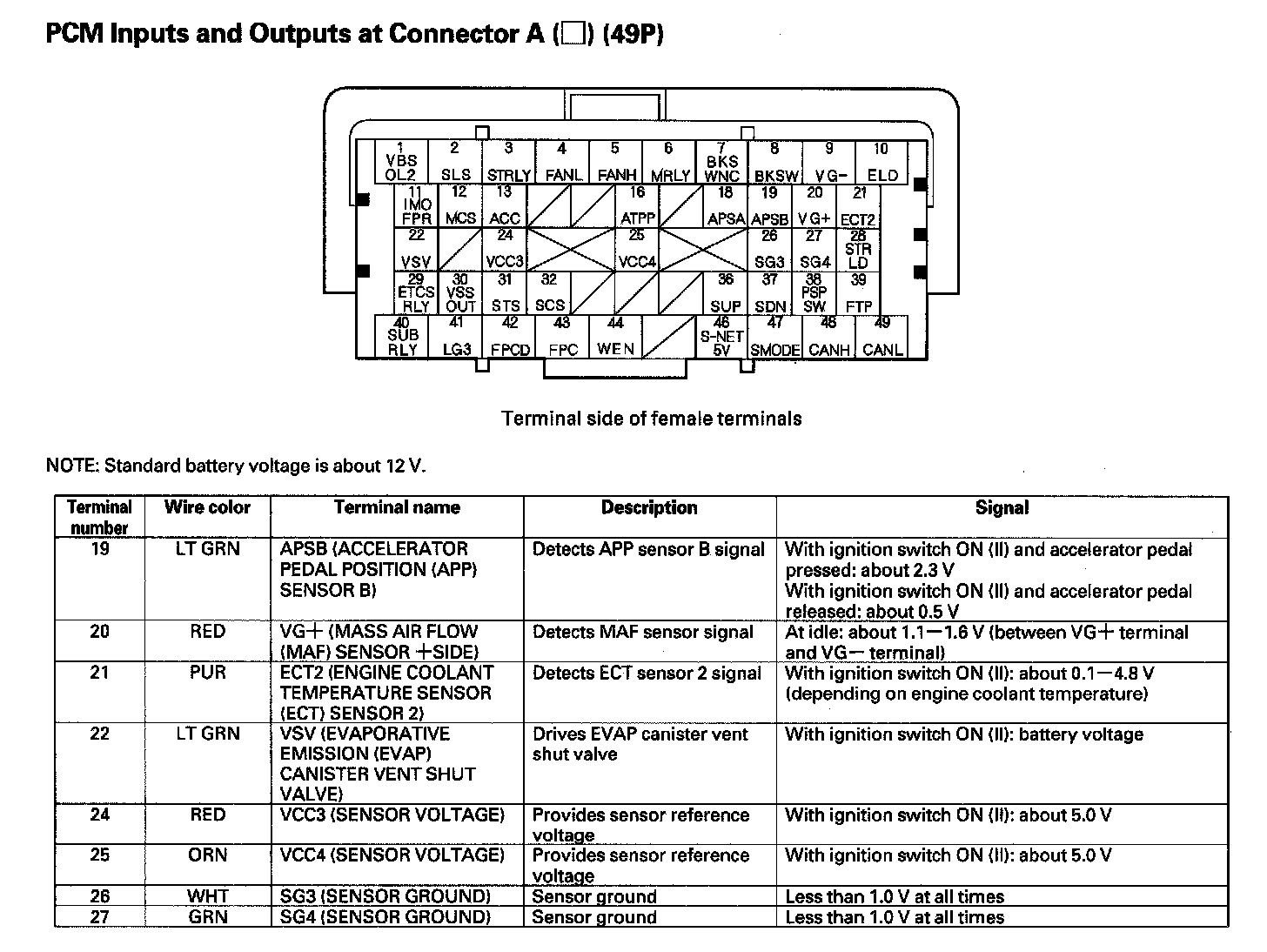

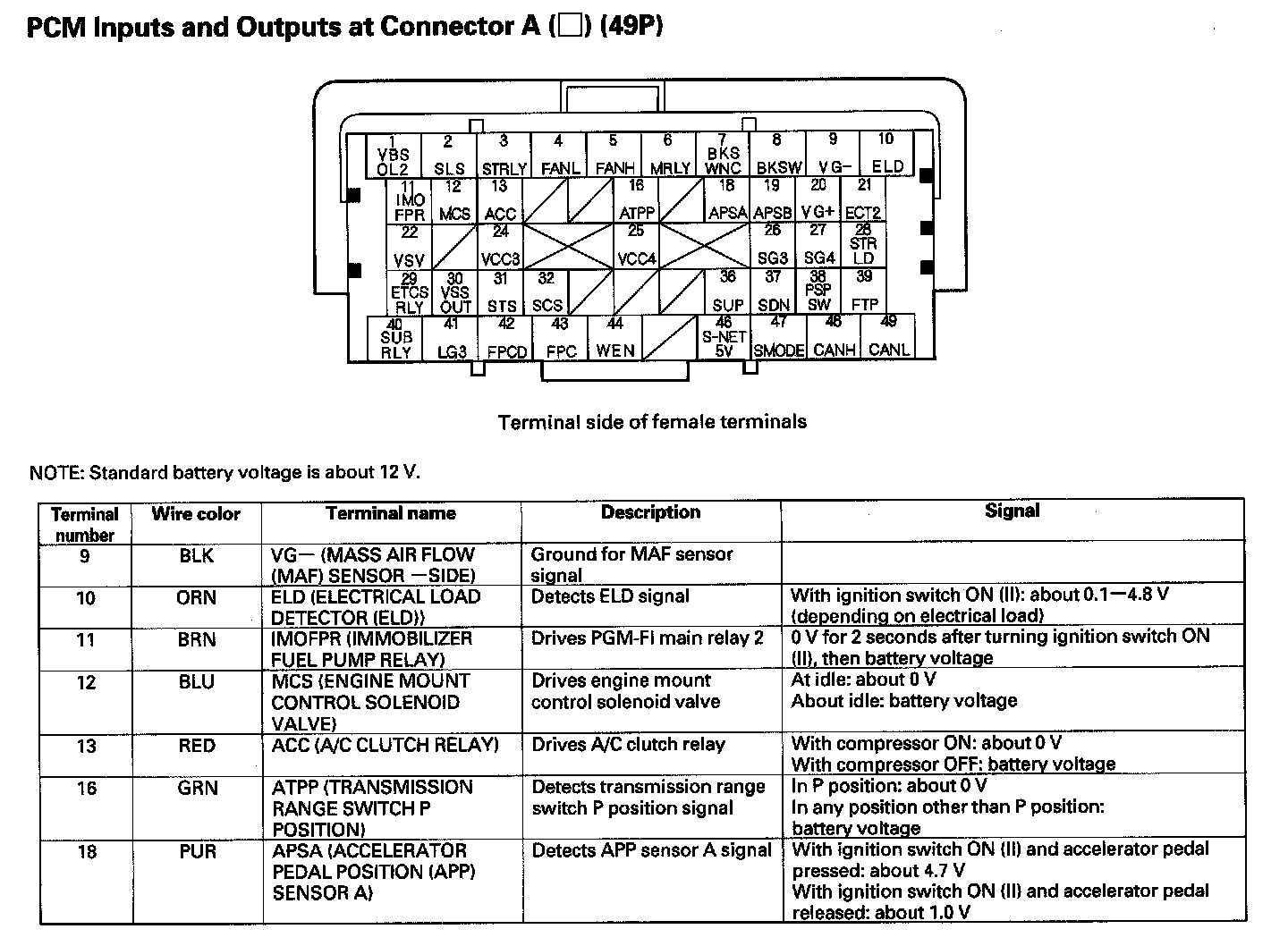

PCM Inputs And Outputs At Connector A (49P) Part 1:

PCM Inputs And Outputs At Connector A (49P) Part 2:

PCM Inputs And Outputs At Connector A (49P) Part 3:

PCM Inputs And Outputs At Connector A (49P) Part 4:

PCM Inputs And Outputs At Connector A (49P) Part 5:

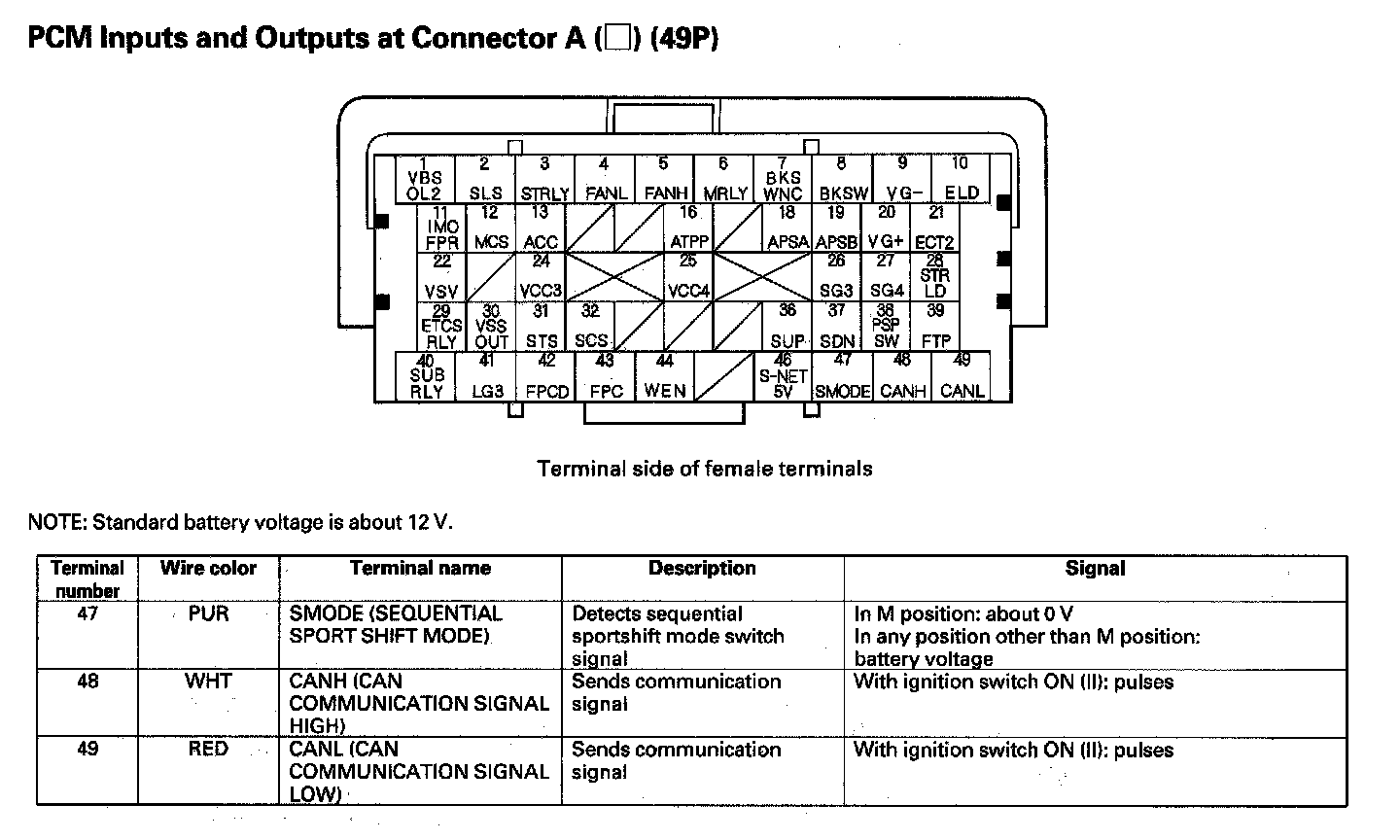

PCM Inputs And Outputs At Connector A (49P) Part 6:

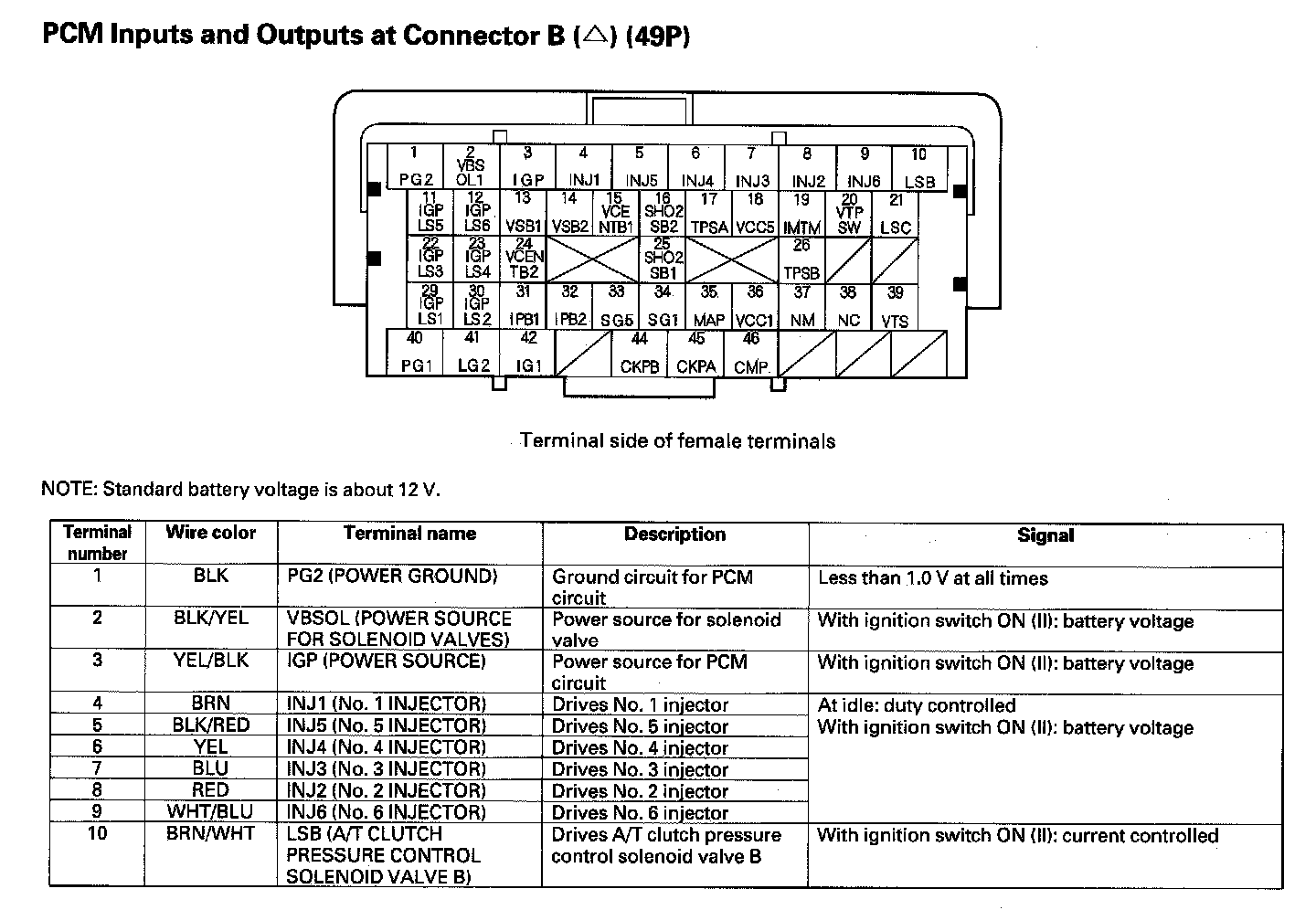

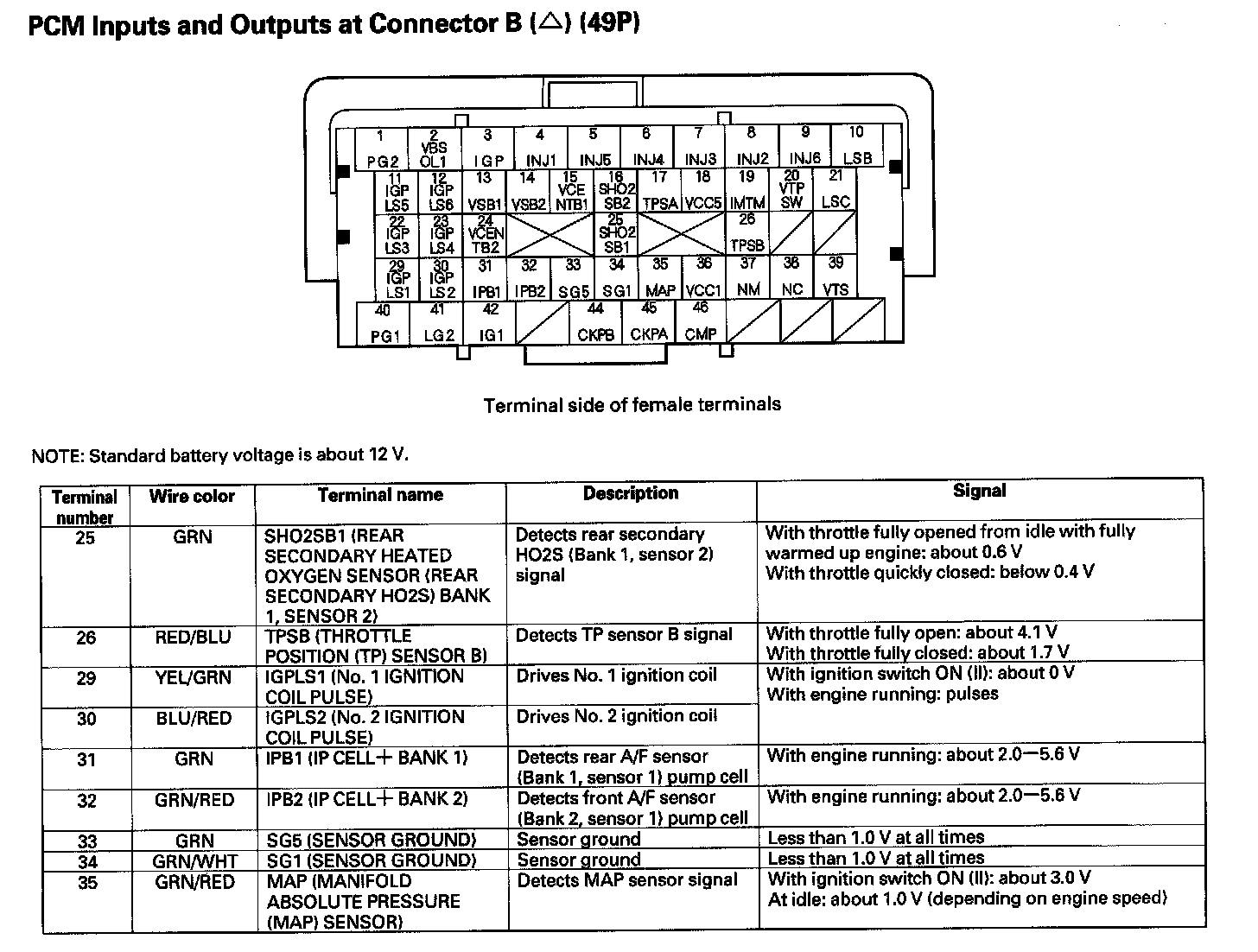

PCM Inputs And Outputs At Connector B (49P) Part 1:

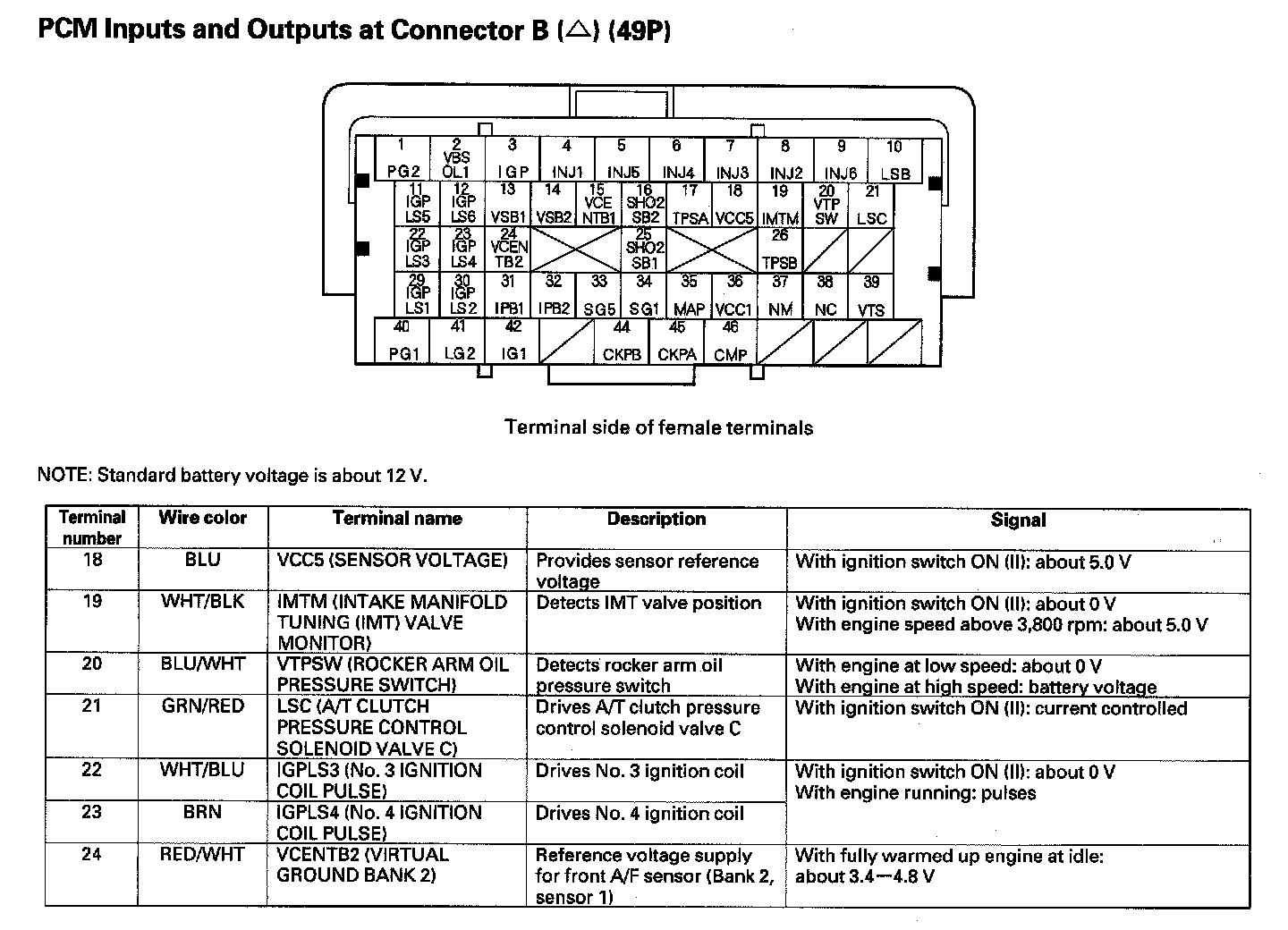

PCM Inputs And Outputs At Connector B (49P) Part 2:

PCM Inputs And Outputs At Connector B (49P) Part 3:

PCM Inputs And Outputs At Connector B (49P) Part 4:

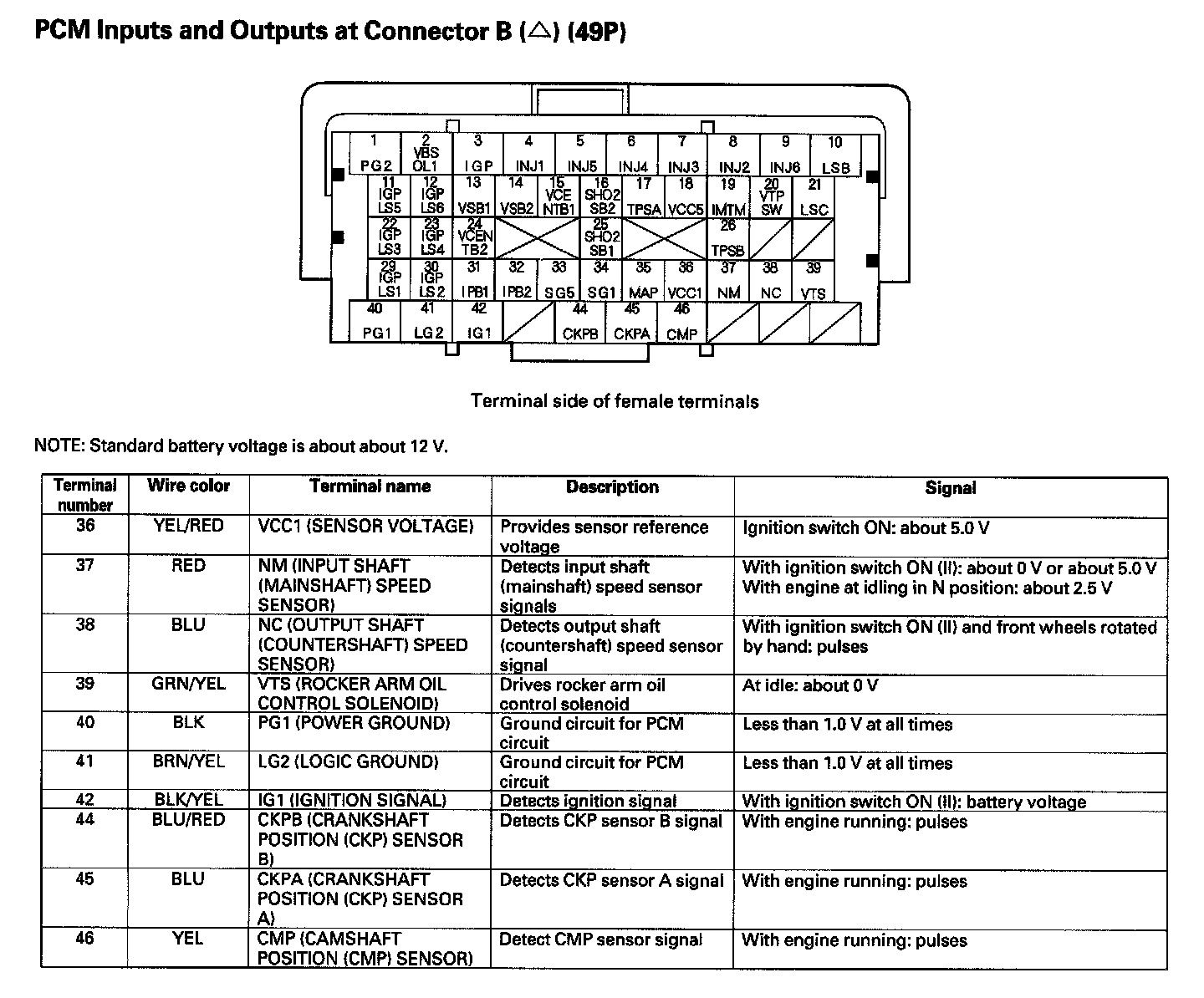

PCM Inputs And Outputs At Connector B (49P) Part 5:

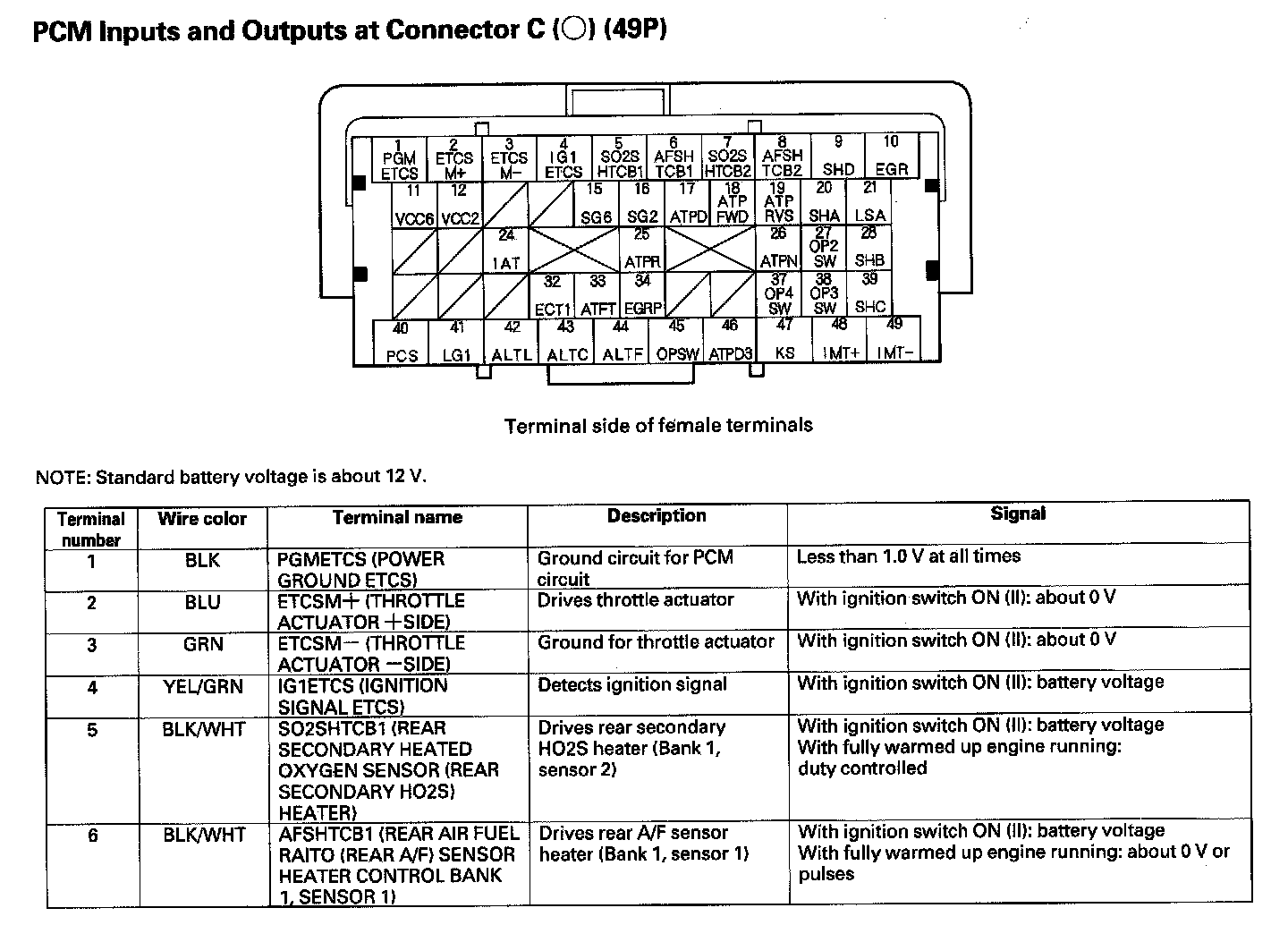

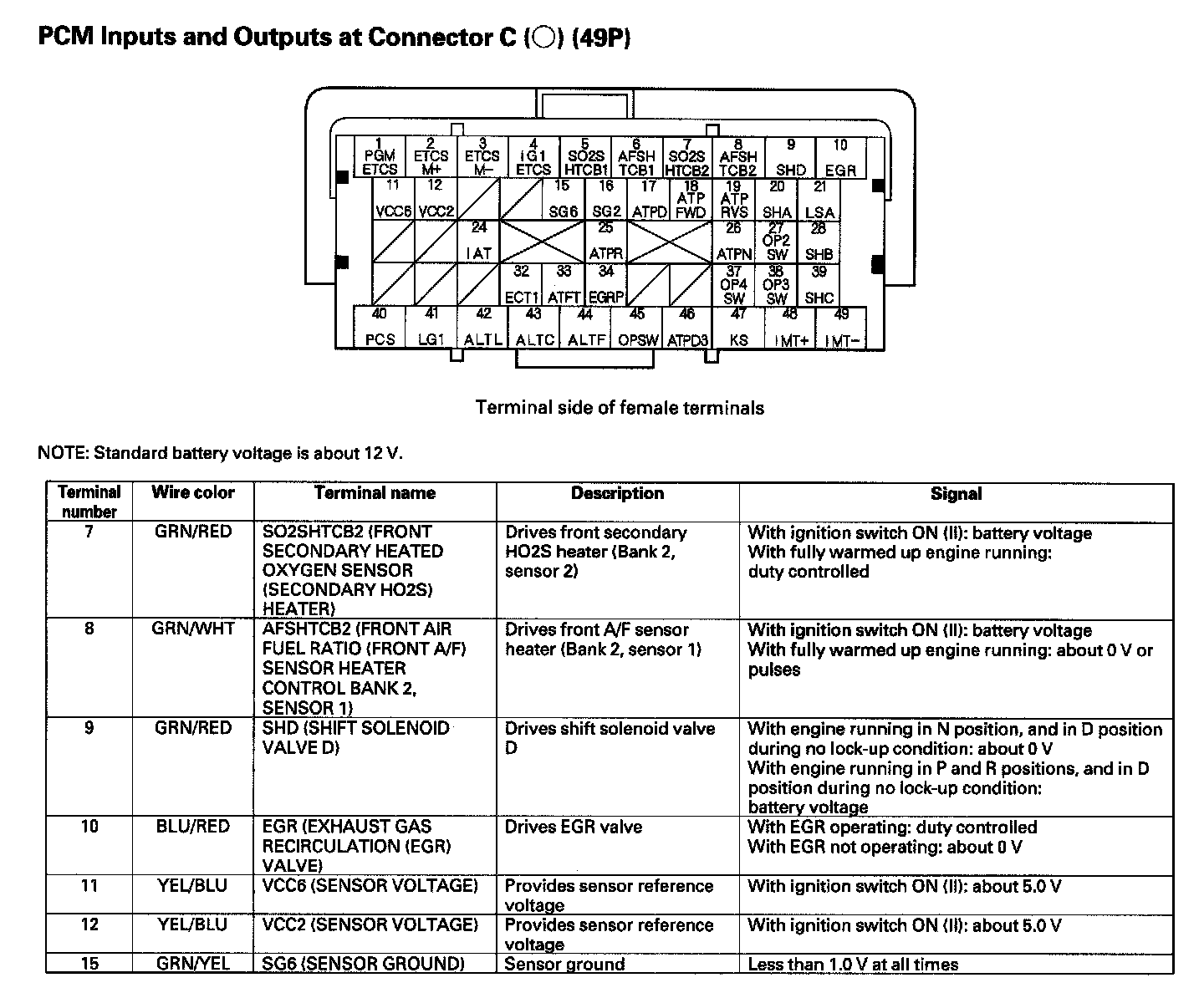

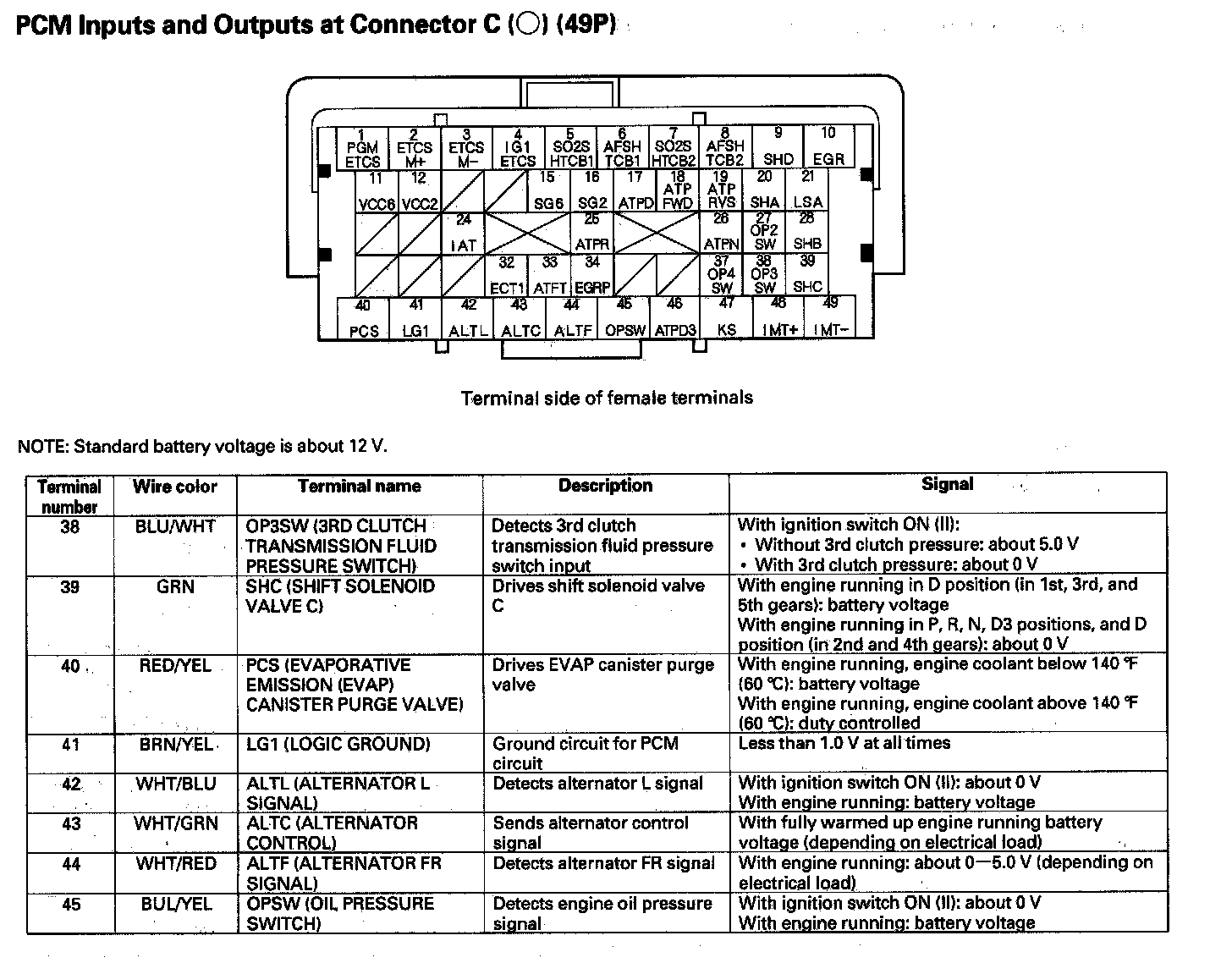

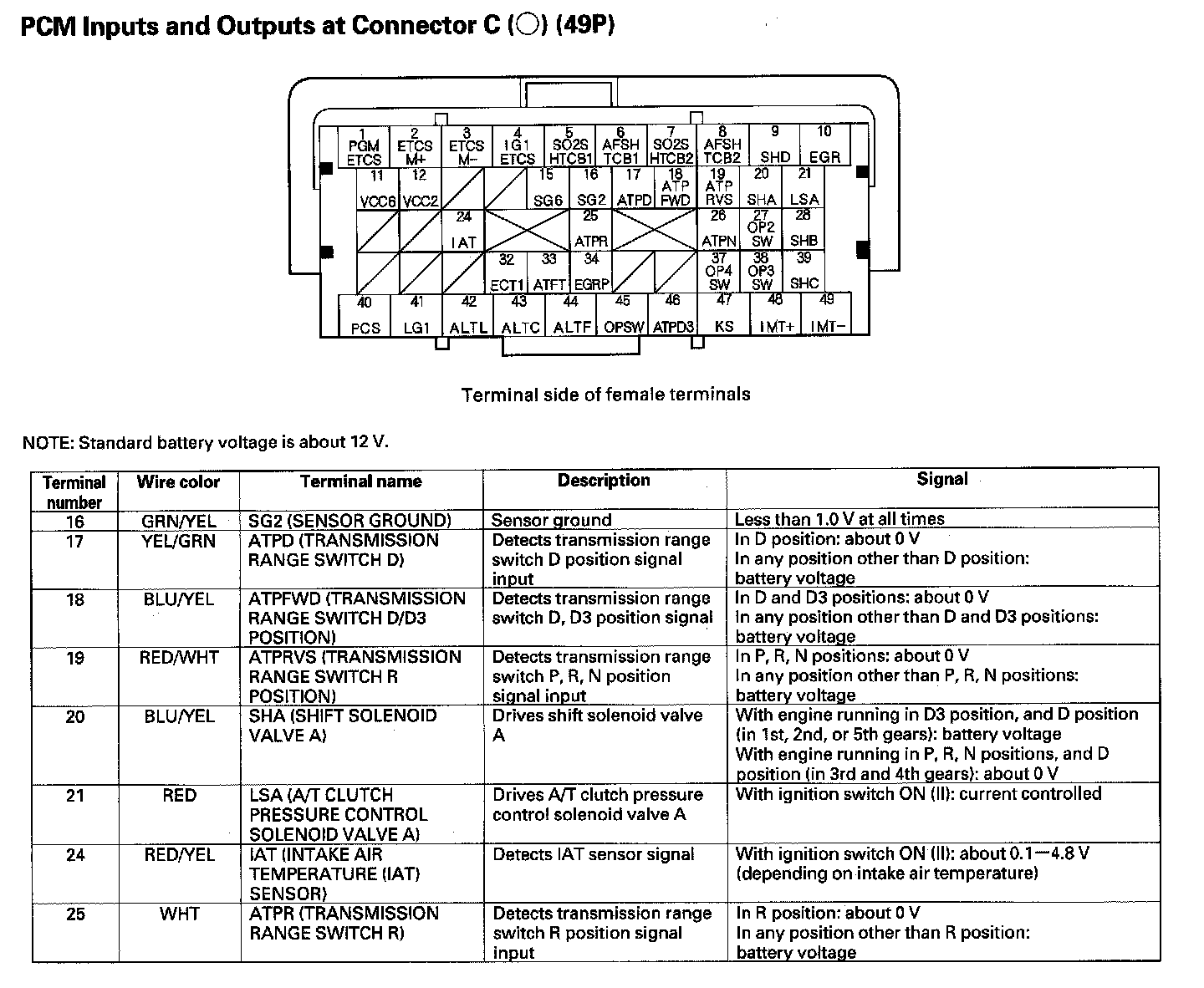

PCM Inputs And Outputs At Connector C (49P) Part 1:

PCM Inputs And Outputs At Connector C (49P) Part 2:

PCM Inputs And Outputs At Connector C (49P) Part 3:

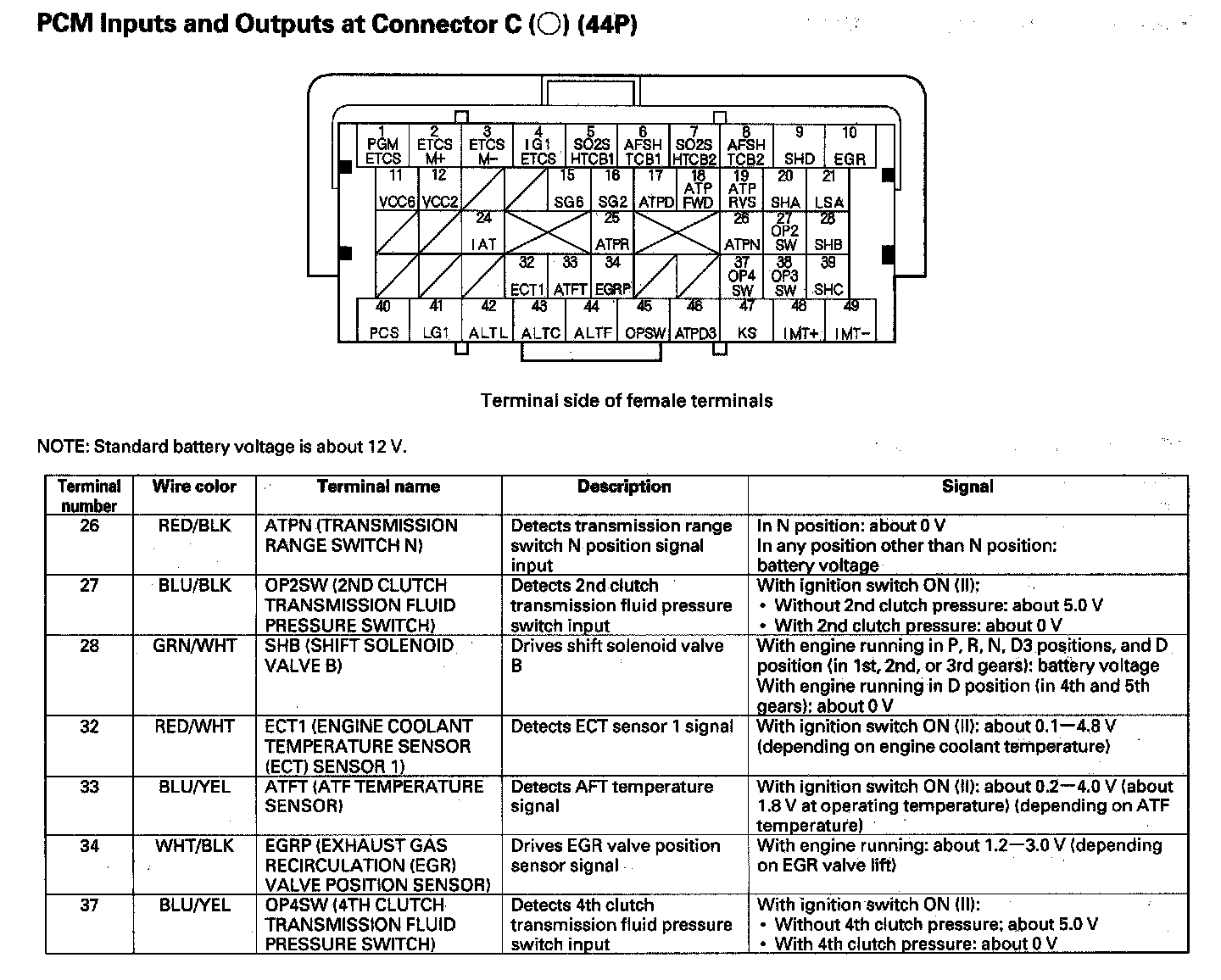

PCM Inputs And Outputs At Connector C (44P):

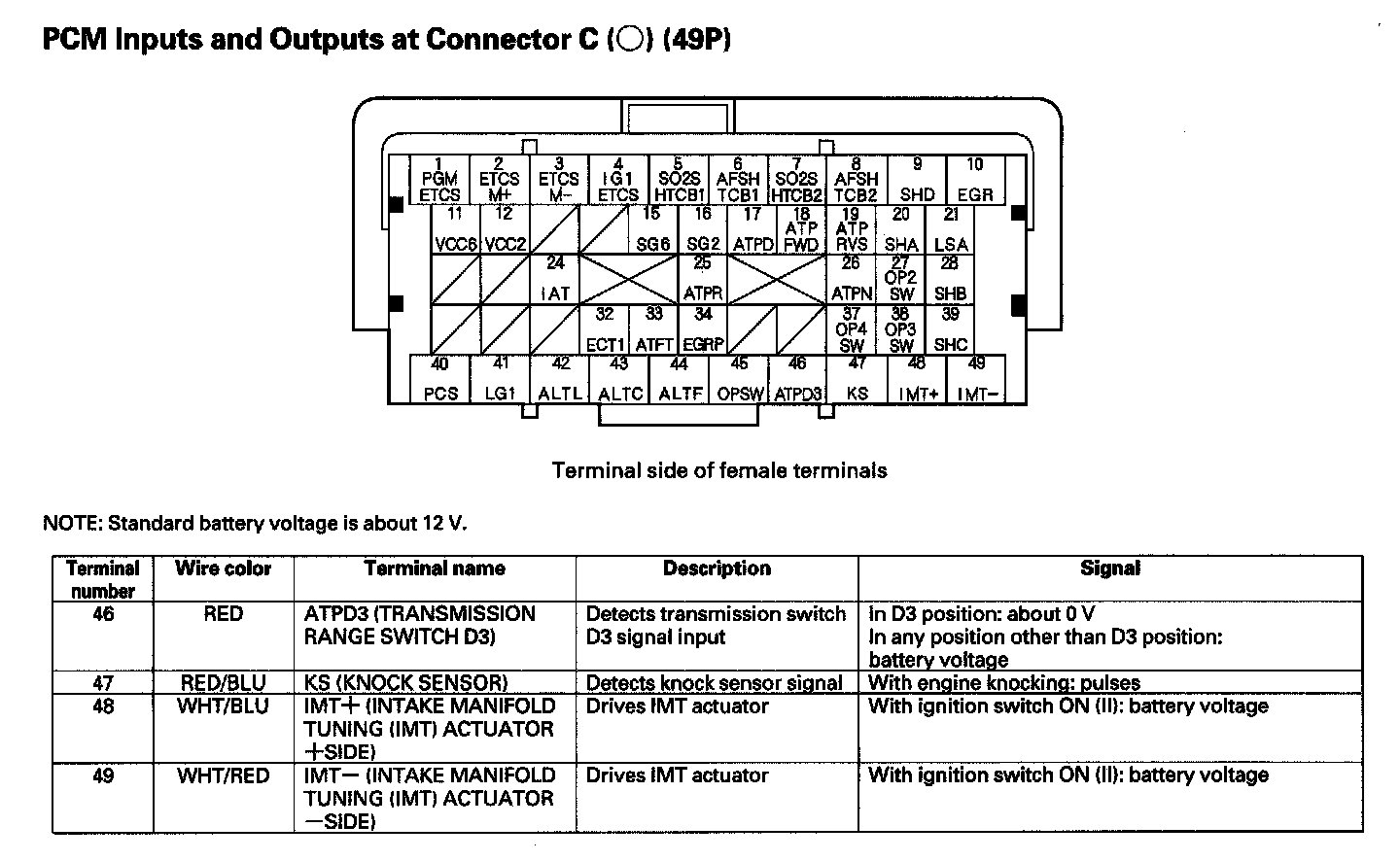

PCM Inputs And Outputs At Connector C (49P) Part 4:

PCM Inputs And Outputs At Connector C (49P) Part 5:
