Home >> Acura >> 2007 >> MDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

VSA Modulator-control Unit Inputs and Outputs for 46P Connector

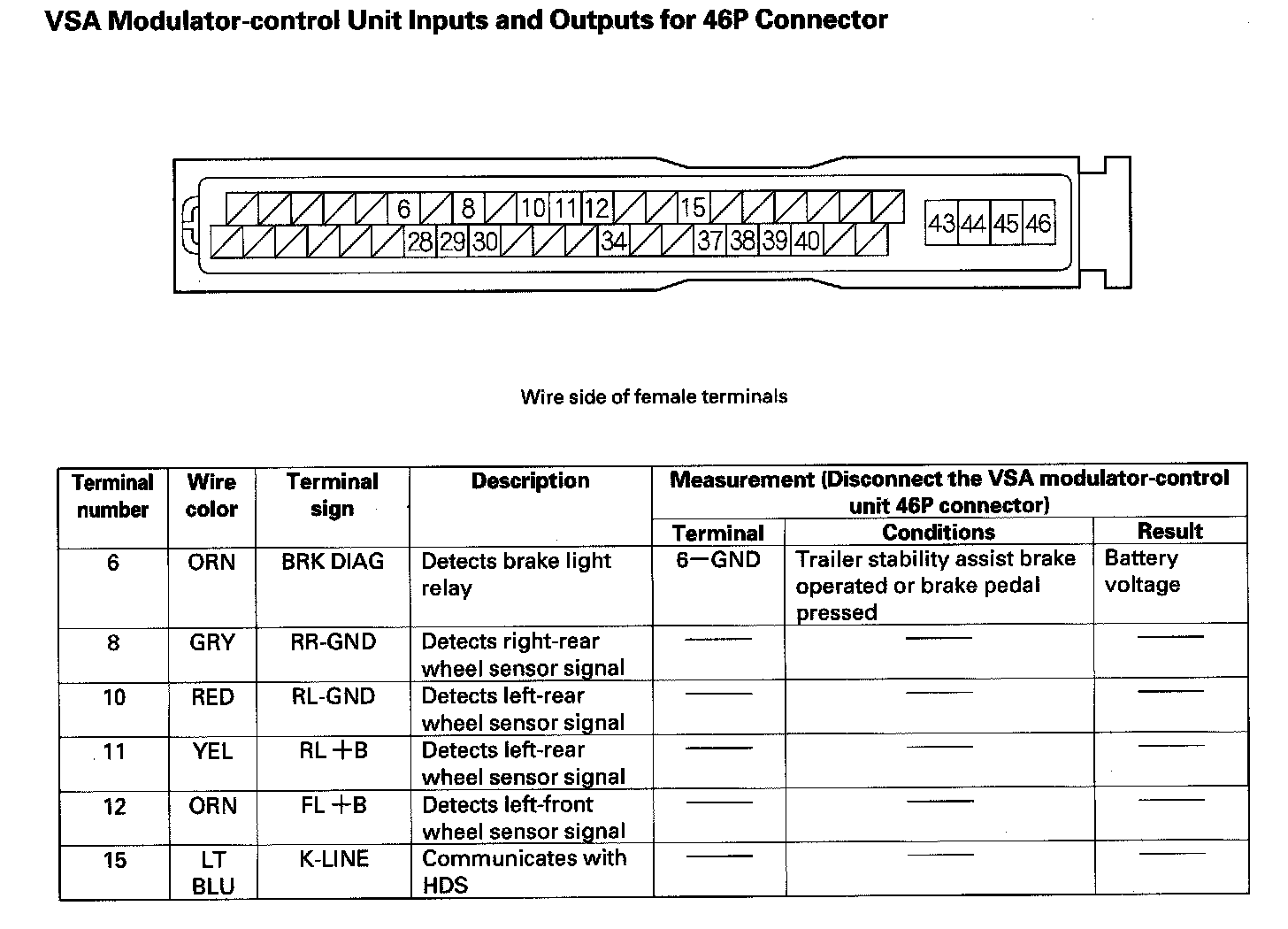

VSA Modulator-control Unit Inputs And Outputs For 46P Connector (Part 1):

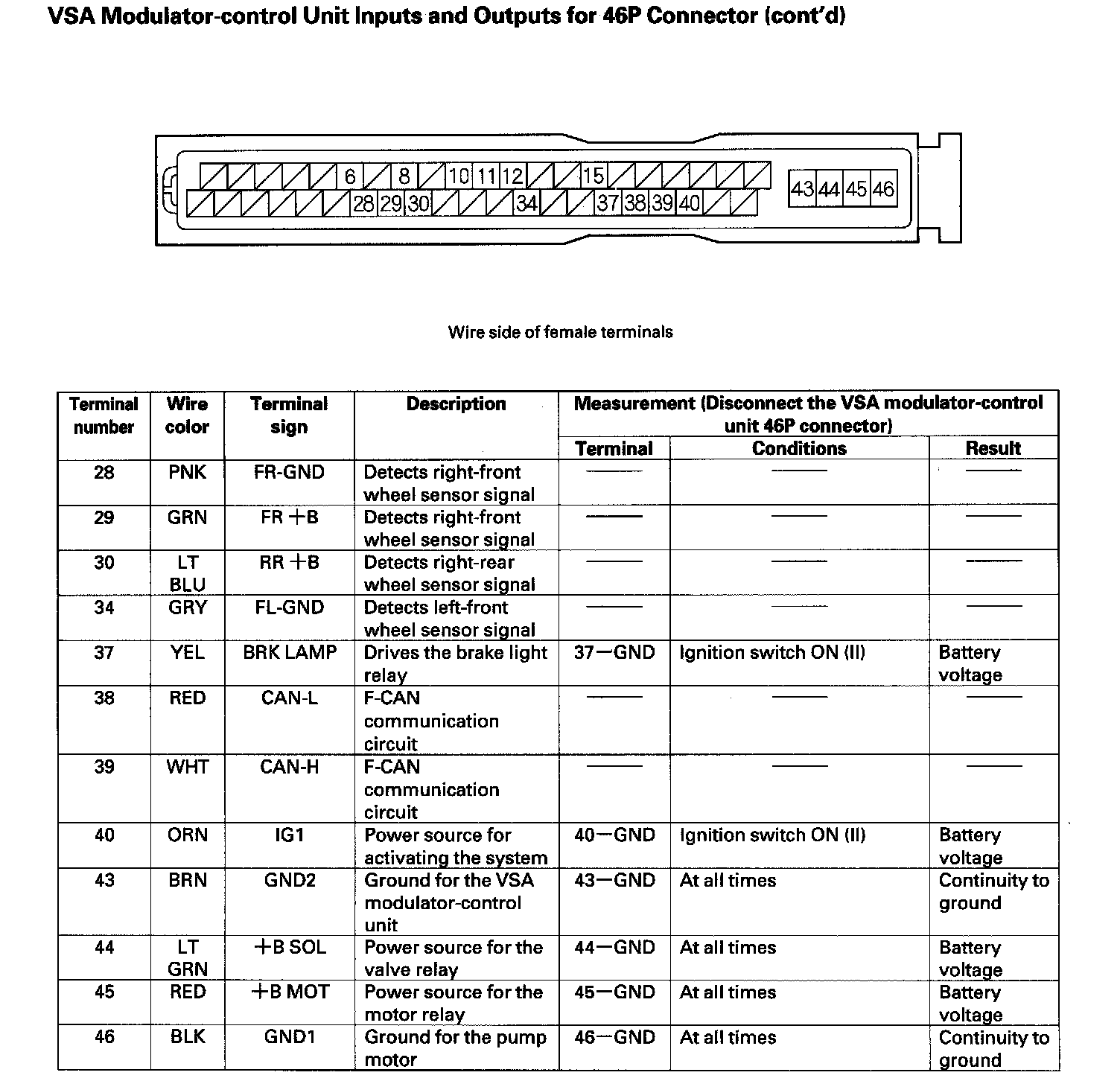

VSA Modulator-control Unit Inputs And Outputs For 46P Connector (Part 2):
