Home >> Acura >> 2006 >> TSX L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Control Module >> Locations

Electronic Throttle Control Module: Locations

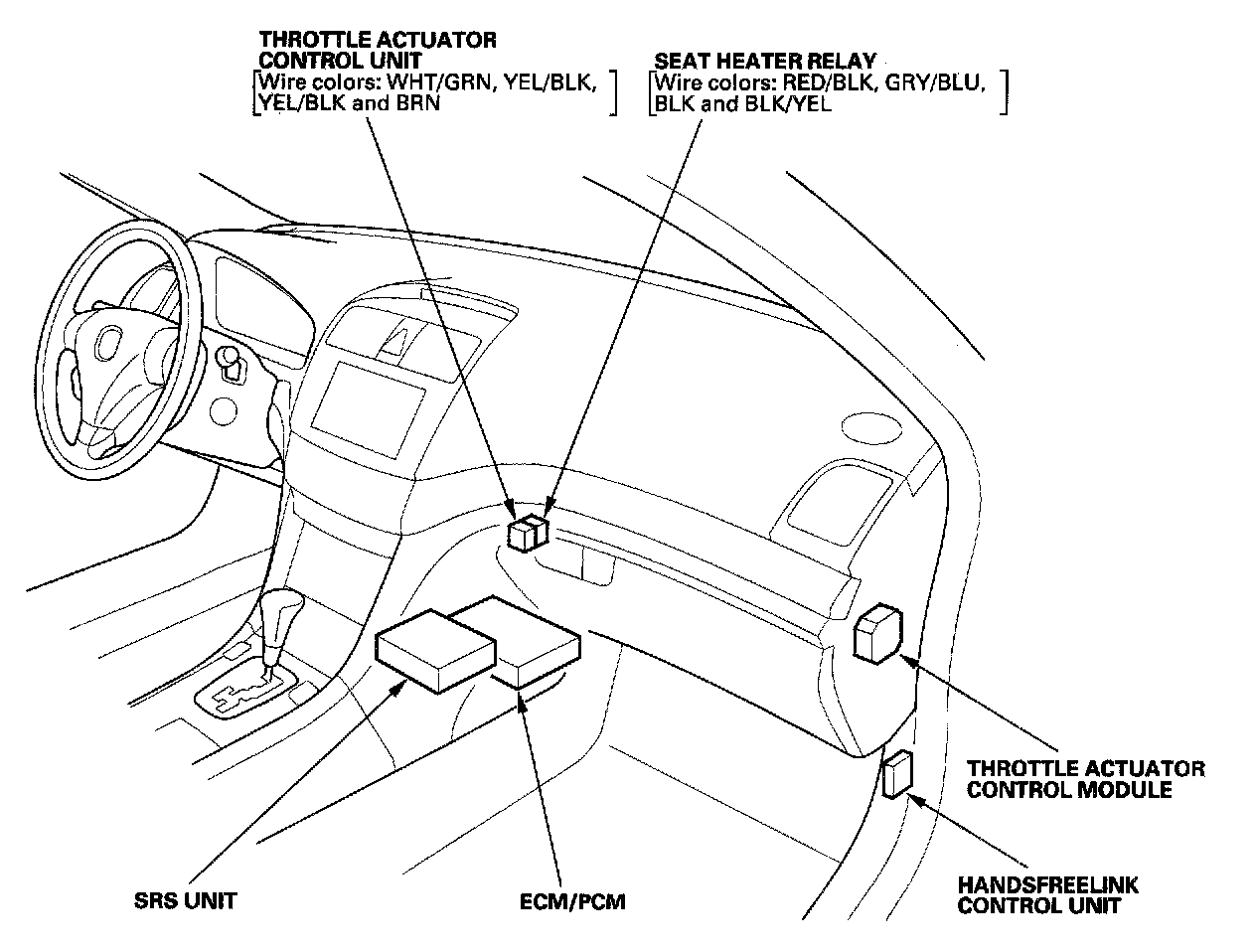

Relay And Control Unit Locations - Dash Board:

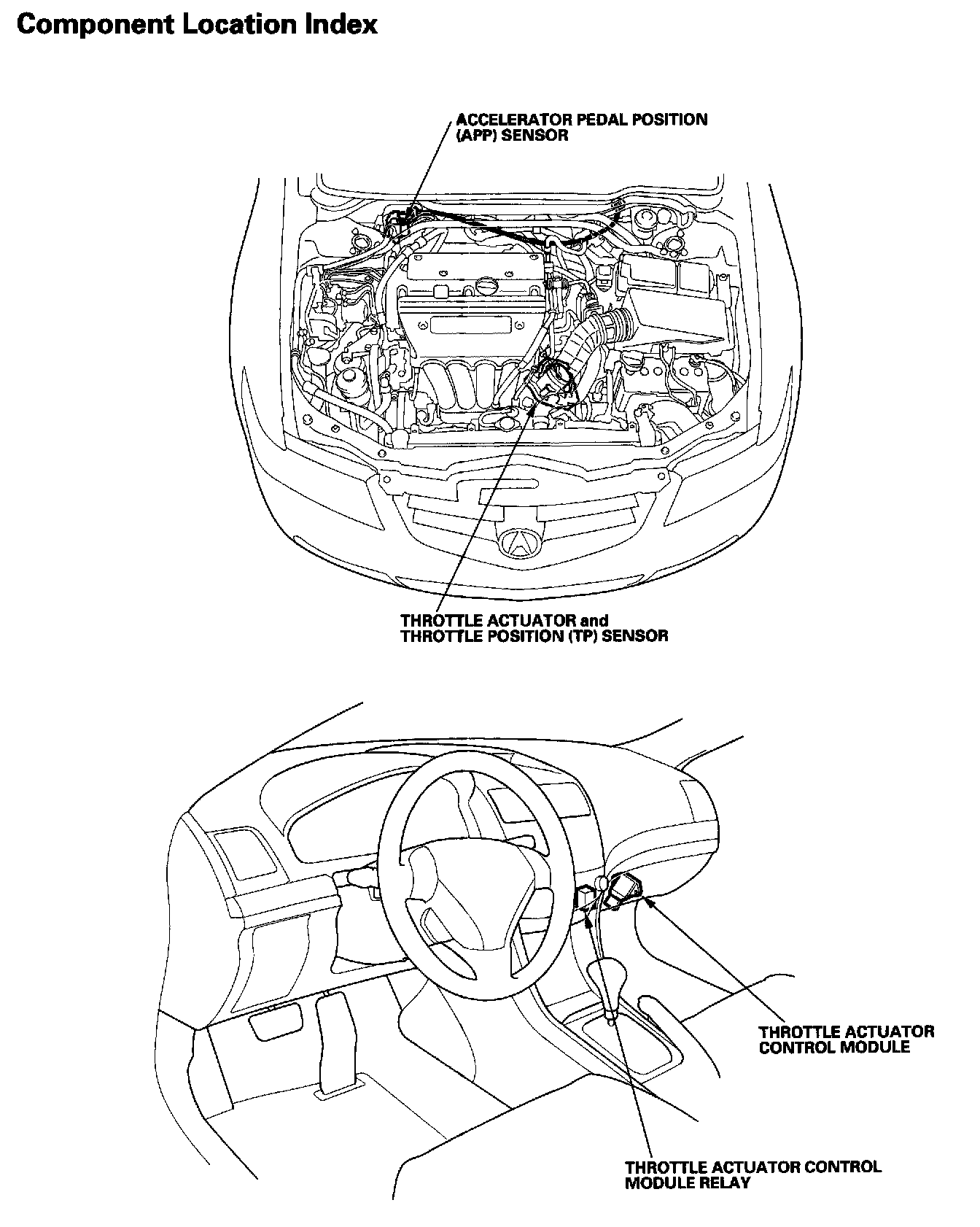

Electronic Throttle Control System - Component Location Index:

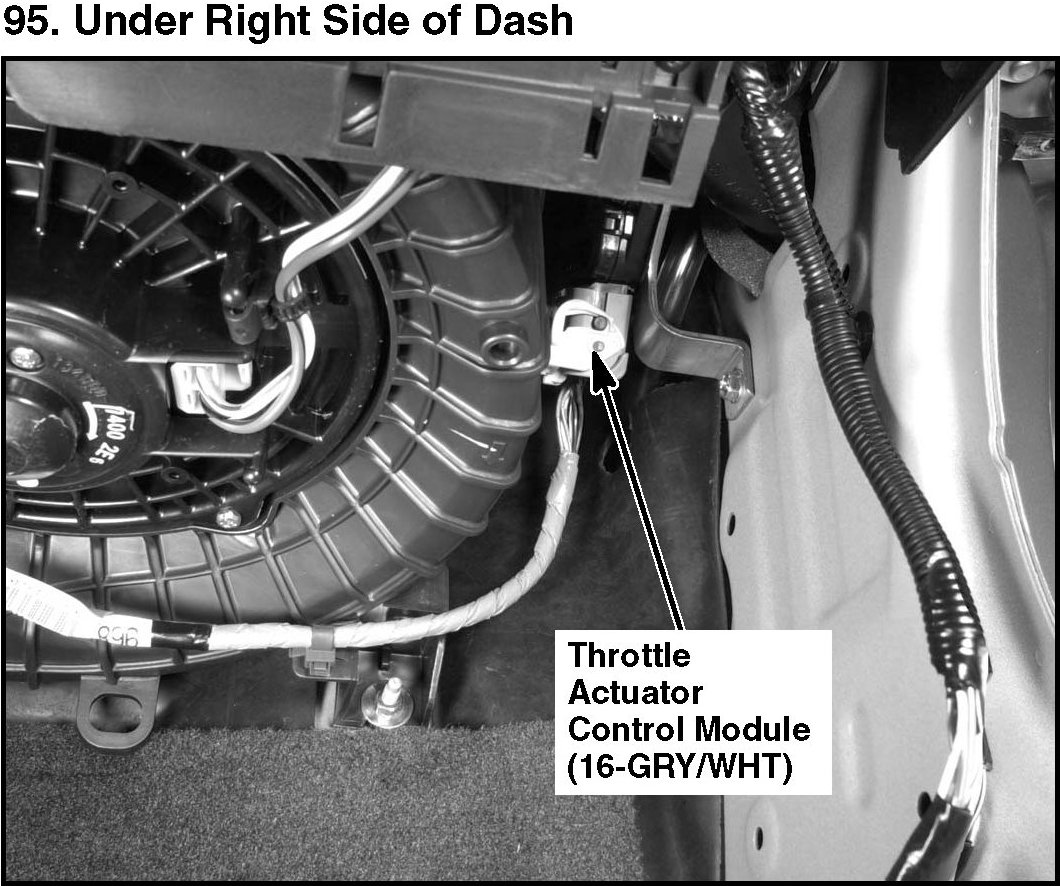

95. Under Right Side Of Dash:
