Electronic Brake Control Module
Electronic Brake Control Module

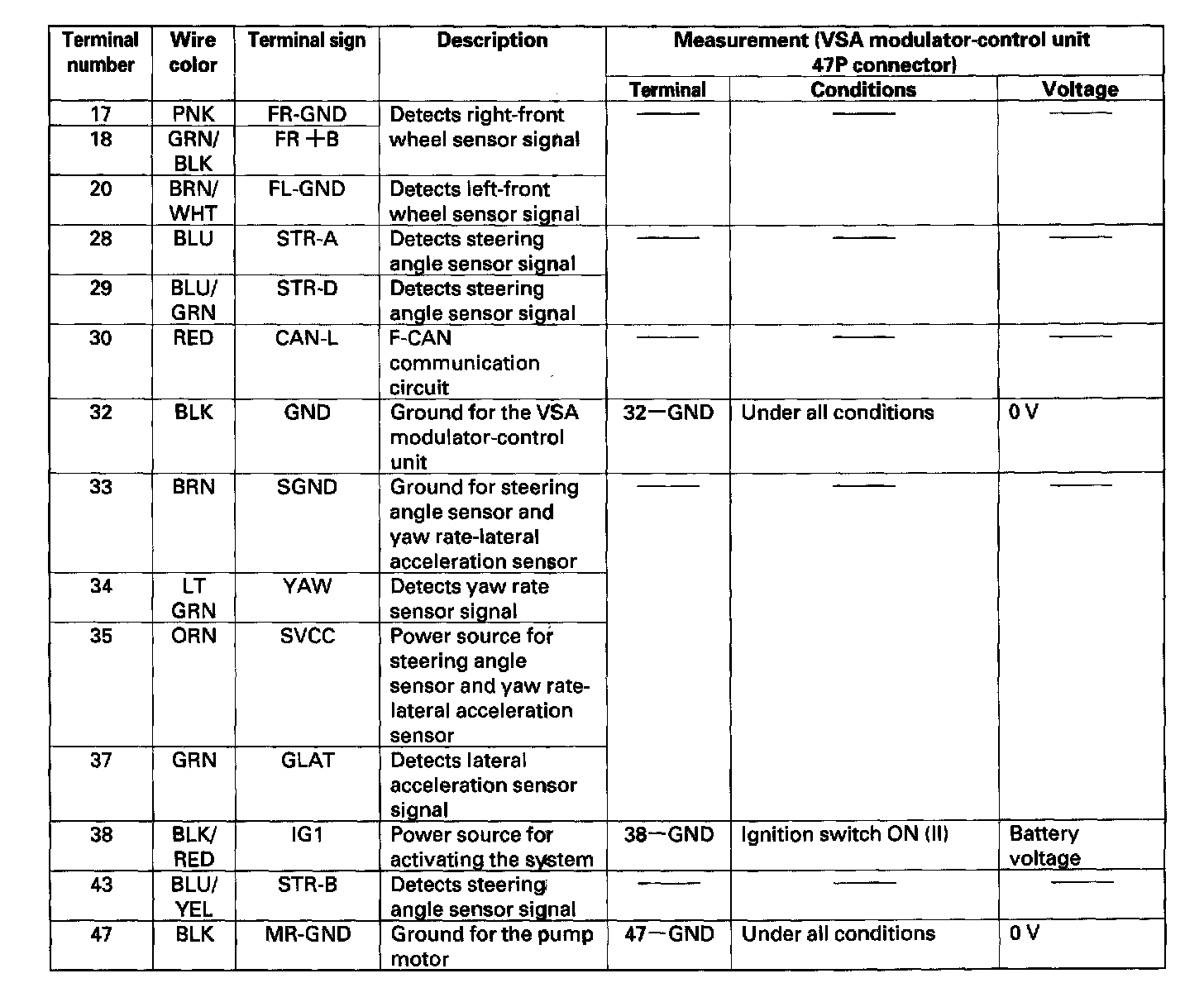

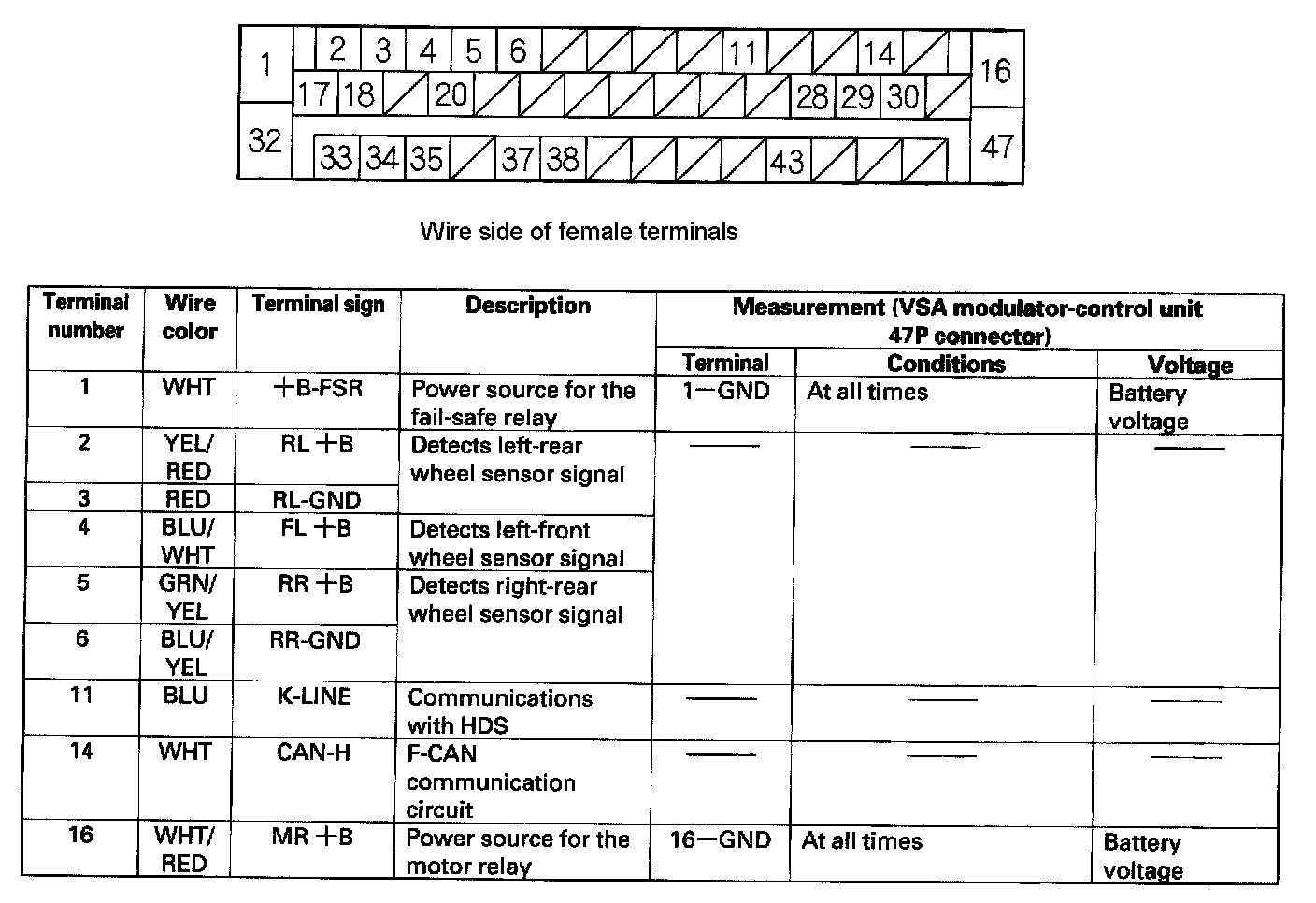

VSA Modulator-control Unit Inputs and Outputs for 47P Connector:
VSA Modulator-control Unit Inputs and Outputs for 47P Connector:
