Home >> Acura >> 2006 >> TL V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tire Pressure Module >> Wiring Data

Wiring Data

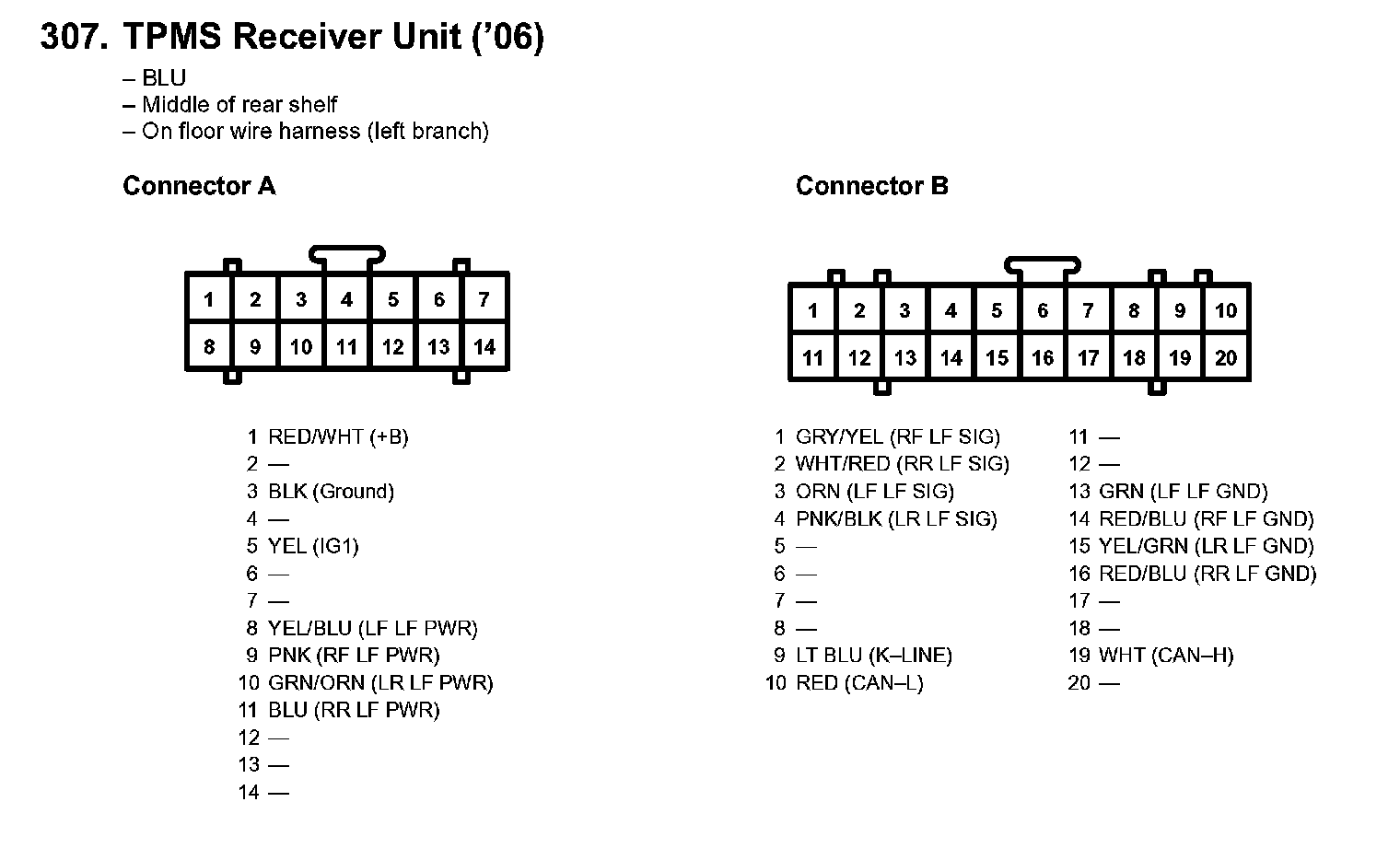

307. TPMS Receiver Unit:
