Control Assembly, HVAC
Control Assembly, HVAC

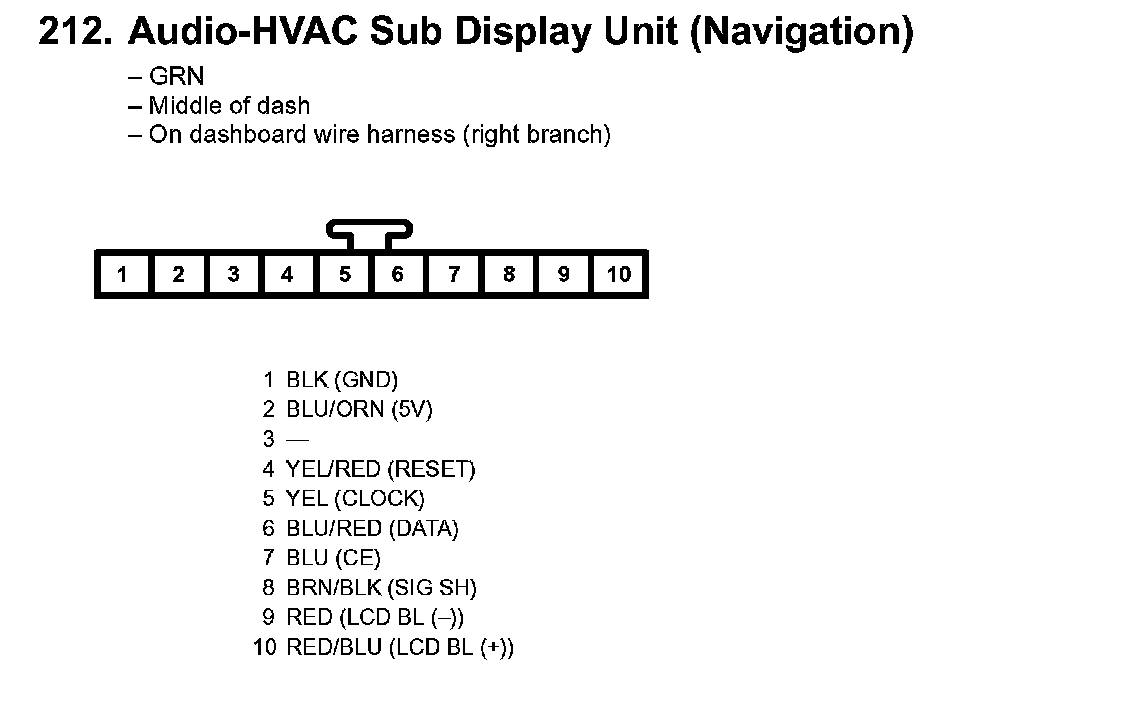

212. Audio-HVAC Sub Display Unit (Navigation):

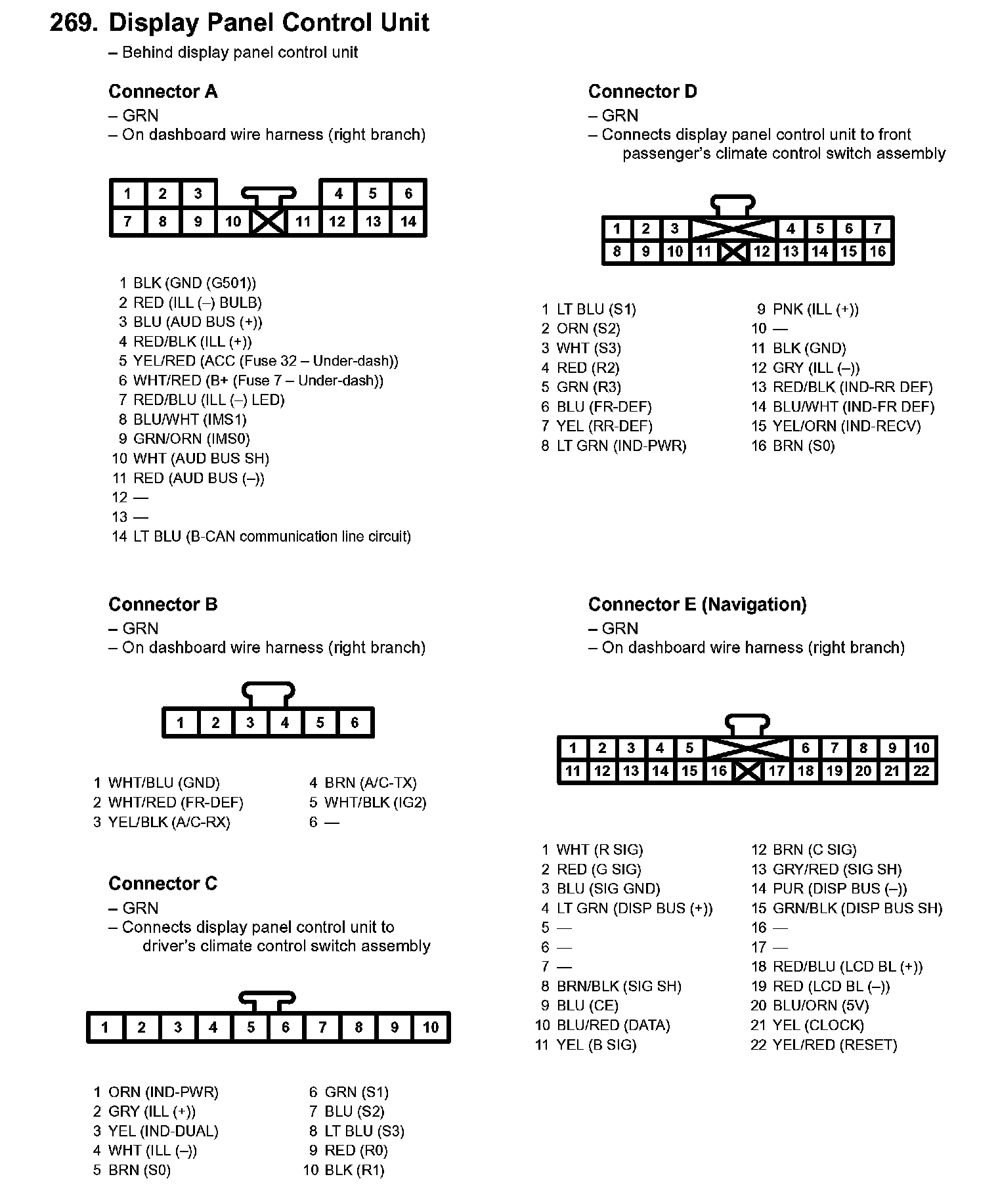

269. Display Panel Control Unit:
