Main Relay (Computer/Fuel System): Testing and Inspection

Power Relay Test

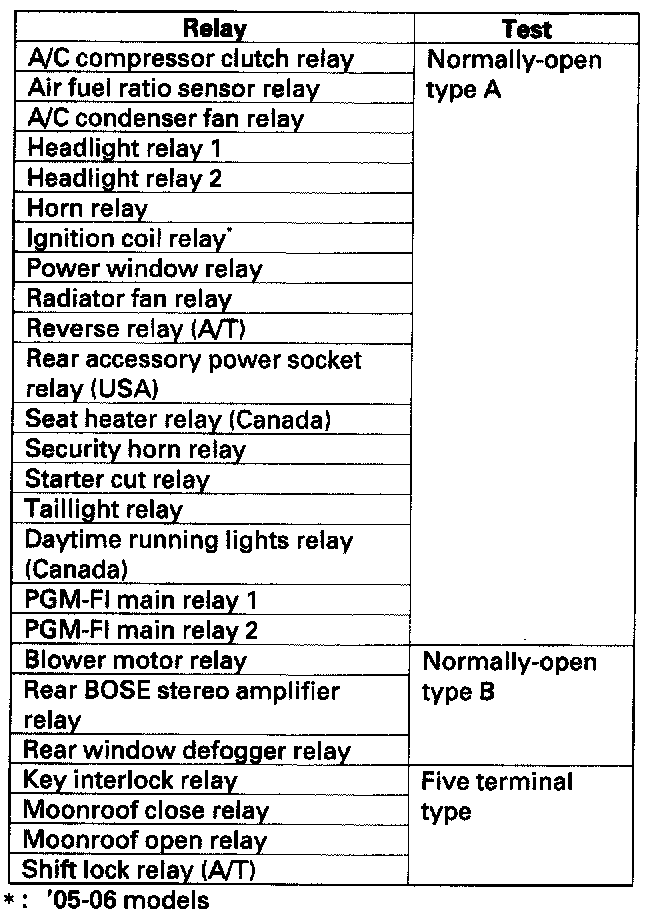

Use this chart to identify the type of relay, then do the test listed for it.

NOTE: For the turn signal/hazard relay input test.

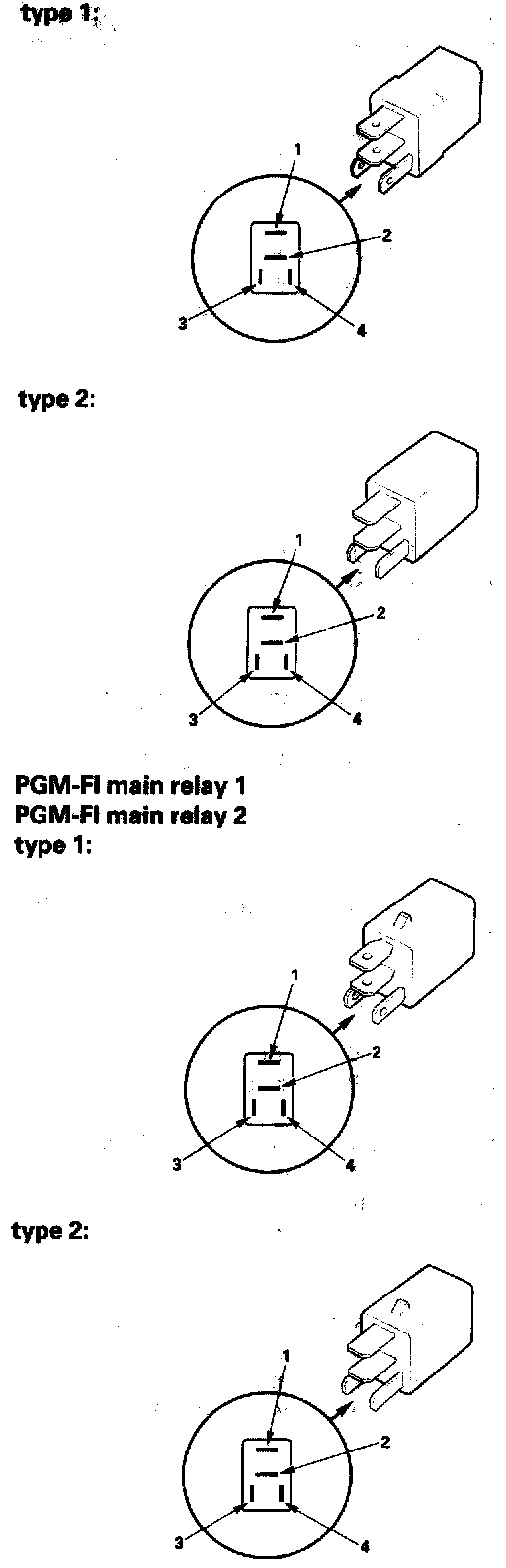

Normally-open type A

Check for continuity between the terminals.

- There should be continuity between the No. and No.2 terminals when power and ground are connected to the No.3 and No.4 terminals.
- There should be no continuity between the No.1 and No.2 terminals when power is disconnected.
