Home >> Acura >> 2006 >> RSX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine Lubrication

Engine Lubrication

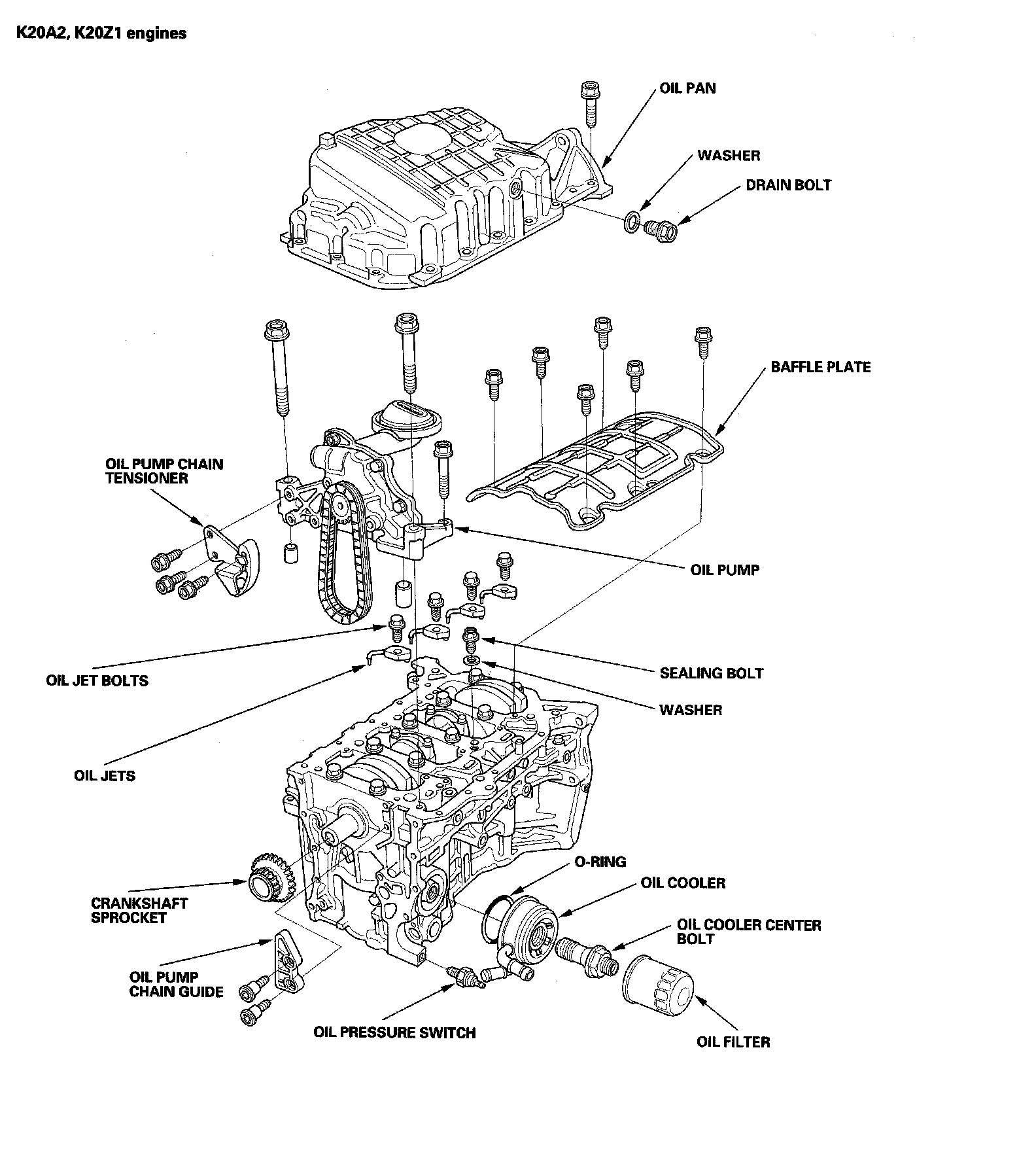

Engine Lubrication Component Location Index:

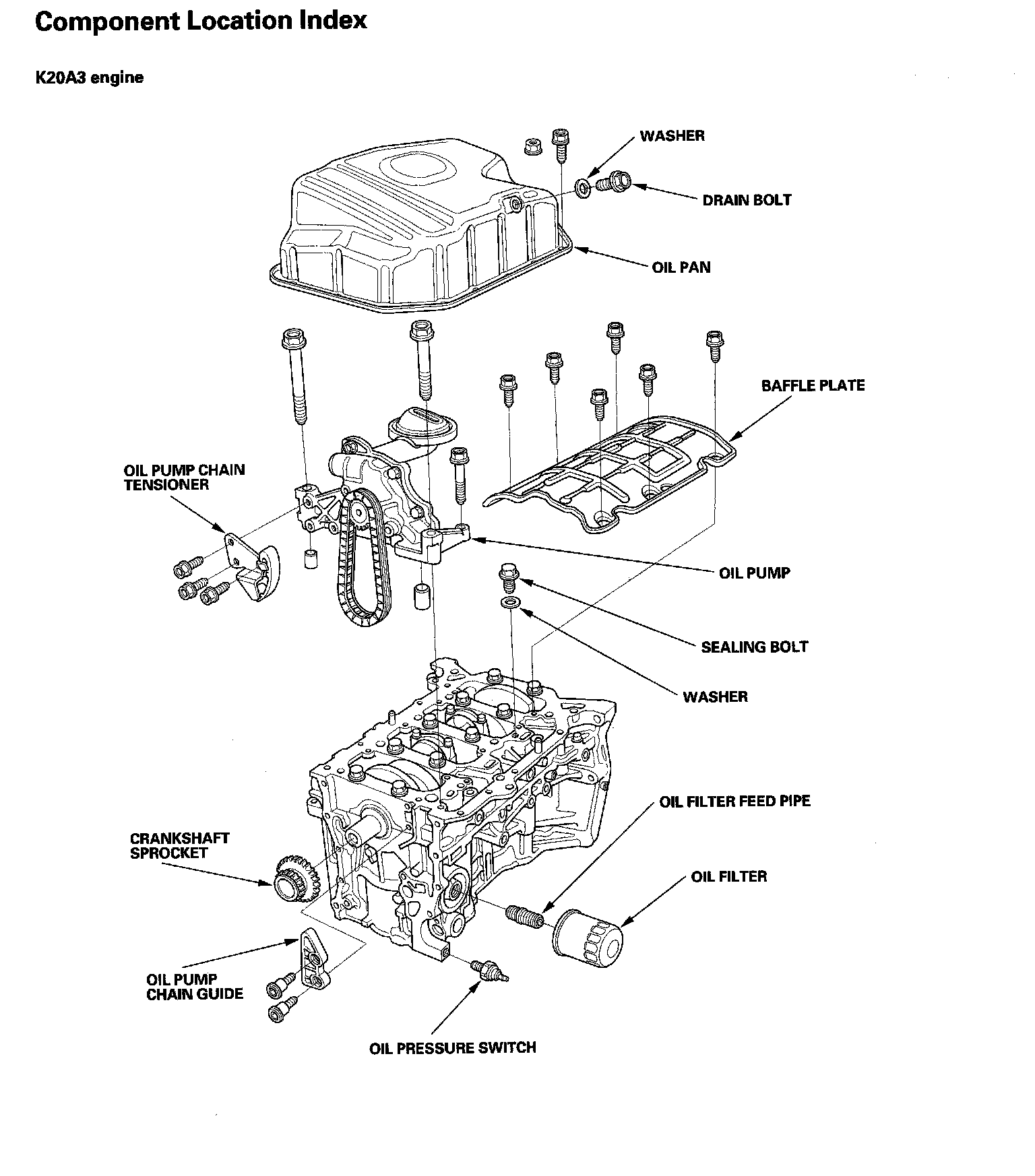

Engine Lubrication Component Location Index:
