Cylinder Block Assembly
Cylinder Block Assembly

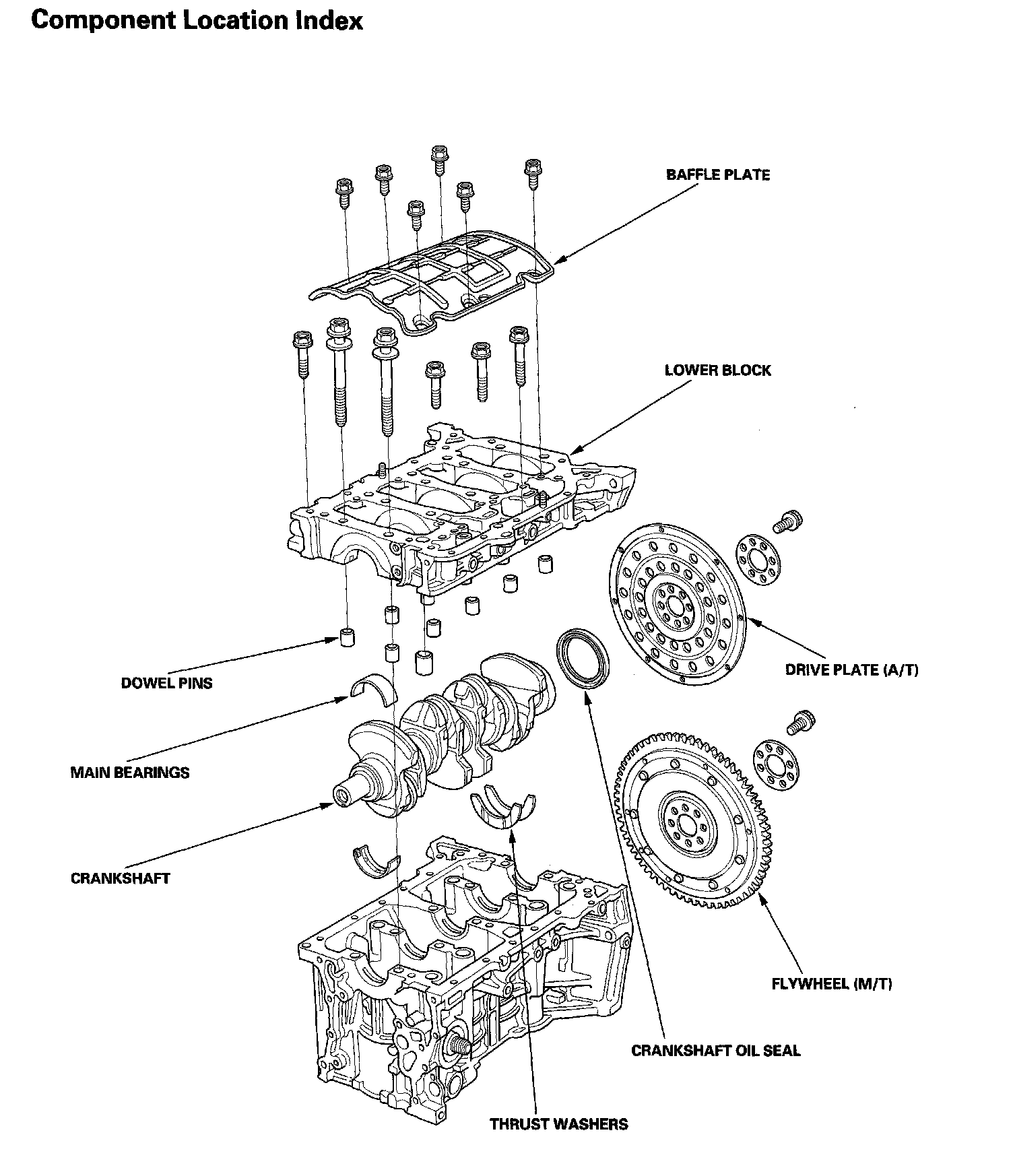

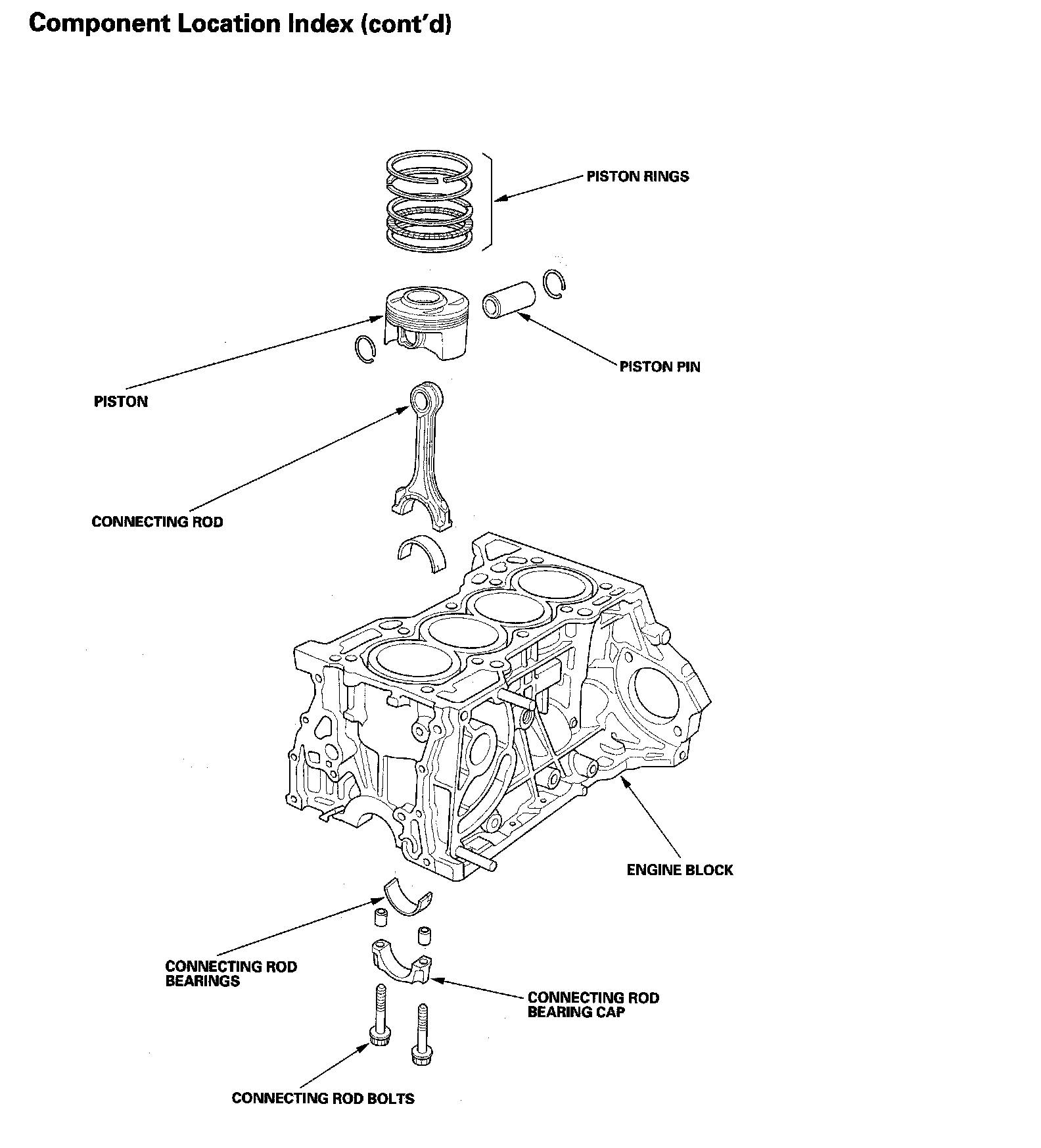

Engine Block Component Location Index:
Engine Block Component Location Index:
