Home >> Acura >> 2006 >> MDX V6-3.5L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Diagrams

Wiper Control Module: Diagrams

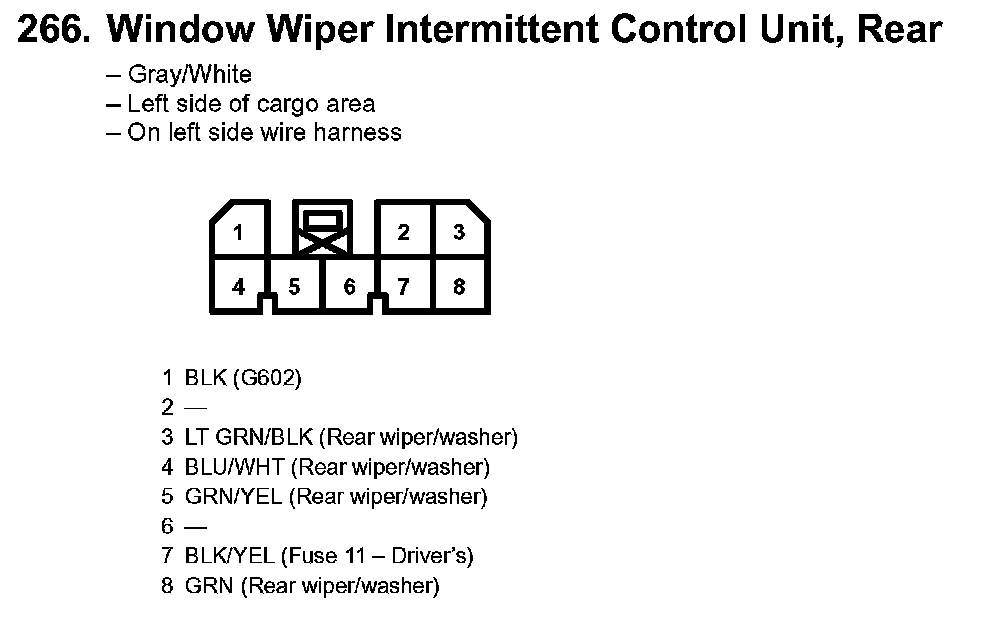

266. Window Wiper Intermittent Control Unit, Rear:

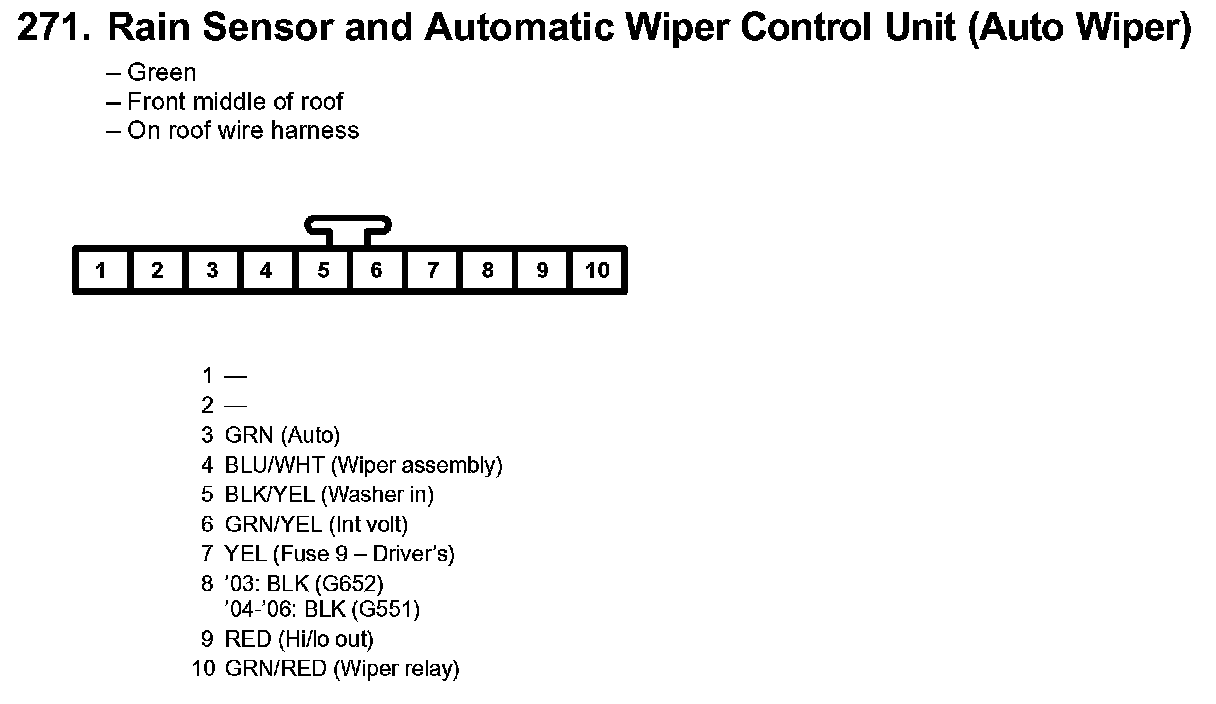

271. Rain Sensor And Automatic Wiper Control Unit (Auto Wiper):
