Climate Control Panel

Climate Control Panel Removal and Installation

1. Remove the dashboard center panel.

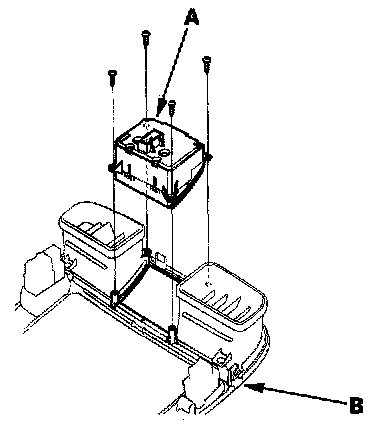

2. Remove the self-tapping screws and the climate control panel (A) from the center panel (B).
3. Install the control panel in the reverse order of removal. After installation, operate the control panel controls to see if they work properly.
4. Run the self-diagnostic function to confirm that there are no problems in the system.
