Trailer Lighting Module
Trailer Lighting Module

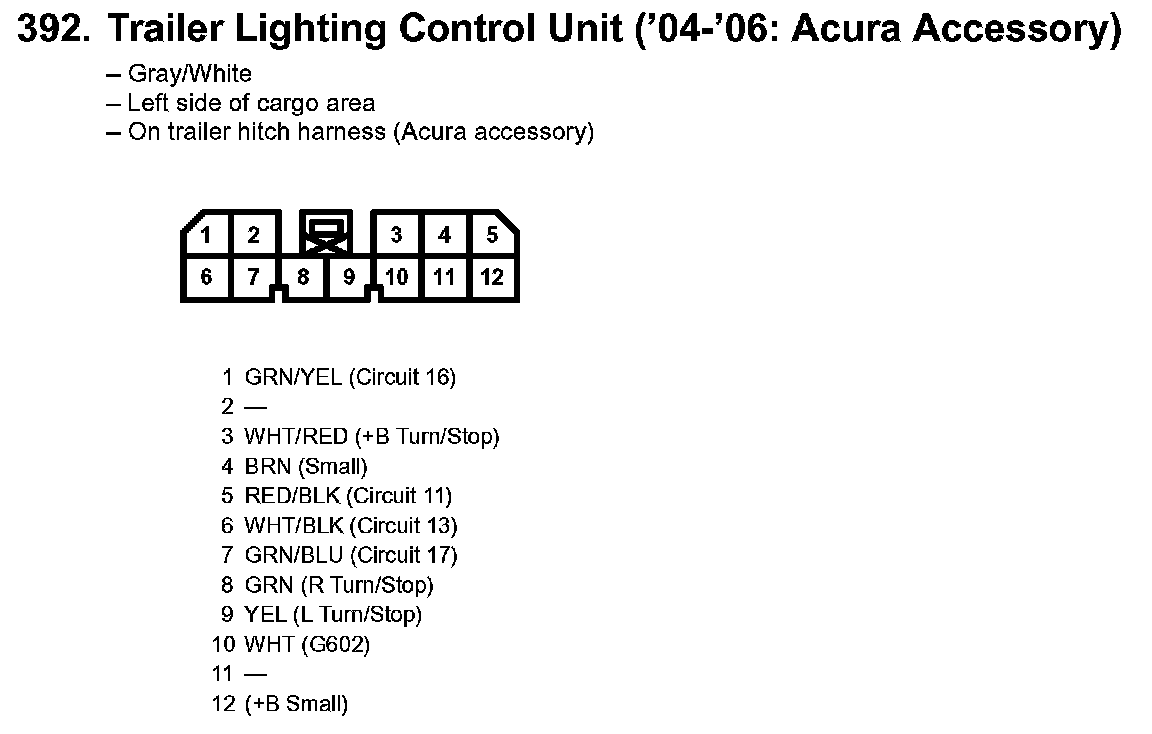

392. Trailer Lighting Control Unit ('04-'06: Acura Accessory):
