Home >> Acura >> 2006 >> MDX V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module

Power Seat Control Module

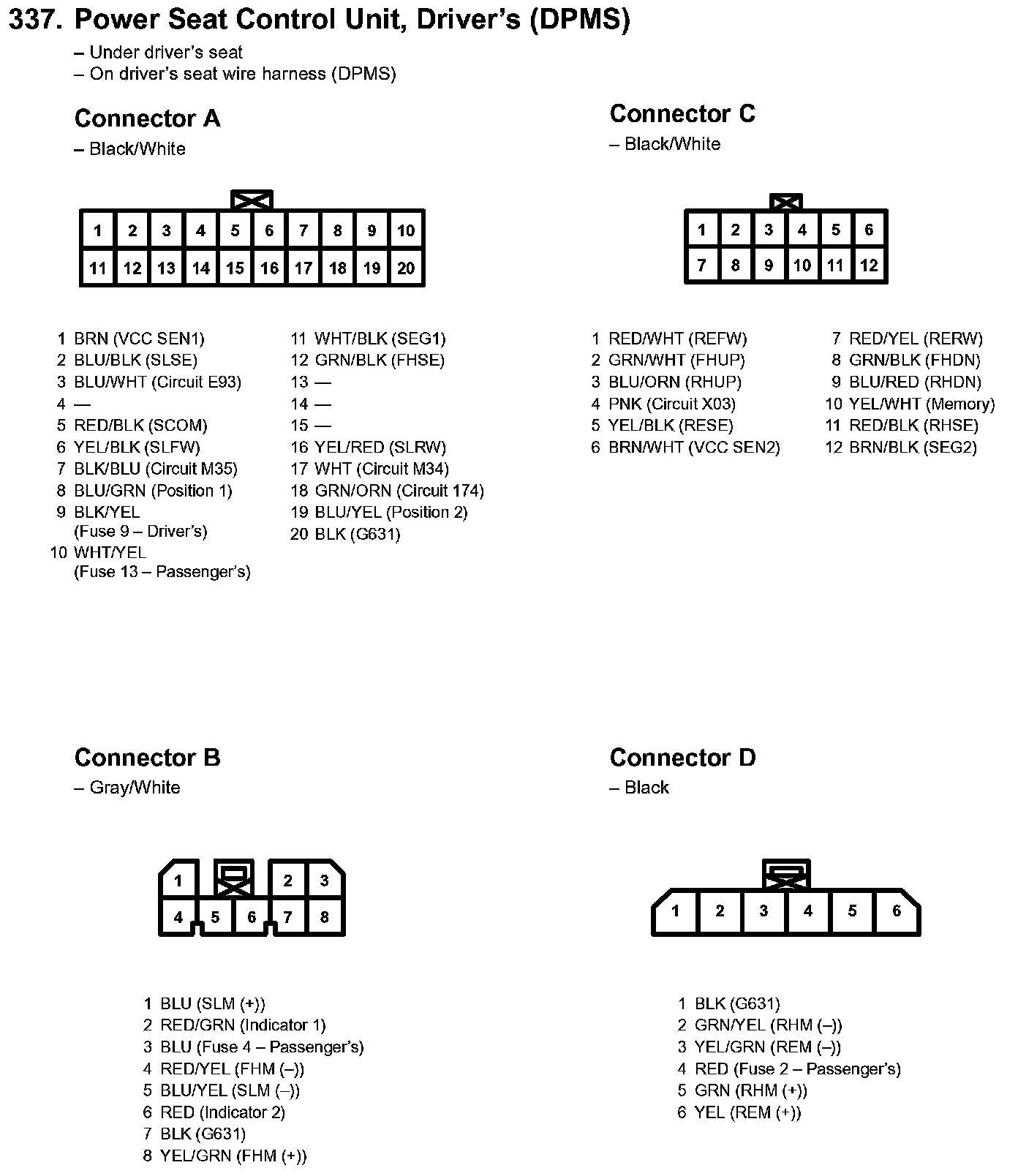

337. Power Seat Control Unit, Driver's (DPMS):
