PCM Inputs and Outputs

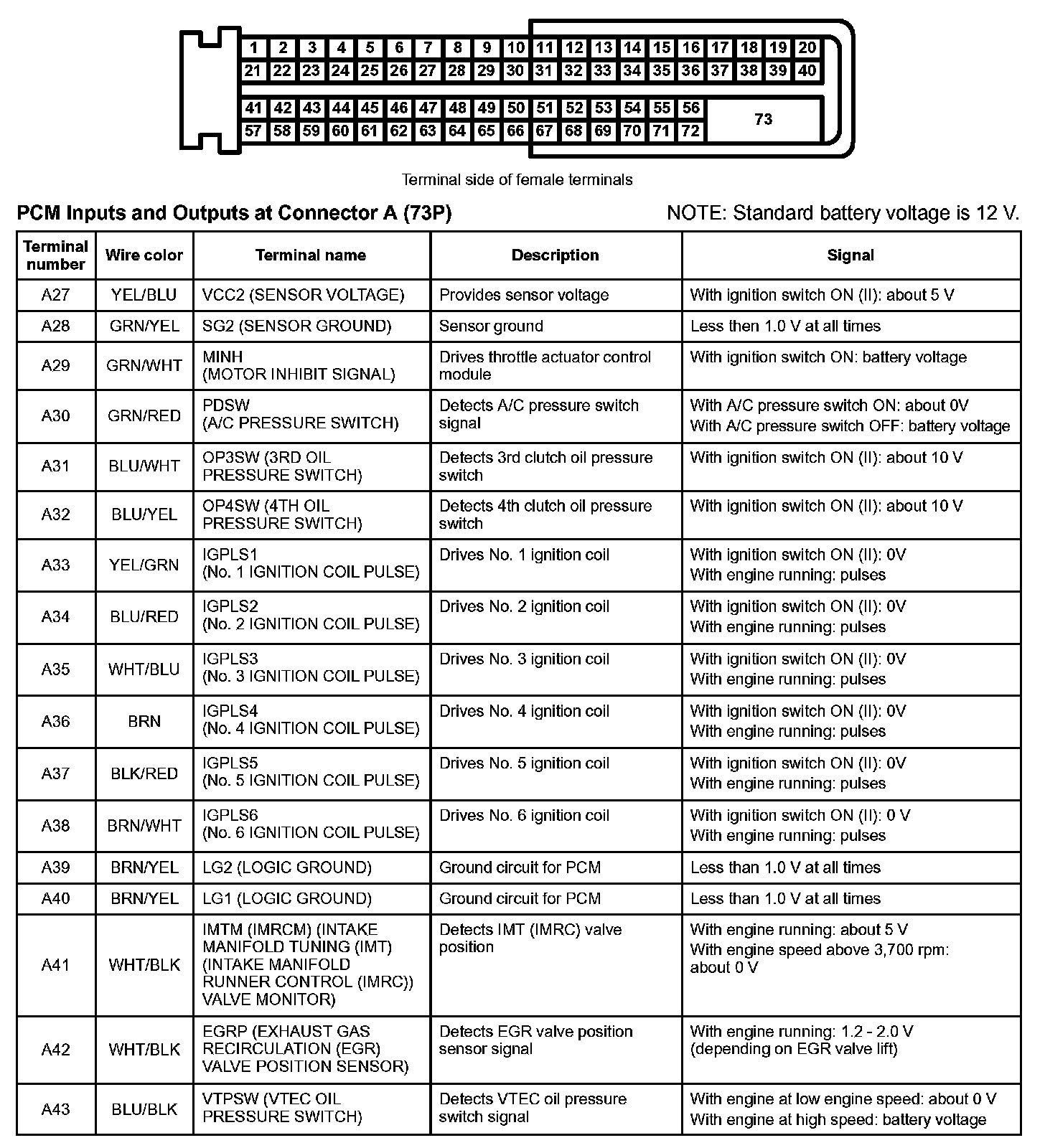

PCM Inputs And Outputs at Connector A (73P) Part 1:

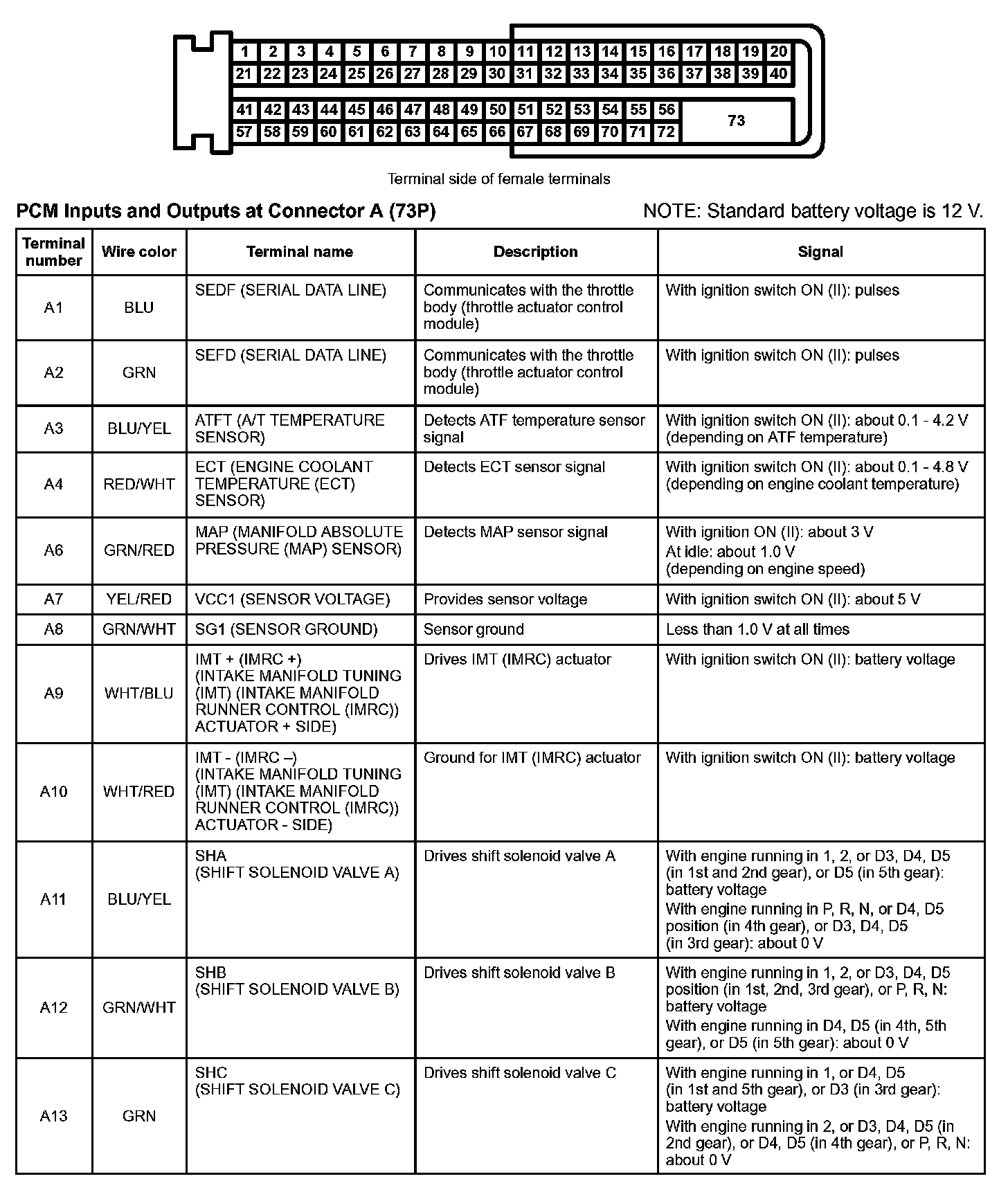

PCM Inputs And Outputs At Connector A (73P) Part 2:

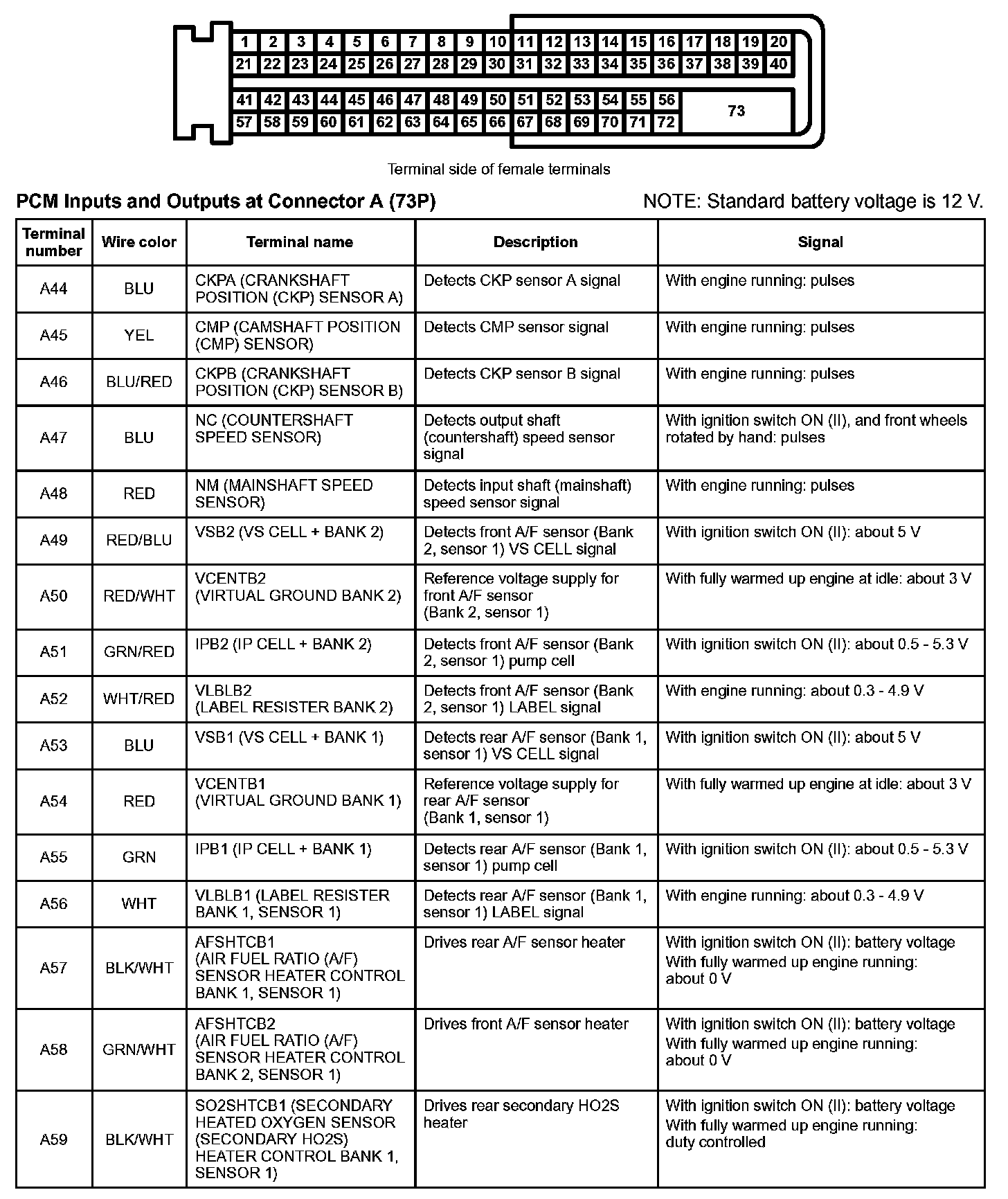

PCM Inputs And Outputs At Connector A (73P) Part 3:

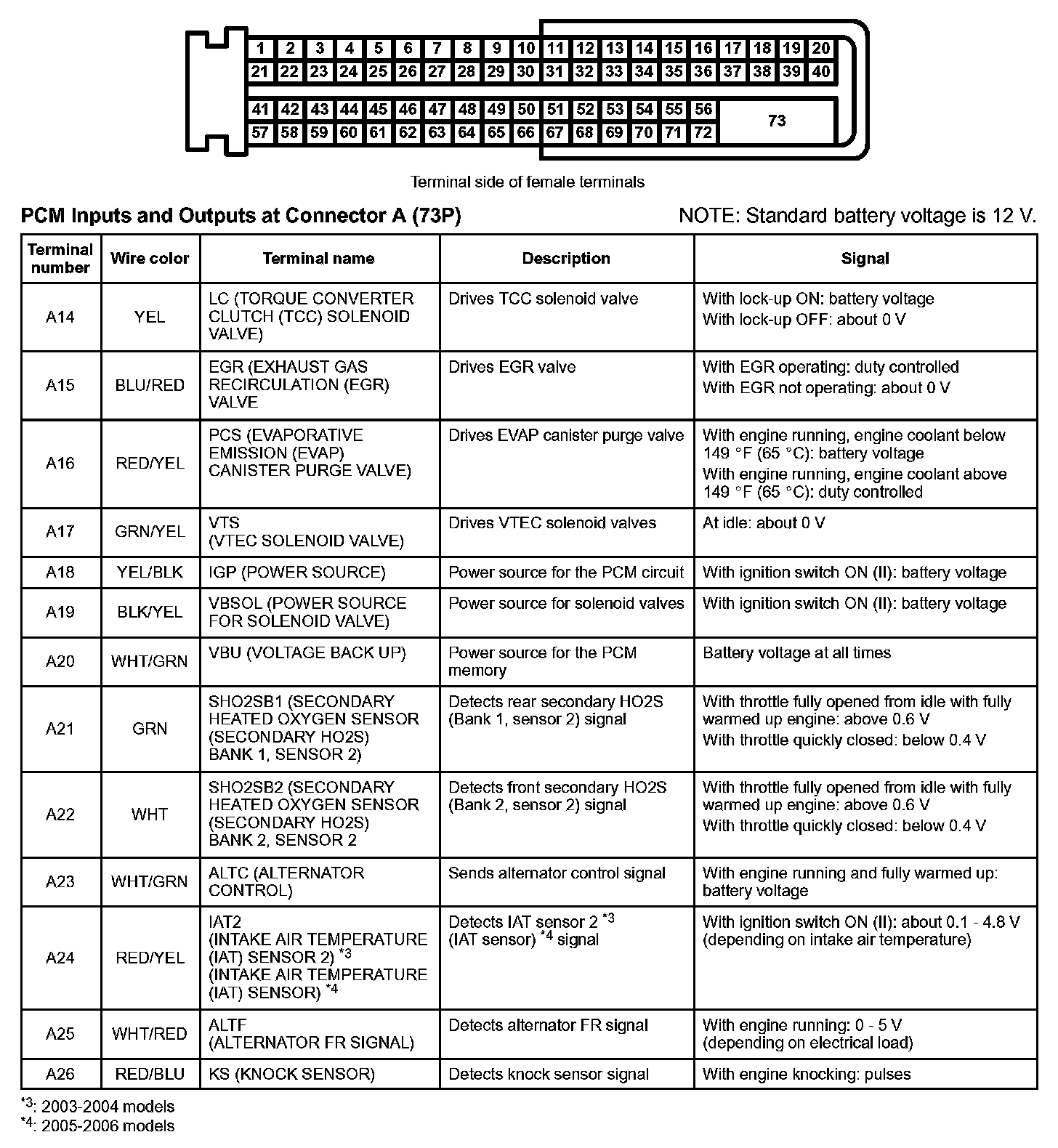

PCM Inputs And Outputs At Connector A (73P) Part 4:

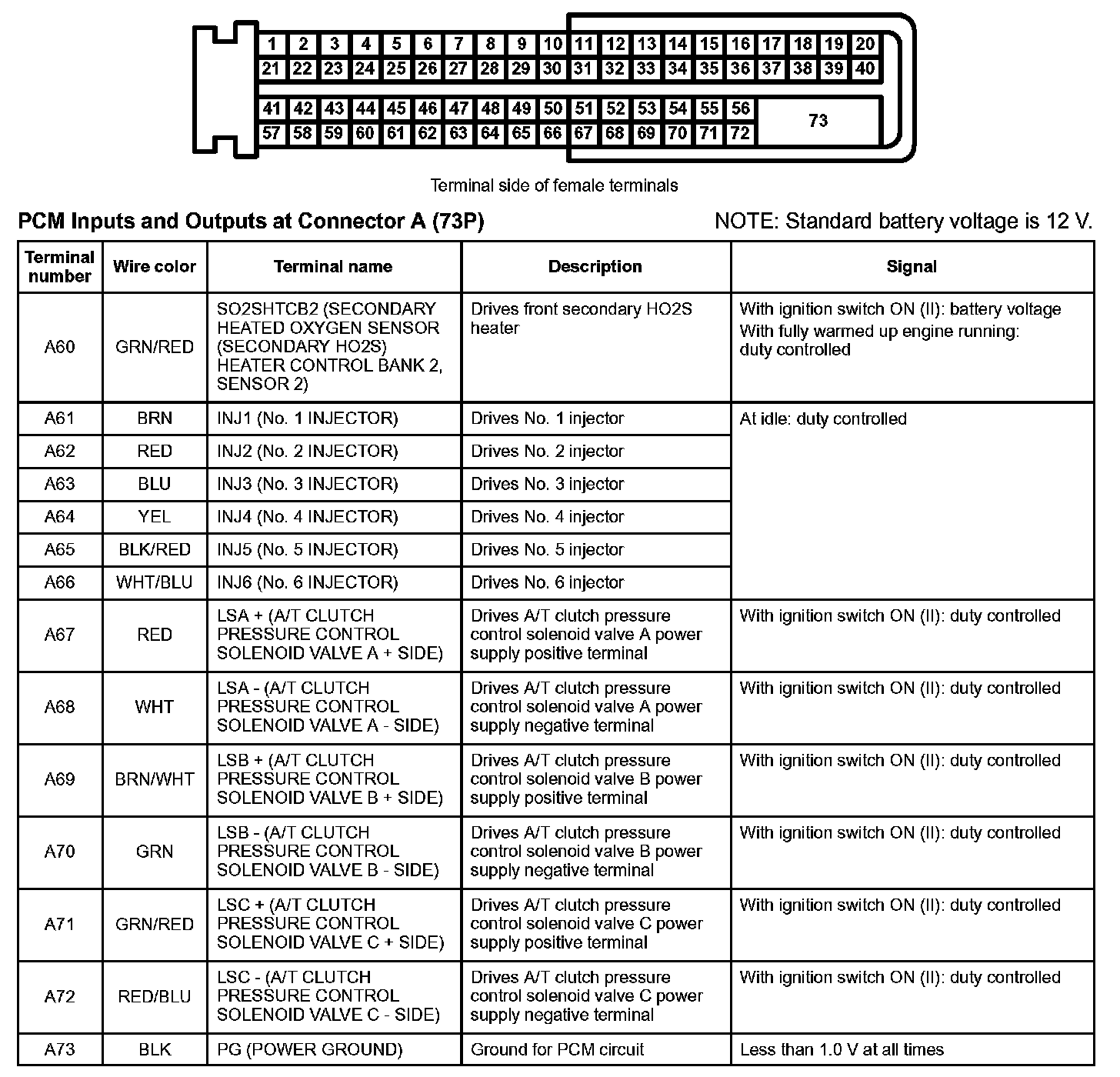

PCM Inputs And Outputs At Connector A (73P) Part 5:

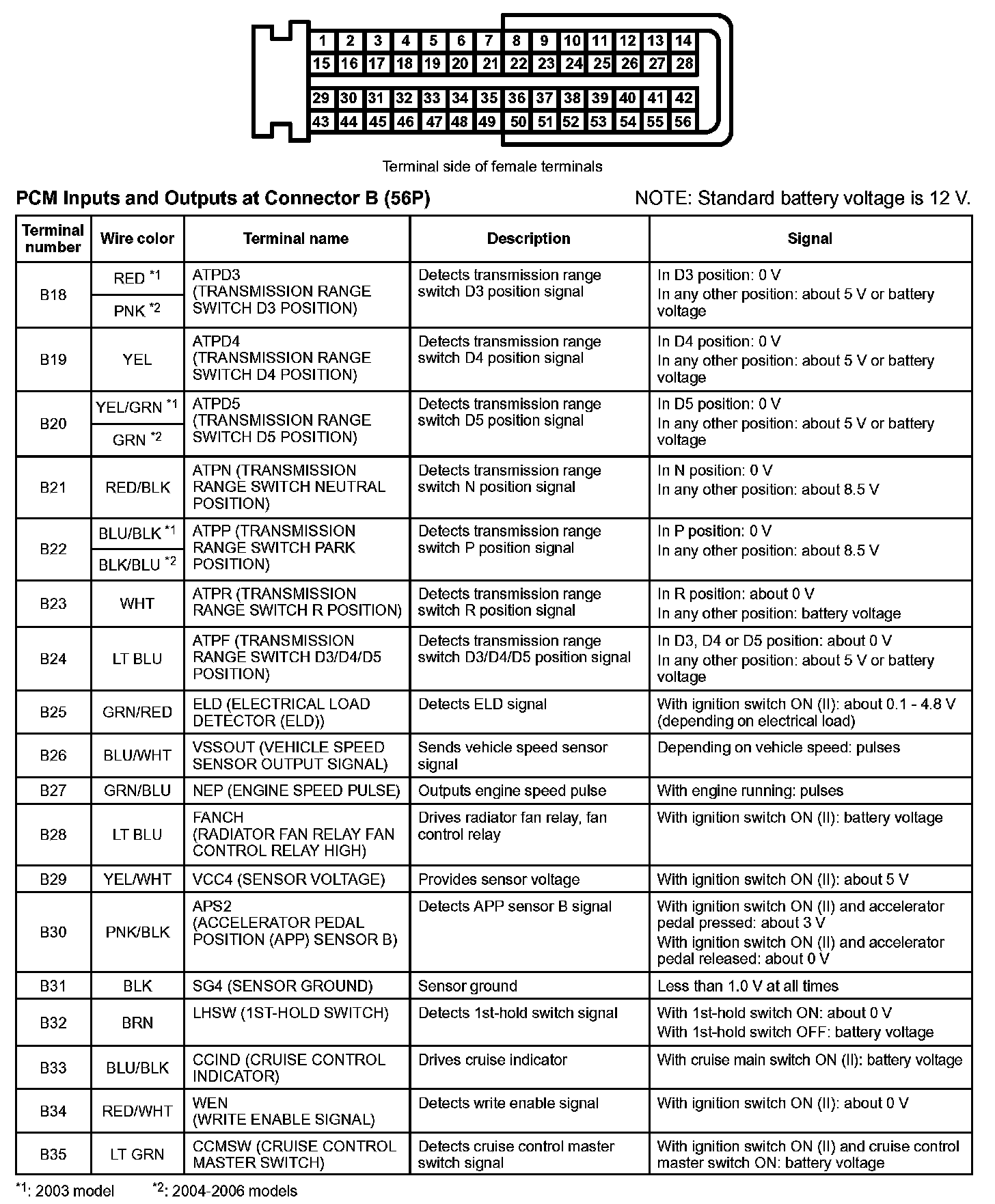

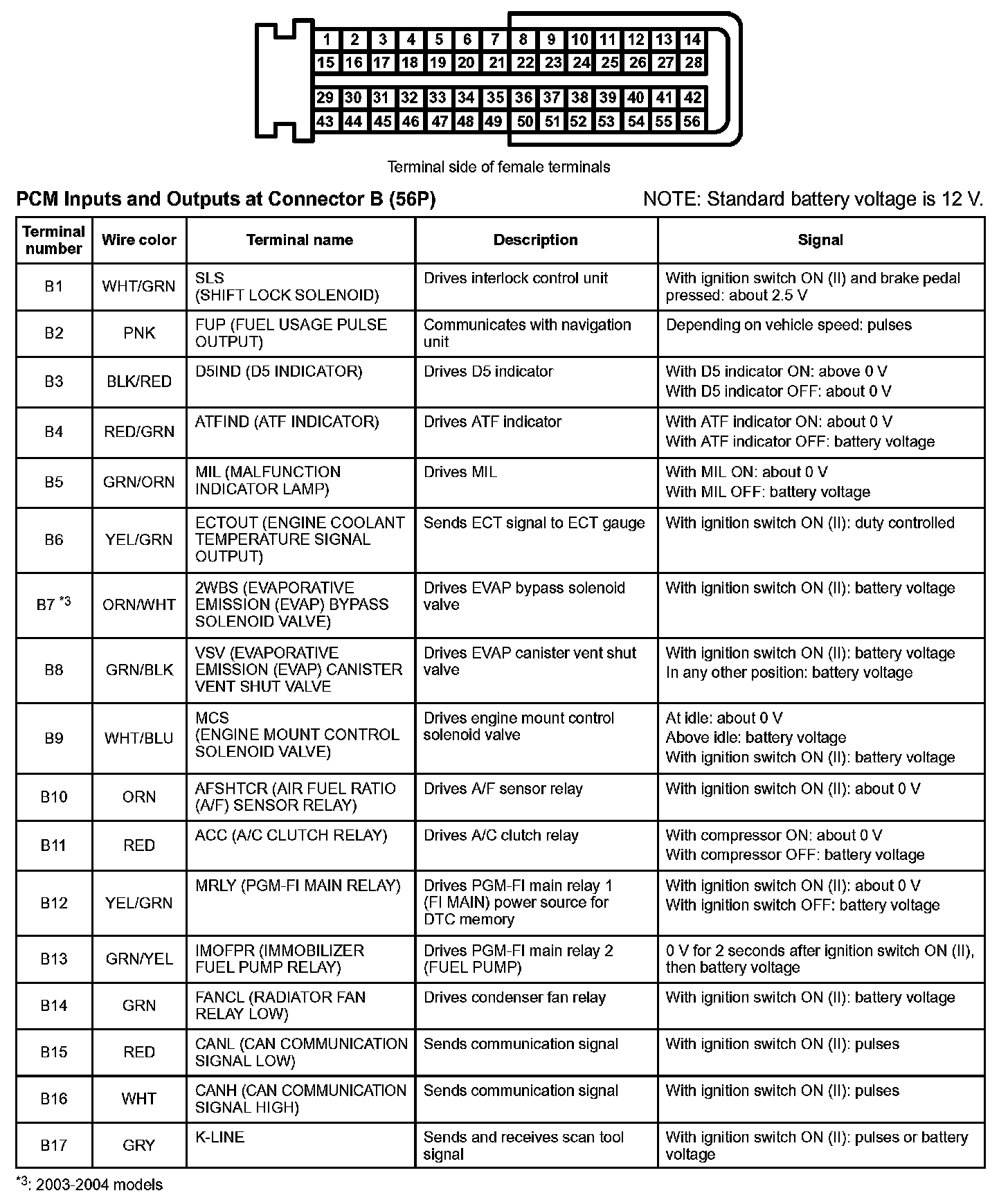

PCM Inputs And Outputs At Connector B (56P) Part 1:

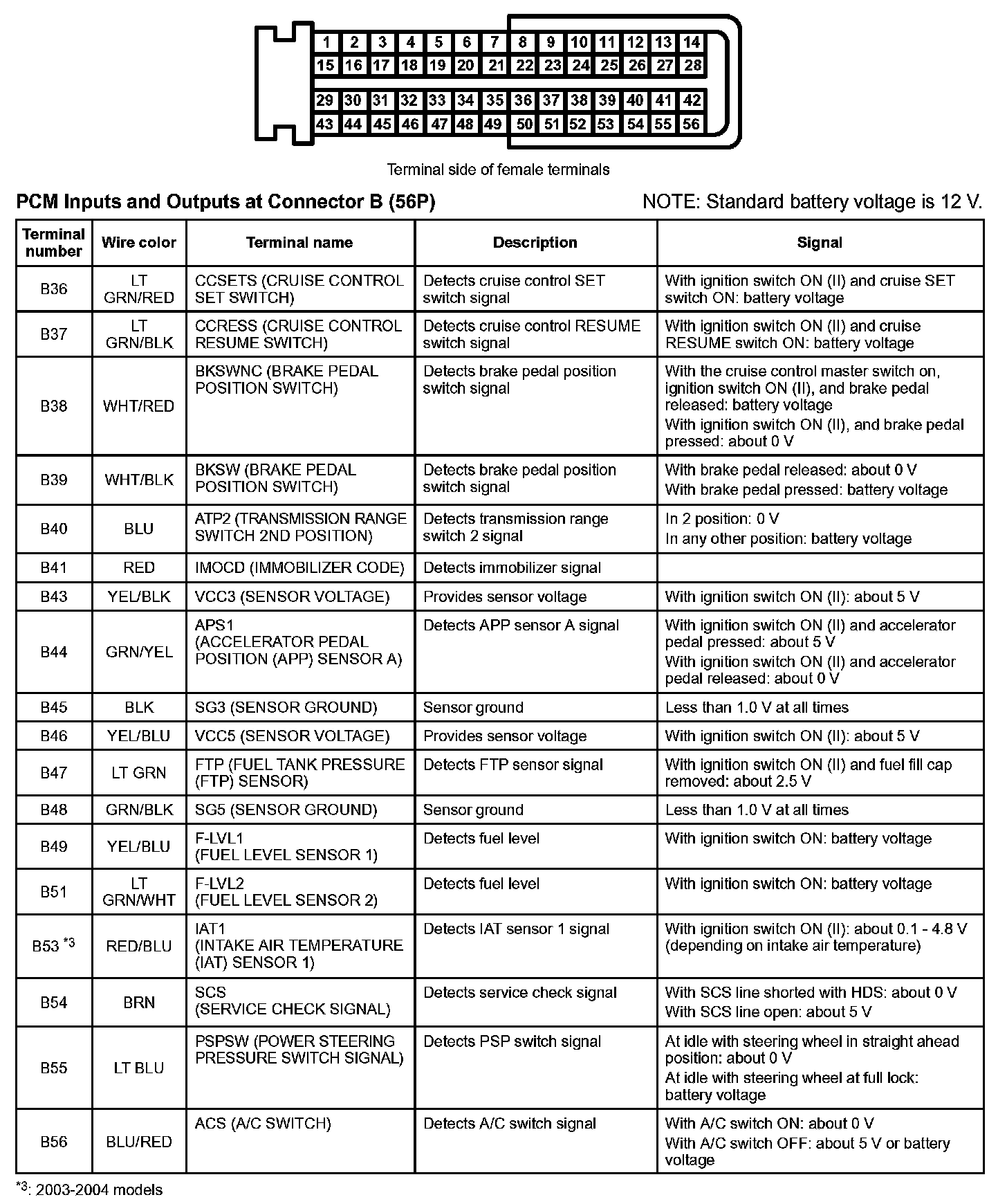

PCM Inputs And Outputs At Connector B (56P) Part 2:



PCM Inputs And Outputs At Connector B (56P) Part 3:
