Home >> Acura >> 2005 >> TSX L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Diagrams

Instrument Panel Control Module: Diagrams

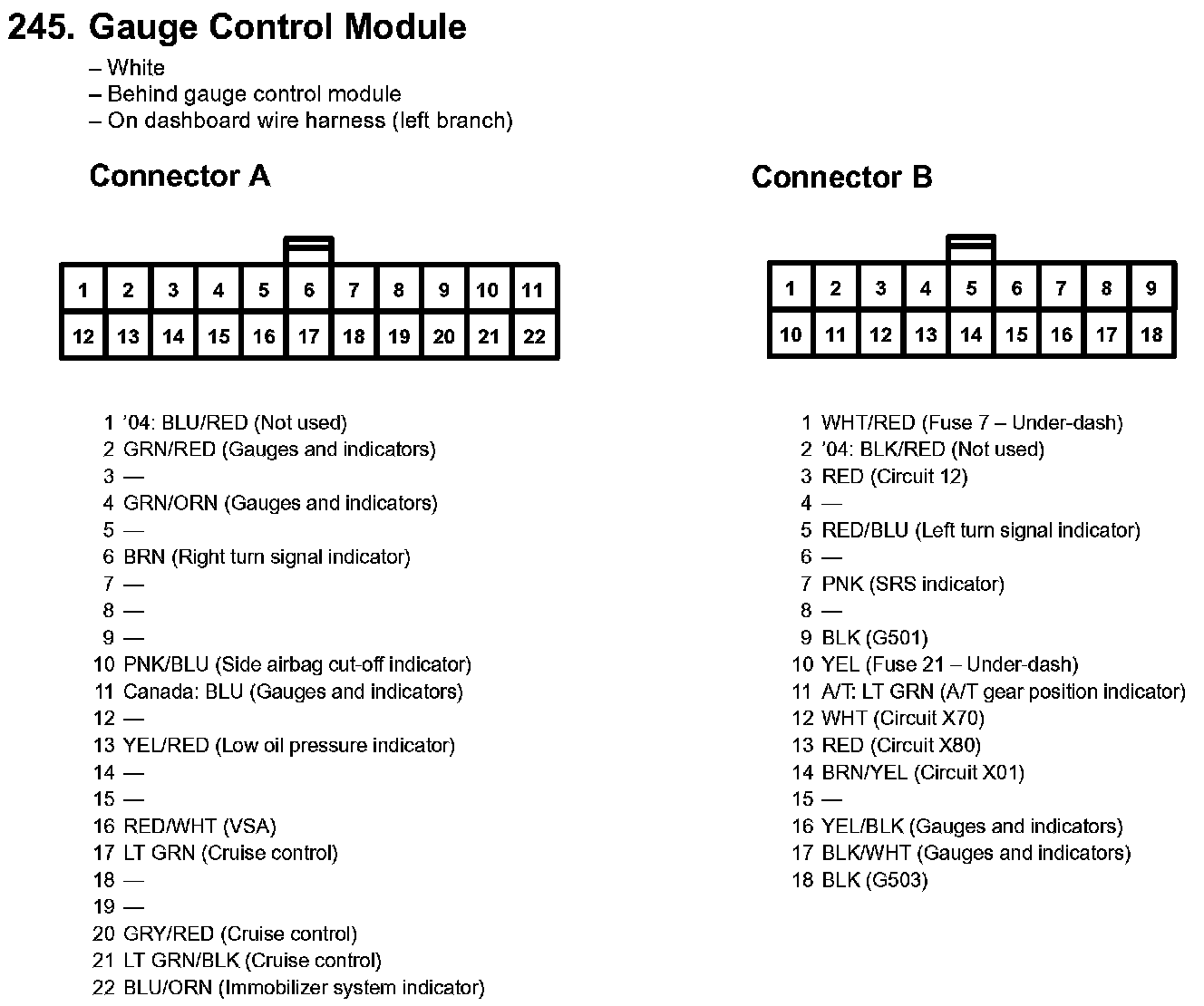

245. Gauge Control Module:
