Home >> Acura >> 2005 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC

Control Assembly, HVAC

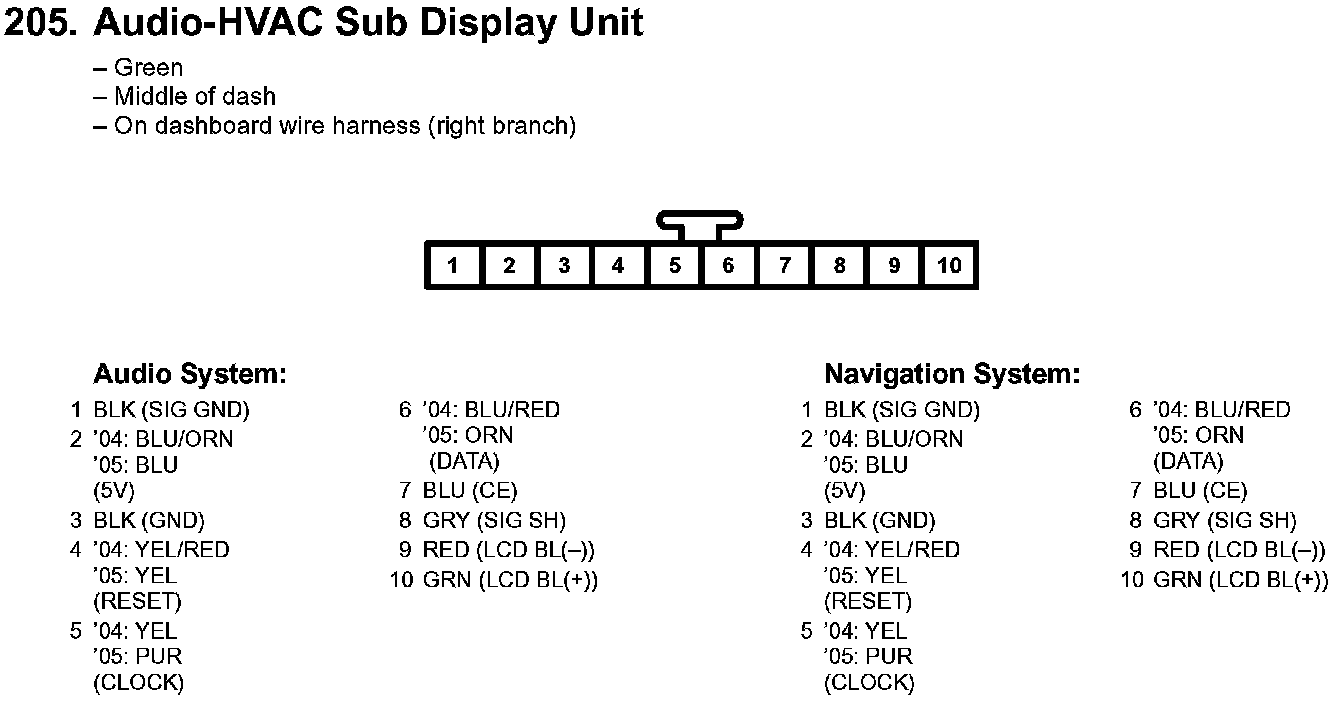

205. Audio-HVAC Sub Display Unit:

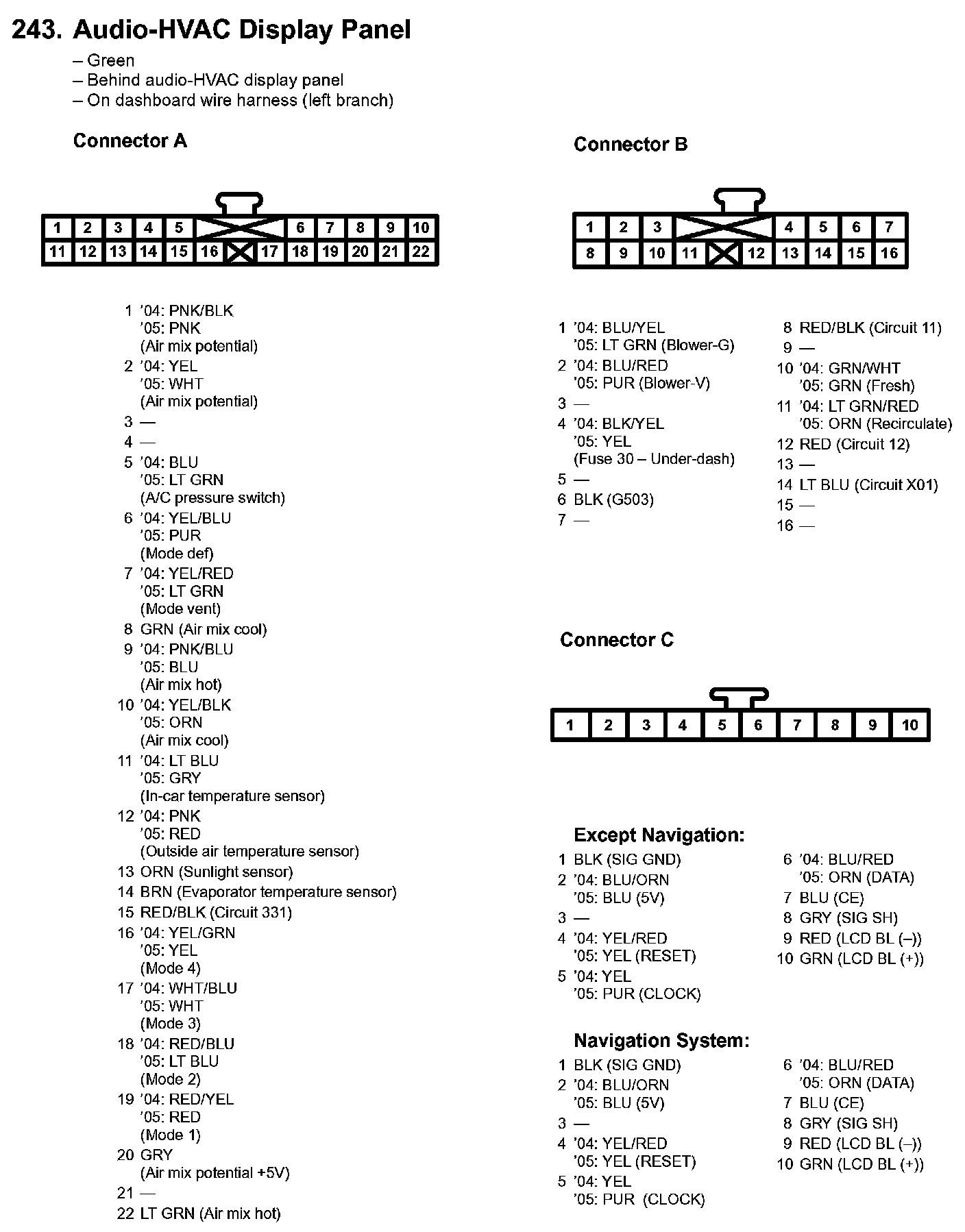

243. Audio-HVAC Display Panel:
