Navigation Module: Locations

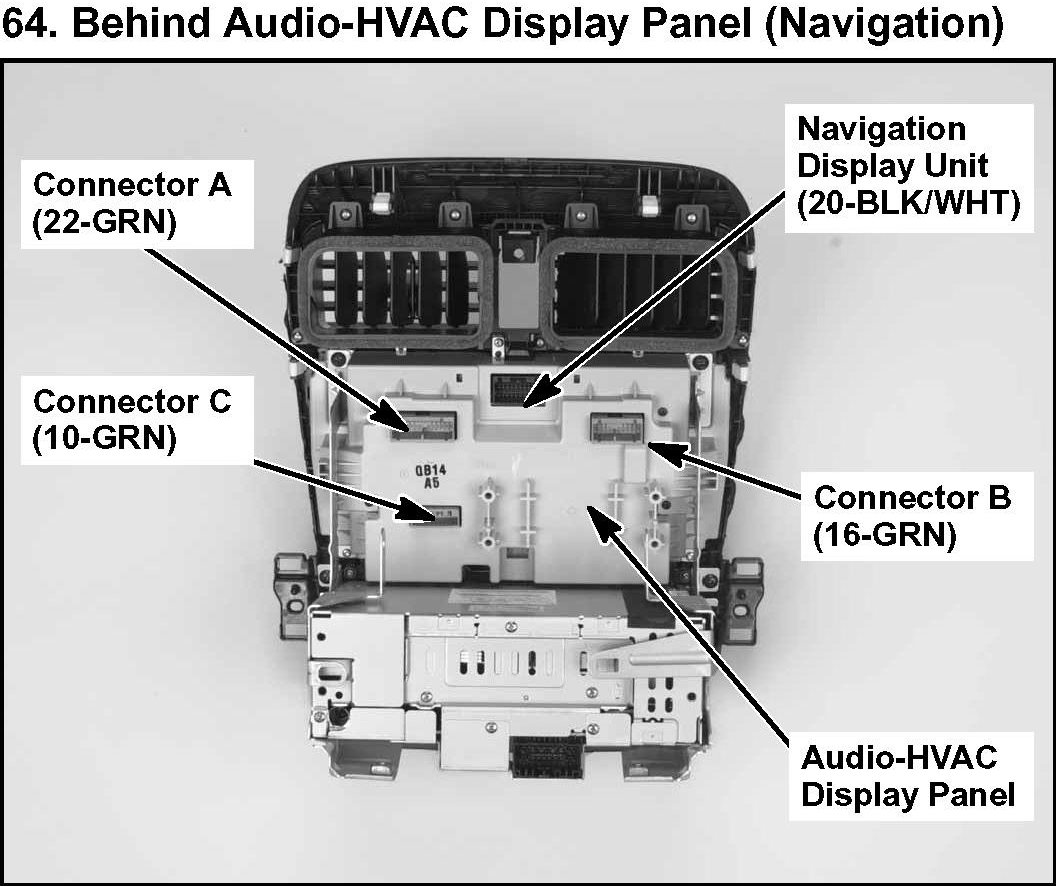

64. Behind Audio-HVAC Display Panel (Navigation):

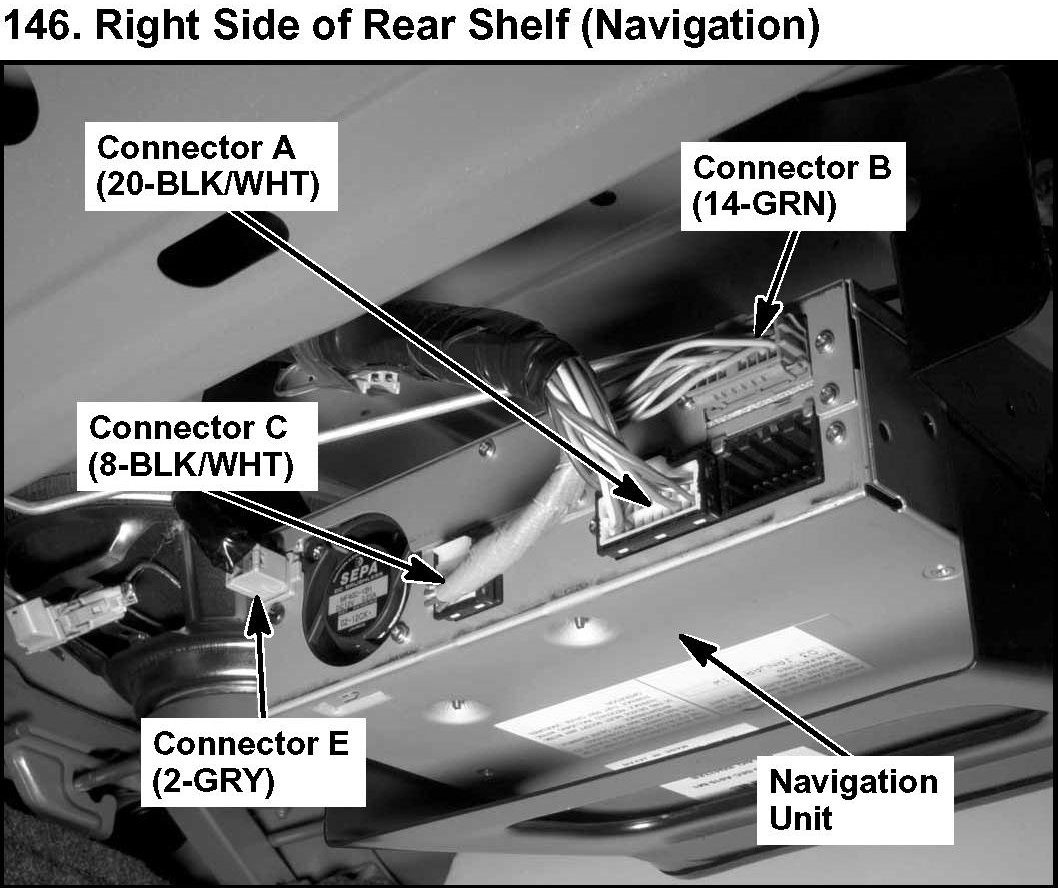

146. Right Side Of Rear Shelf (Navigation):

Climate Control - Component Location Index:

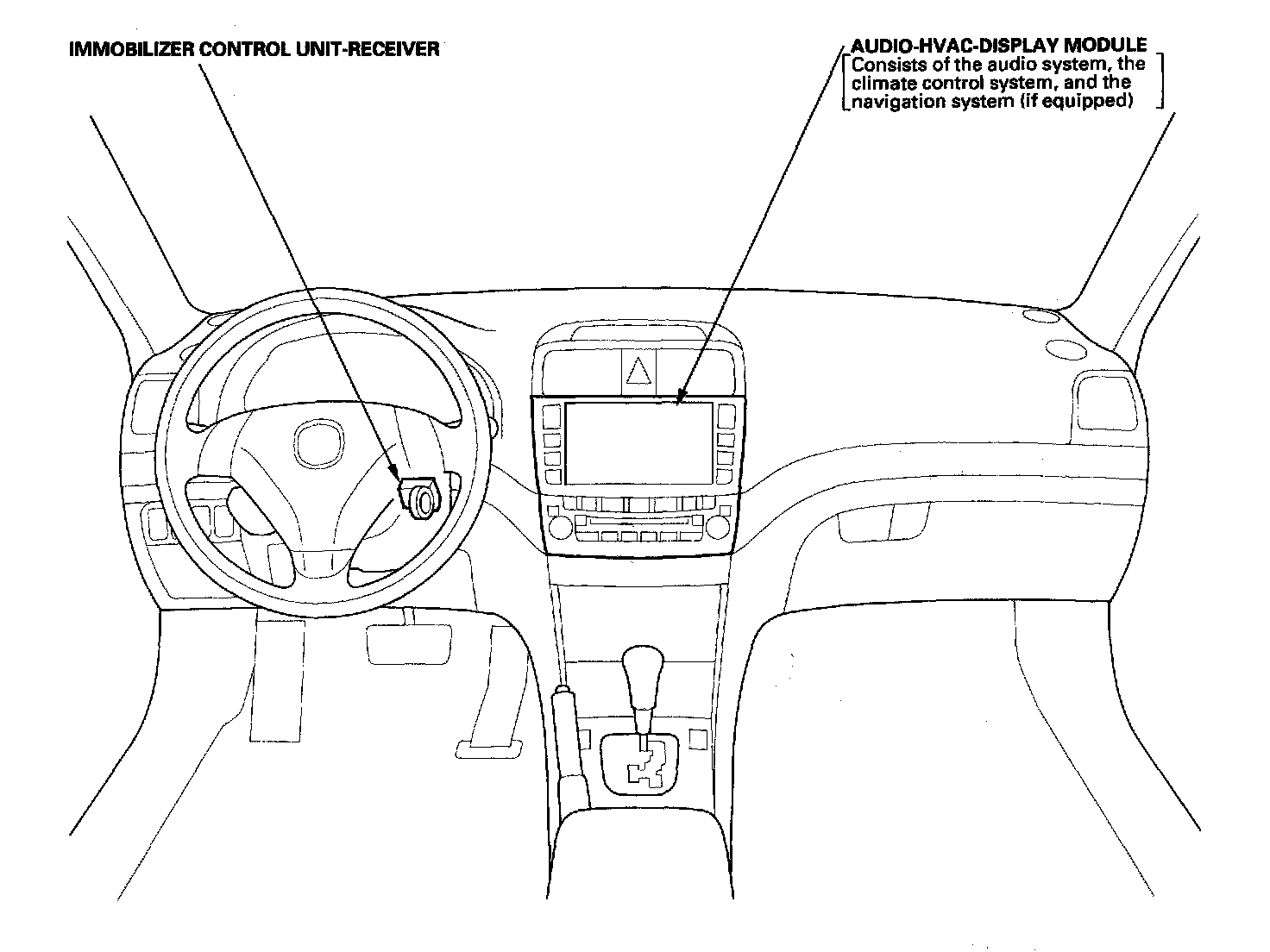

Relay And Control Unit Locations - Dashboard:

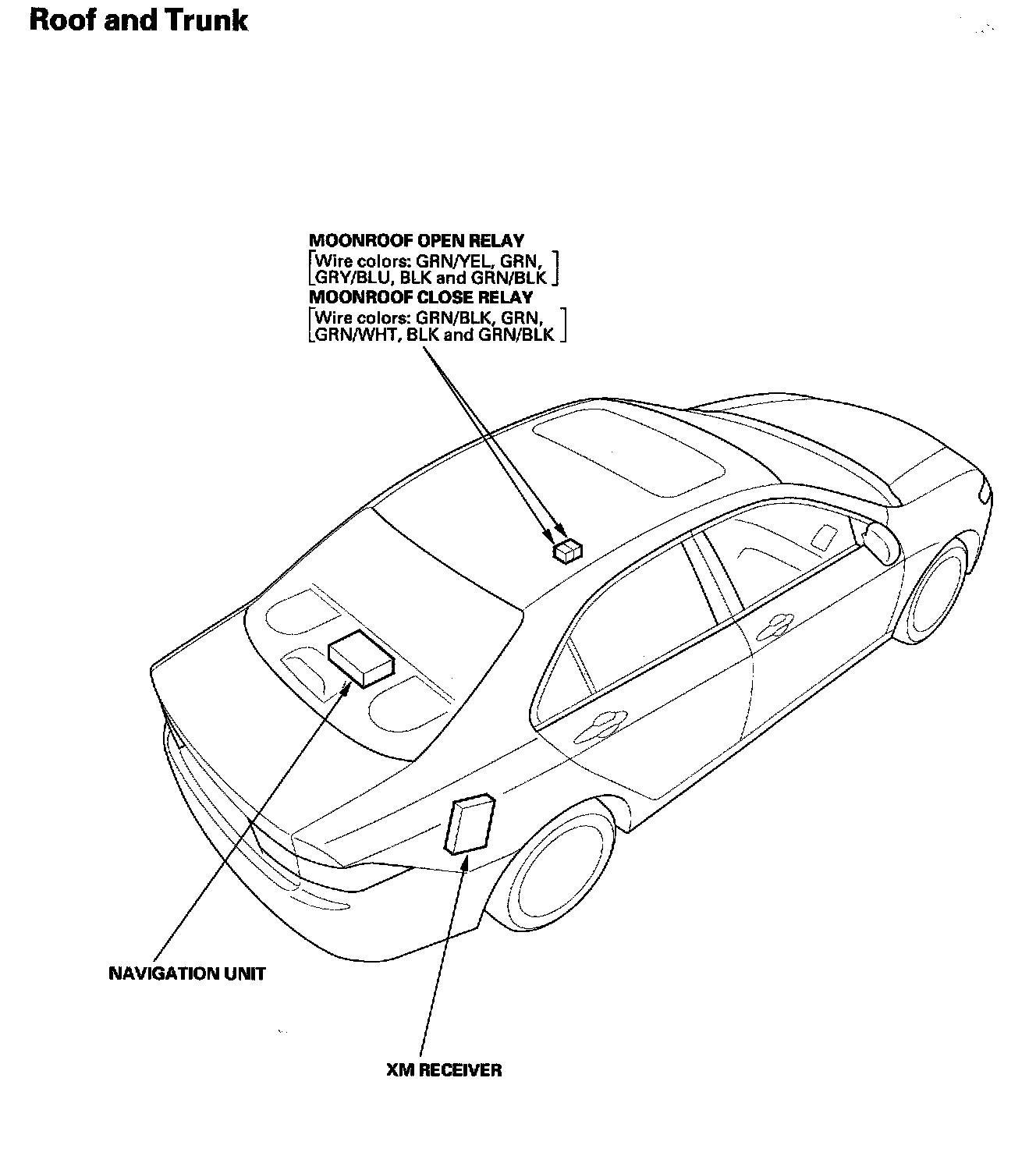

Relay And Control Unit Locations - Roof And Trunk:

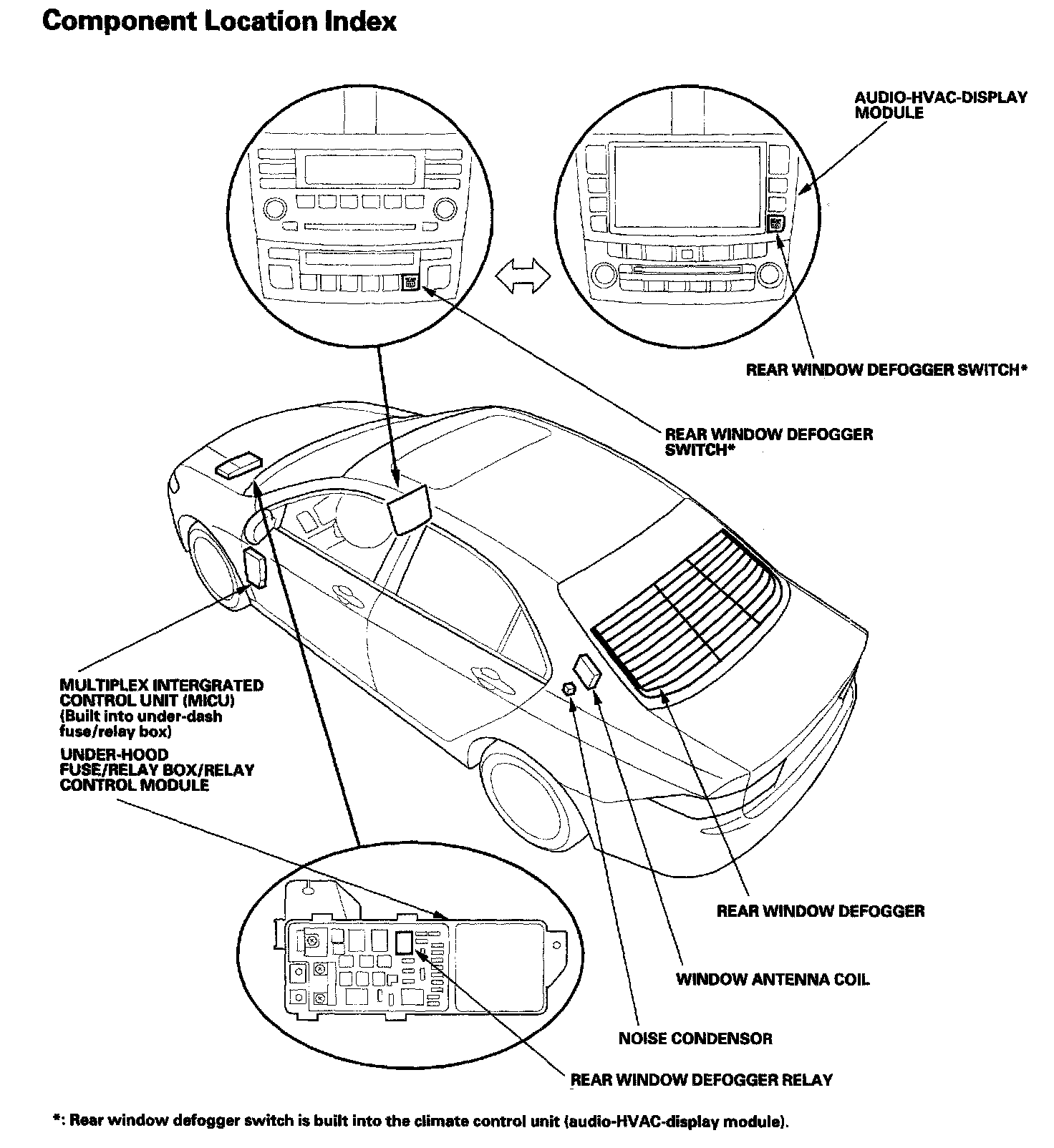

Rear Window Defogger - Component Location Index:

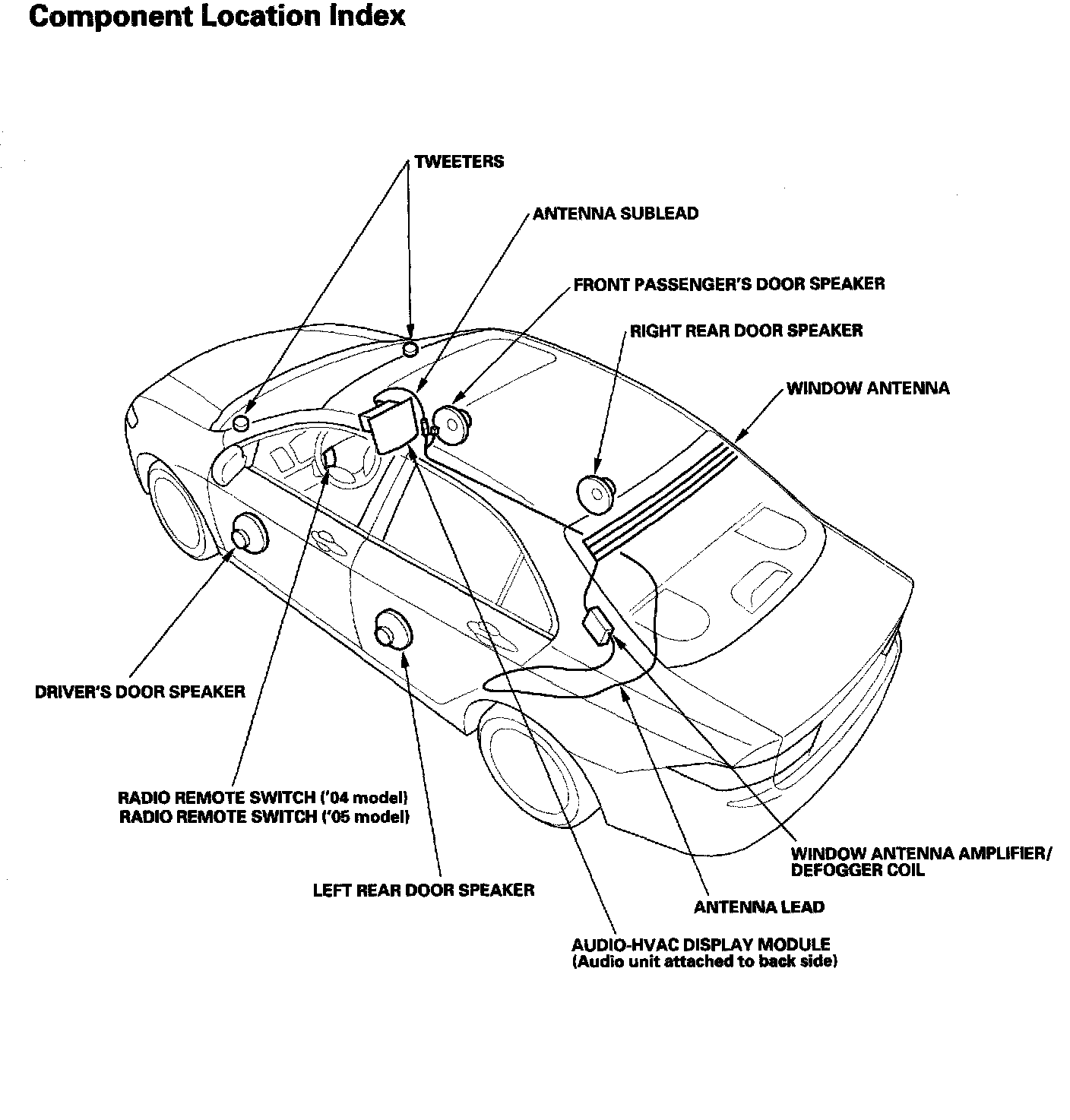

Audio System - Component Location Index:

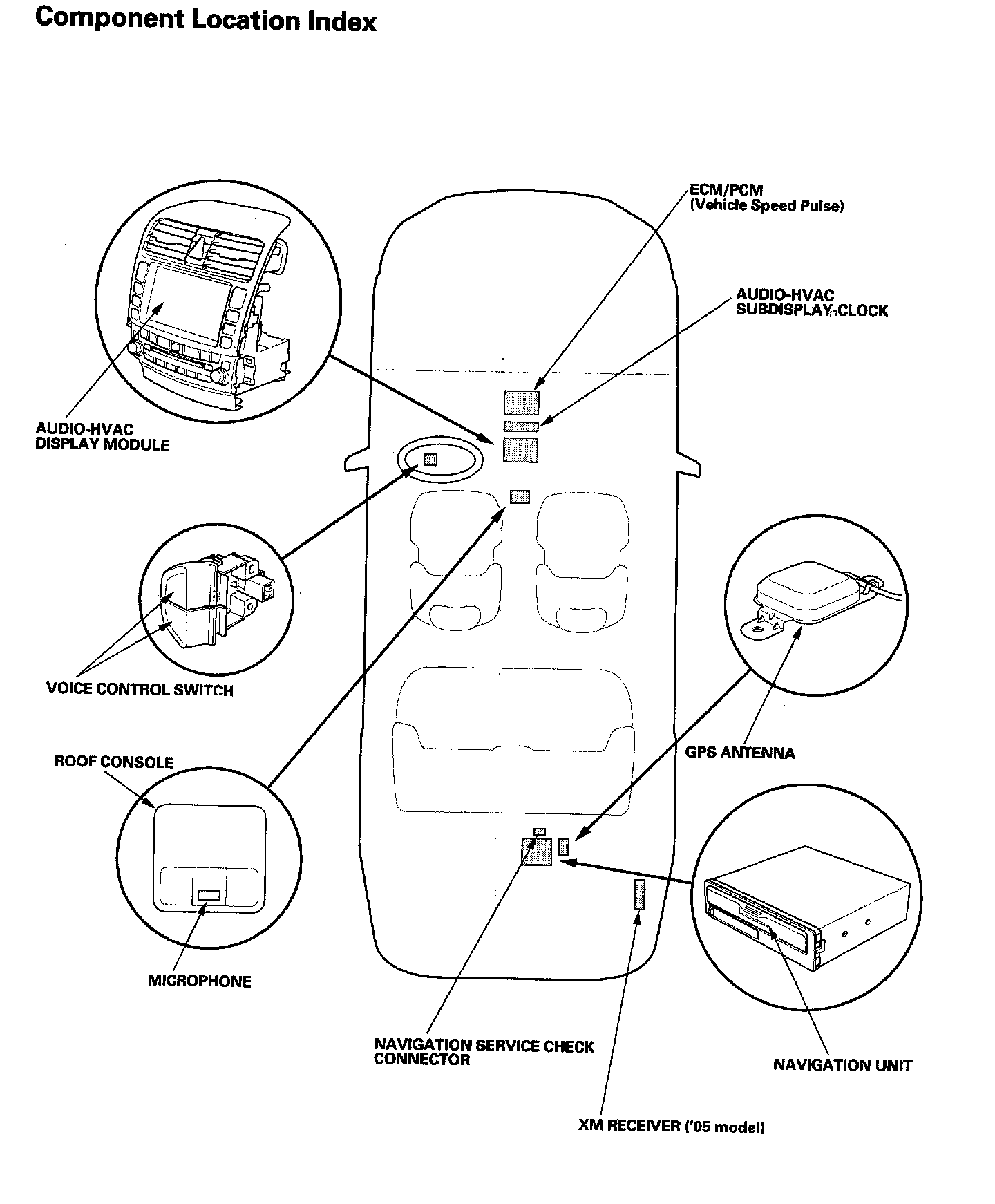

Navigation System - Component Location Index:
