Intake Manifold

Intake Manifold

Intake Manifold:








Install the intake manifold. Tighten the bolts and nuts sequentially in two or three steps. Always use a new intake manifold gasket.

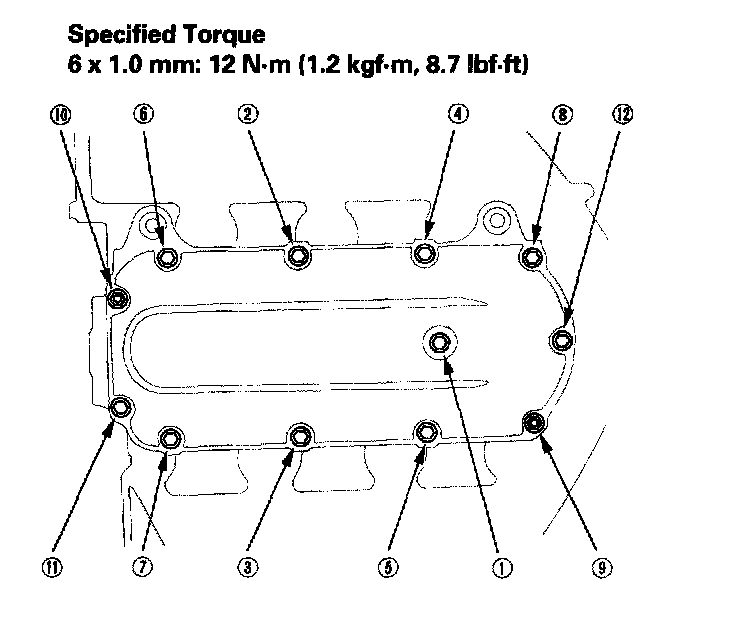

Install the upper cover. Tighten the bolts and nuts sequentially in two or three steps.
