Home >> Acura >> 2005 >> TL V6-3.2L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Locations

Instrument Panel Control Module: Locations

Relay And Control Unit Locations - Dashboard:

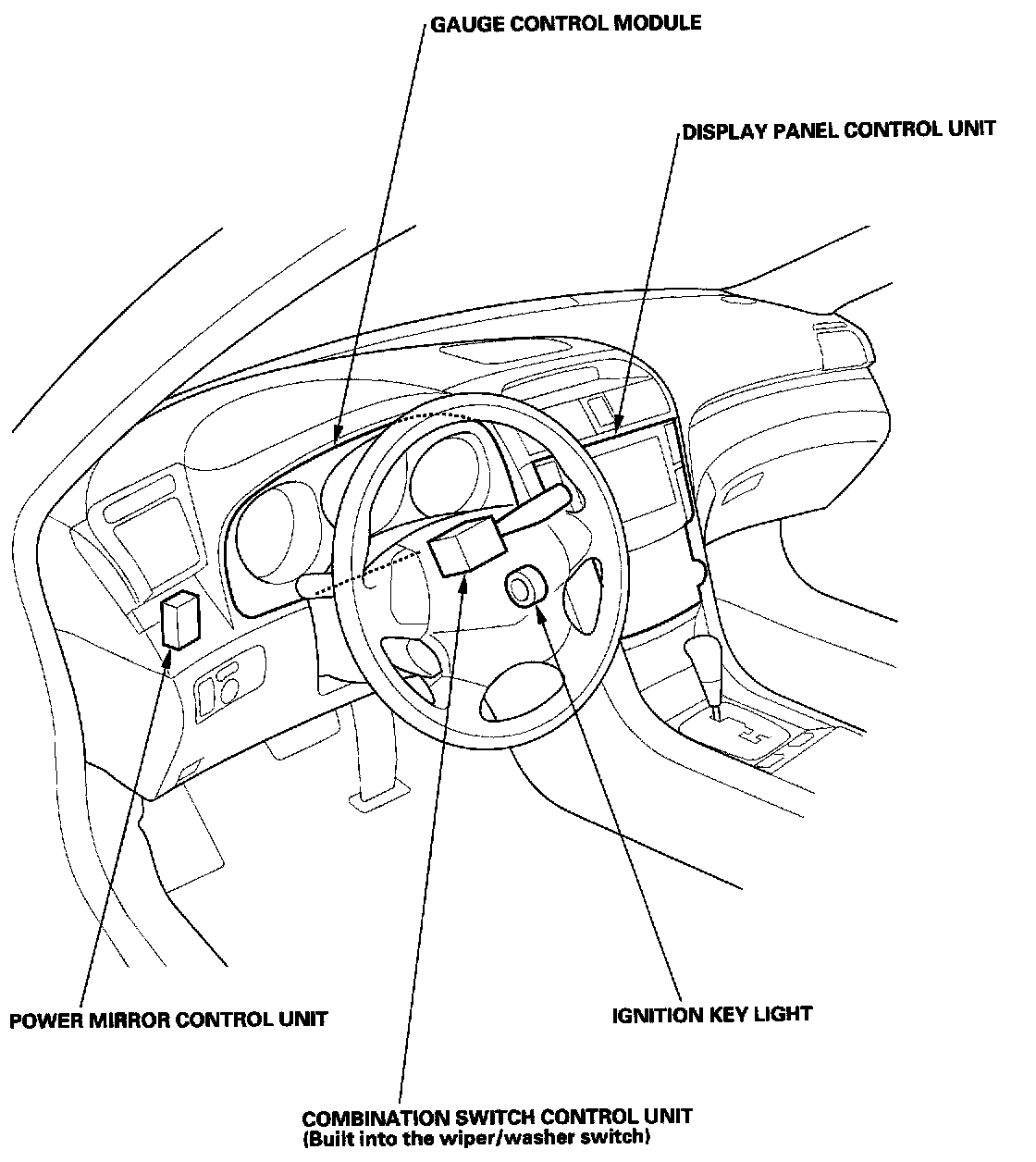

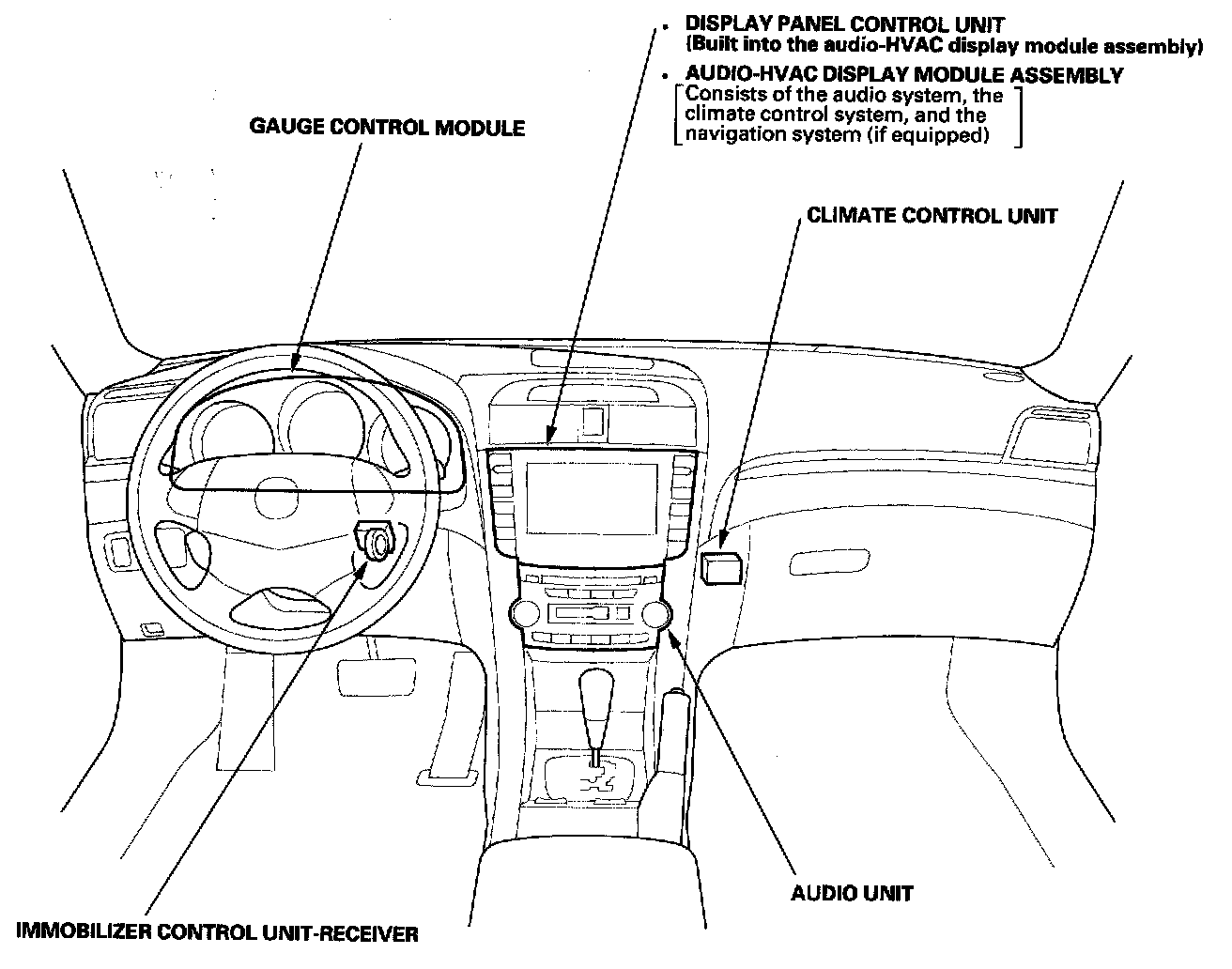

Multiplex Integrated Control System (MICS) Component Location Index Multiplex Integrated Control System (MICS) Component Location Index Multiplex Integrated Control System - Component Location Index:

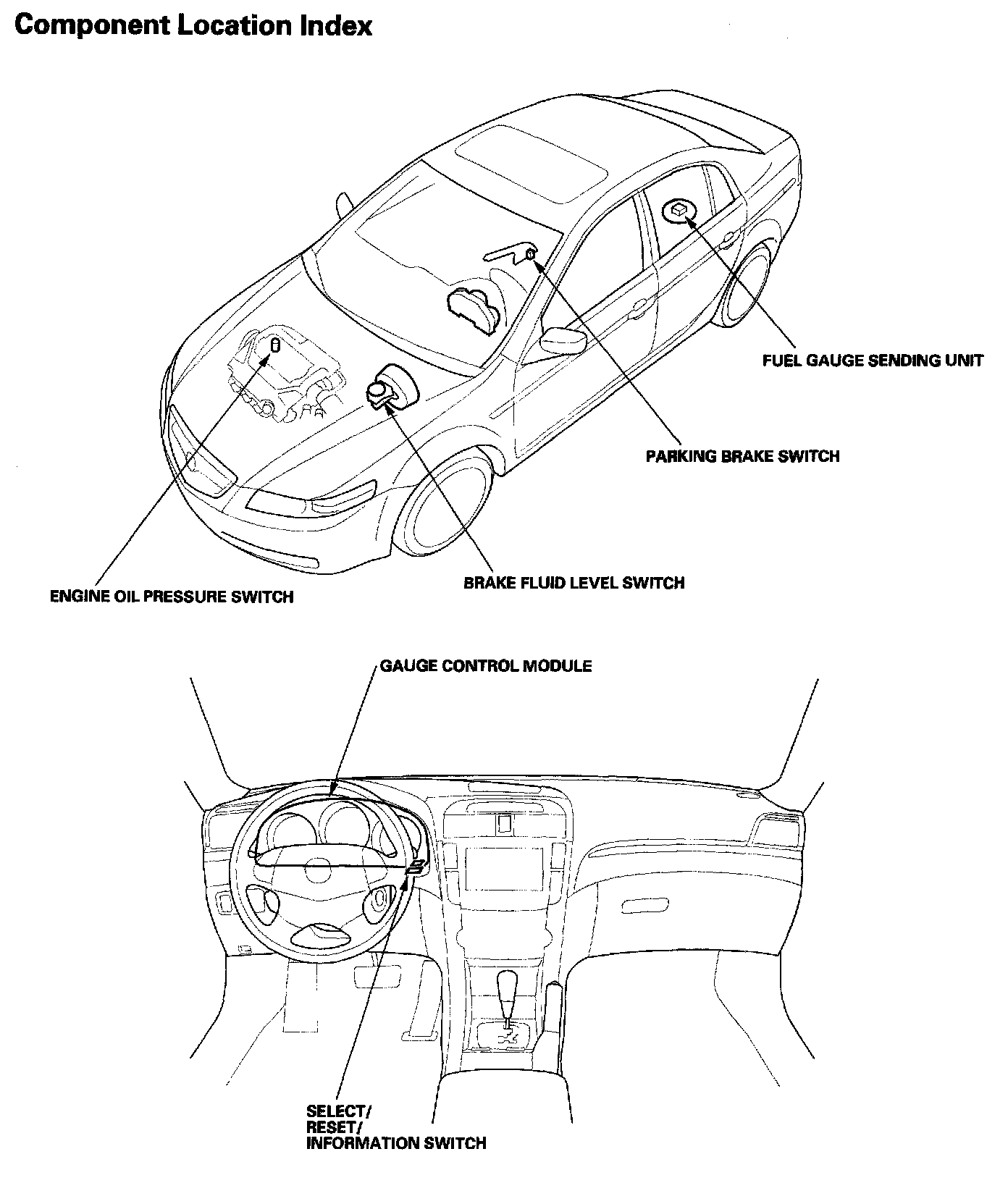

Gauges - Component Location Index:

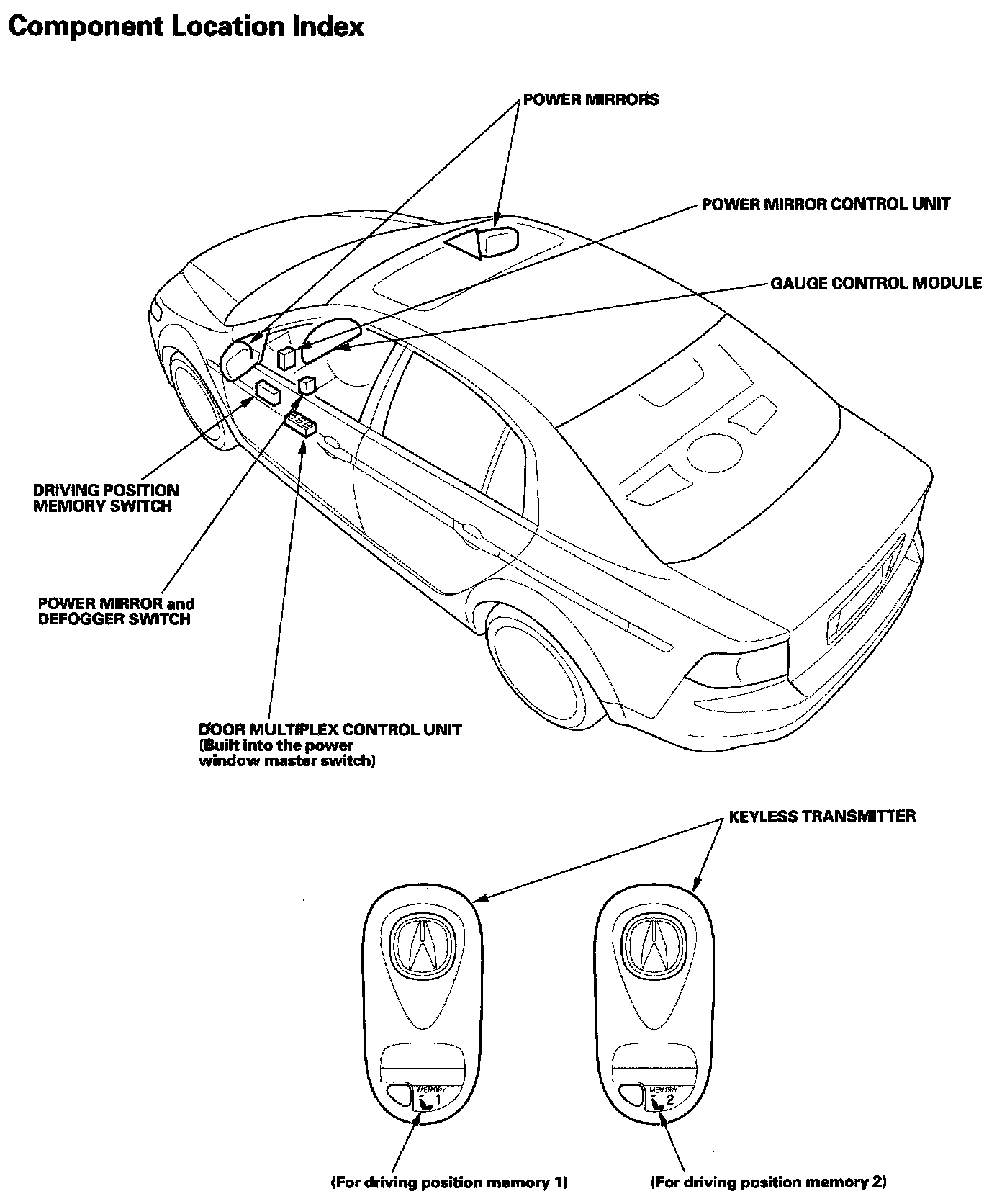

Driving Position Memory System (DPMS) - Component Location Index:

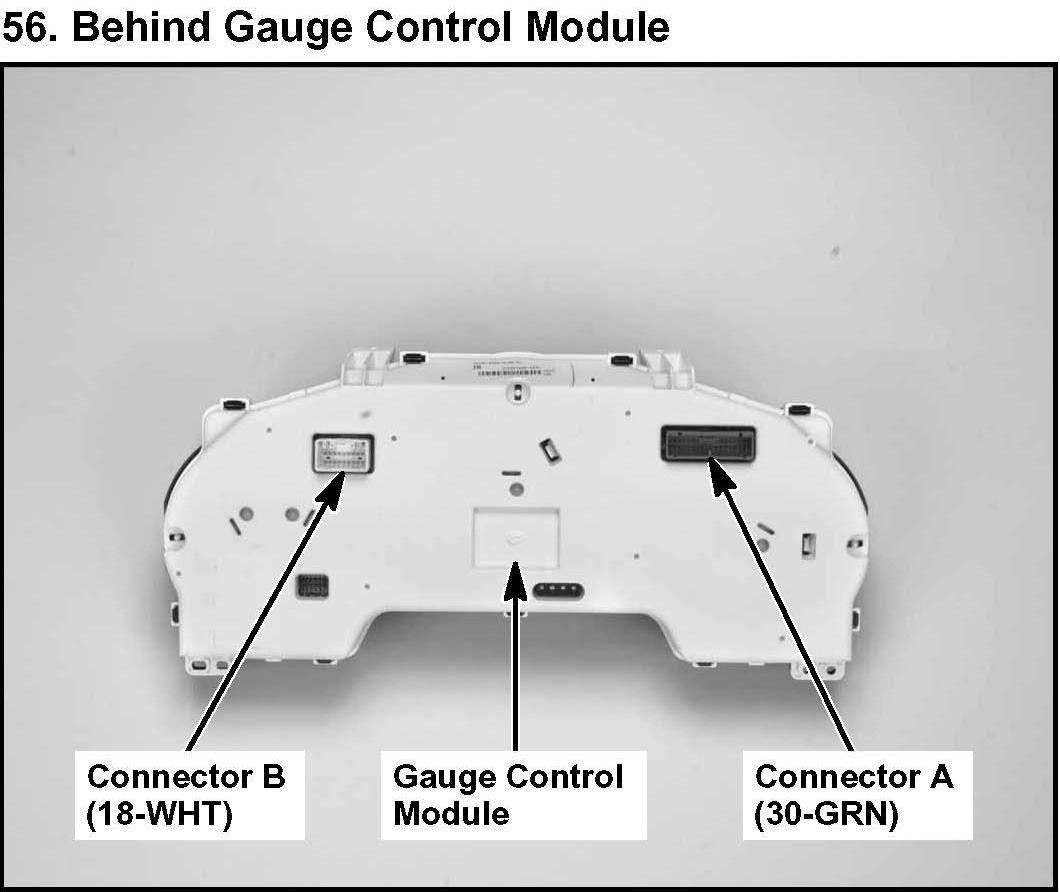

56. Behind Gauge Control Module:
