Audio-HVAC Unit Removal/Installation

Audio-HVAC Subdisplay Unit Removal/Installation

With Navigation
1. Remove the upper panel.

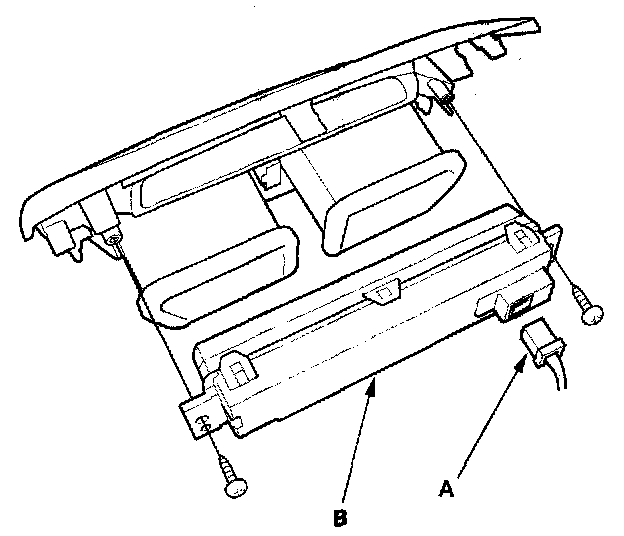

2. Disconnect the 10P connector (A) from the audio-HVAC subdisplay unit (B).
3. Remove the two screw and audio-HVAC subdisplay unit.
4. Install in the reverse order of removal.
