Scan Tool Testing and Procedures

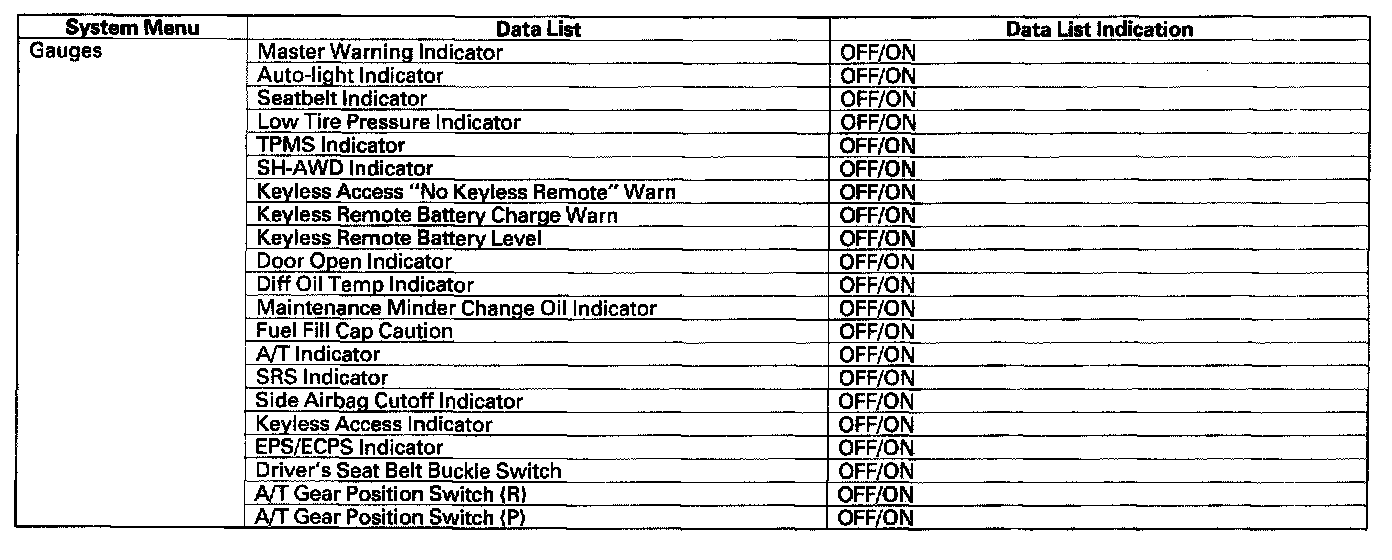

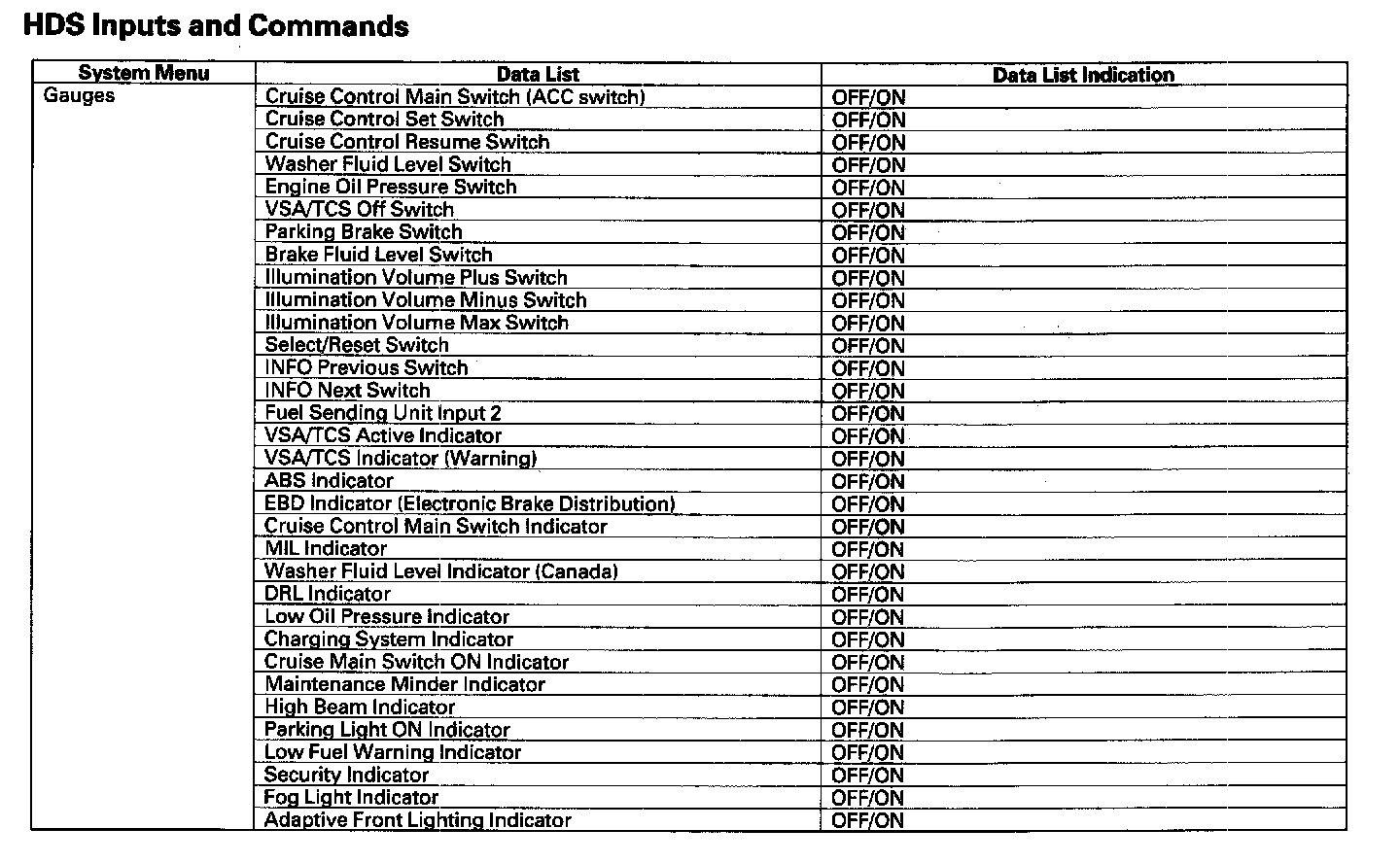

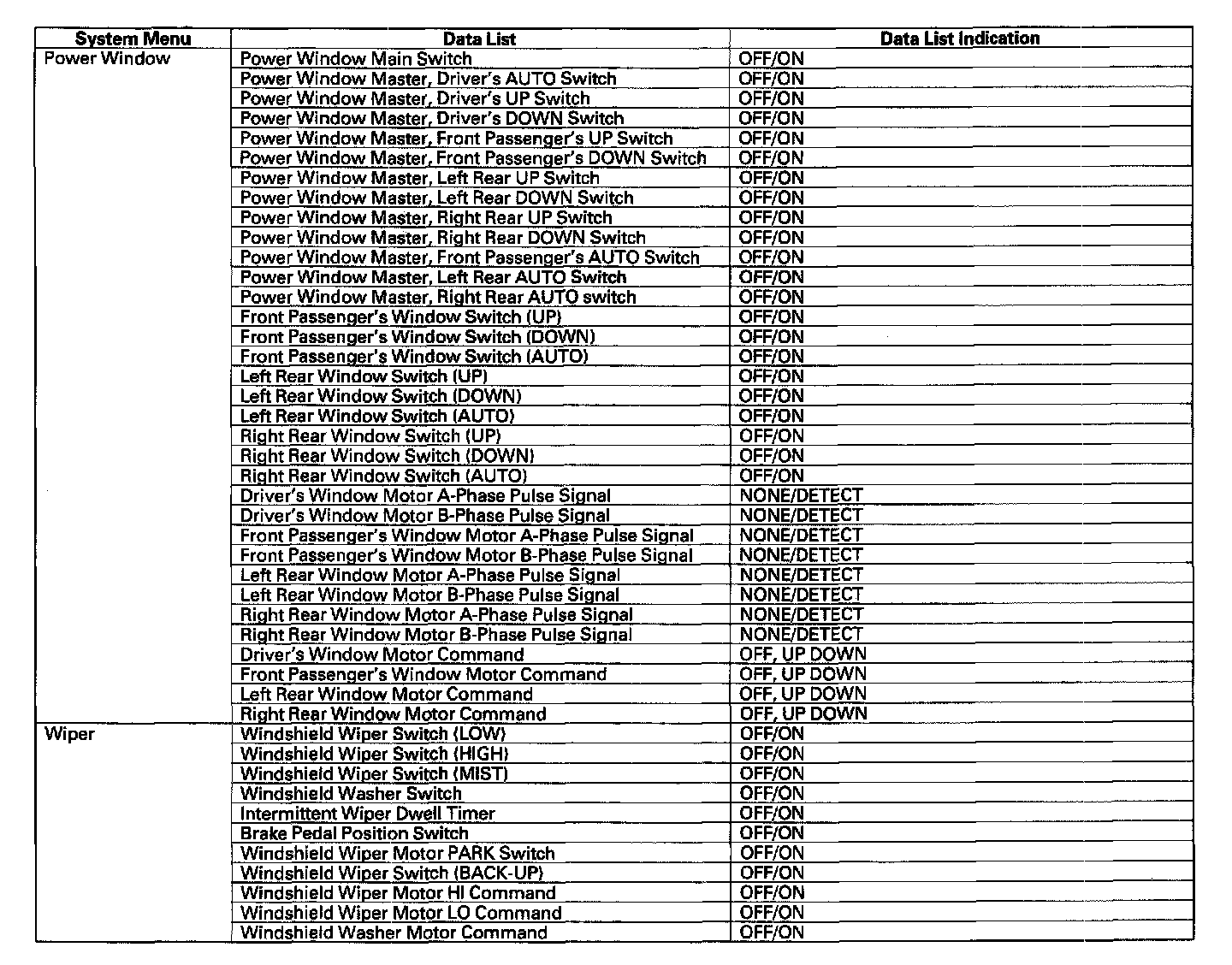

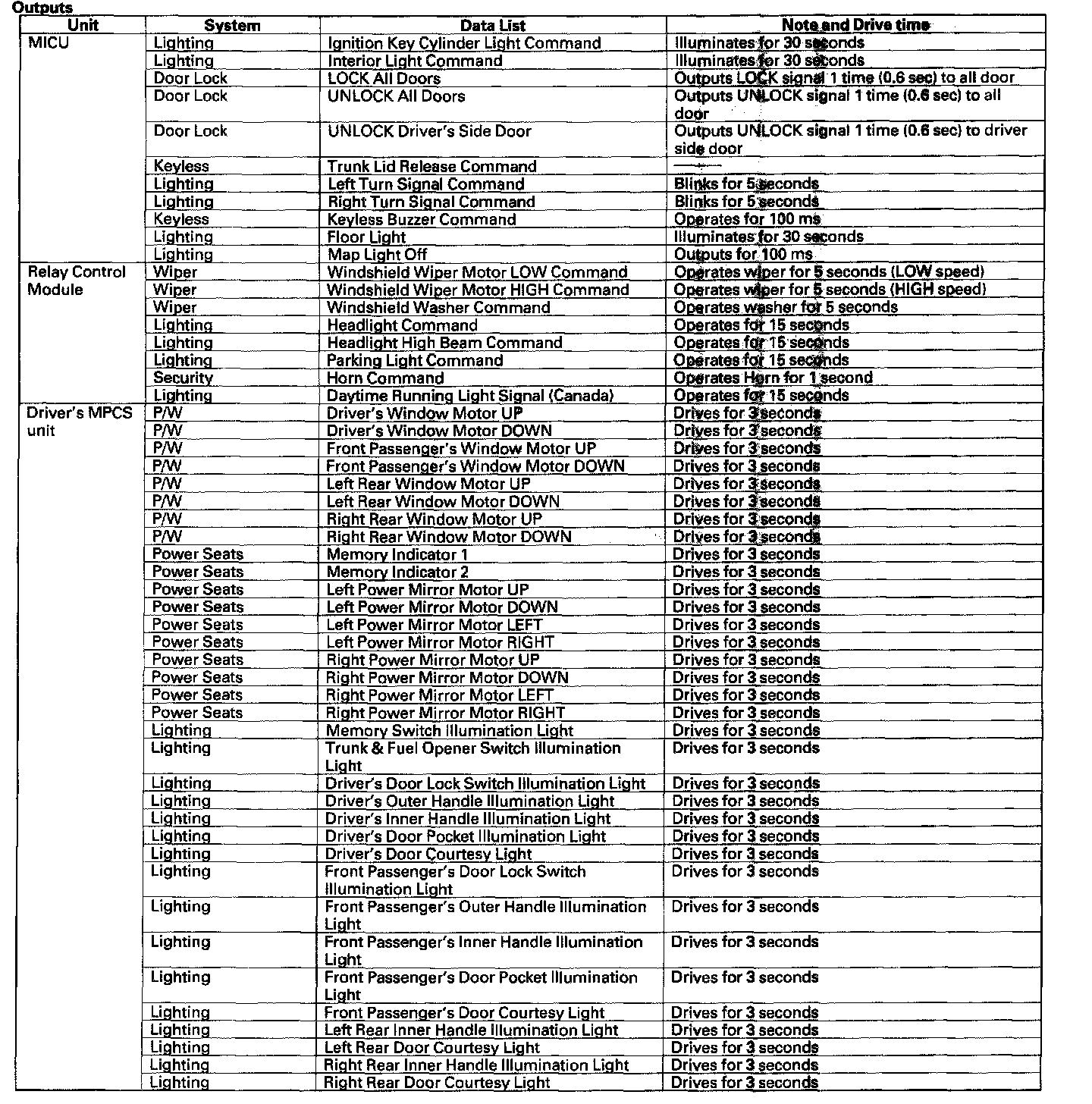

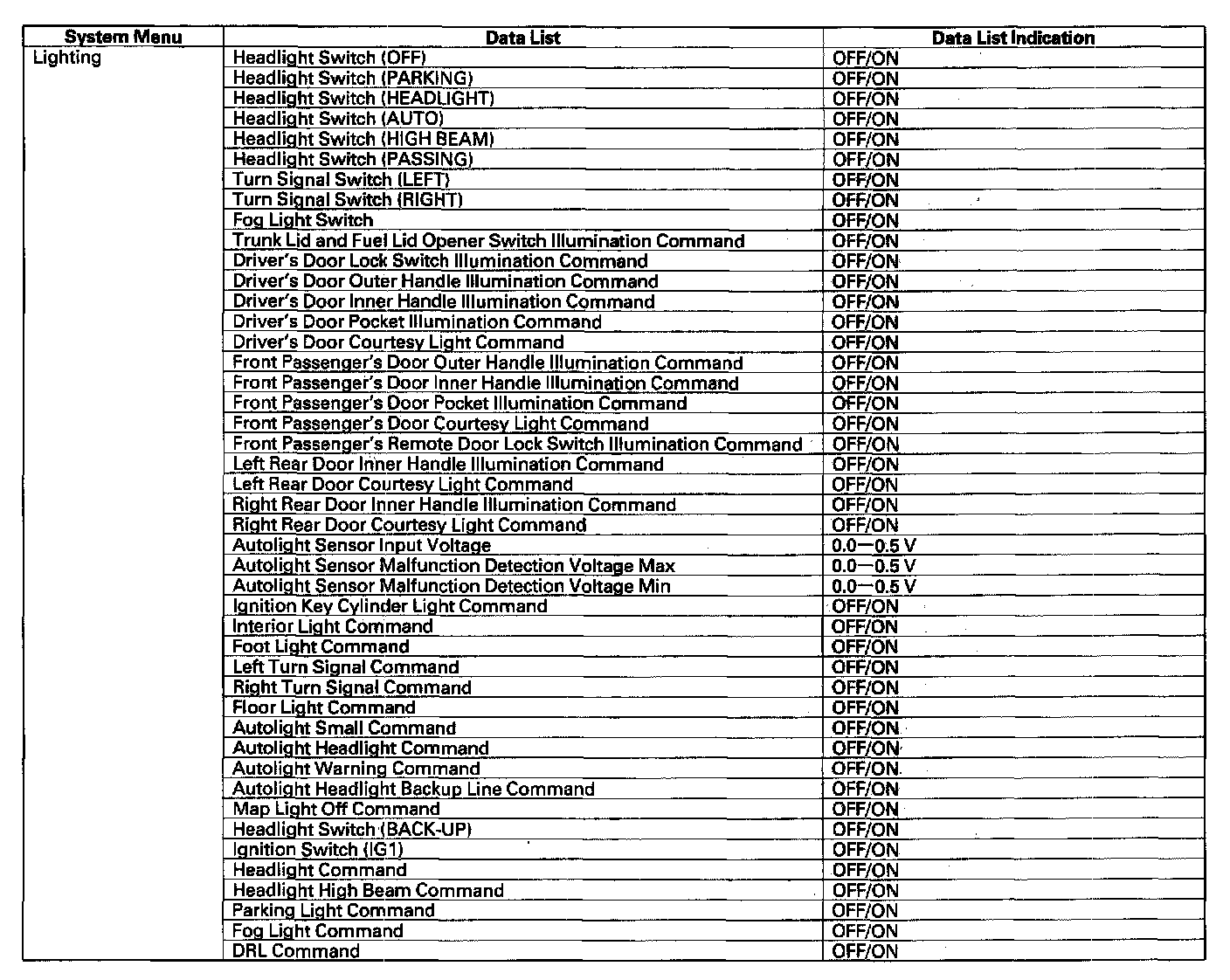

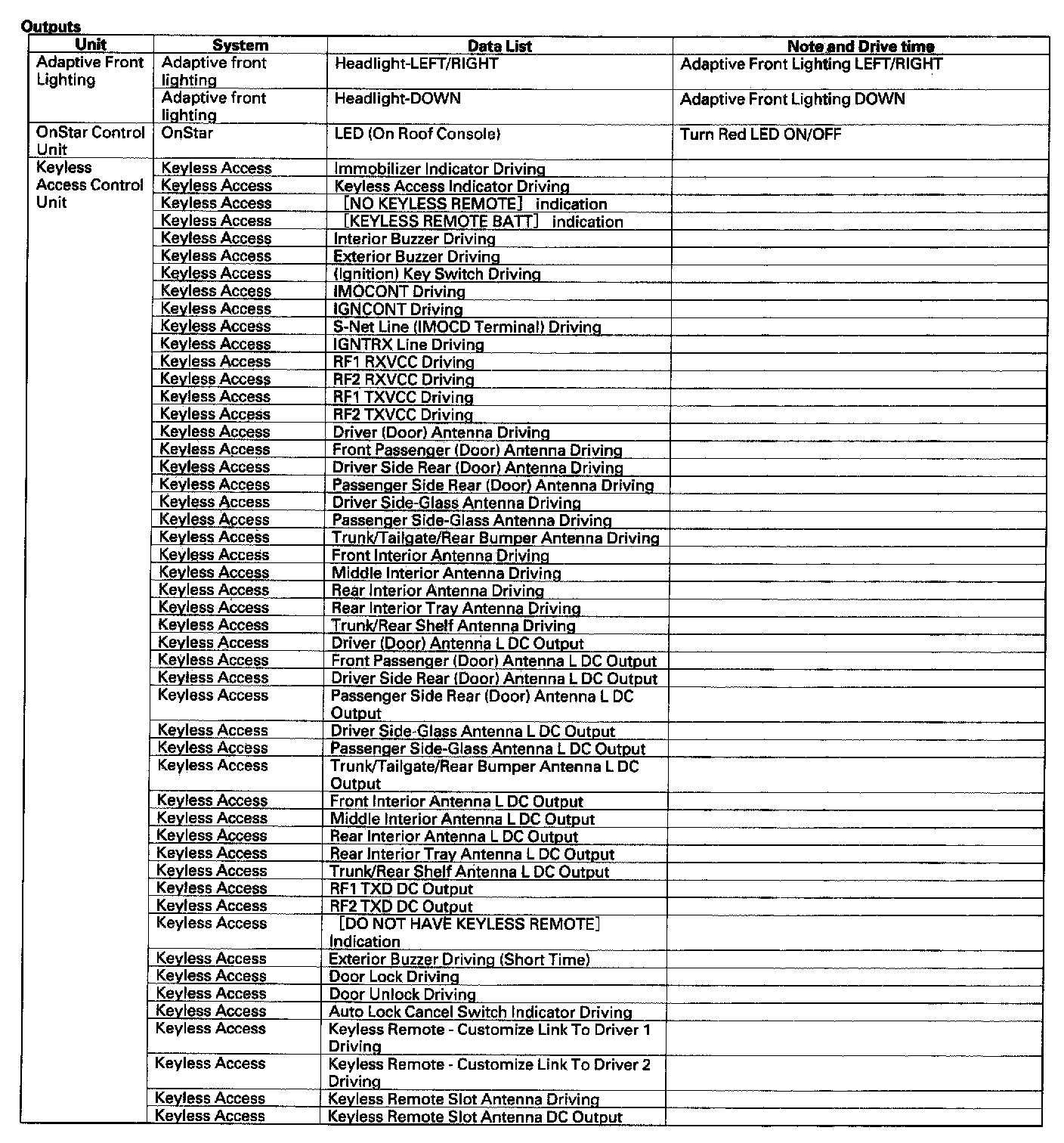

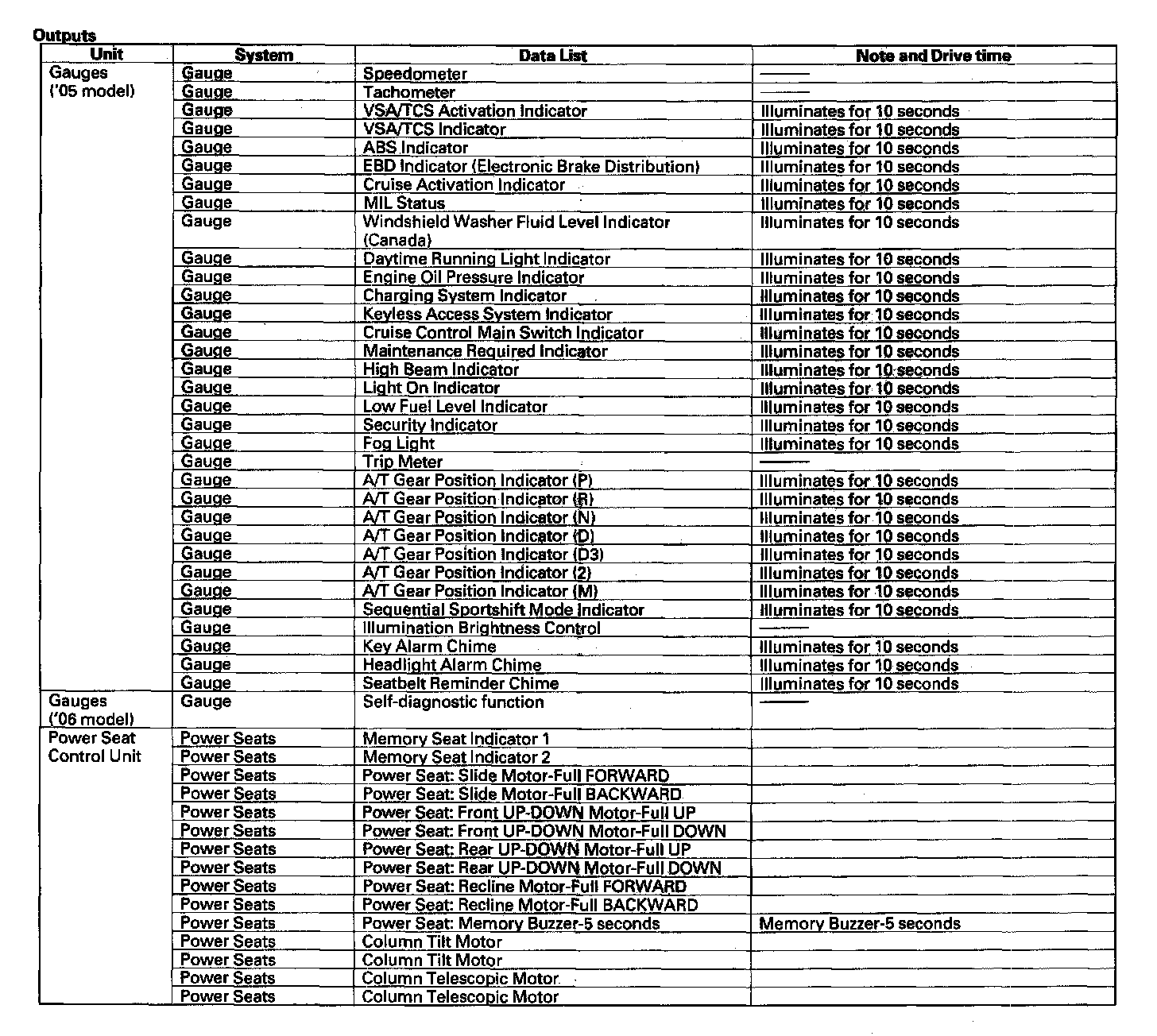

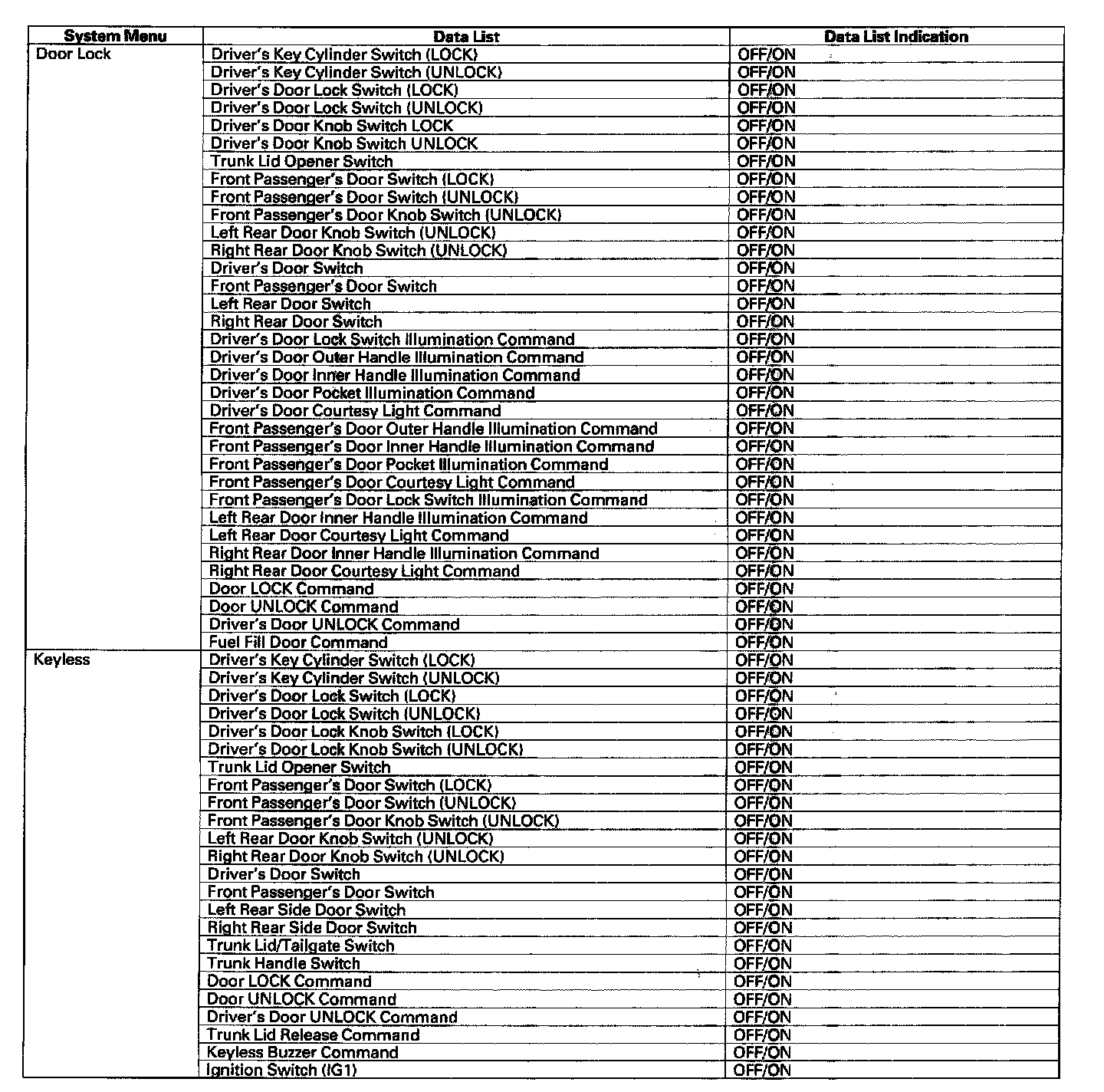

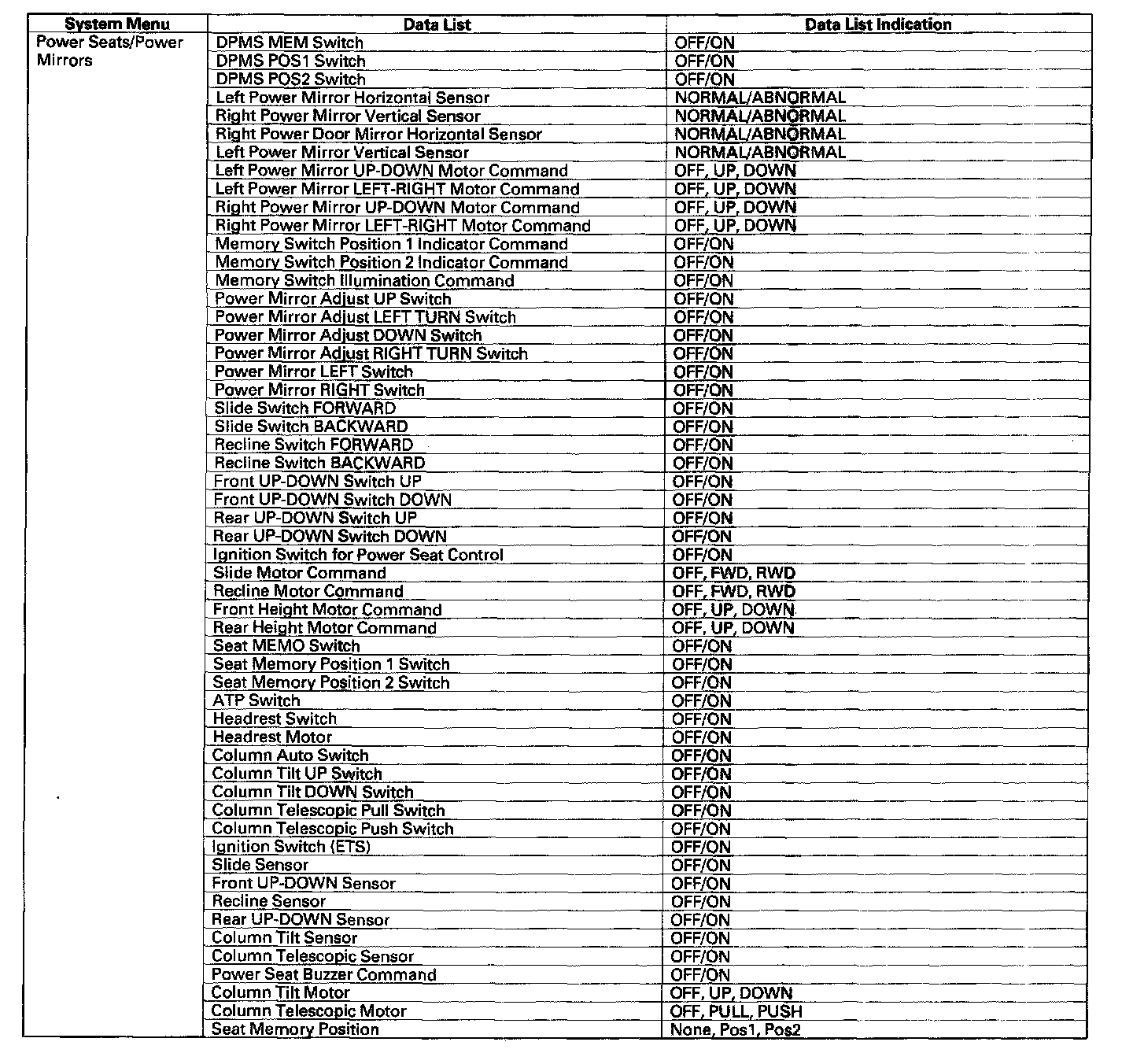

HDS Inputs And Commands Part 1:

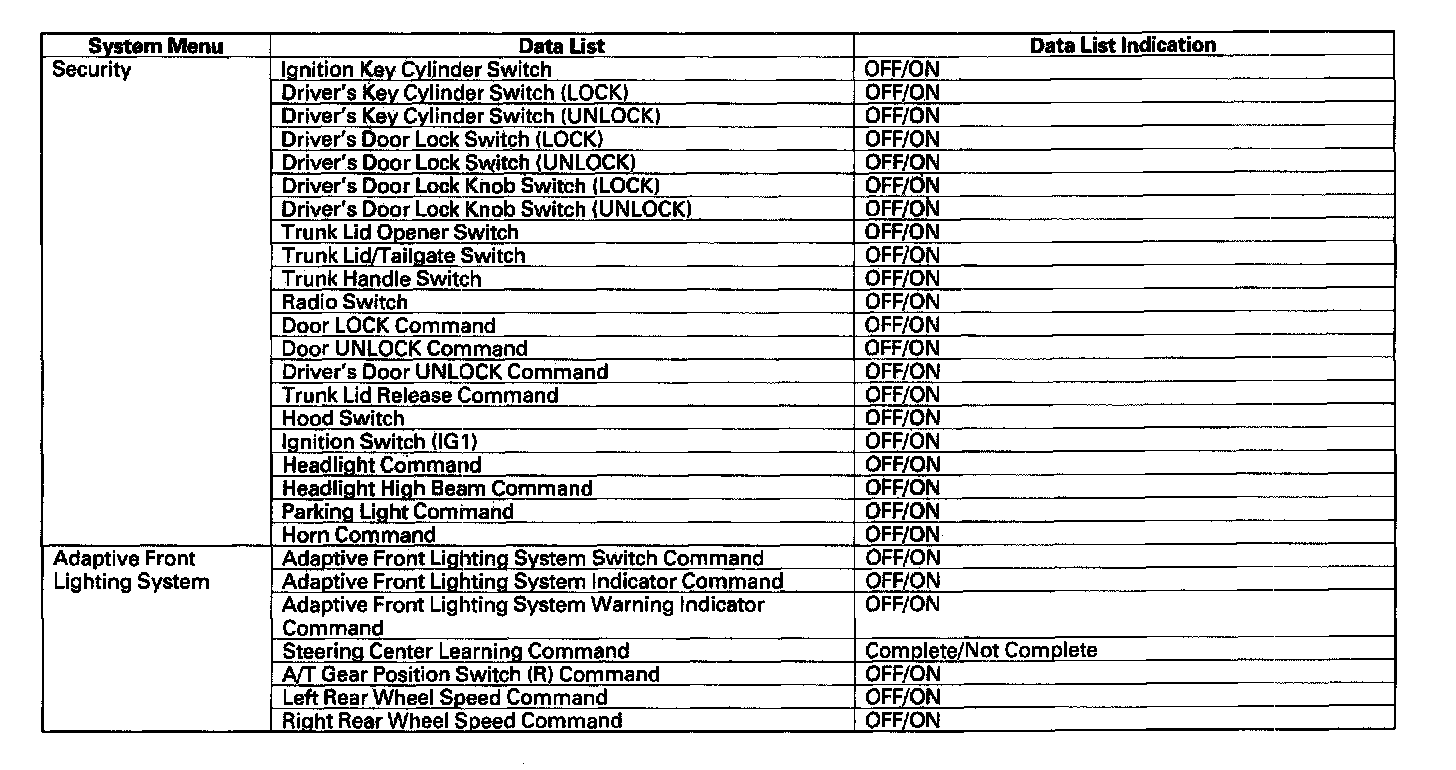

HDS Inputs And Commands Part 2:



HDS Inputs And Commands Part 3:



HDS Inputs And Commands Part 4:



HDS Inputs And Commands Part 5:



HDS Inputs And Commands Part 6:



HDS Inputs And Commands Part 7:



HDS Inputs And Commands Part 8:



HDS Inputs And Commands Part 9:



HDS Inputs And Commands Part 10:
