Home >> Acura >> 2005 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine Lubrication

Engine Lubrication

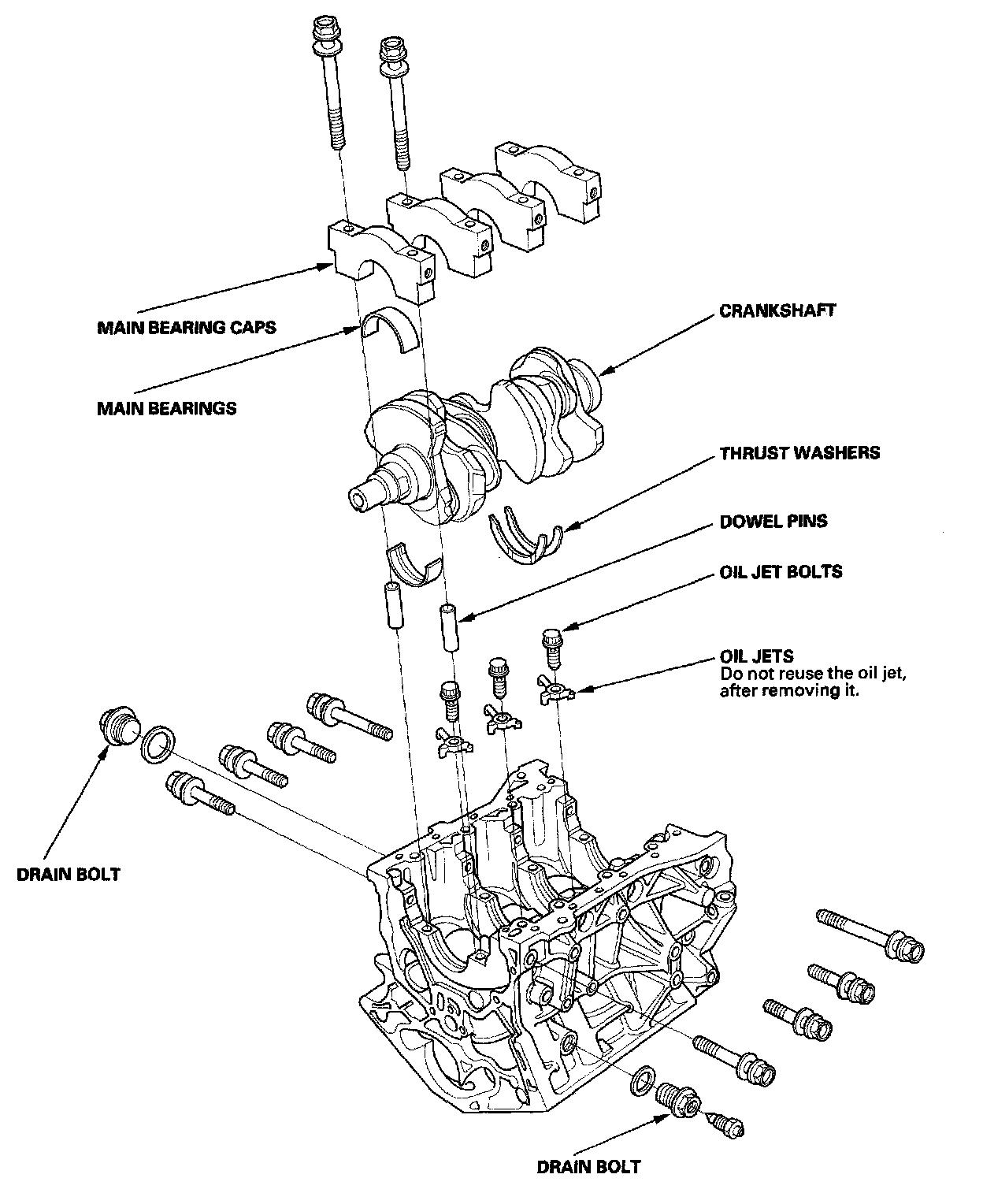

Engine Lubrication Component Location Index (part 1):

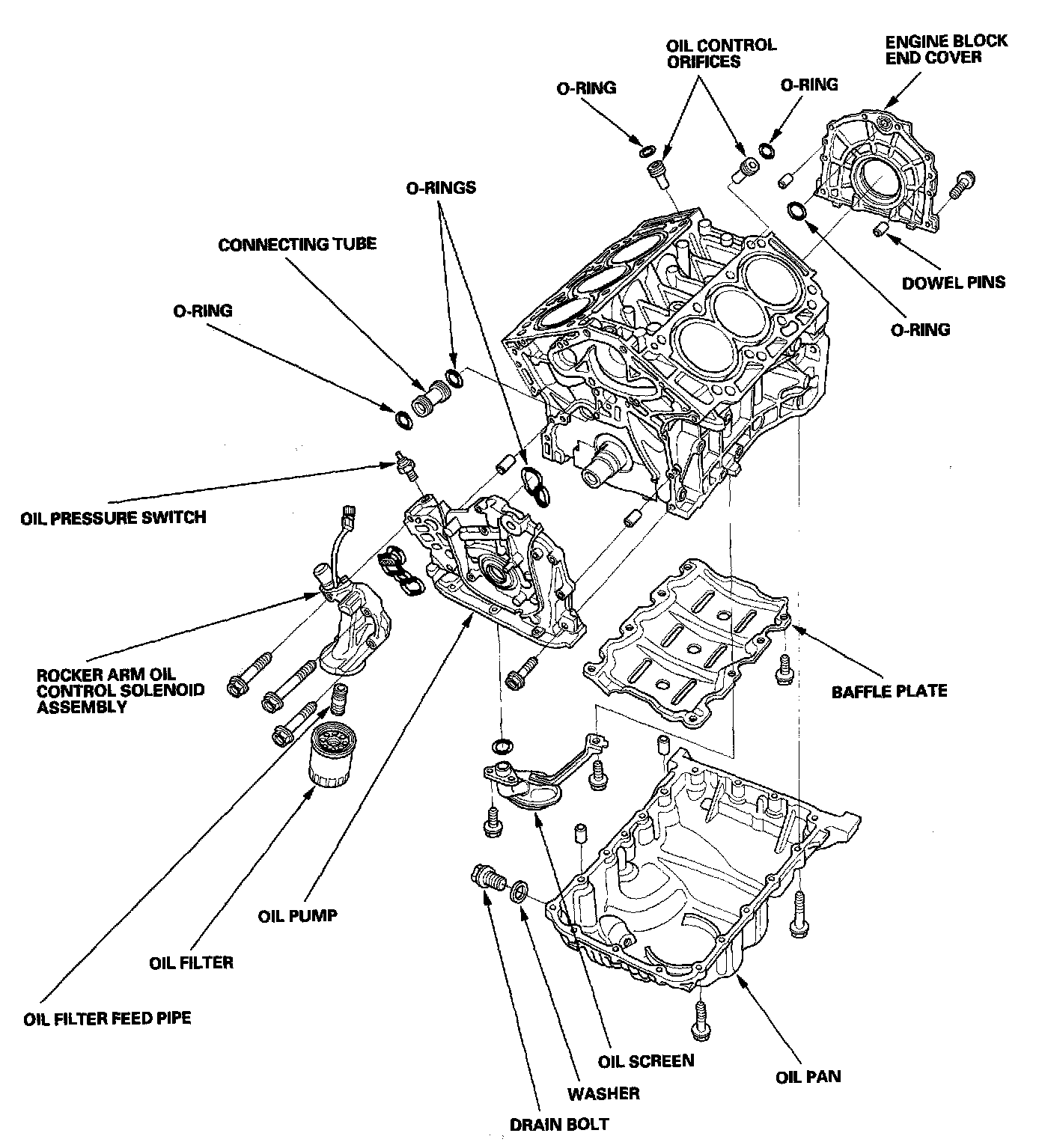

Engine Lubrication Component Location Index (part 2):
