Cylinder Head Assembly
Cylinder Head Assembly
Cylinder Head Component Location Index (part 1):

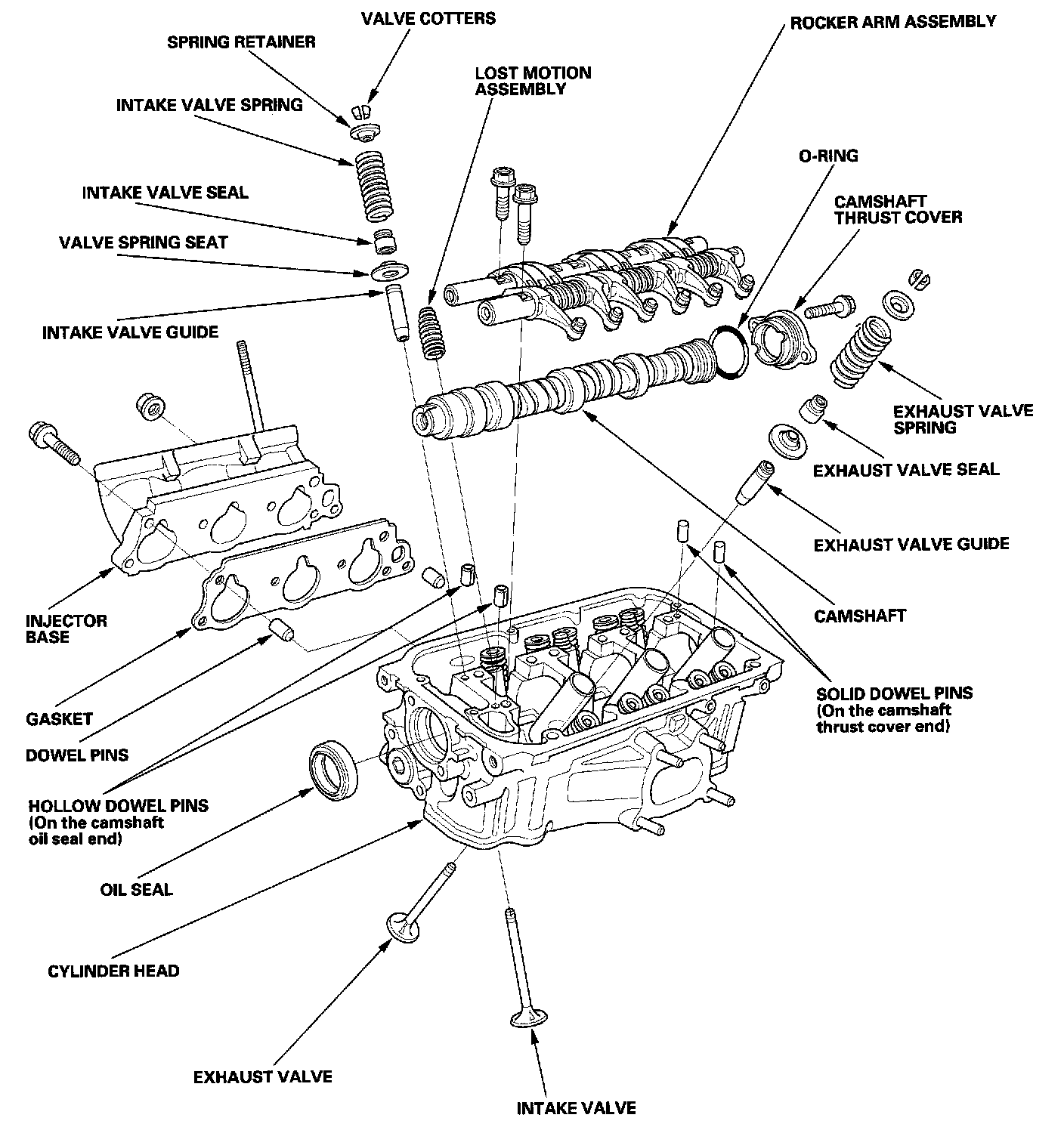

Cylinder Head Component Location Index (part 2):
Cylinder Head Component Location Index (part 3):
