Home >> Acura >> 2005 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly

Cylinder Block Assembly

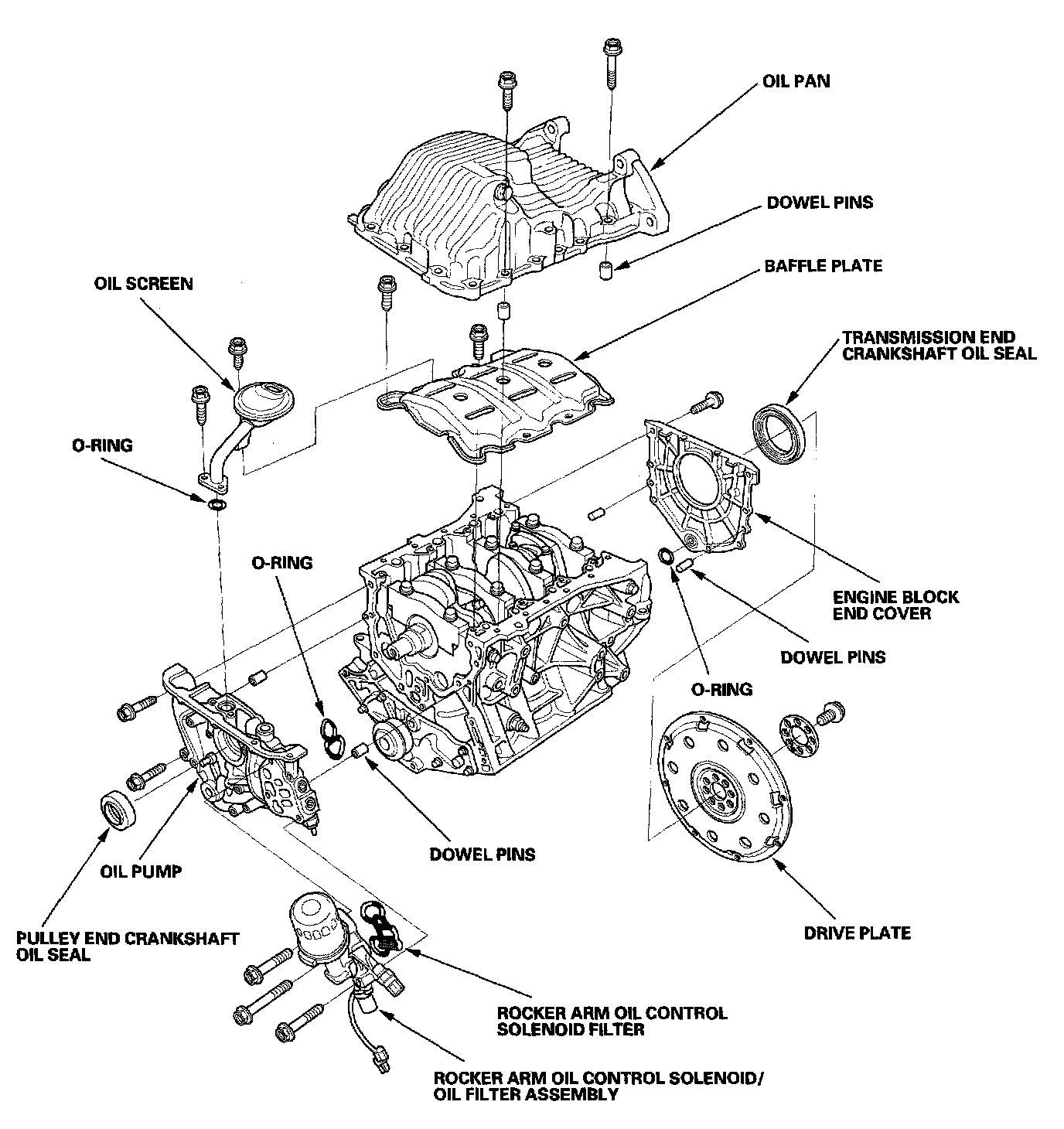

Engine Block Component Location Index:

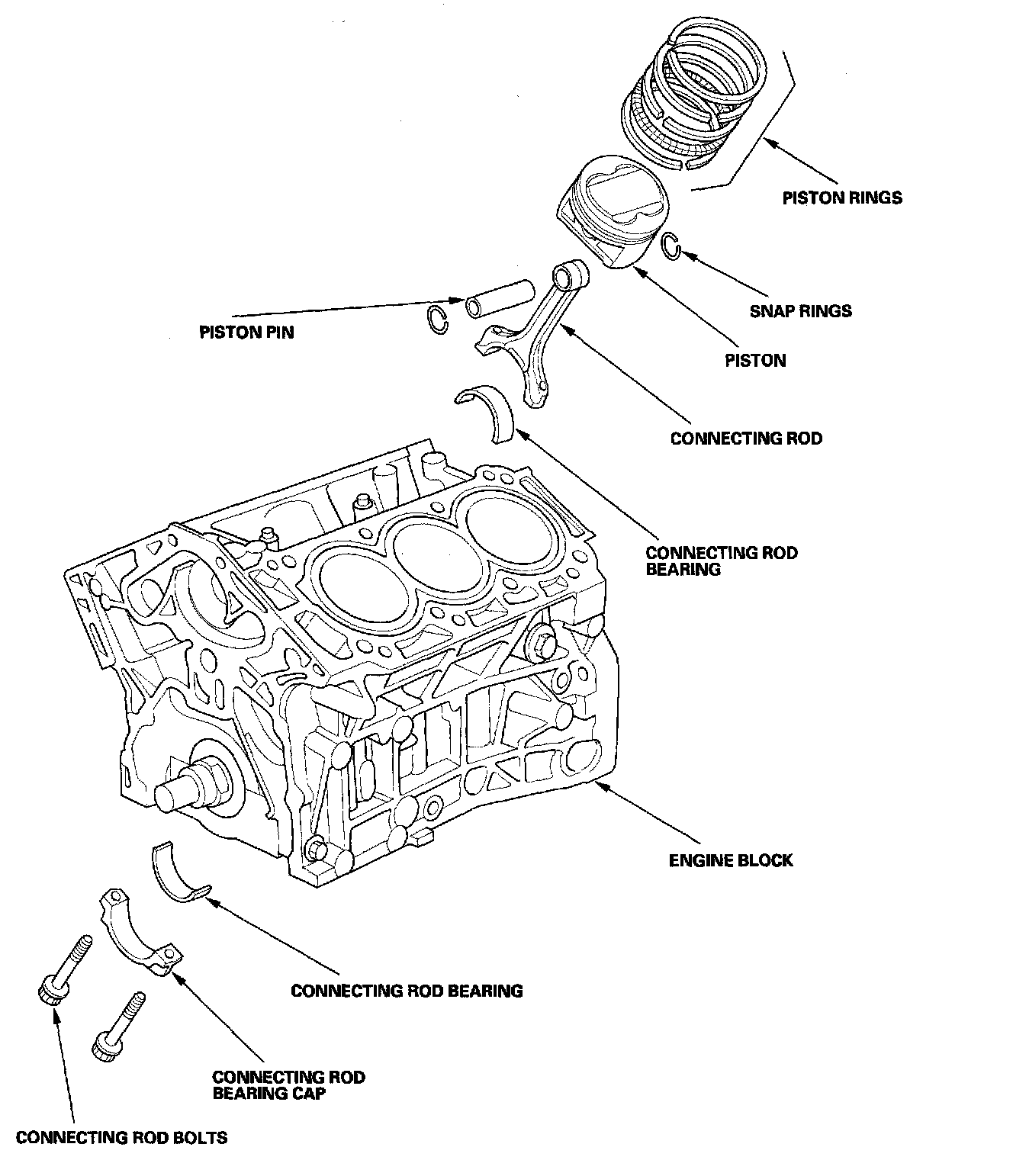

Engine Block Component Location Index:

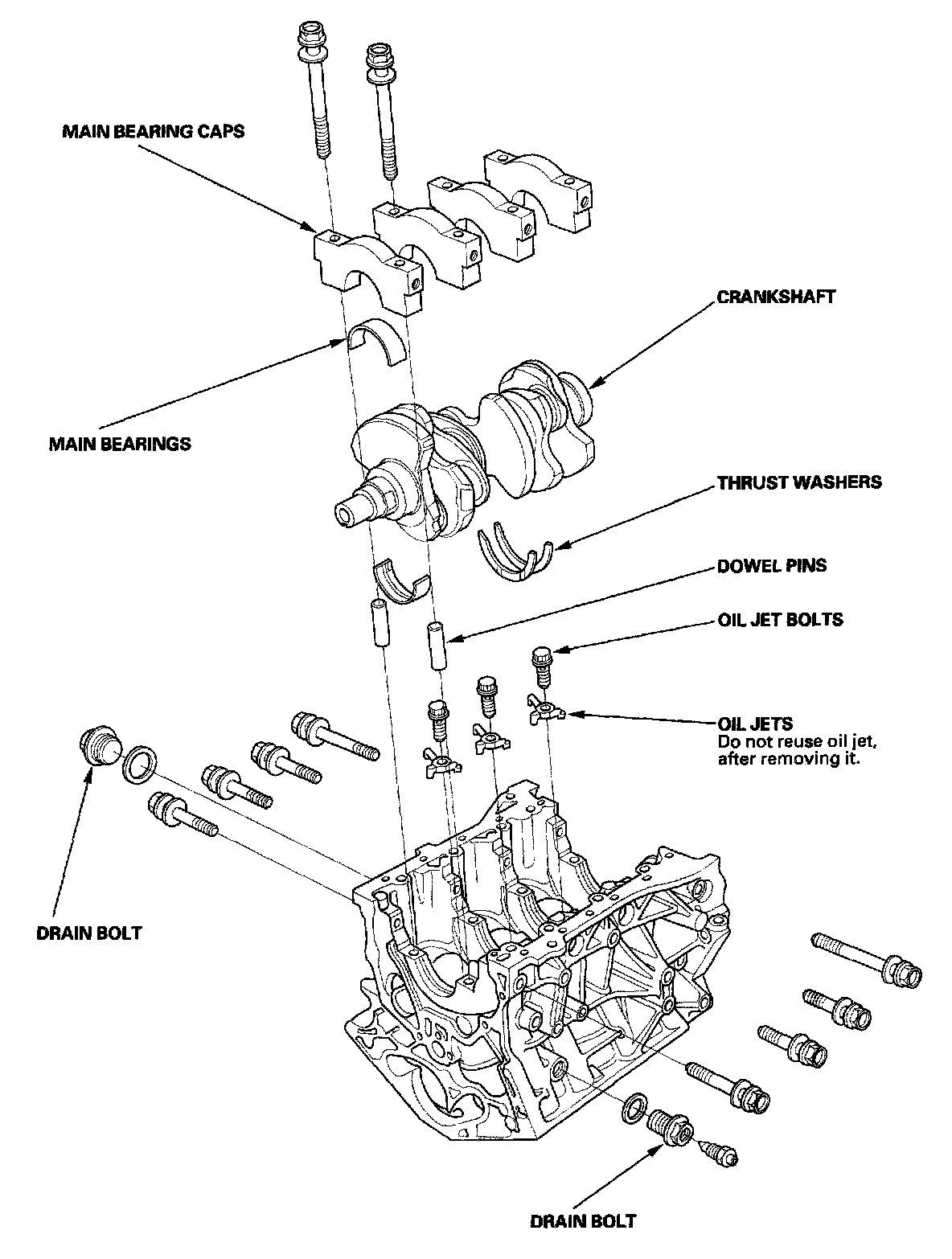

Engine Block Component Location Index:
