System Diagram
System Diagram

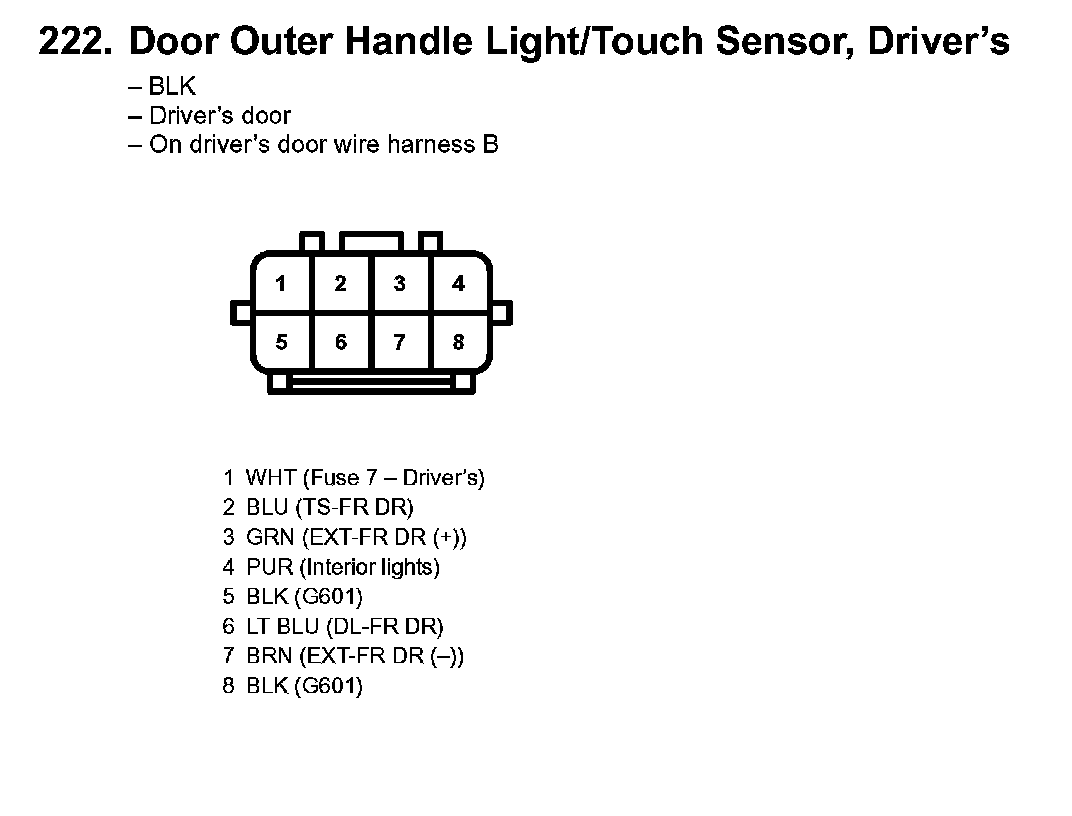

222. Door Outer Handle Light/Touch Sensor, Driver's:

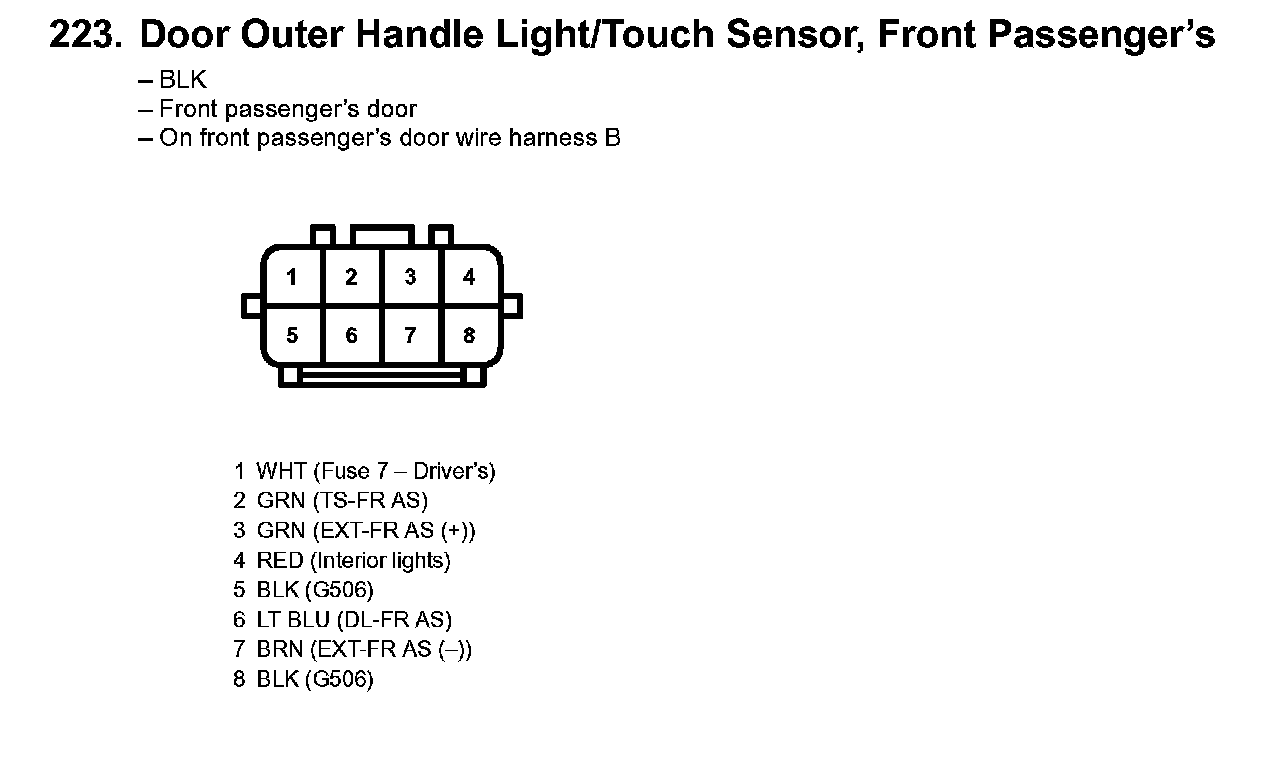

223. Door Outer Handle Light/Touch Sensor, Front Passenger's:
