Home >> Acura >> 2005 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> ECM/PCM Inputs and Outputs

ECM/PCM Inputs and Outputs

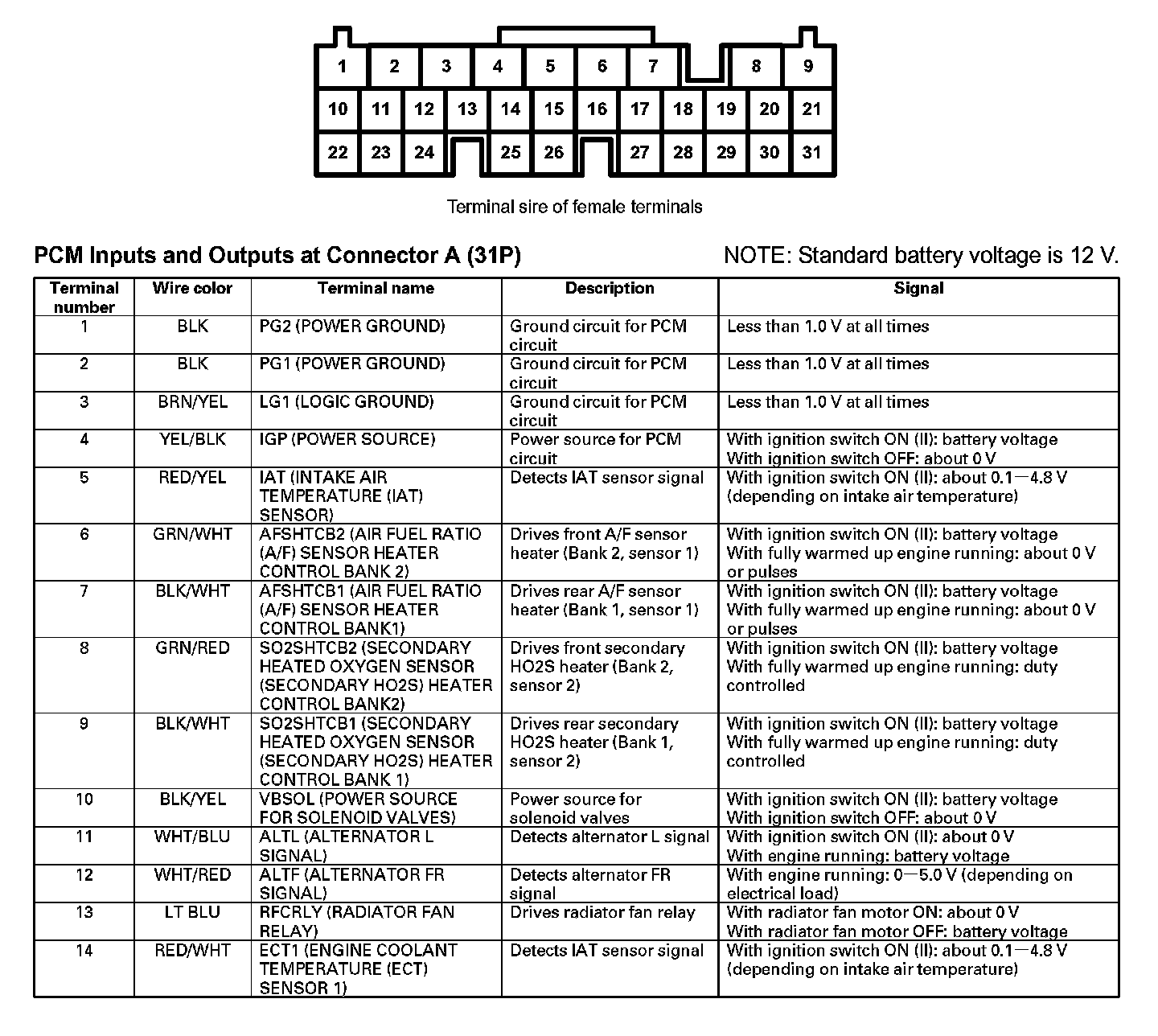

PCM Inputs And Outputs At Connector A (31P) Part 1:

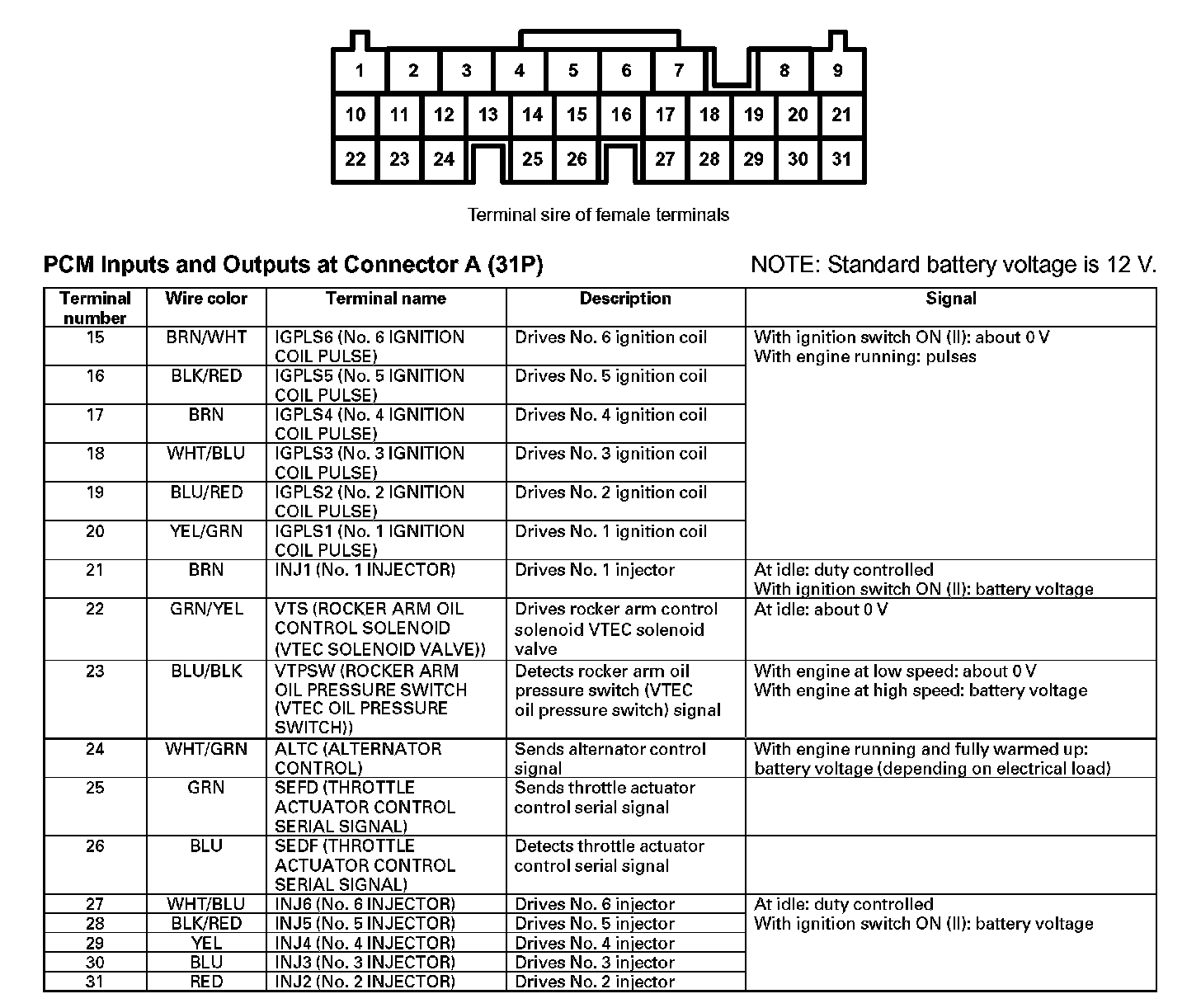

PCM Inputs And Outputs At Connector A (31P) Part 2:

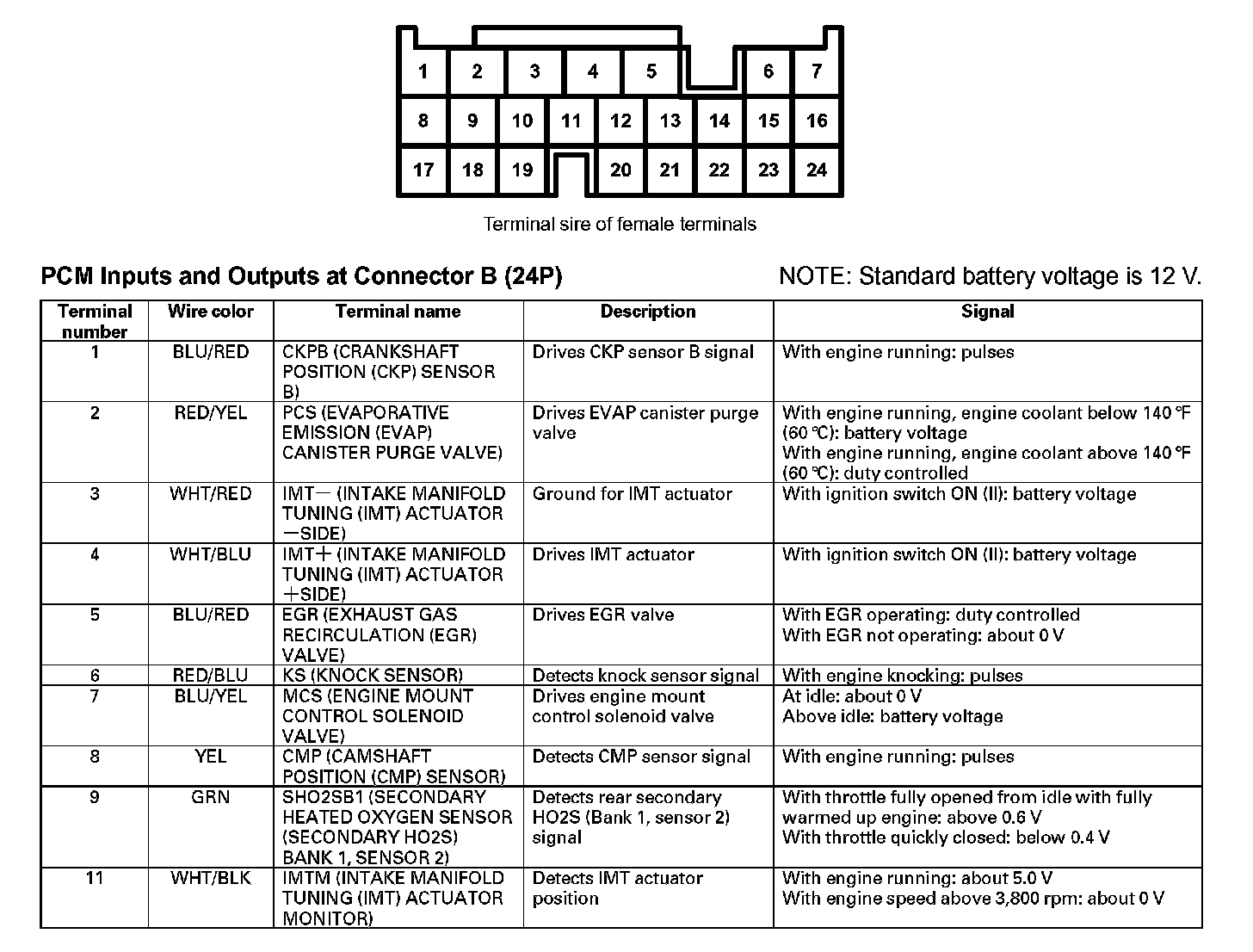

PCM Inputs And Outputs At Connector B (24P) Part 1:

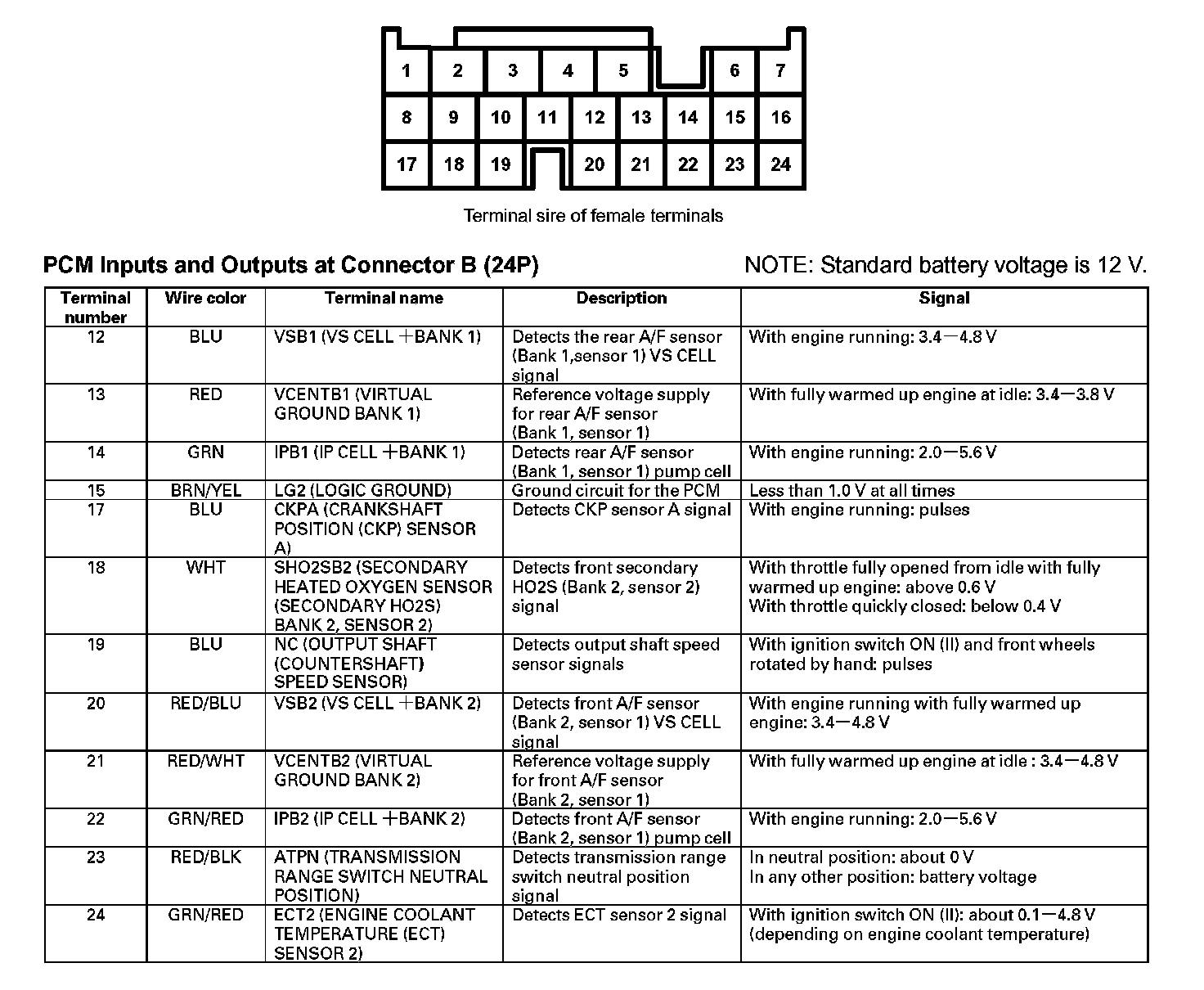

PCM Inputs And Outputs At Connector B (24P) Part 2:

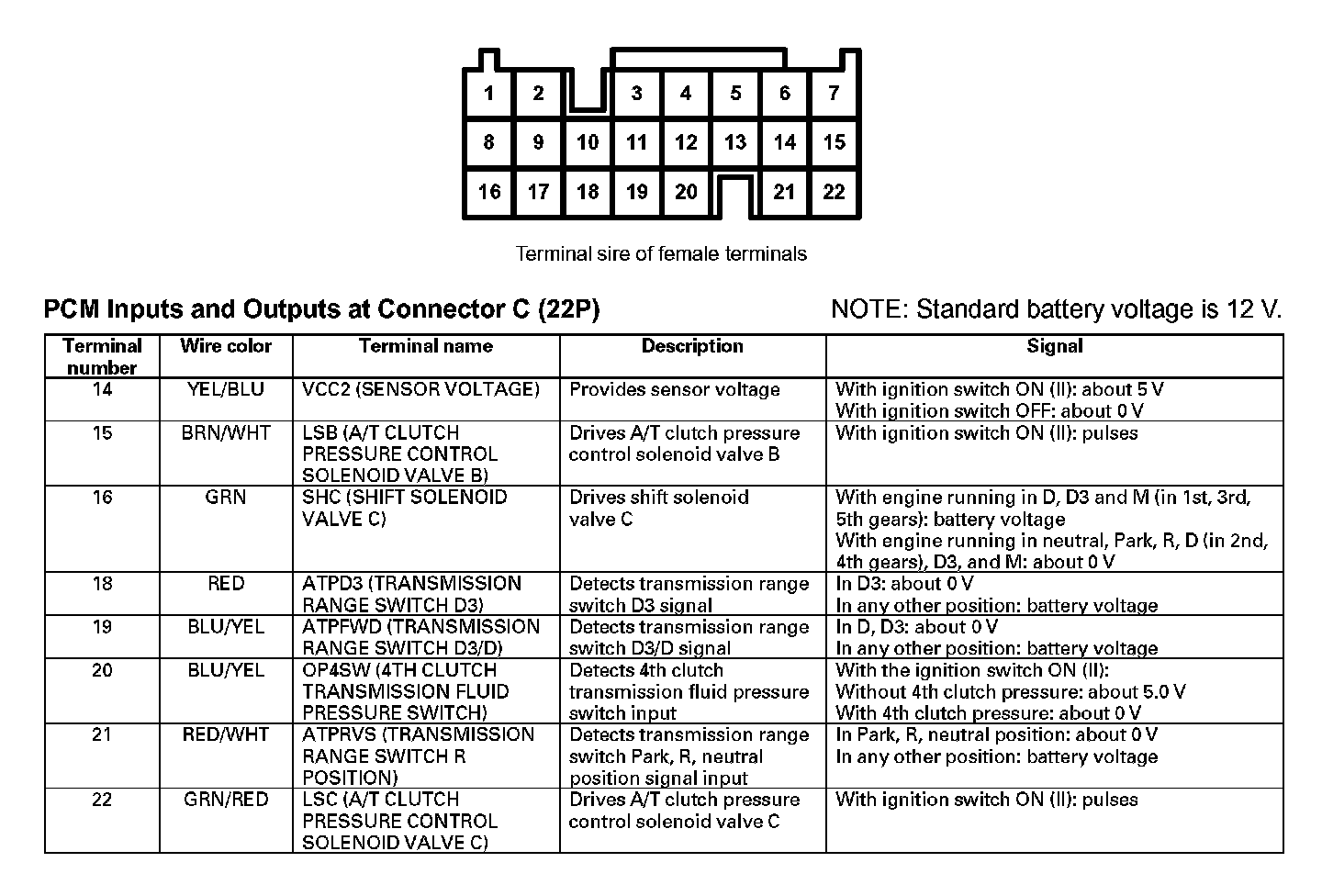

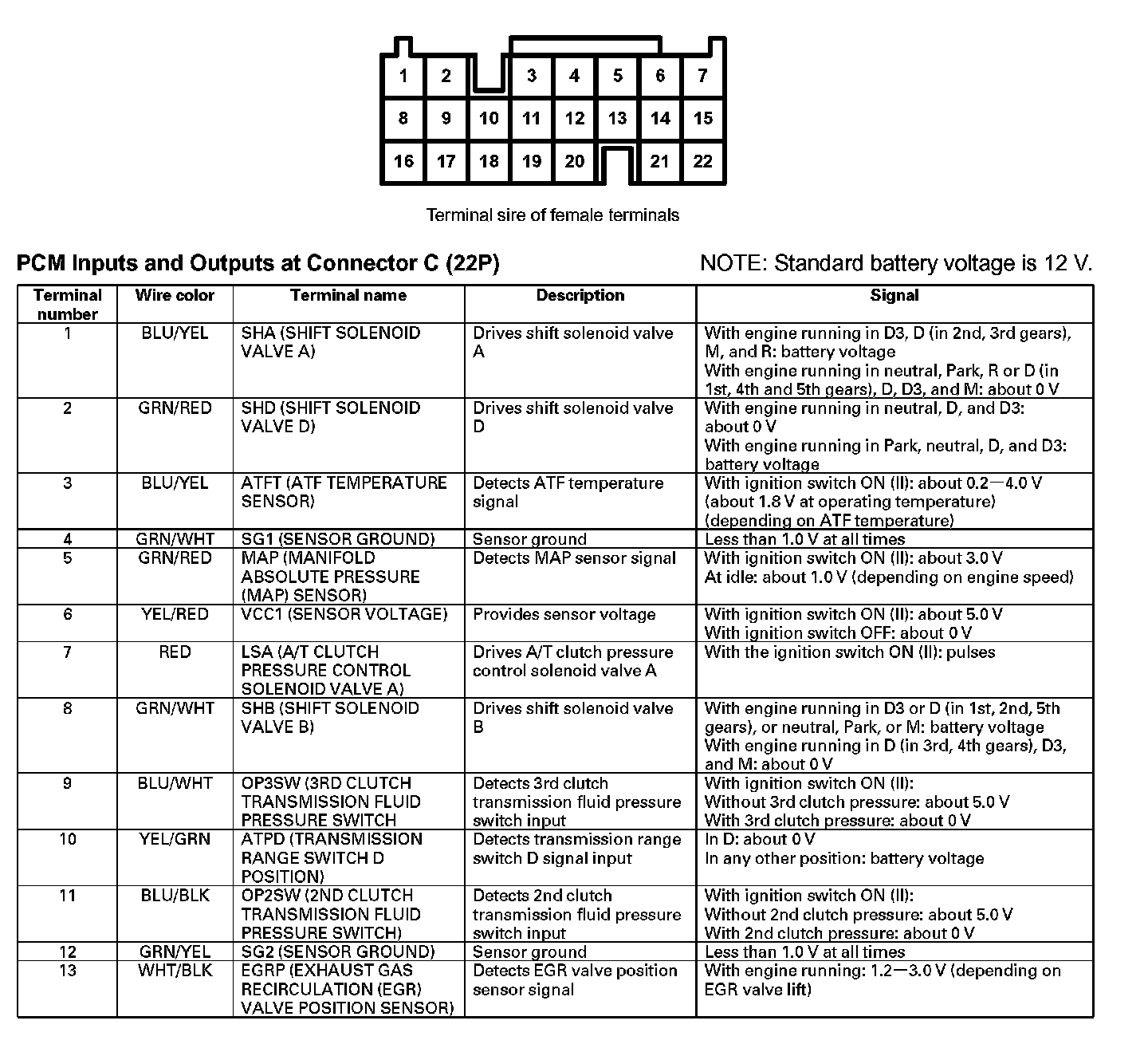

PCM Inputs And Outputs At Connector C (22P) Part 1:



PCM Inputs And Outputs At Connector C (22P) Part 2:

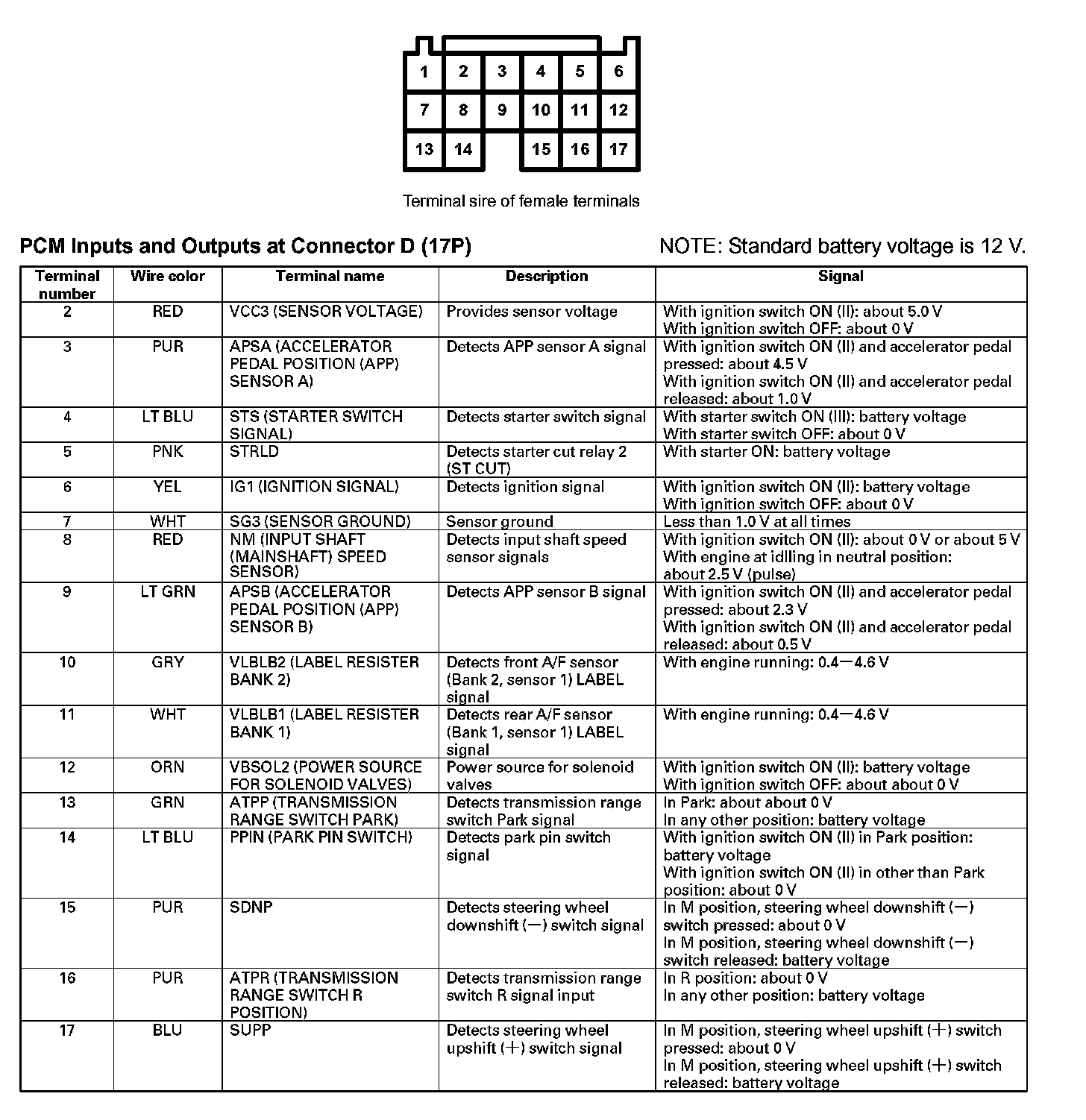

PCM Inputs And Outputs At Connector D (17P):

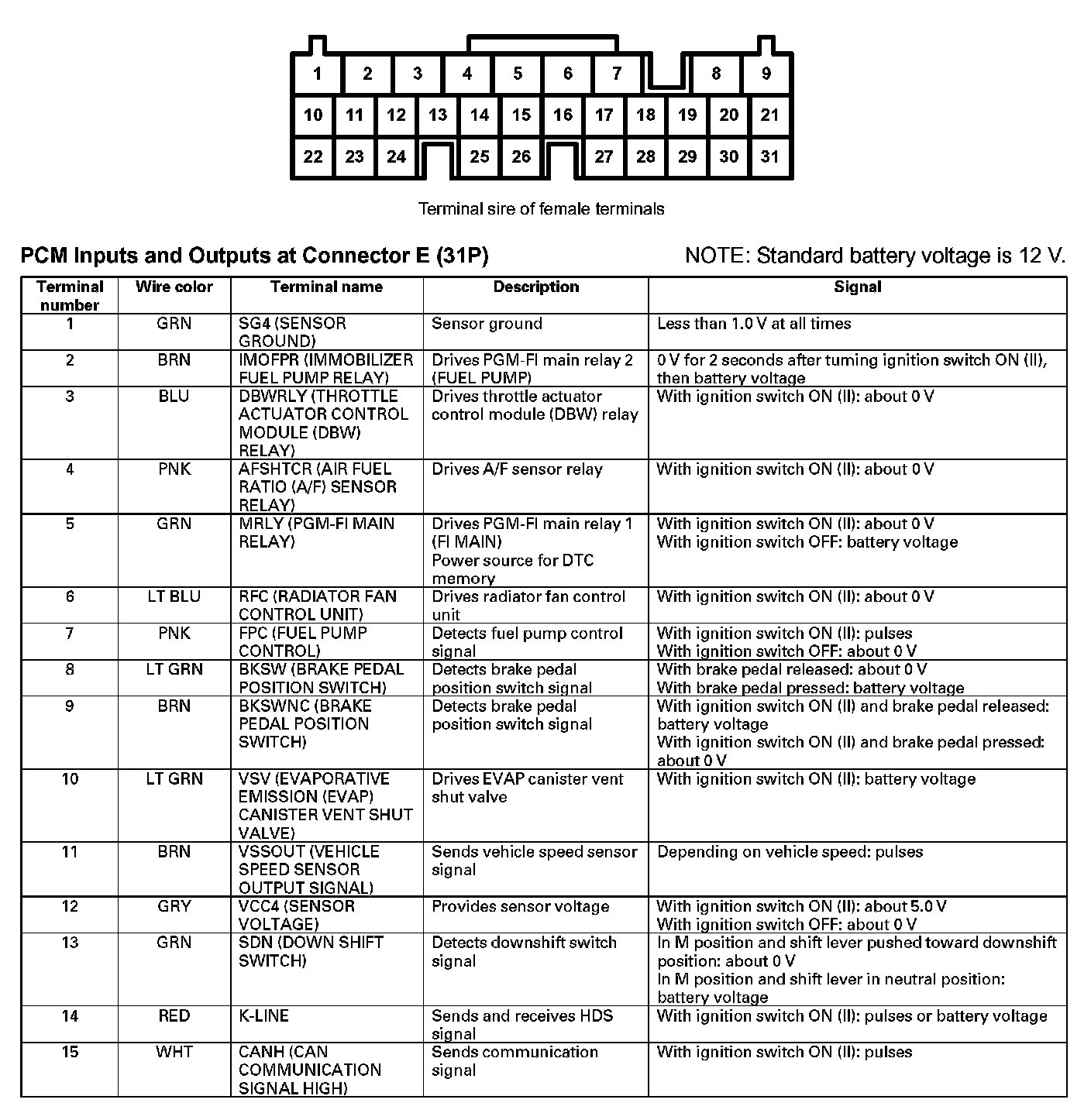

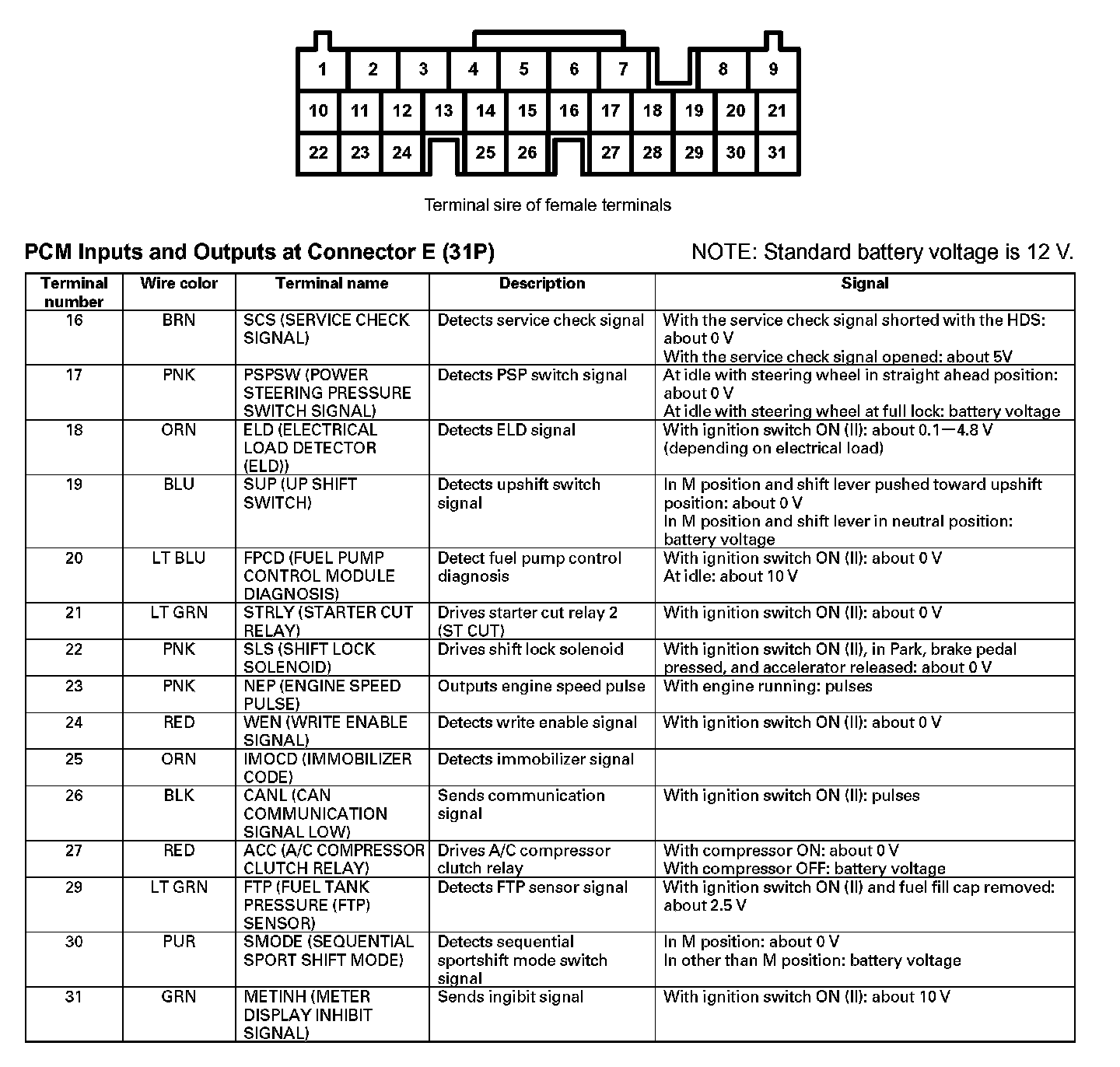

PCM Inputs And Outputs At Connector E (31P) Part 1:



PCM Inputs And Outputs At Connector E (31P) Part 2:
