Home >> Acura >> 2005 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case

Control Module, Transfer Case

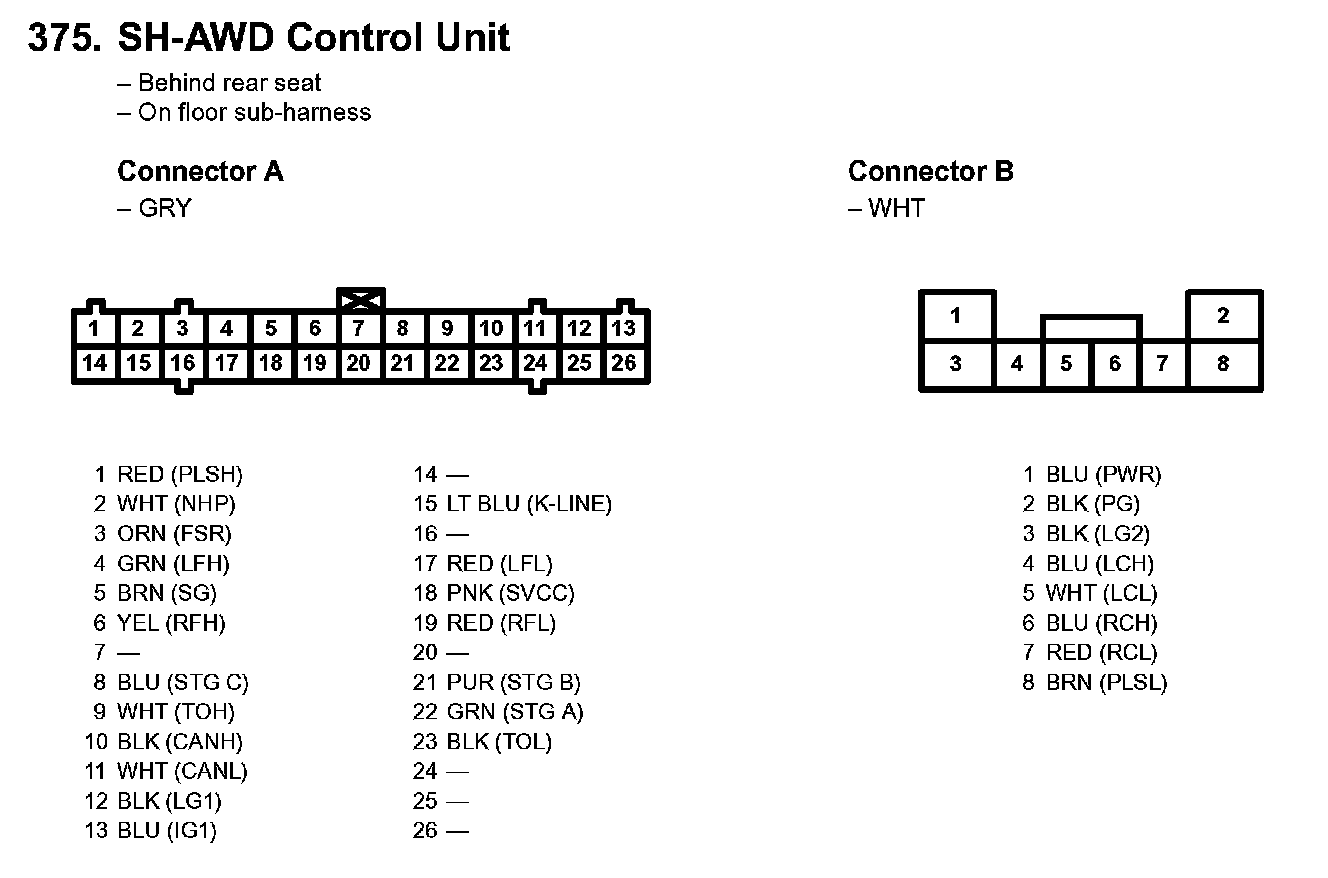

375. SH-AWD Control Unit:
