Control Module HVAC
Control Module HVAC

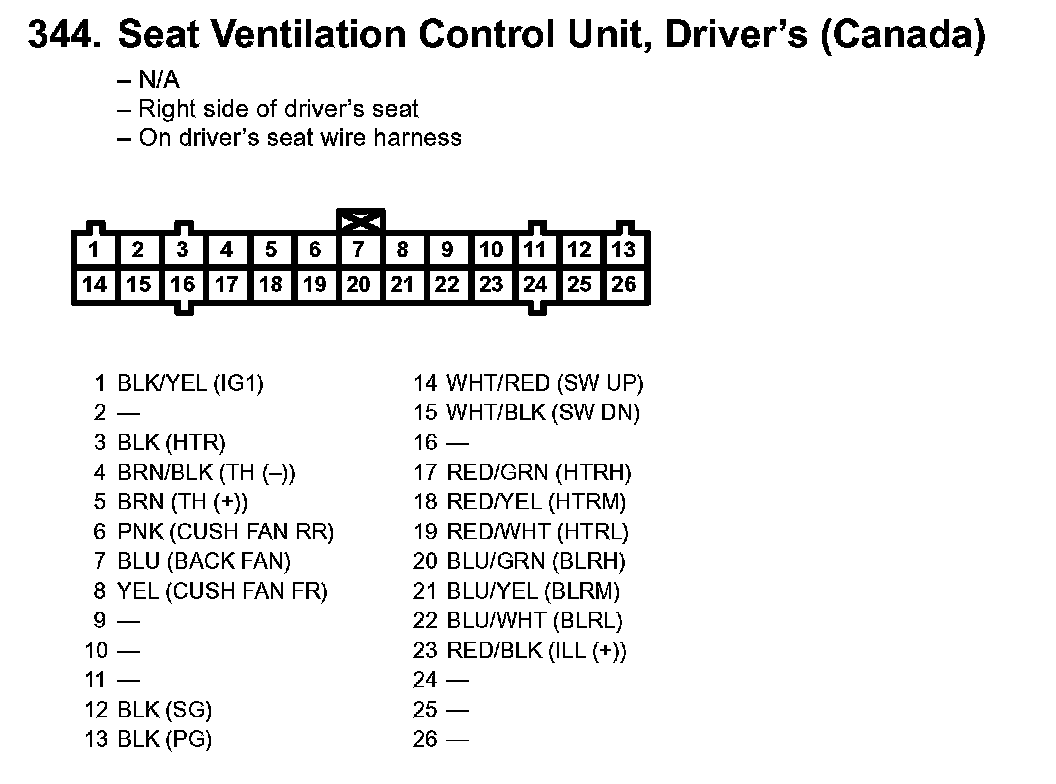

344. Seat Ventilation Control Unit, Driver's (Canada):

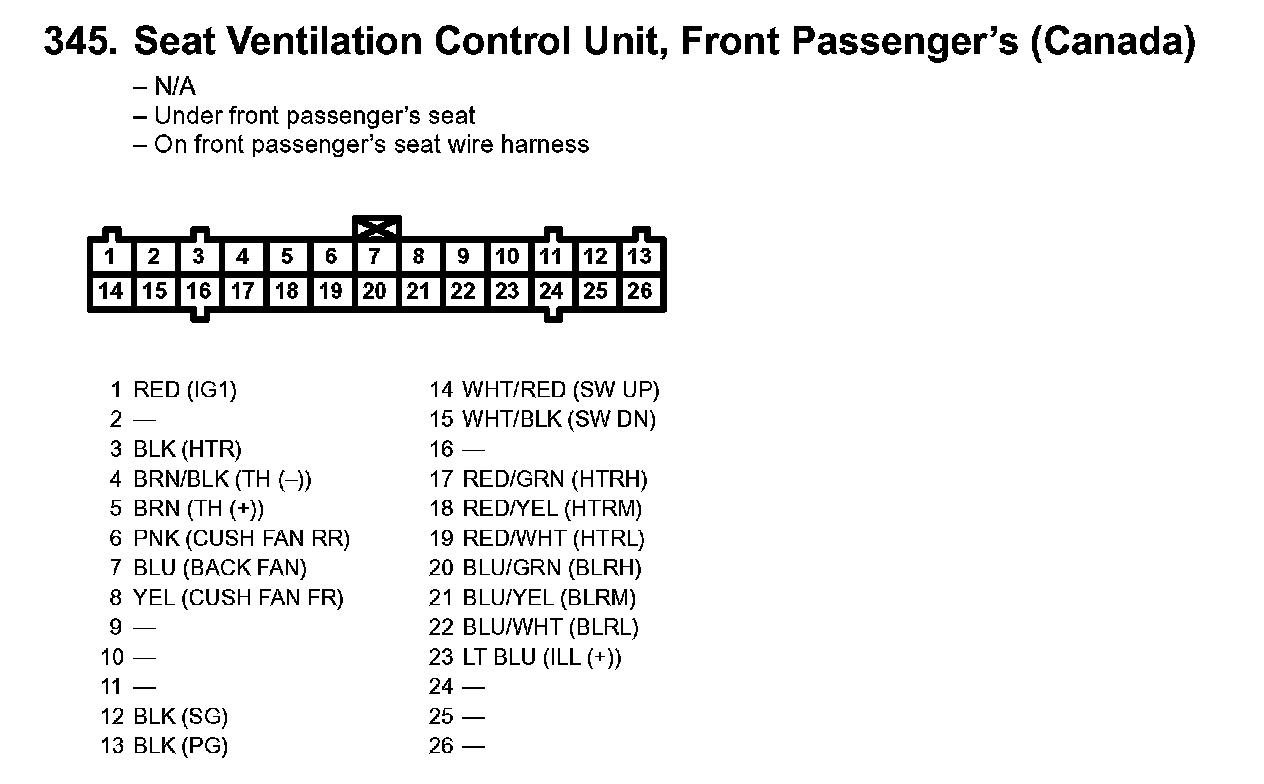

345. Seat Ventilation Control Unit, Front Passenger's (Canada):
