Home >> Acura >> 2005 >> RL V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Collision Avoidance Sensor

Collision Avoidance Sensor

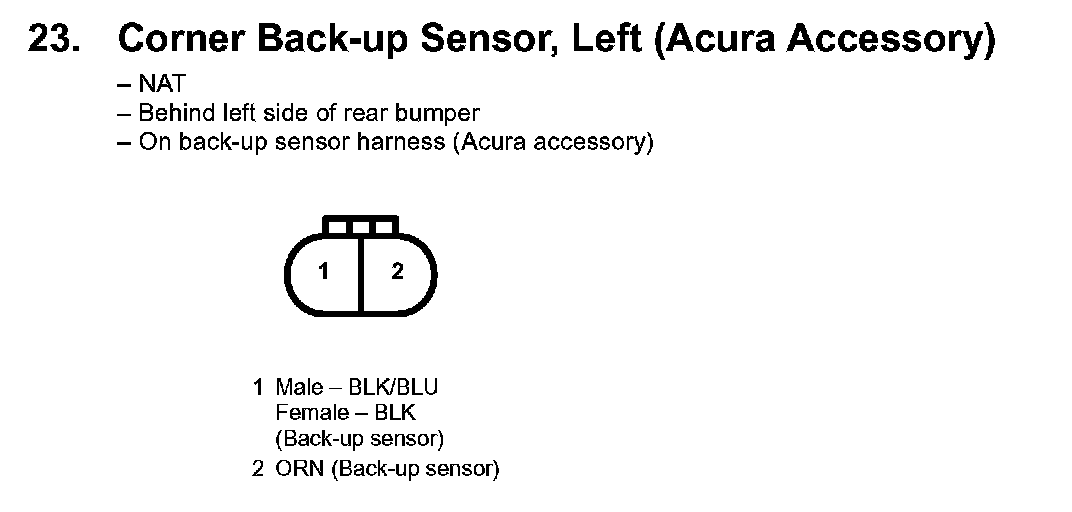

23. Corner Backup-Sensor, Left (Acura Accessory):

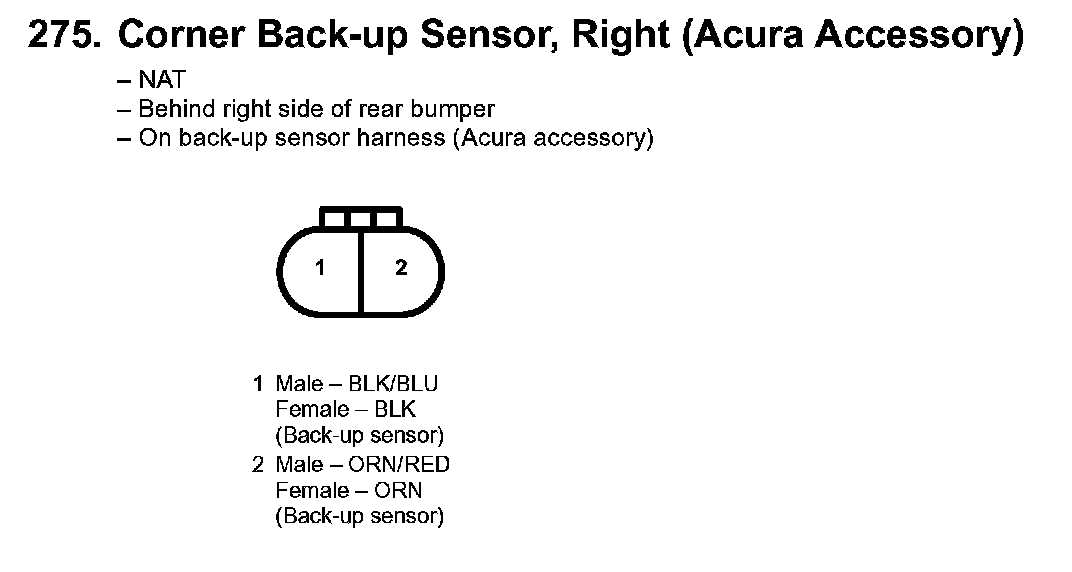

275. Corner Back-up Sensor, Right (Acura Accessory):

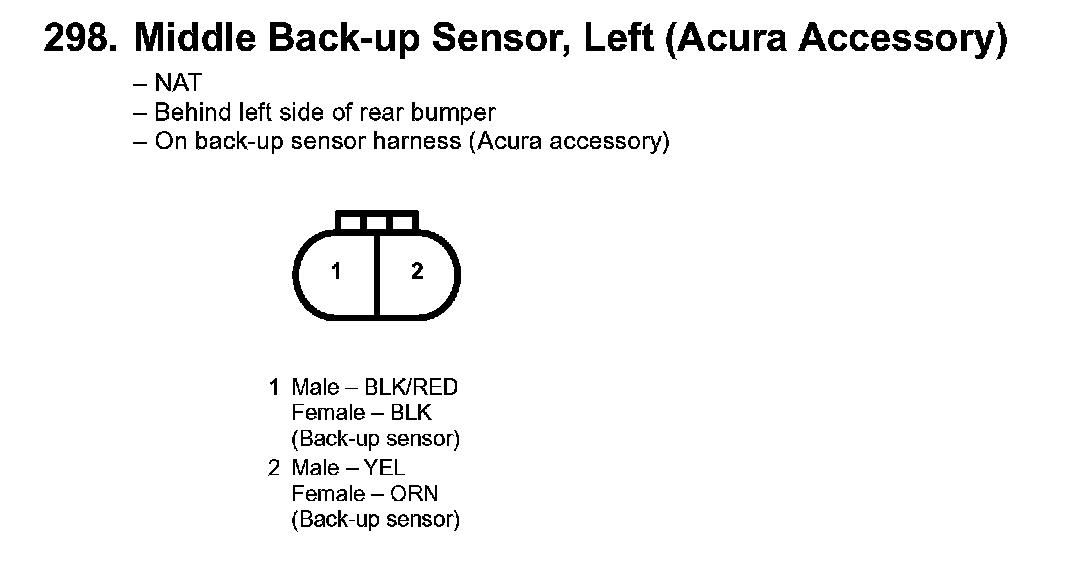

298. Middle Back-up Sensor, Left (Acura Accessory):

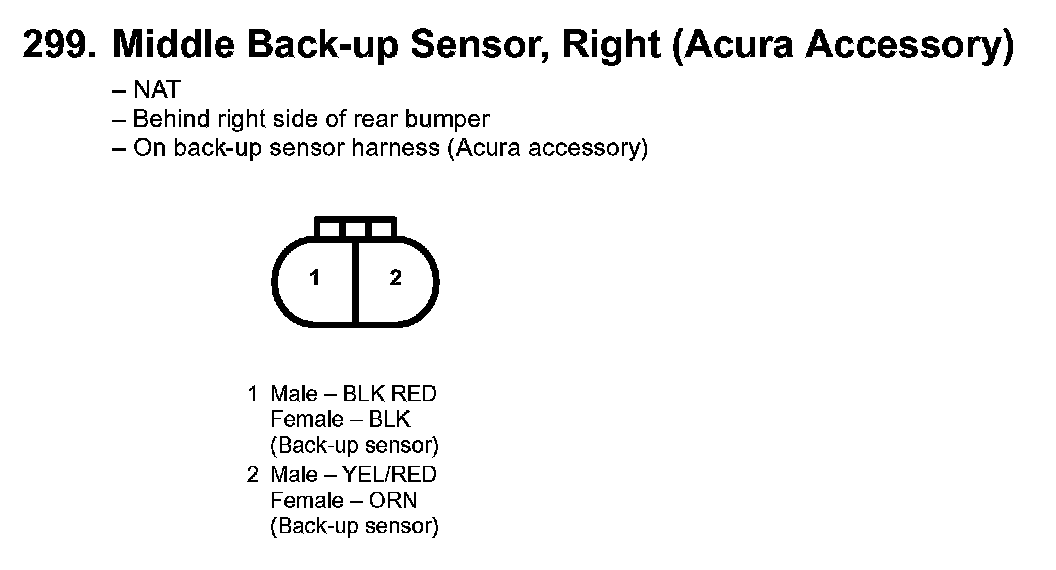

299. Middle Back-up Sensor, Right (Acura Accessory):

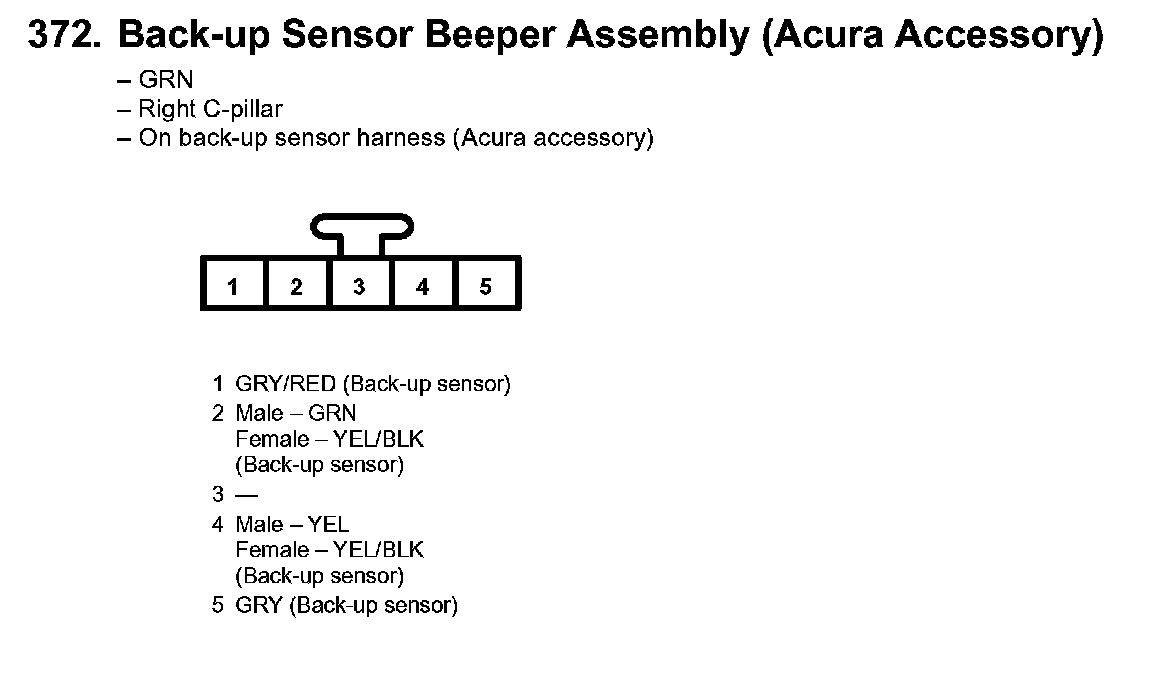

372. Back-up Sensor Beeper Assembly (Acura Accessory):
