RF Unit 2 Replacement
RF Unit 2 Replacement1. Remove the rear shelf.

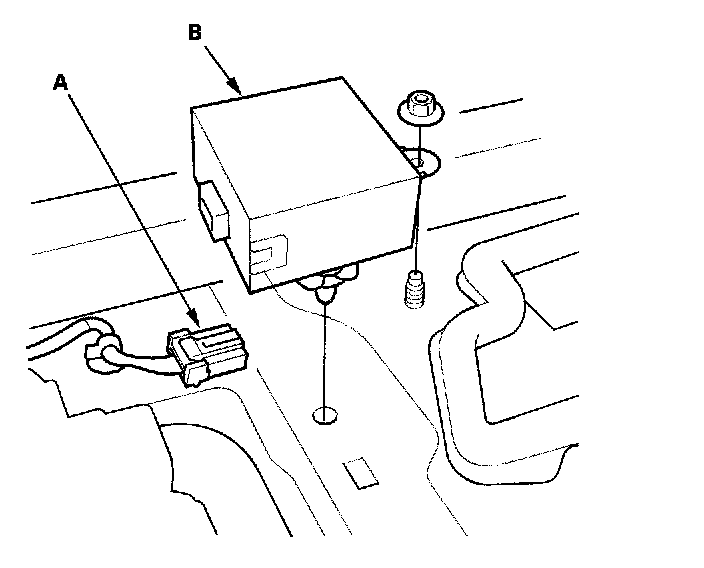

2. Disconnect the 6P connector (A) from the RF unit 2 (B).
3. Remove the nut and the RF unit 2.
4. Install the unit in the reverse order of removal.
1. Remove the rear shelf.
2. Disconnect the 6P connector (A) from the RF unit 2 (B).
3. Remove the nut and the RF unit 2.
4. Install the unit in the reverse order of removal.
