Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Module >> Locations

Power Distribution Module: Locations

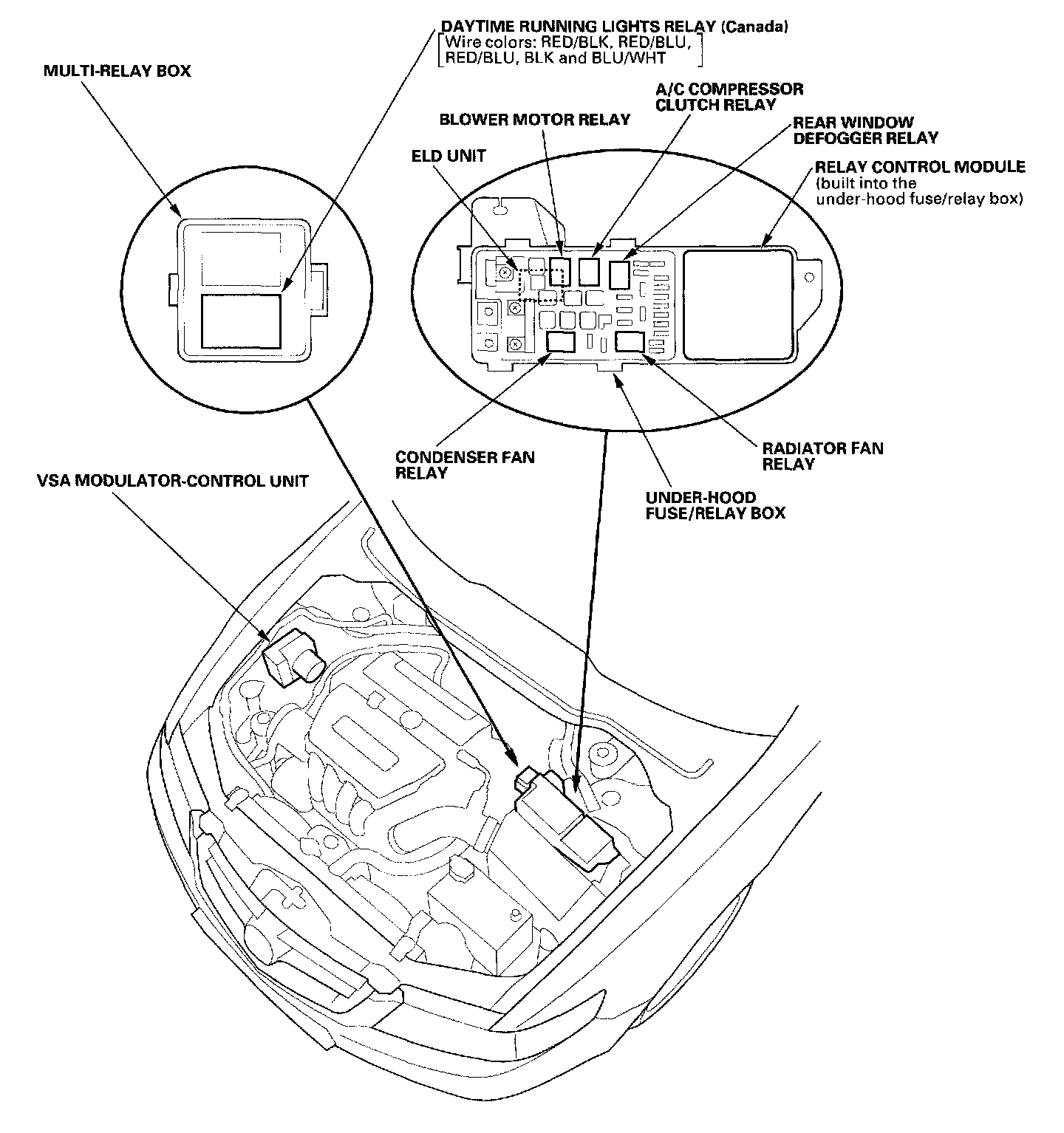

Relay And Control Unit Locations - Engine Compartment:
