Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Locations >> Harness Locations >> Throttle Actuator Control Module Subharness

Throttle Actuator Control Module Subharness

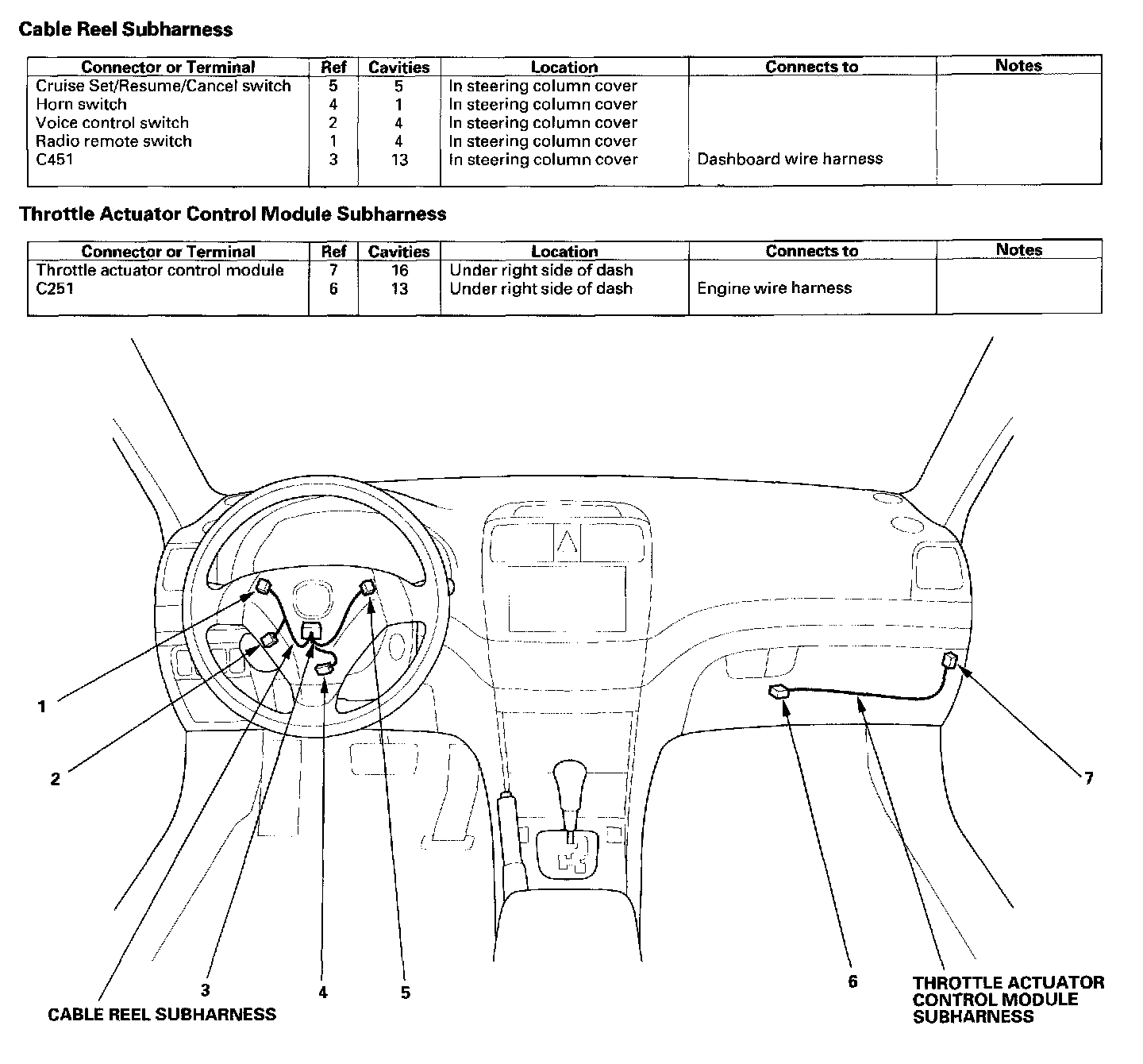

Cable Reel Subharness/Throttle Actuator Control Module Subharness:

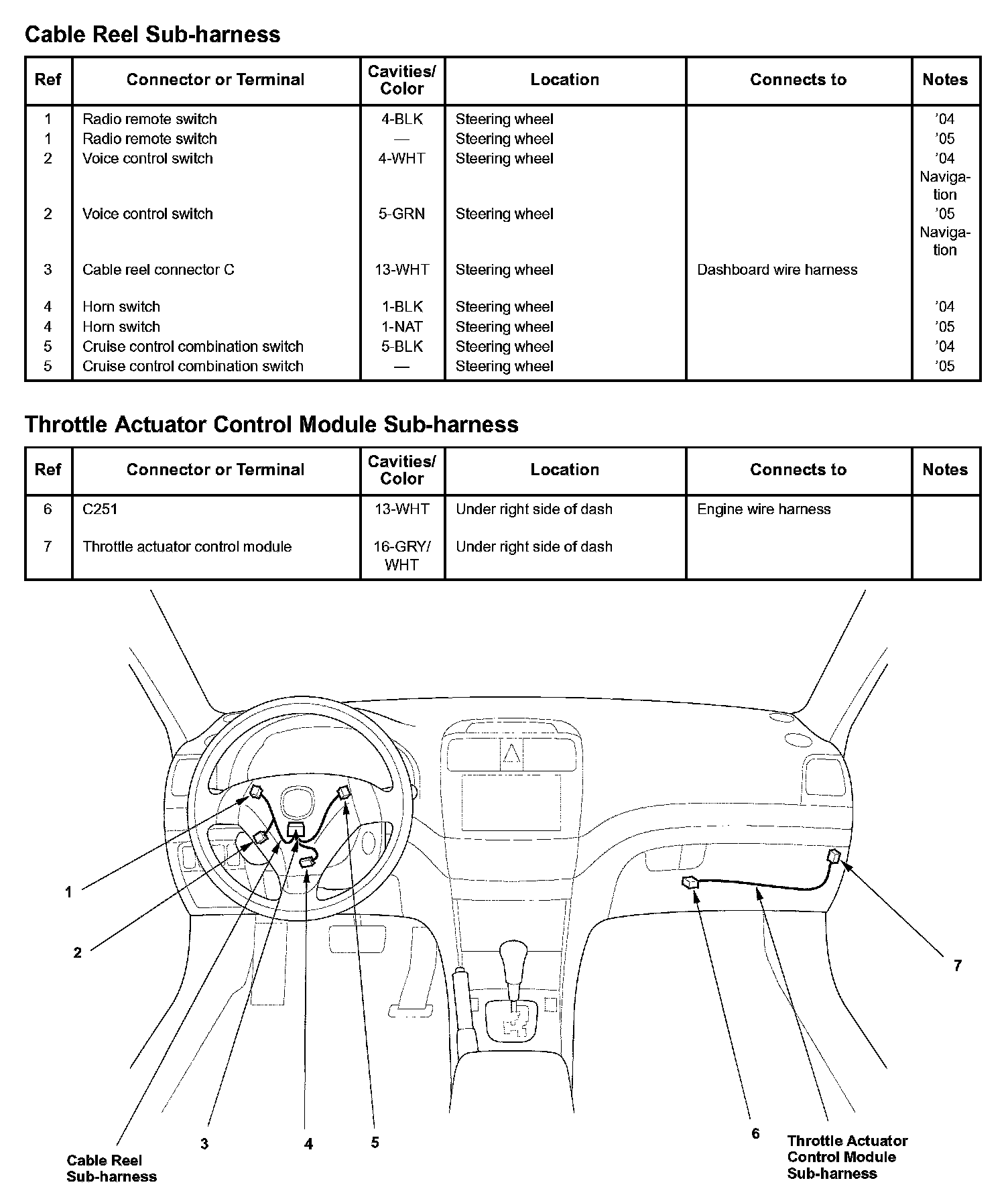

Cable Reel Sub-harness/Throttle Actuator Control Module Sub-harness:
