Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Assembly

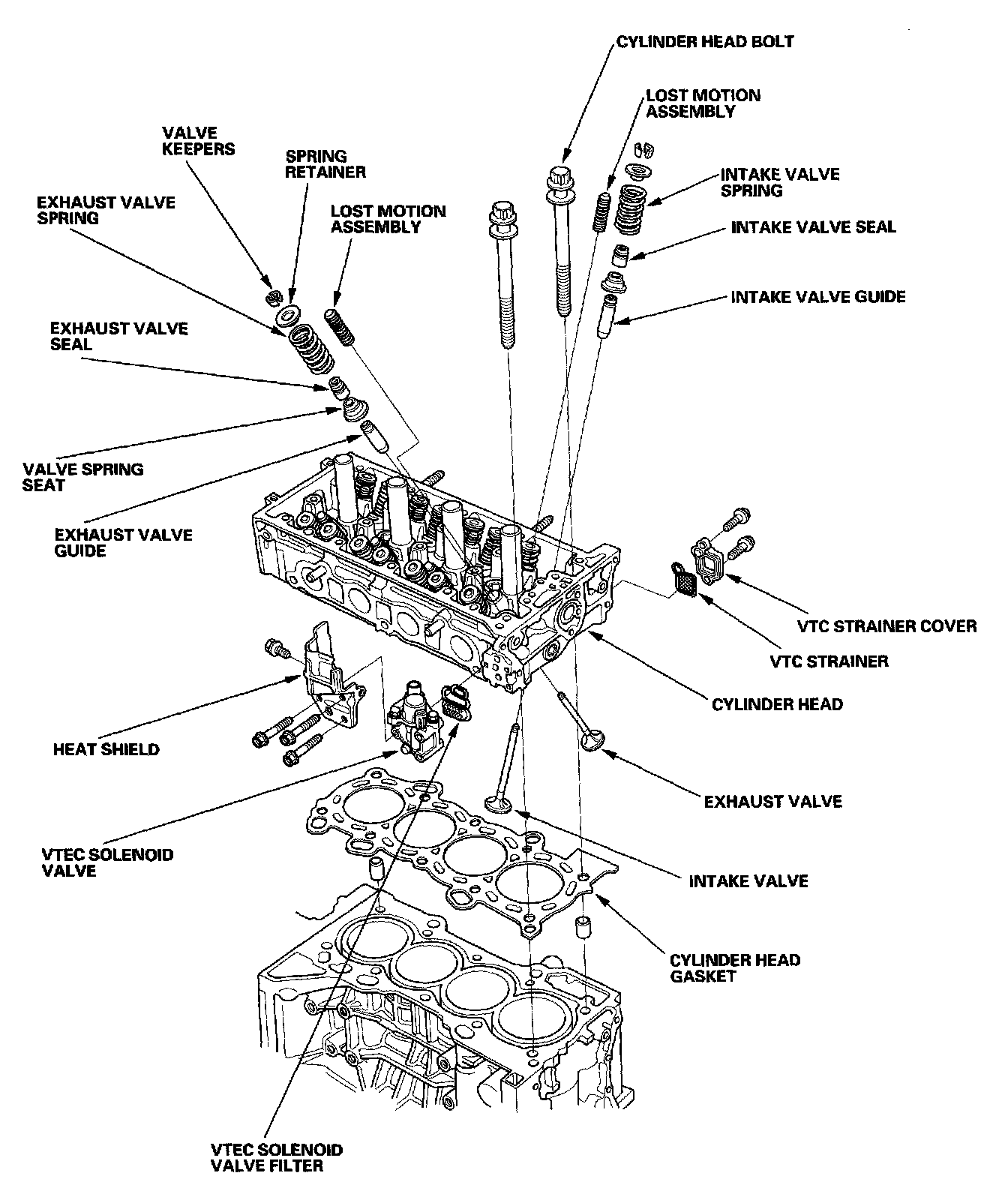

Cylinder Head Assembly

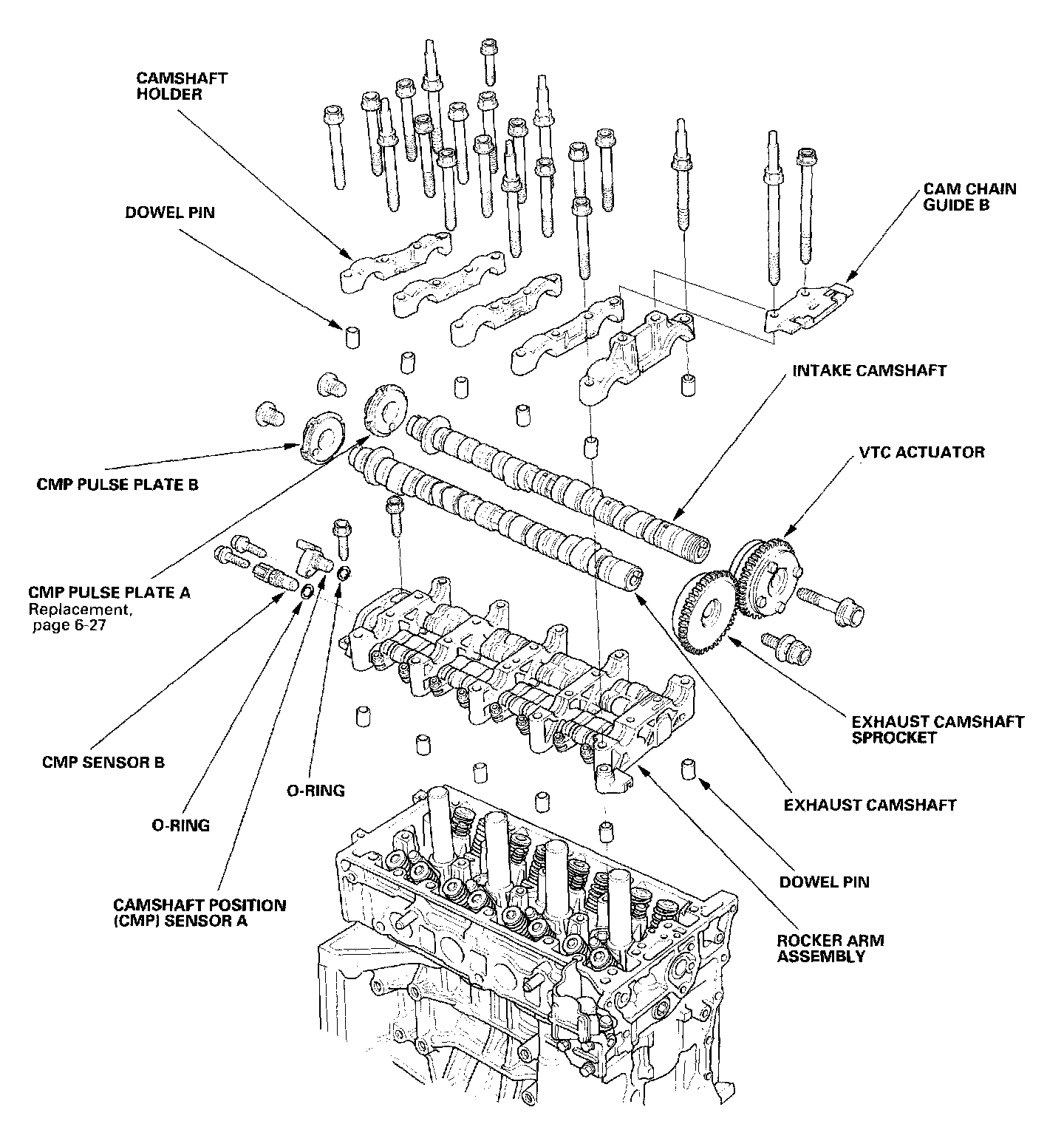

Part 1 Of 3:

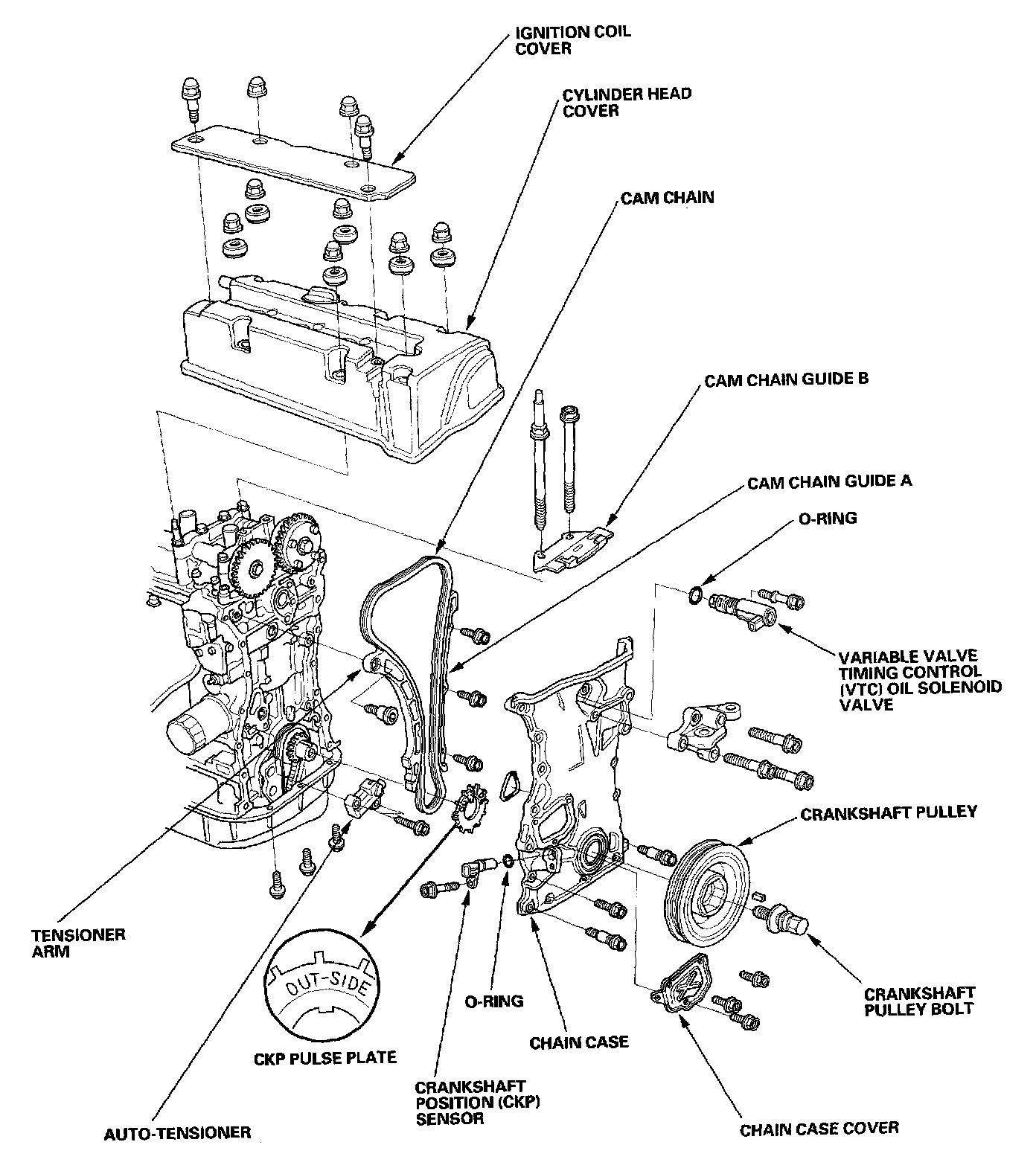

Part 2 Of 3:








Component Location Index
