Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

Relay Box

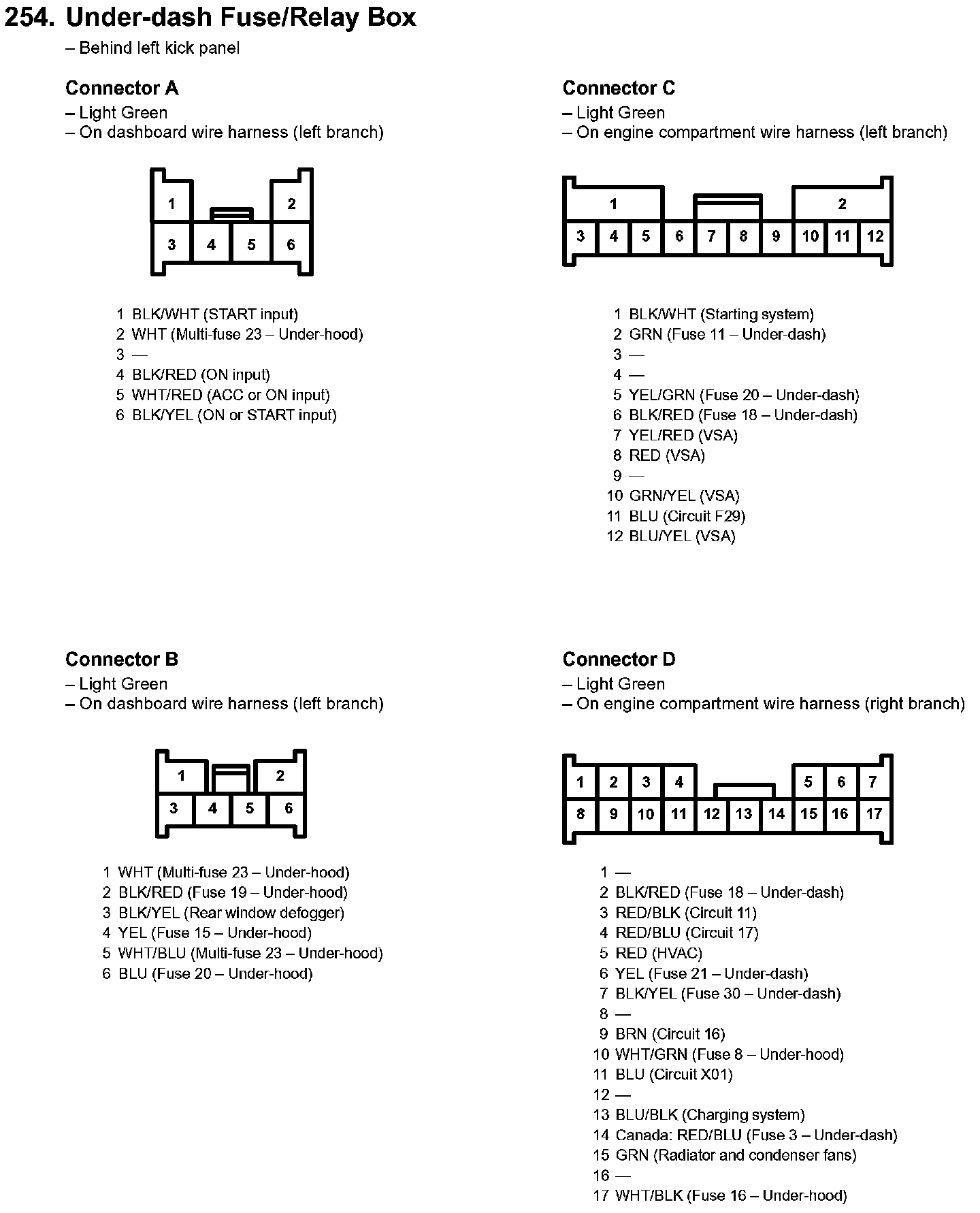

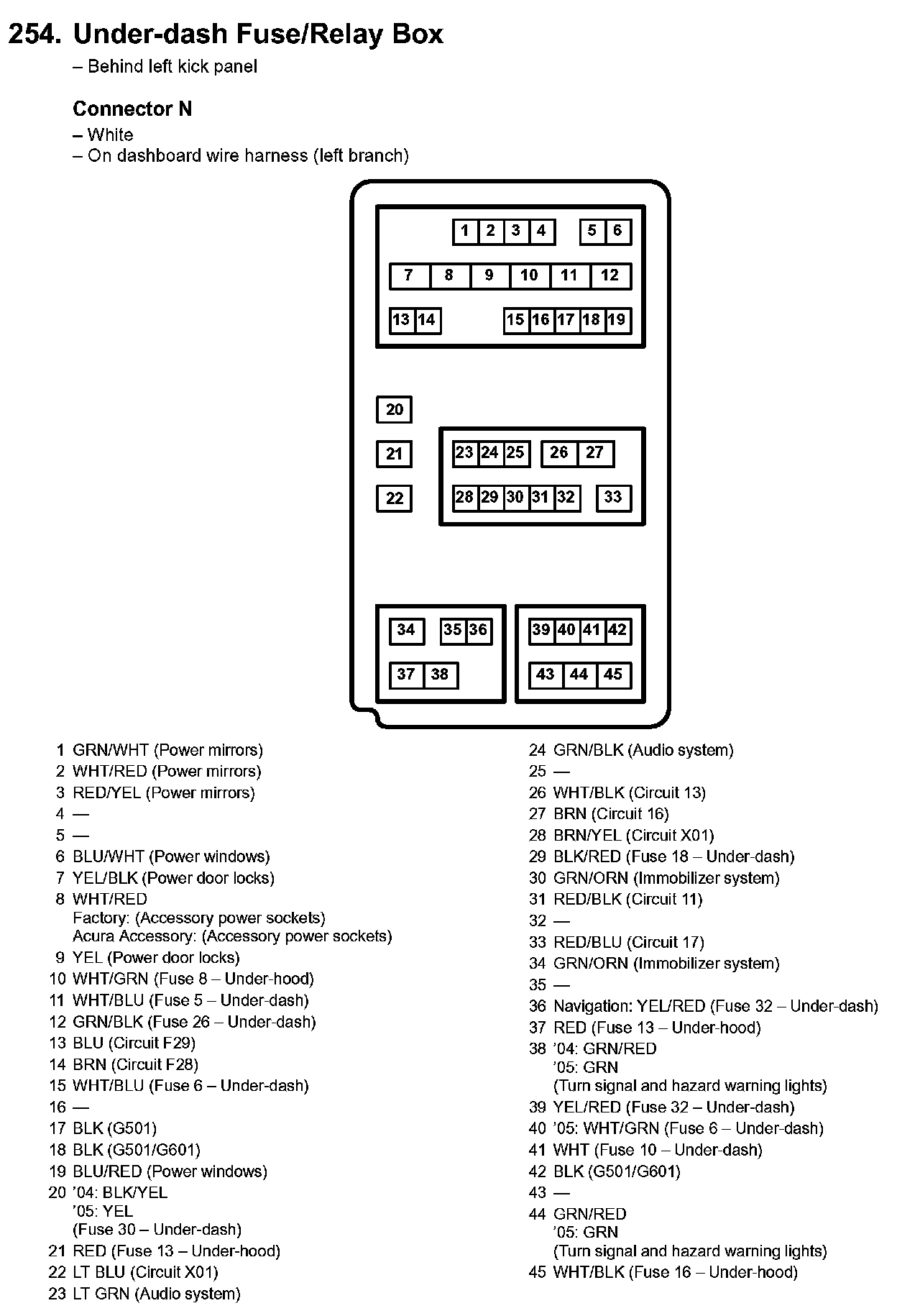

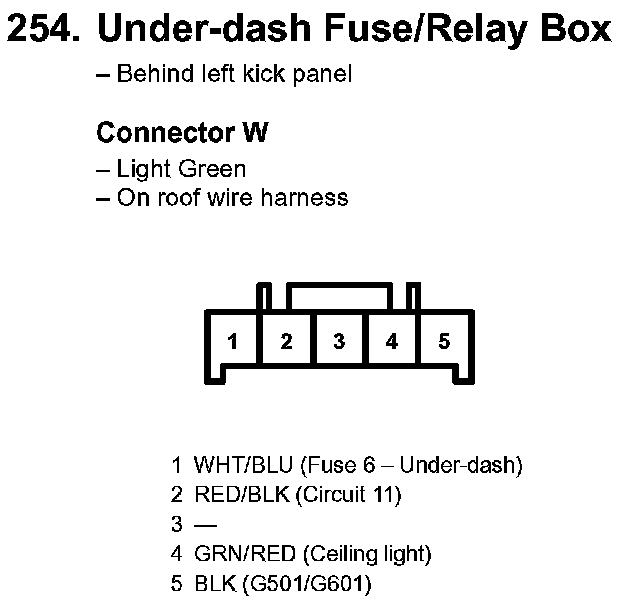

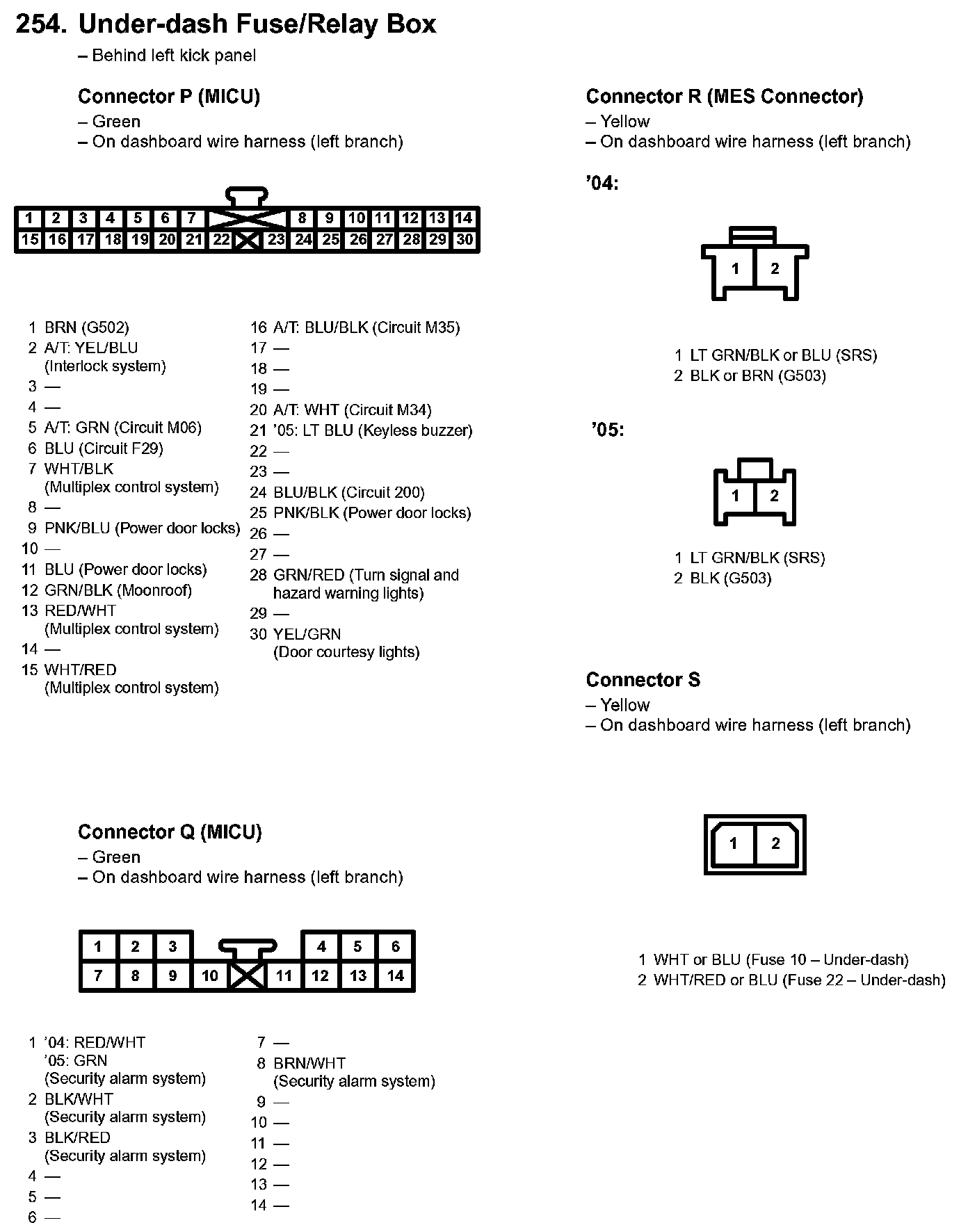

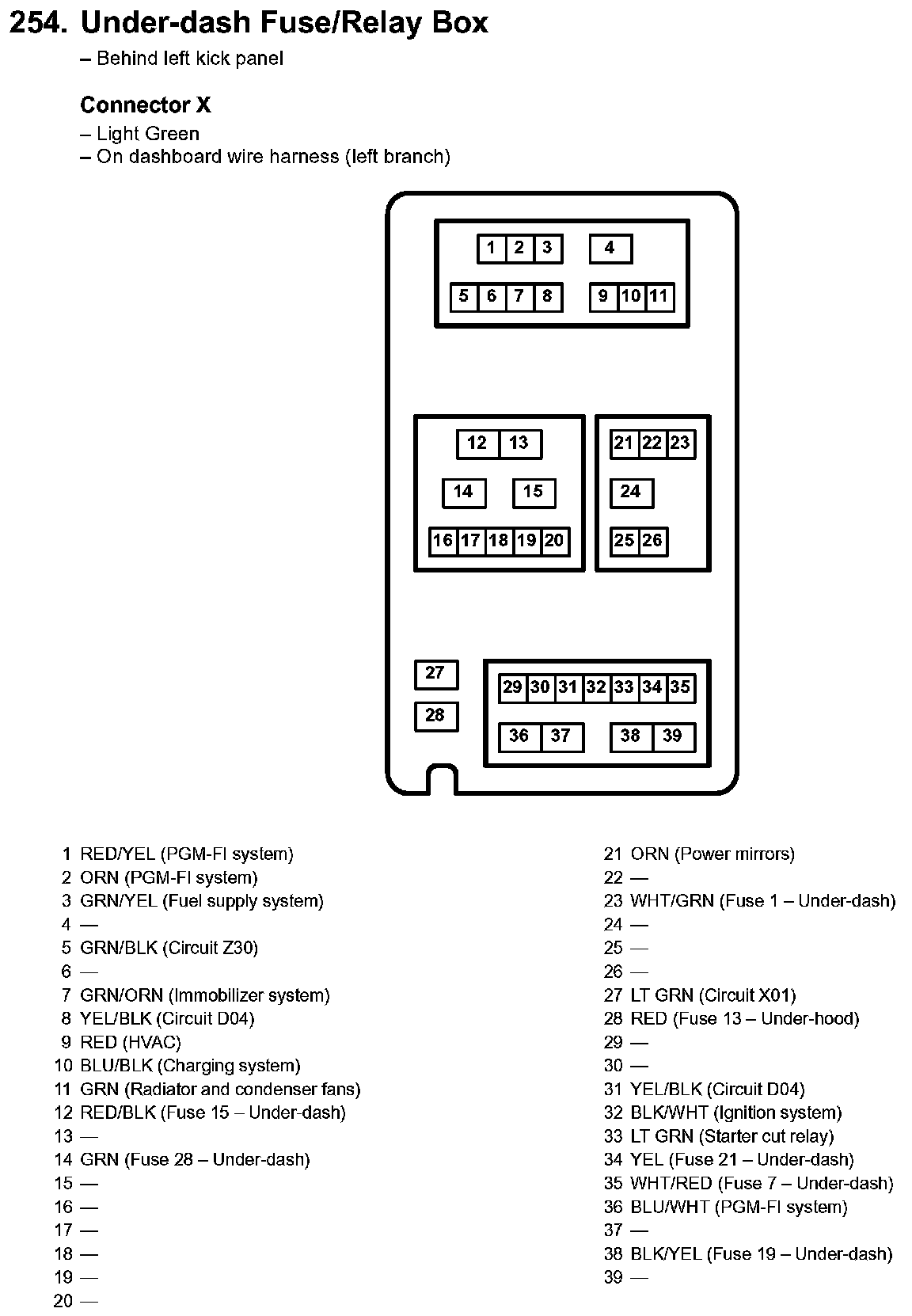

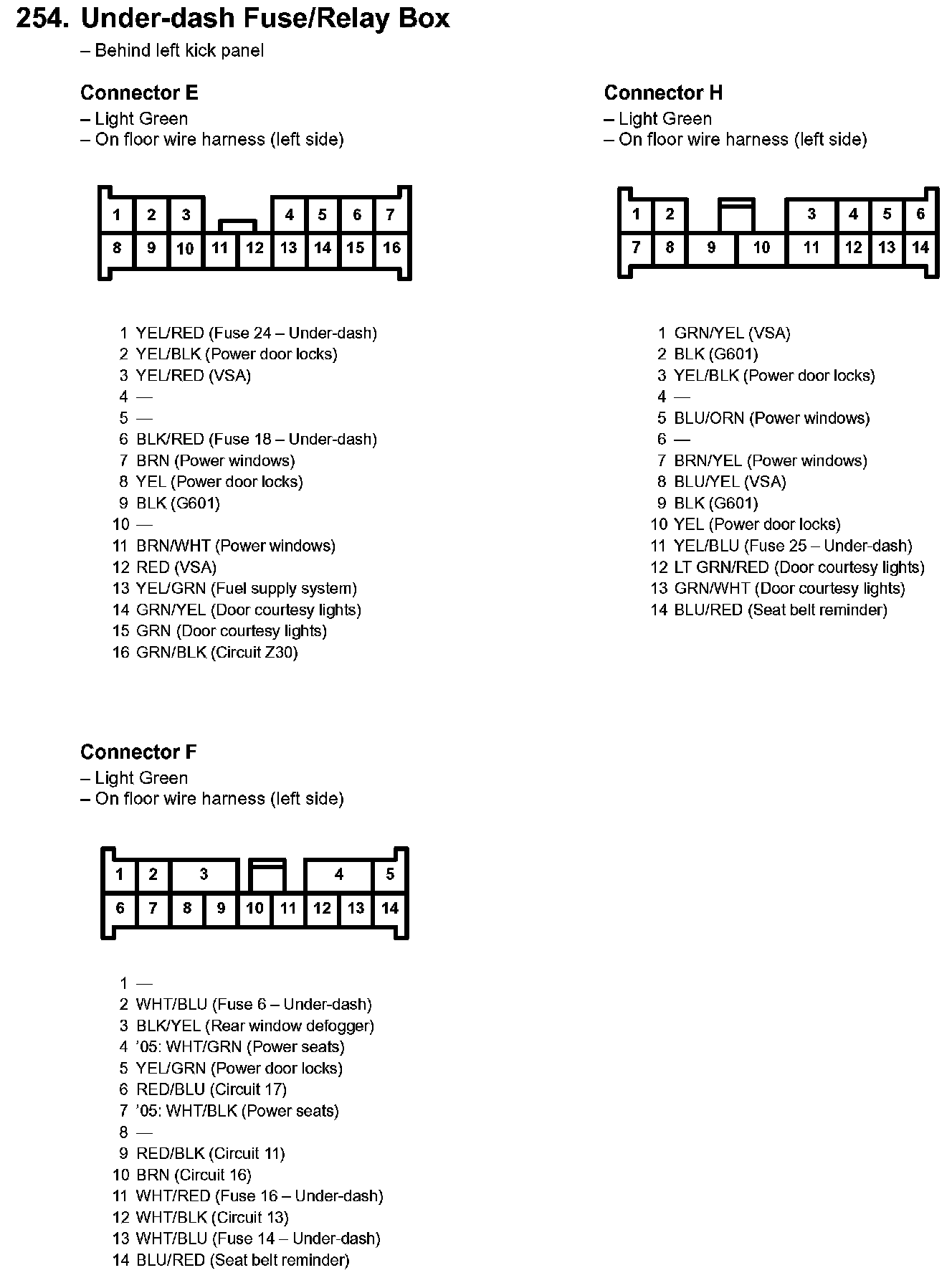

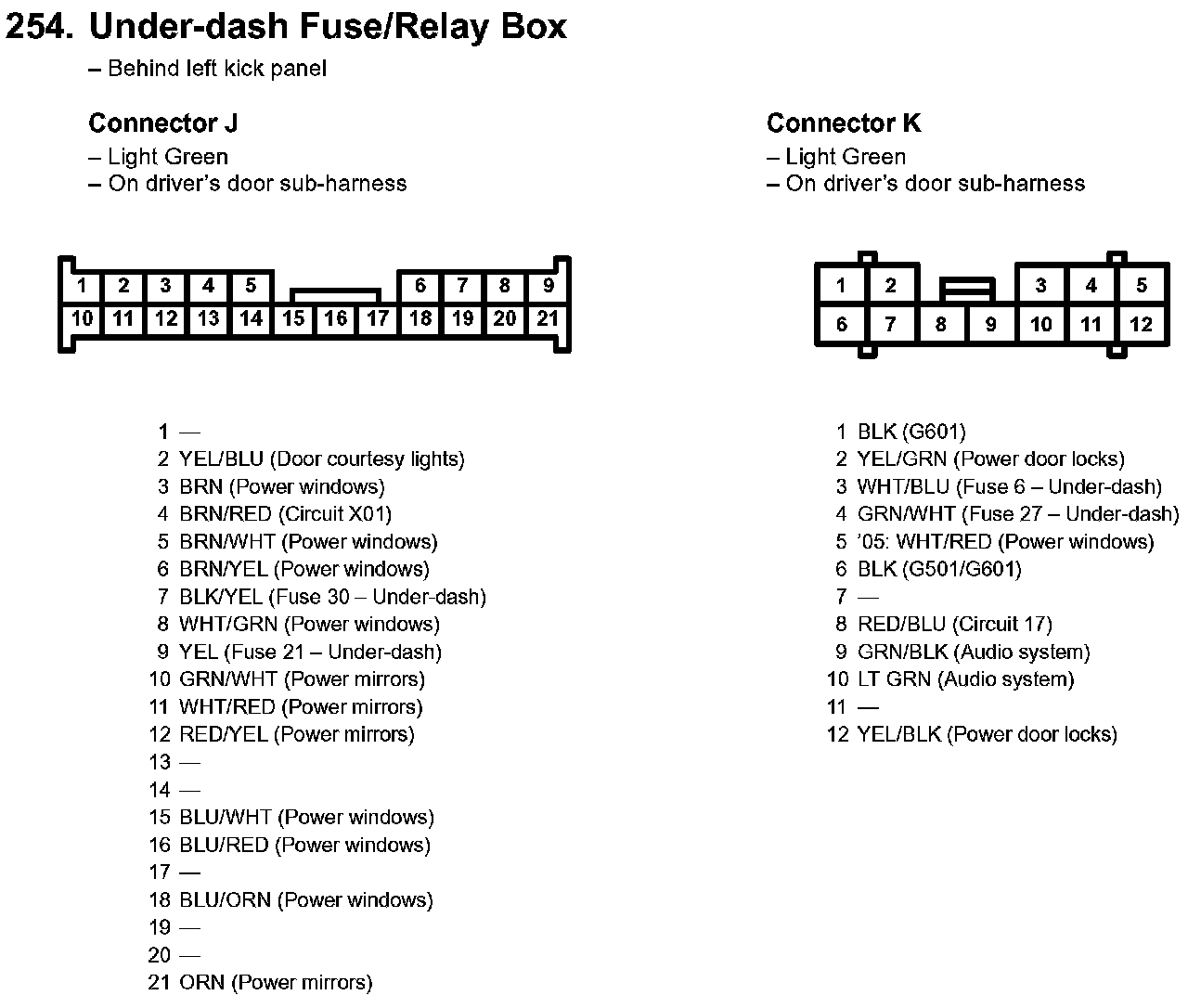

254. Under-Dash Fuse/Relay Box Part 1:



254. Under-dash Fuse/Relay Box Part 2:



254. Under-dash Fuse/Relay Box Part 3:



254. Under-dash Fuse/Relay Box Part 4:



254. Under-dash Fuse/Relay Box Part 5:



254. Under-dash Fuse/Relay Box Part 6:



254. Under-dash Fuse/Relay Box Part 7:

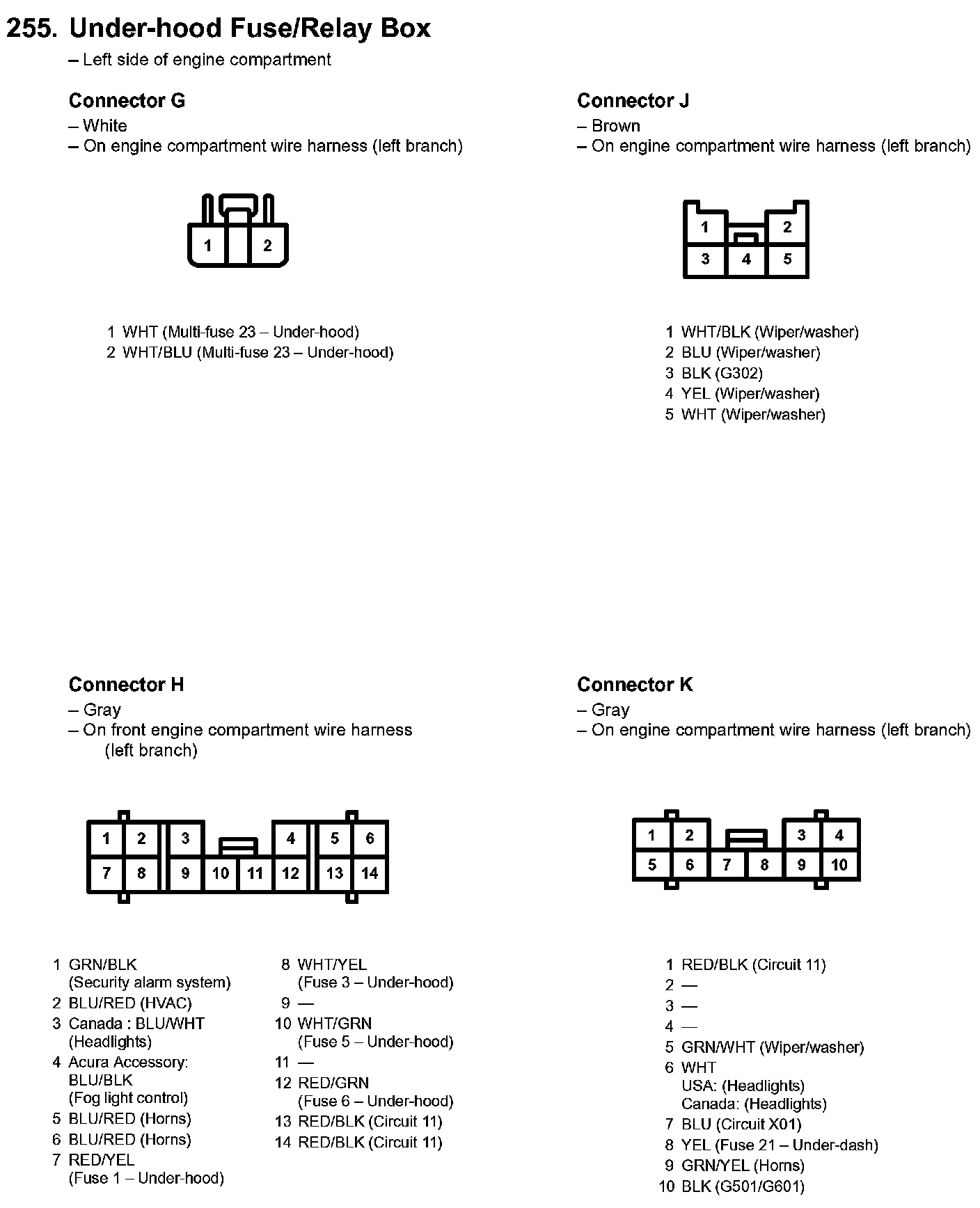

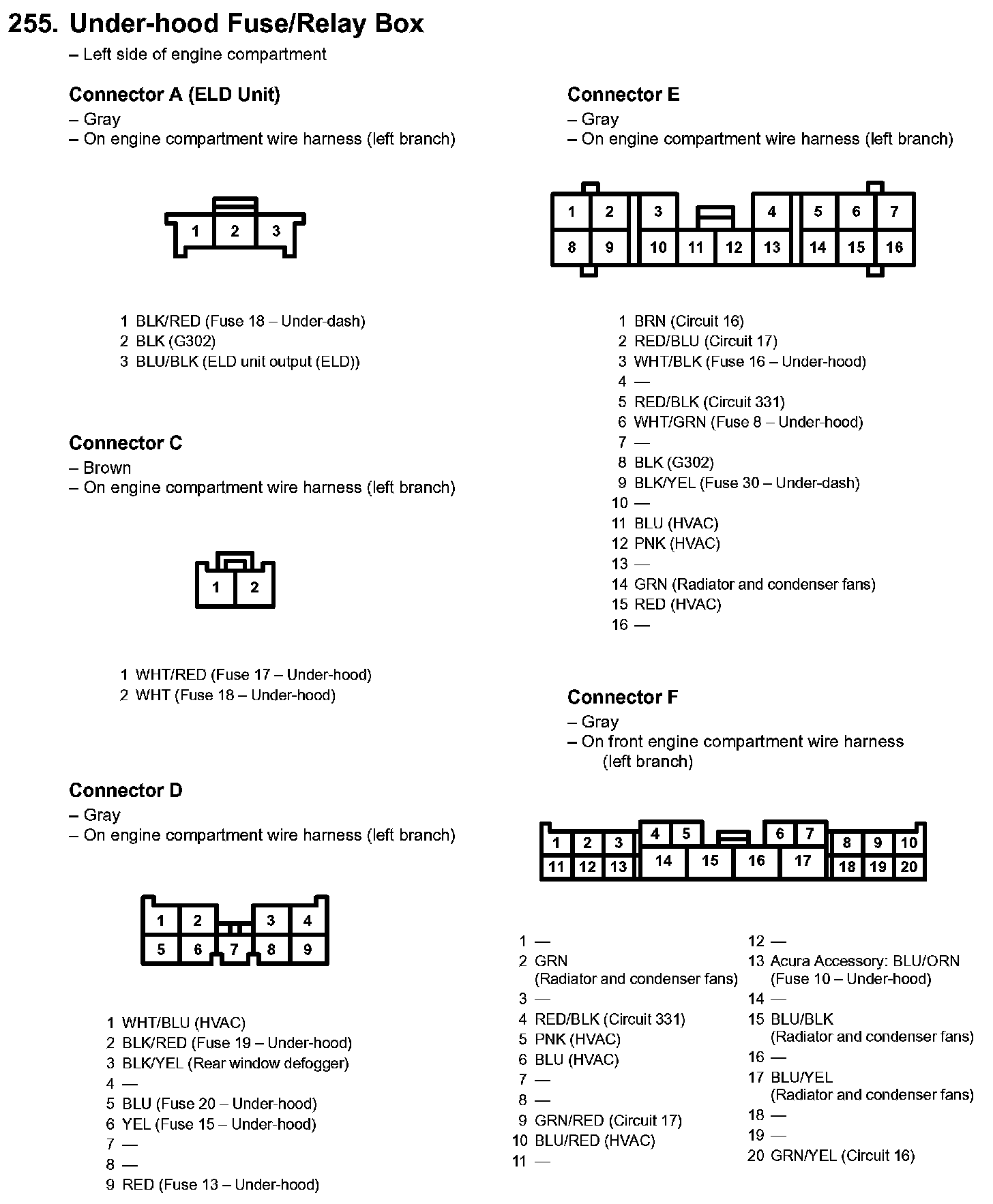

255. Under-hood Fuse/Relay Box Part 1:



255. Under-hood Fuse/Relay Box Part 2:
