Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Navigation Module

Navigation Module

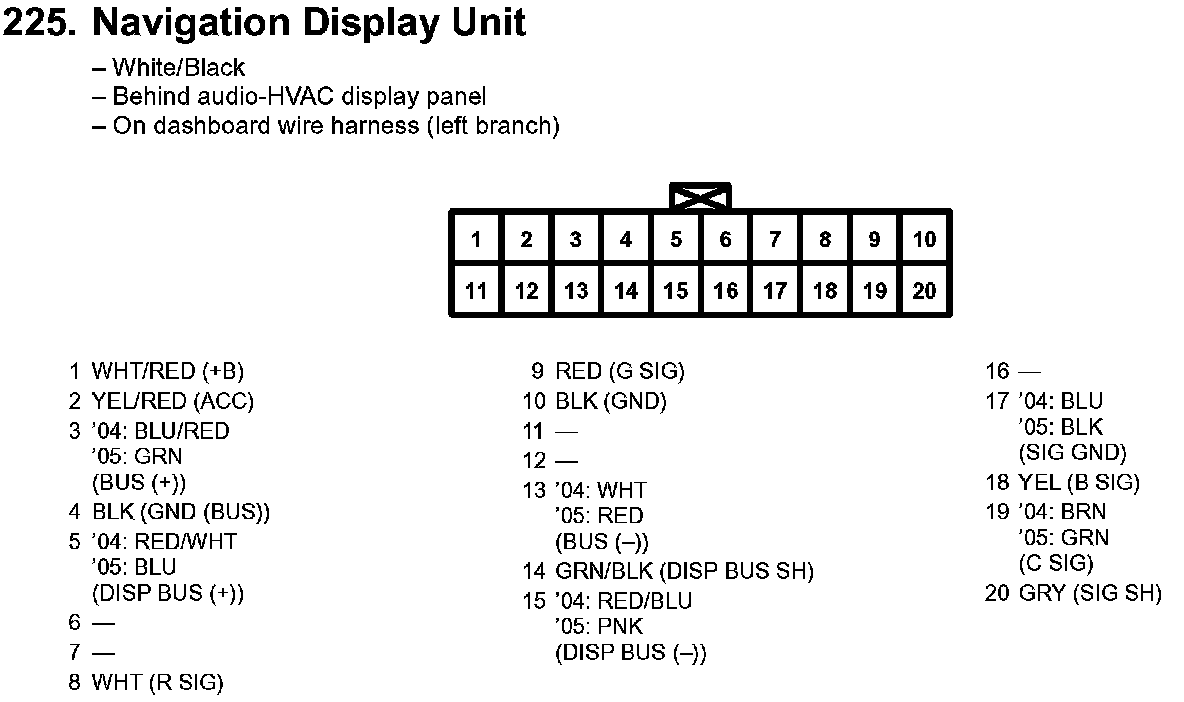

225. Navigation Display Unit:

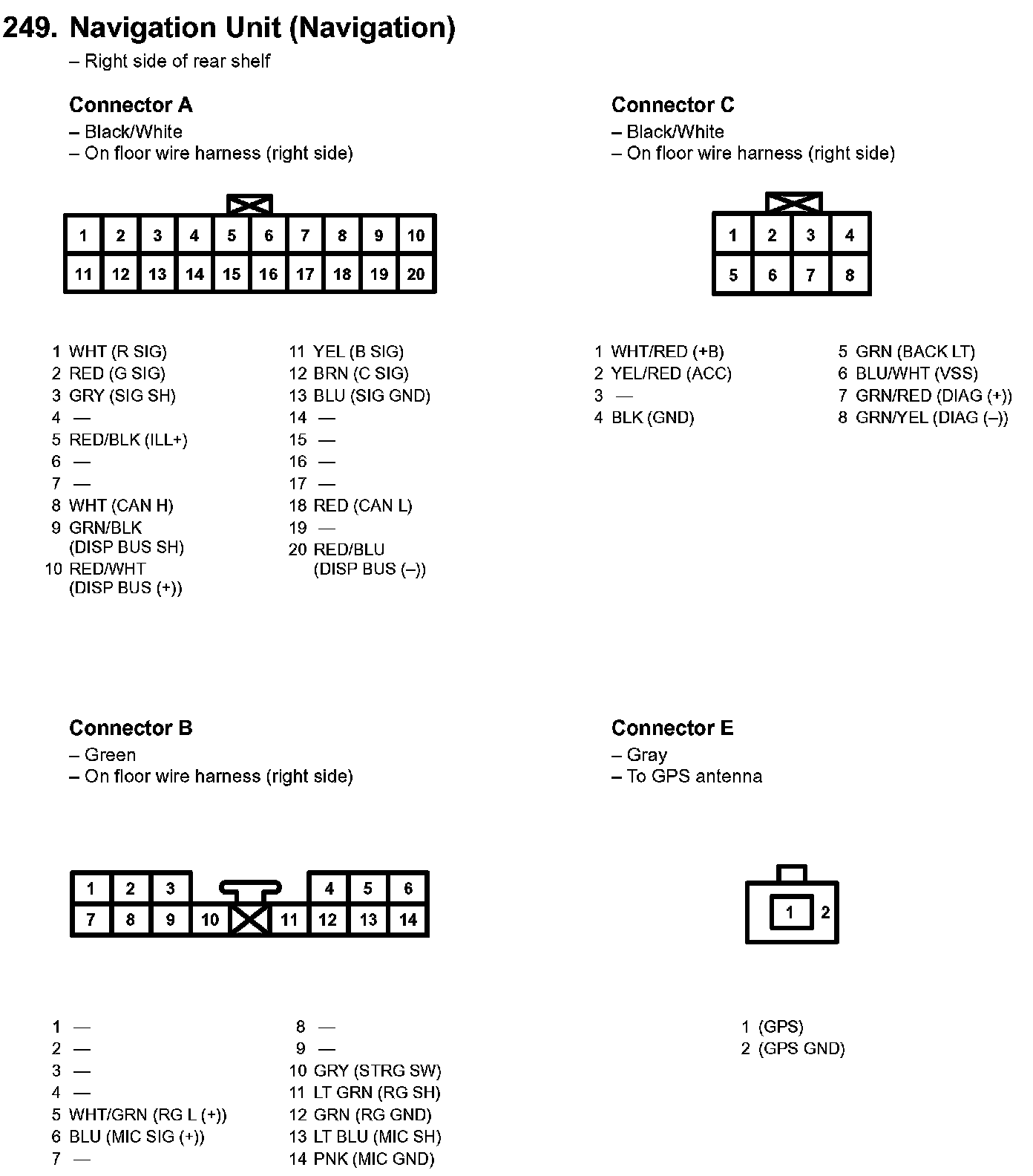

249. Navigation Unit (Navigation):
