Home >> Acura >> 2004 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module

General Module

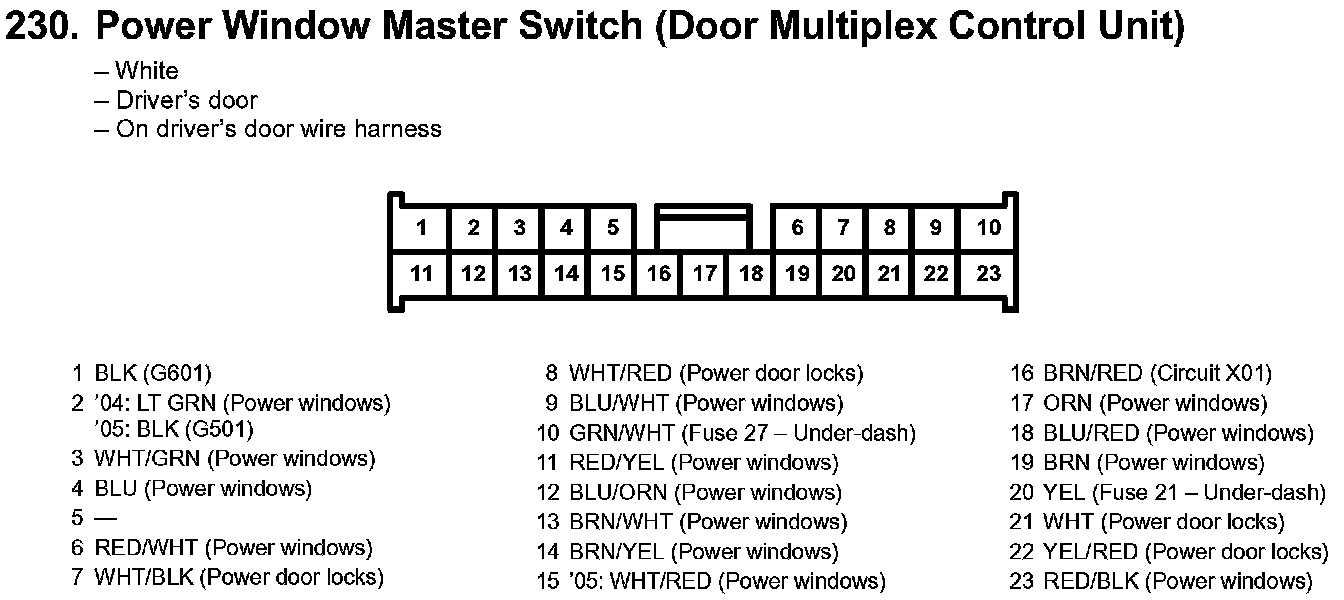

230. Power Window Master Switch (Door Multiplex Control Unit):
