Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

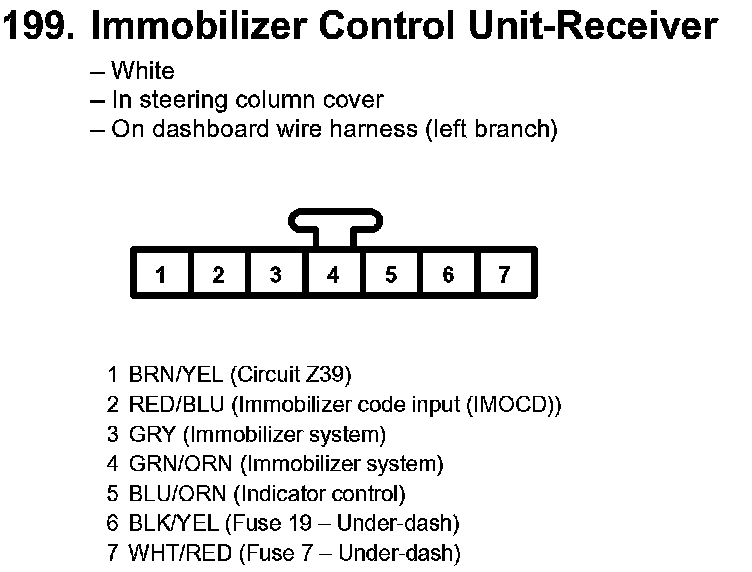

199. Immobilizer Control Unit-Receiver:
