Body Control Systems: Locations

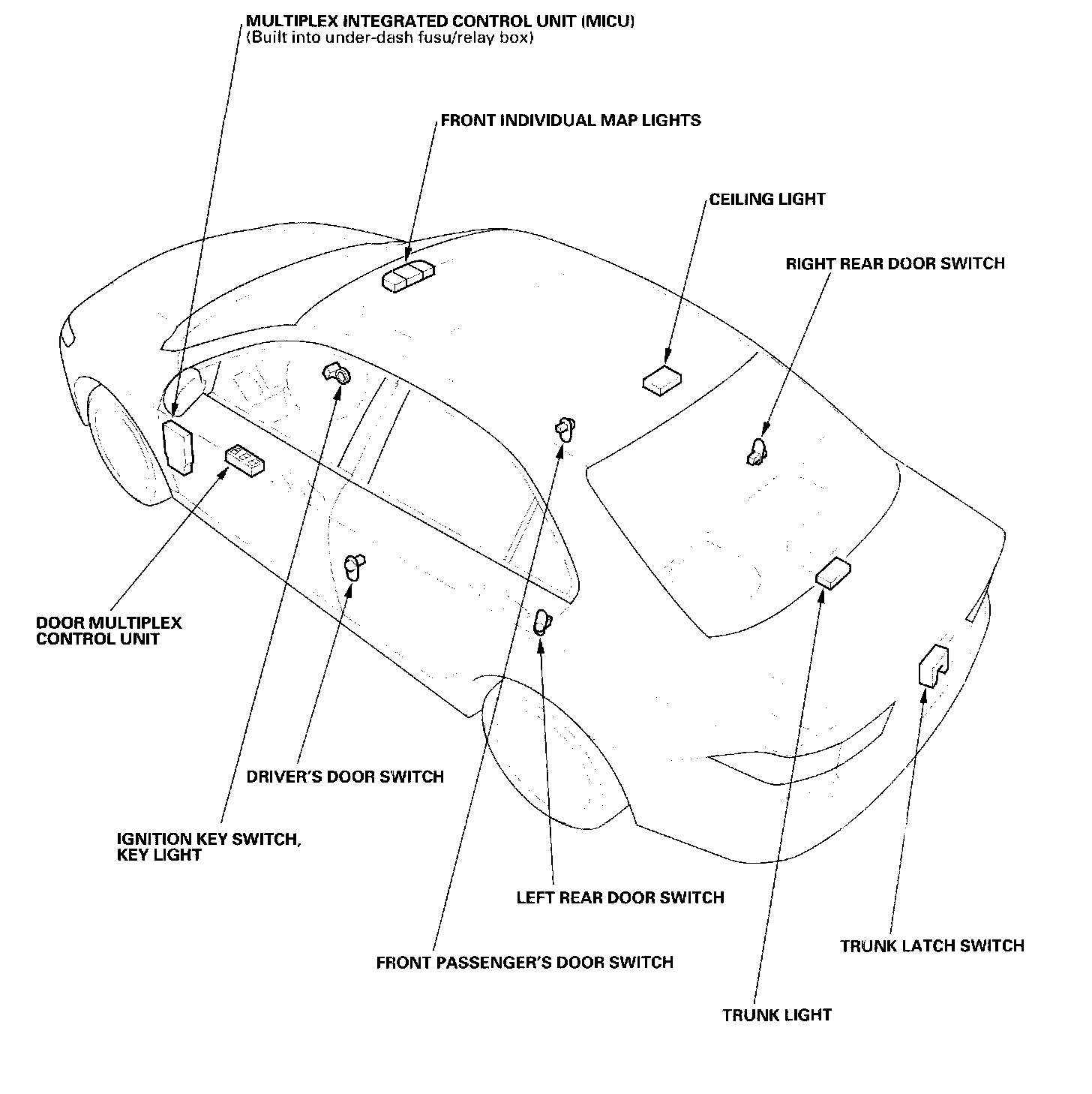

Multiplex Integrated Control System (MICS) - Component Location Index:

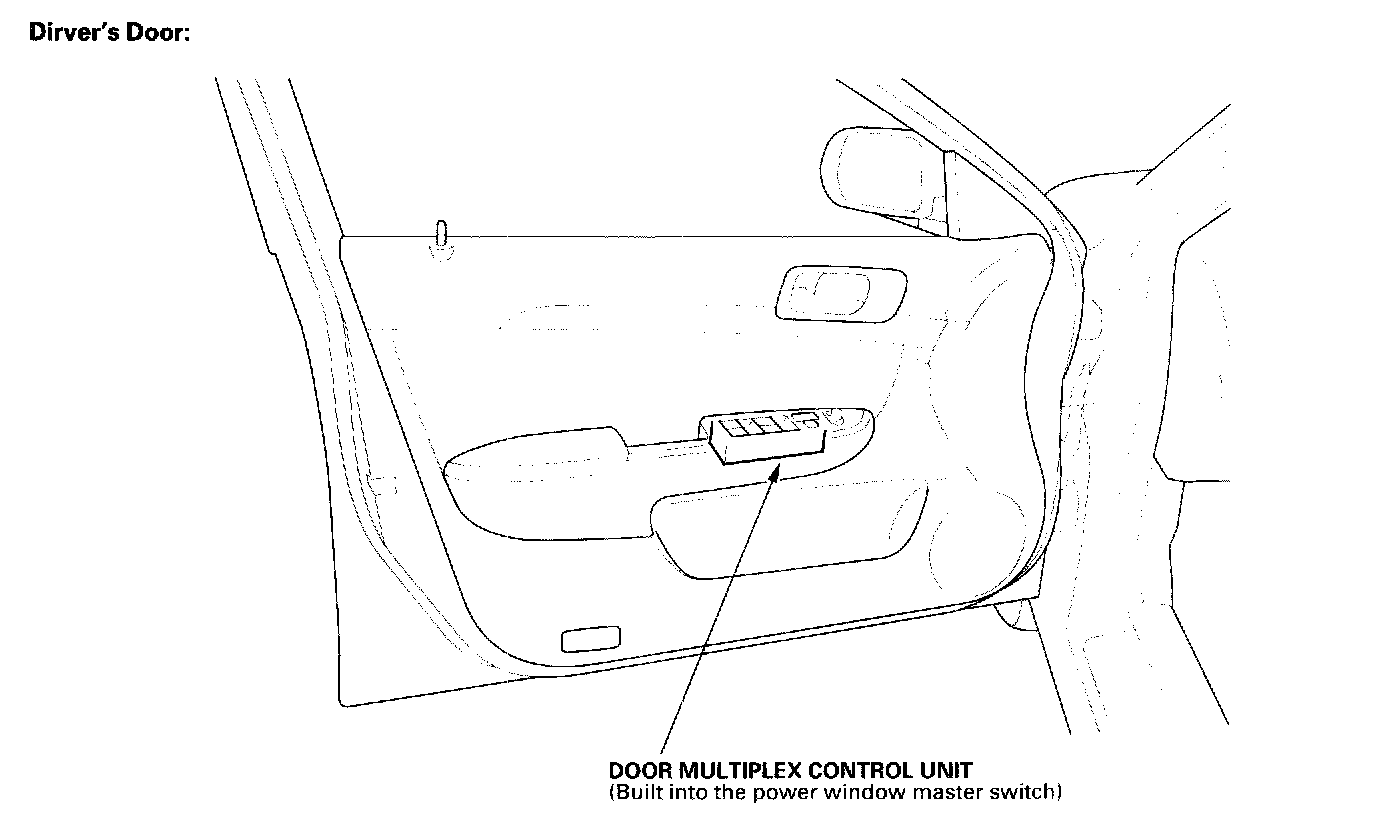

Relay And Control Unit Locations - Door And Seat:

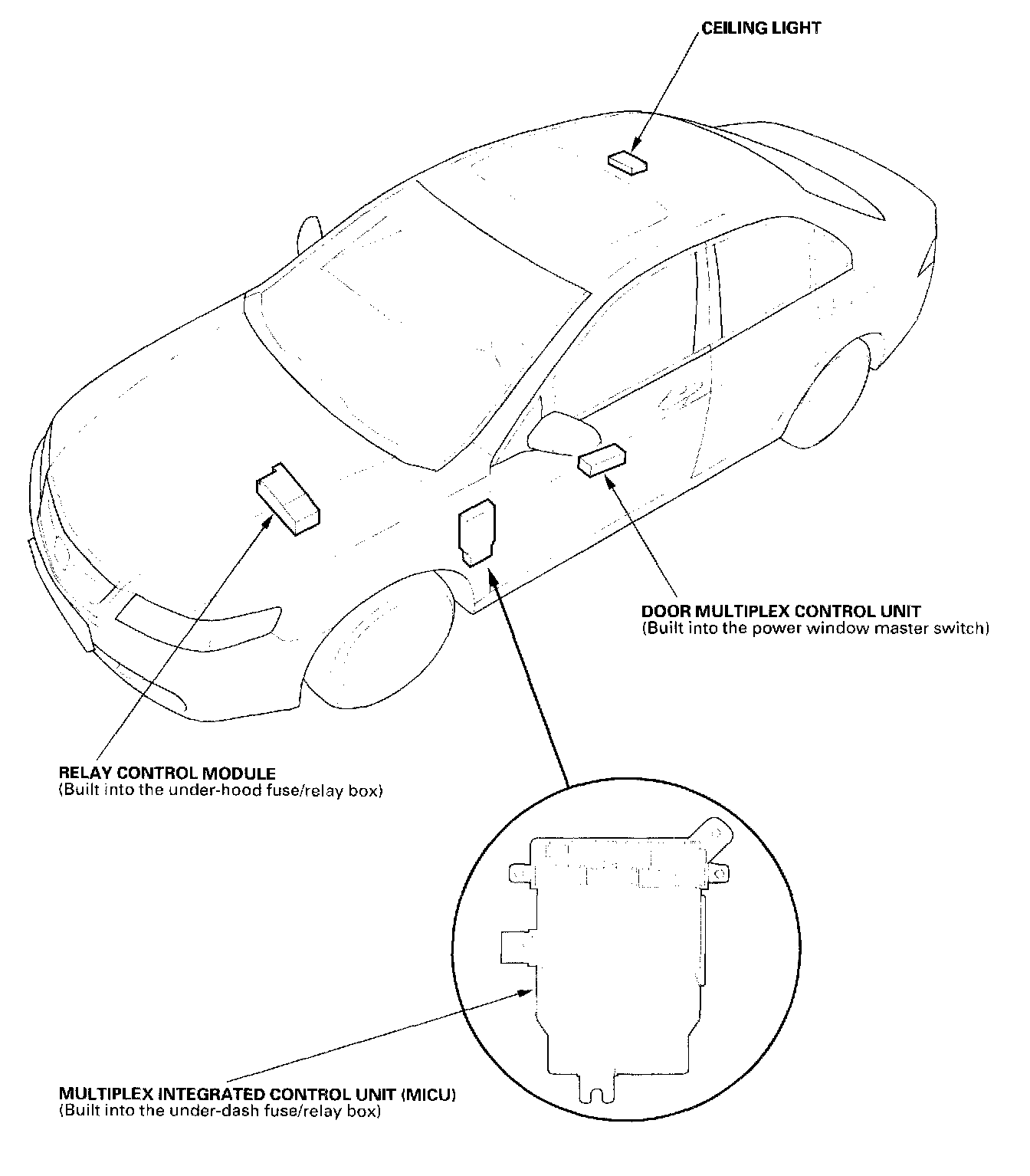

Multiplex Integrated Control System (MICS) - Component Location Index:

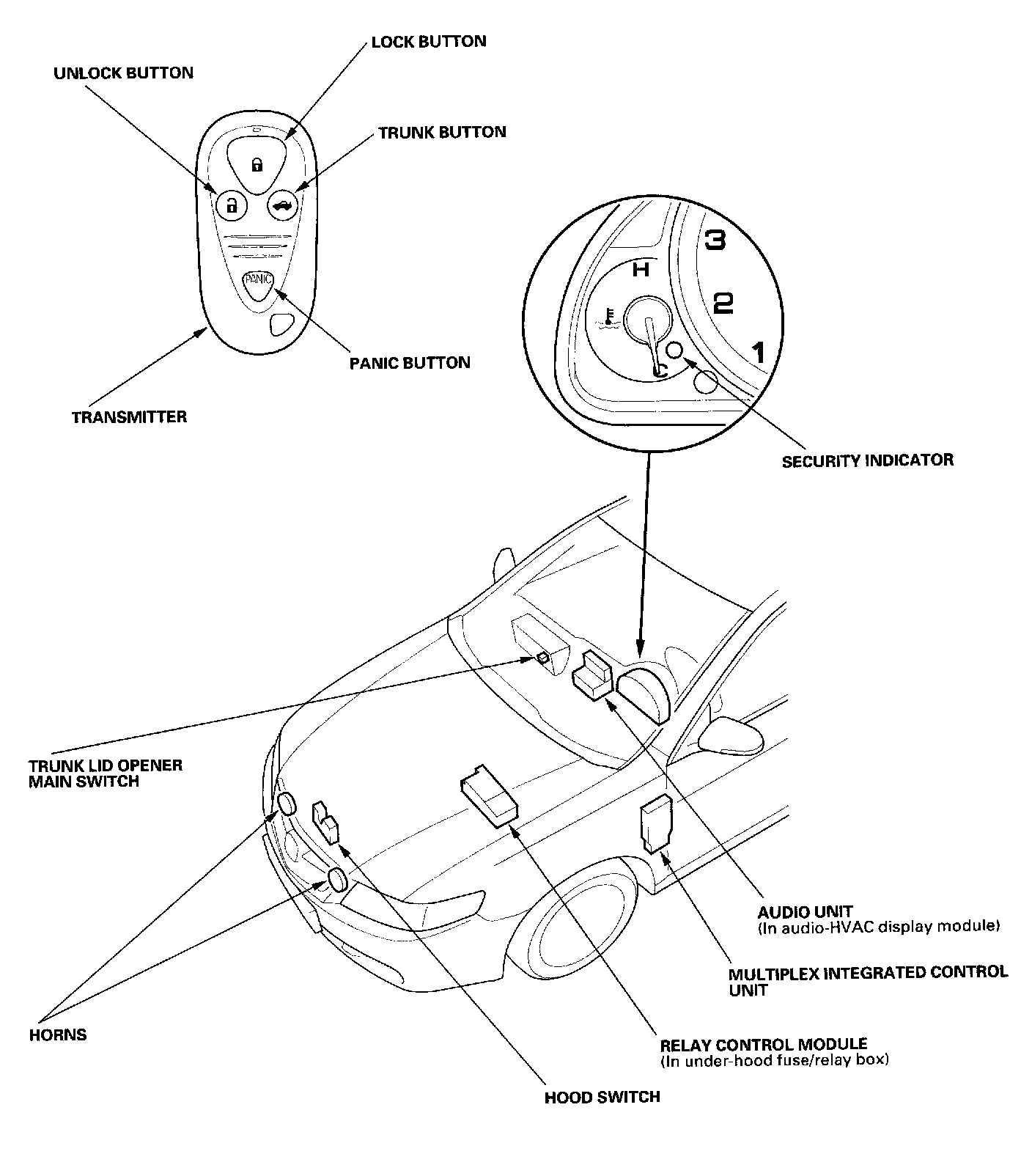

Keyless Entry/Security Alarm System - Component Location Index:

Entry Light Control System - Component Location Index:
