Navigation Module: Service and Repair

Navigation Unit Removal/Installation

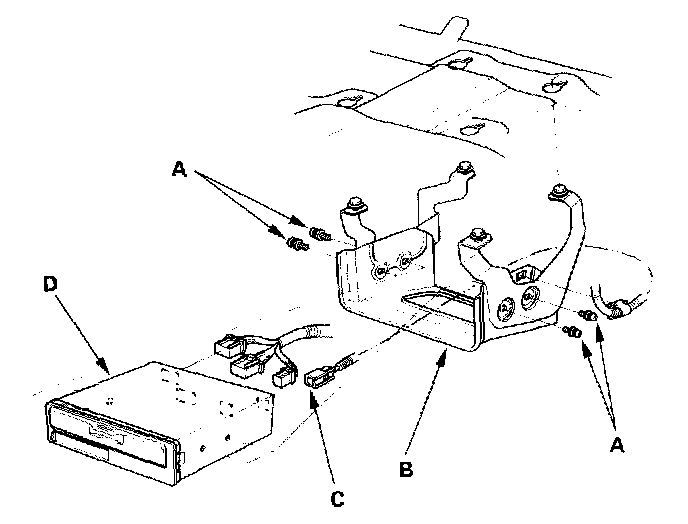

1. Remove the four screws (A) from the bracket (B) located the trunk room.
2. Disconnect the navigation unit connectors (C)
3. Remove the navigation unit (D).
4. Install in the reverse order of removal.
