Home >> Acura >> 2004 >> TL V6-3.2L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Locations

Navigation Module: Locations

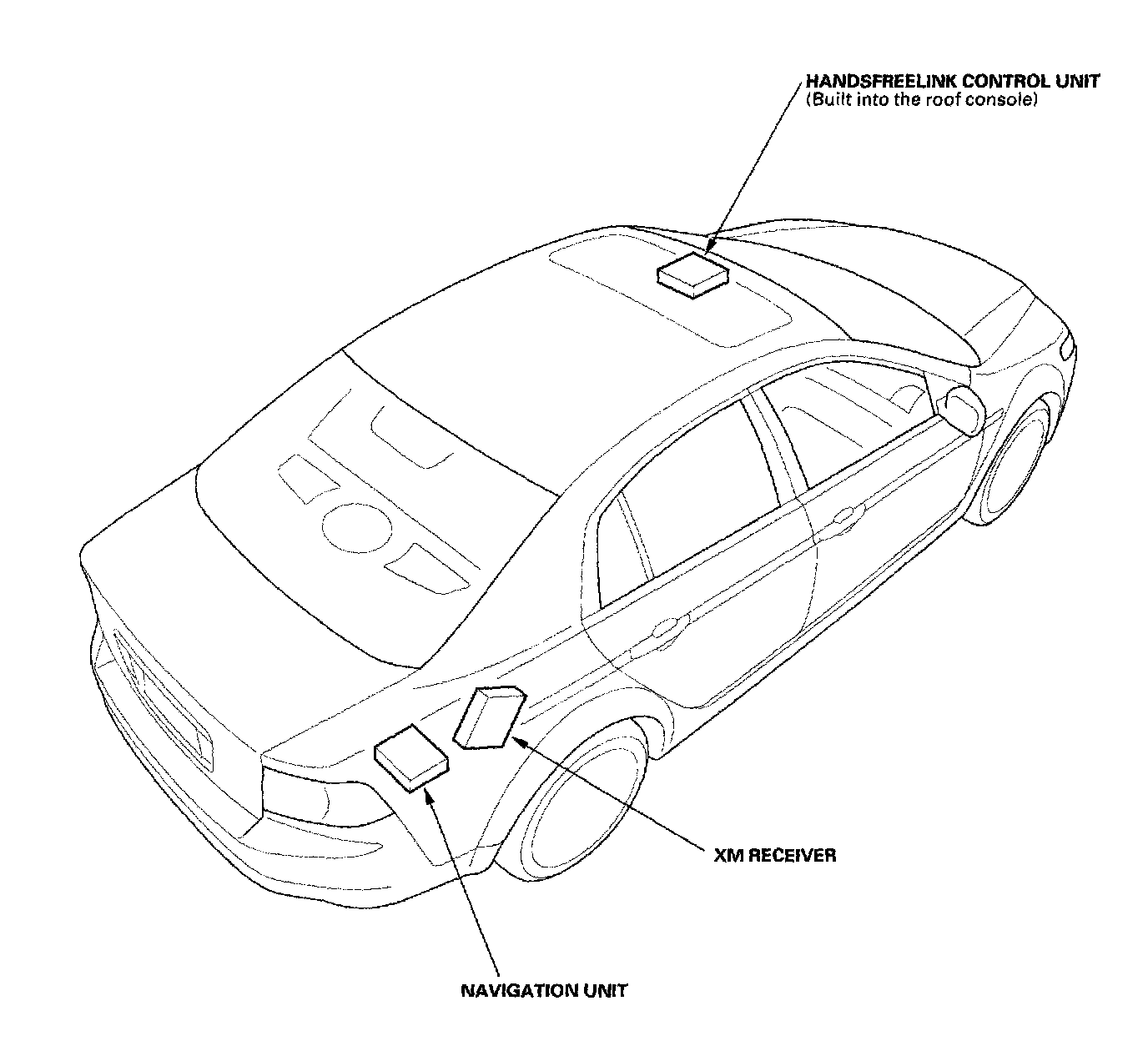

Relay And Control Unit Locations - Roof And Trunk:

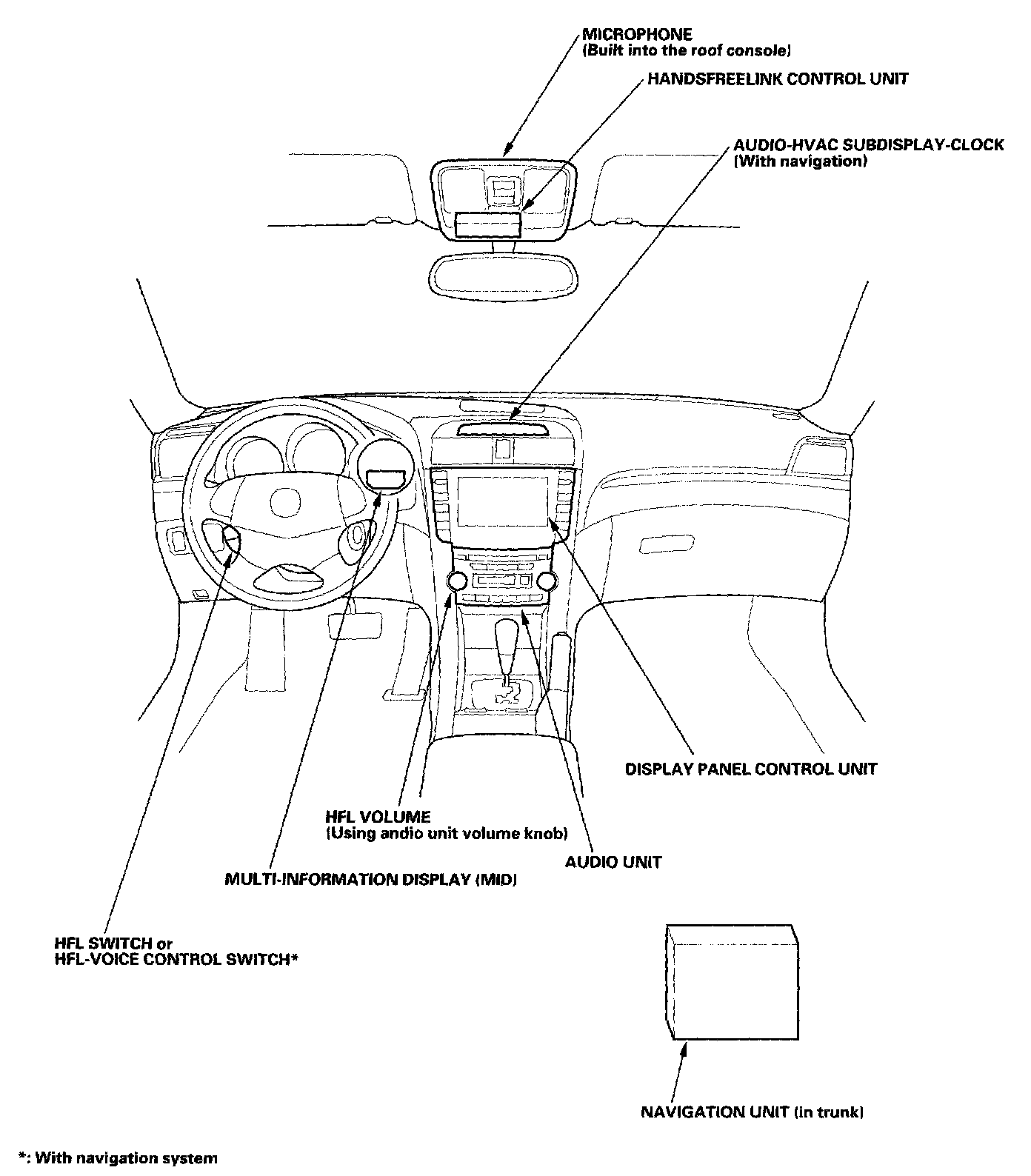

HandsFreeLink System - Component Location Index:

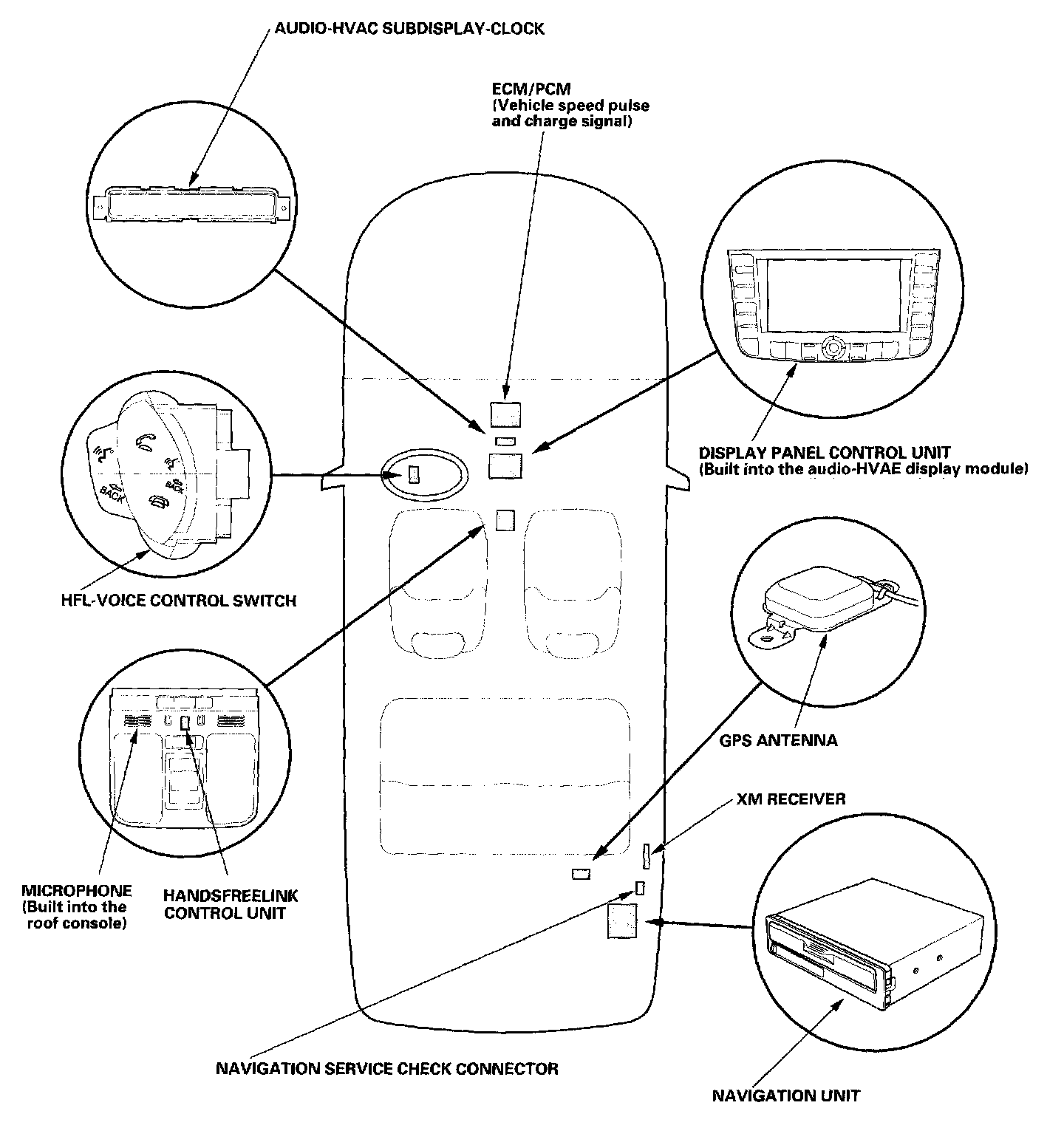

Navigation System - Component Location Index:

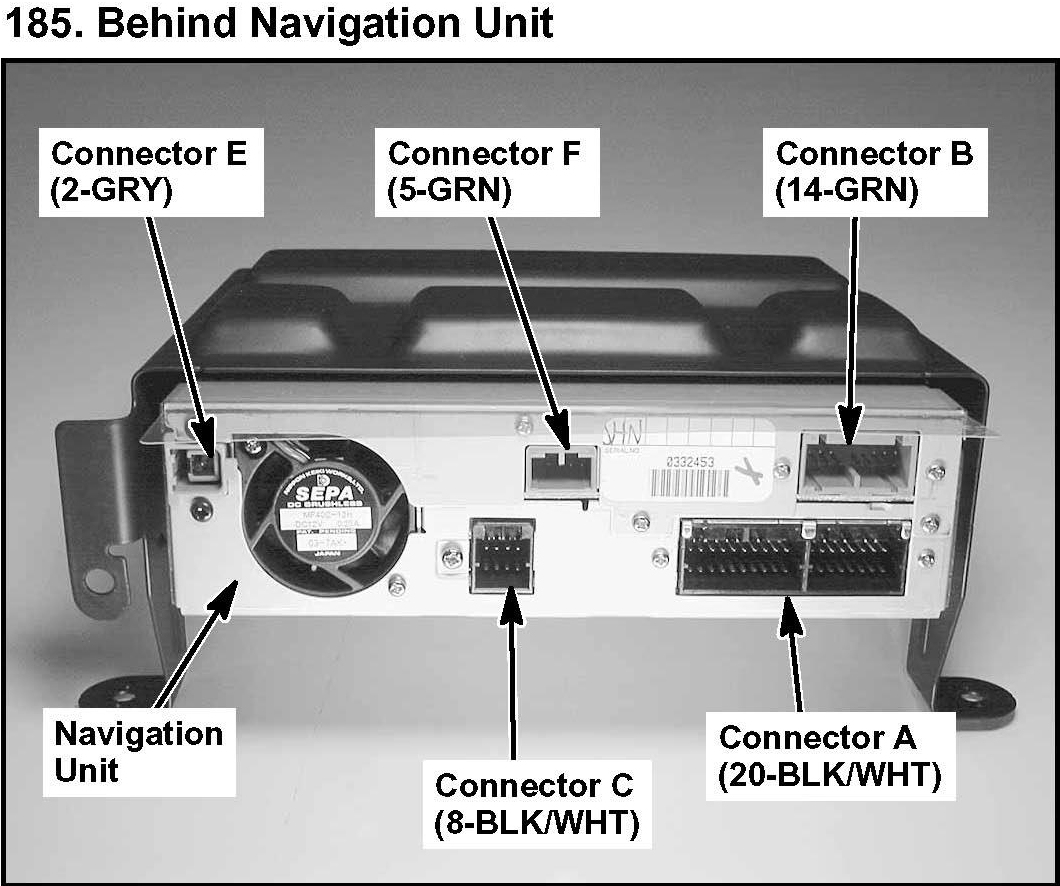

185. Behind Navigation Unit:
