CMP Sensor A

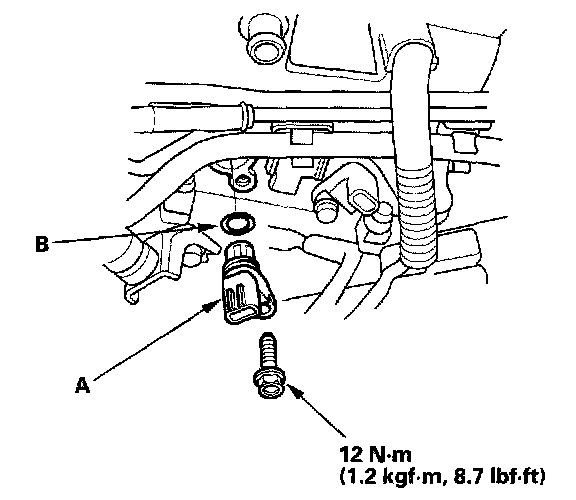

CMP Sensor A Replacement

1. Remove the air cleaner.
2. Disconnect the CMP sensor (A) 3P connector.




3. Remove CMP sensor (A) from the intake camshaft side of the cylinder head.
4. Install the sensor (A) in the reverse order of removal with a new O-ring (B).
