Acura
>>
2004
>>
RSX L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

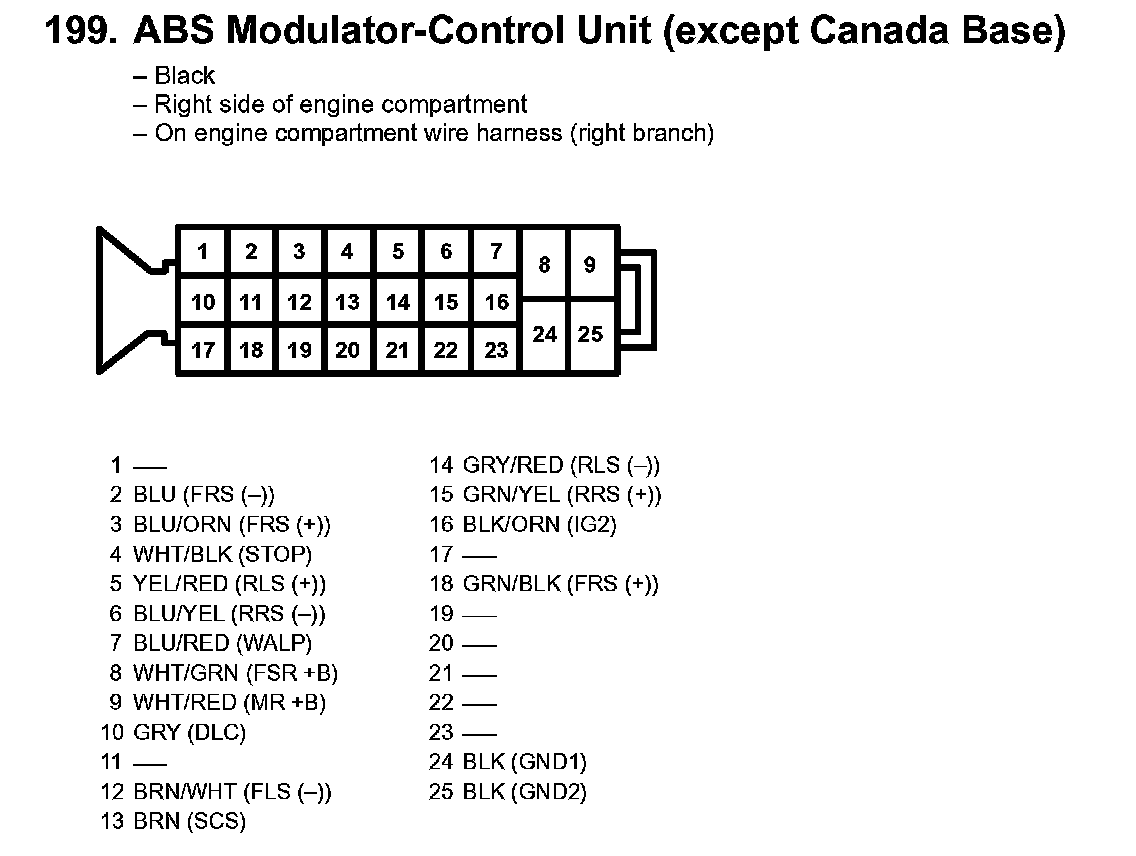

199. ABS Modulator-Control Unit (Except Canada Base):
