Wiper Control Module: Locations

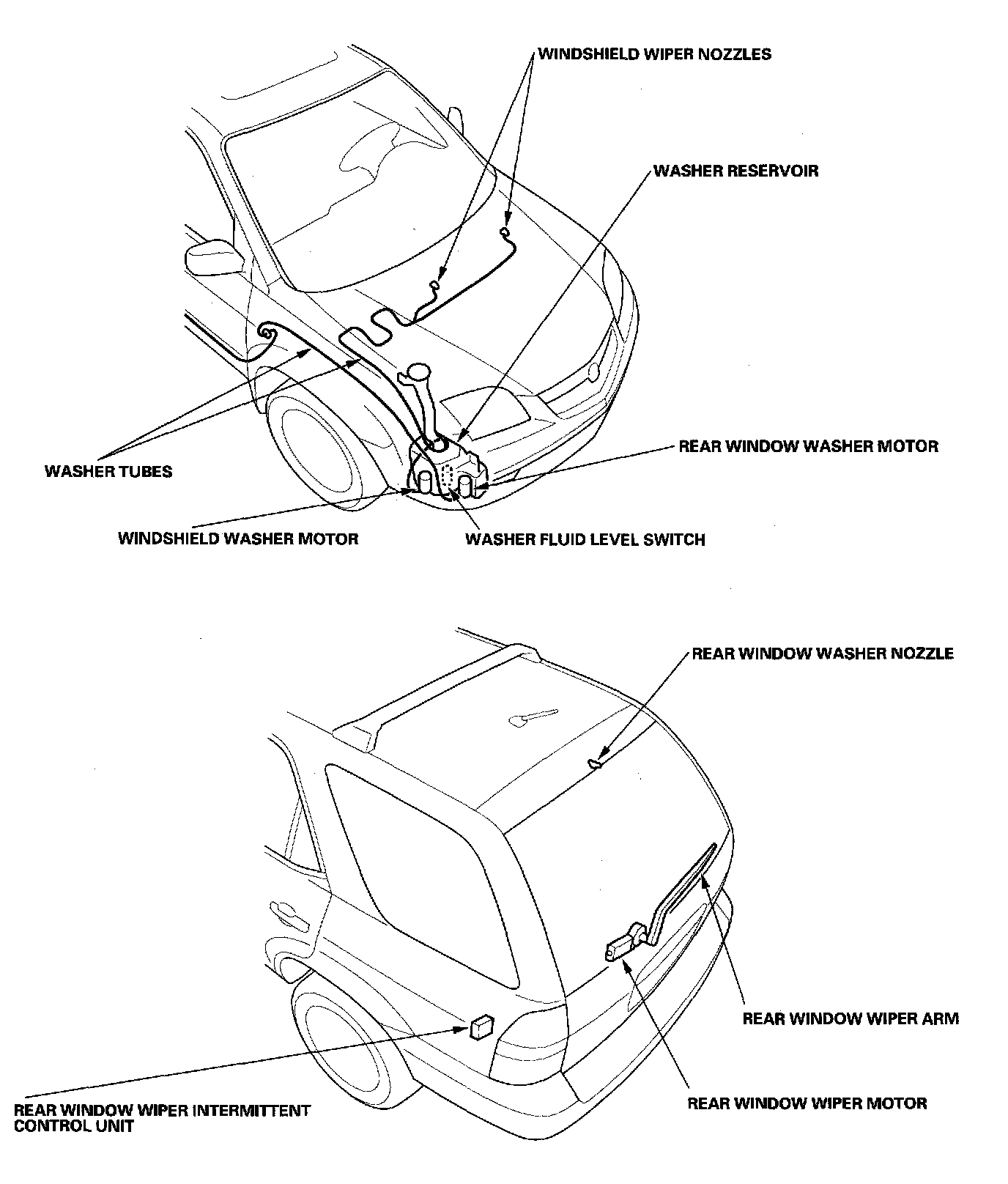

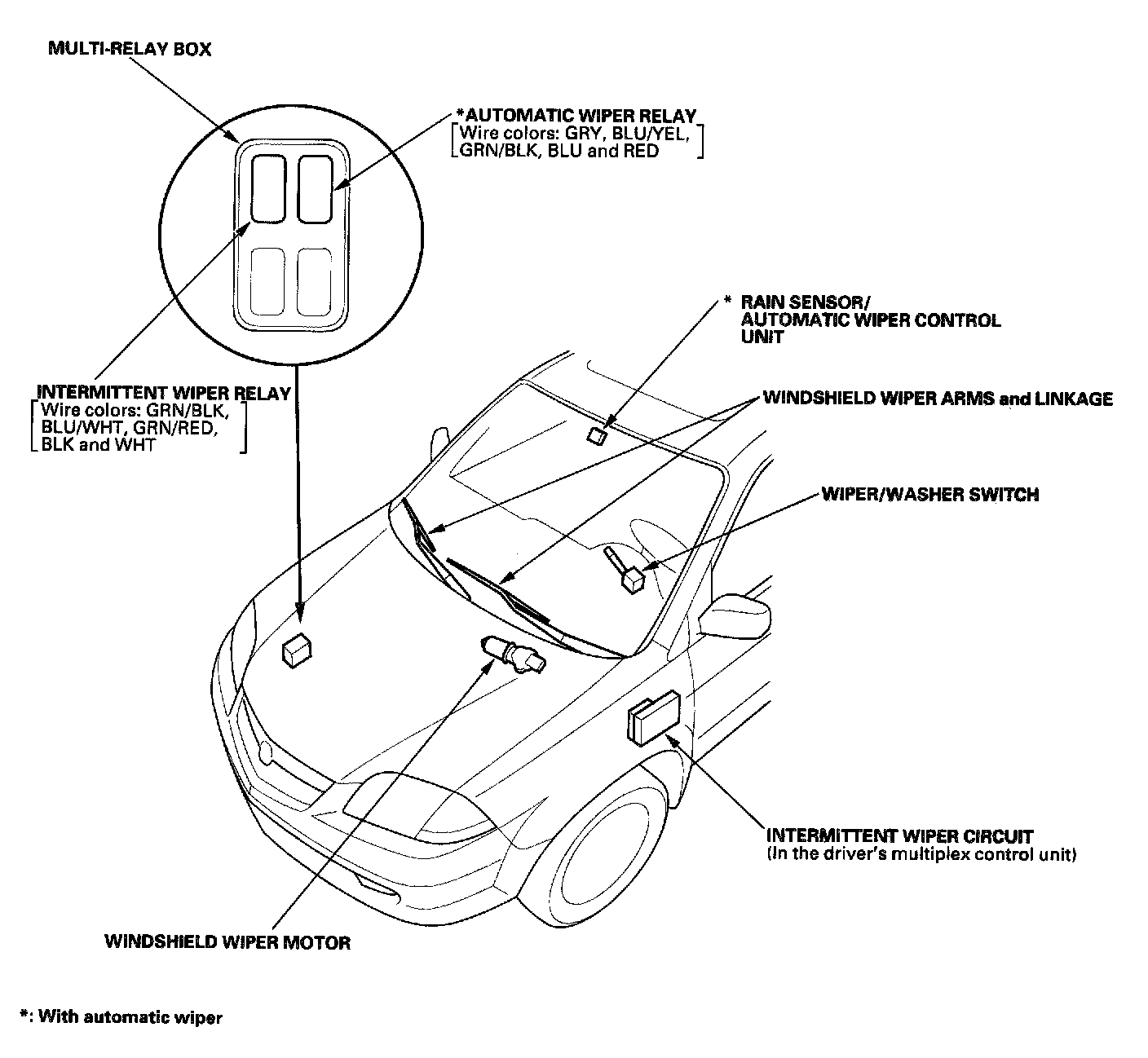

Wipers/Washers Component Location Index:
Wipers/Washers Component Location Index:
131. Front Middle of Roof (Auto Wiper):
166. Left Side of Cargo Area:
