Pinout Values and Diagnostic Parameters

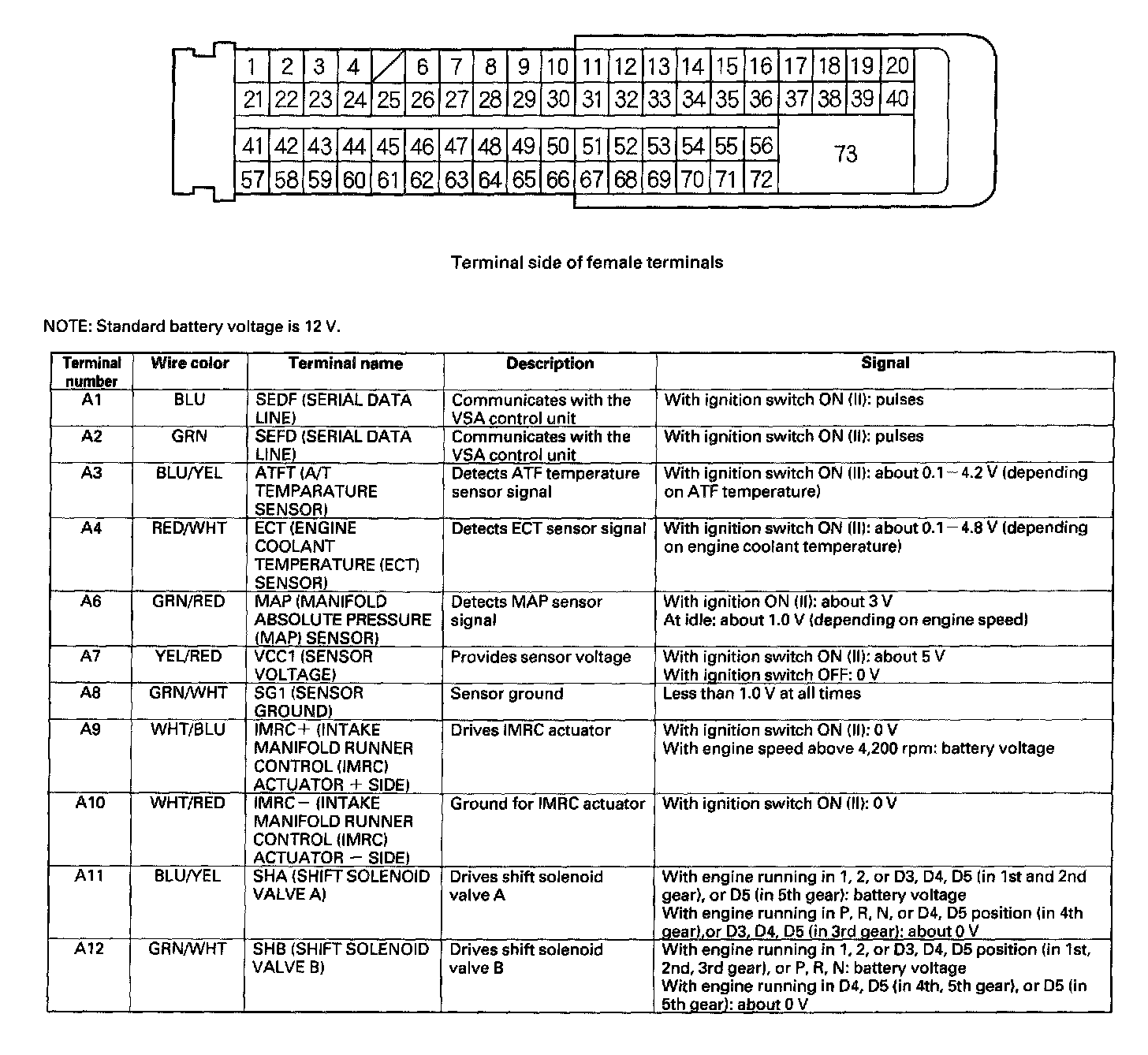

PCM Inputs And Outputs At Connector A Part 1:

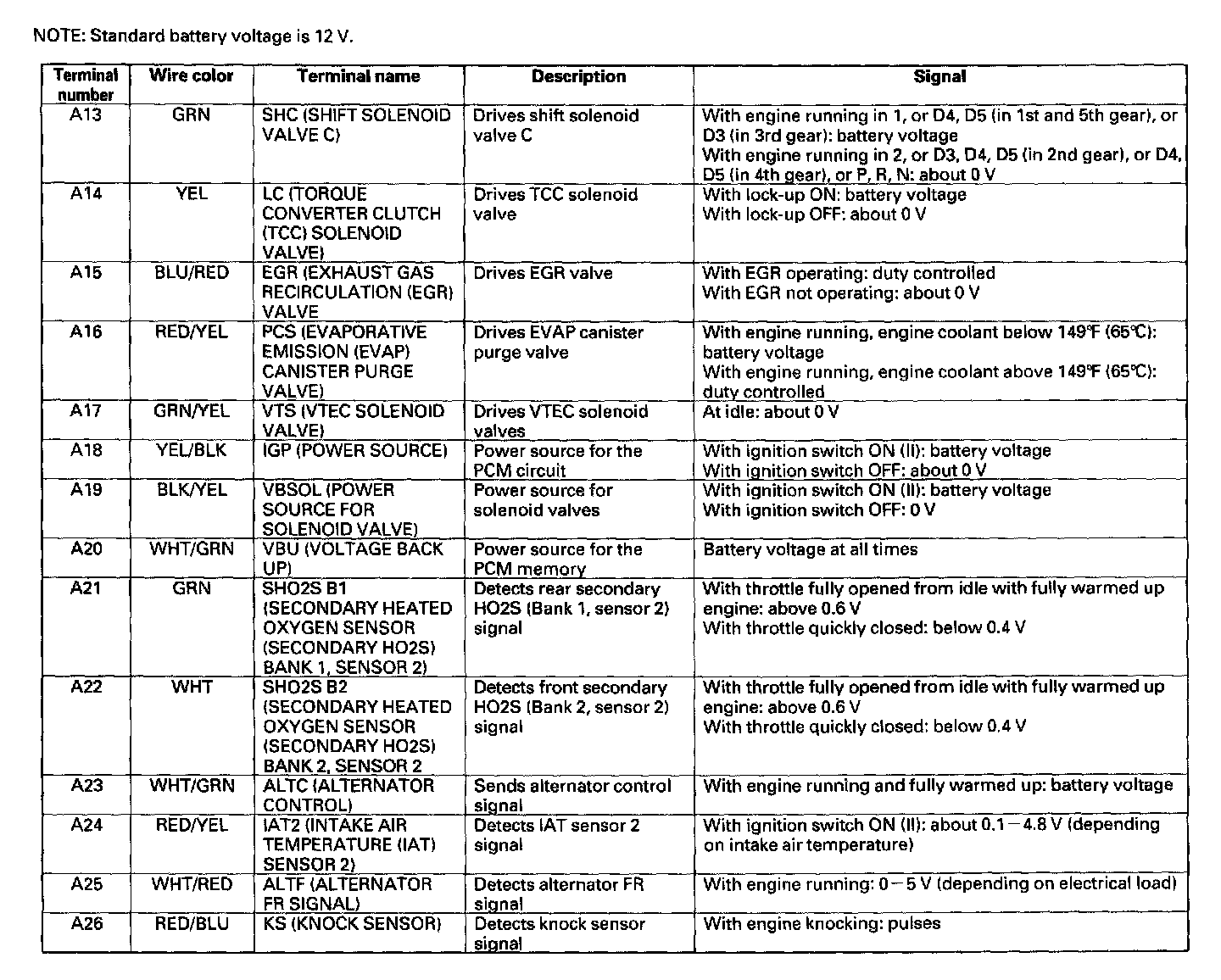

PCM Inputs And Outputs At Connector A Part 2:

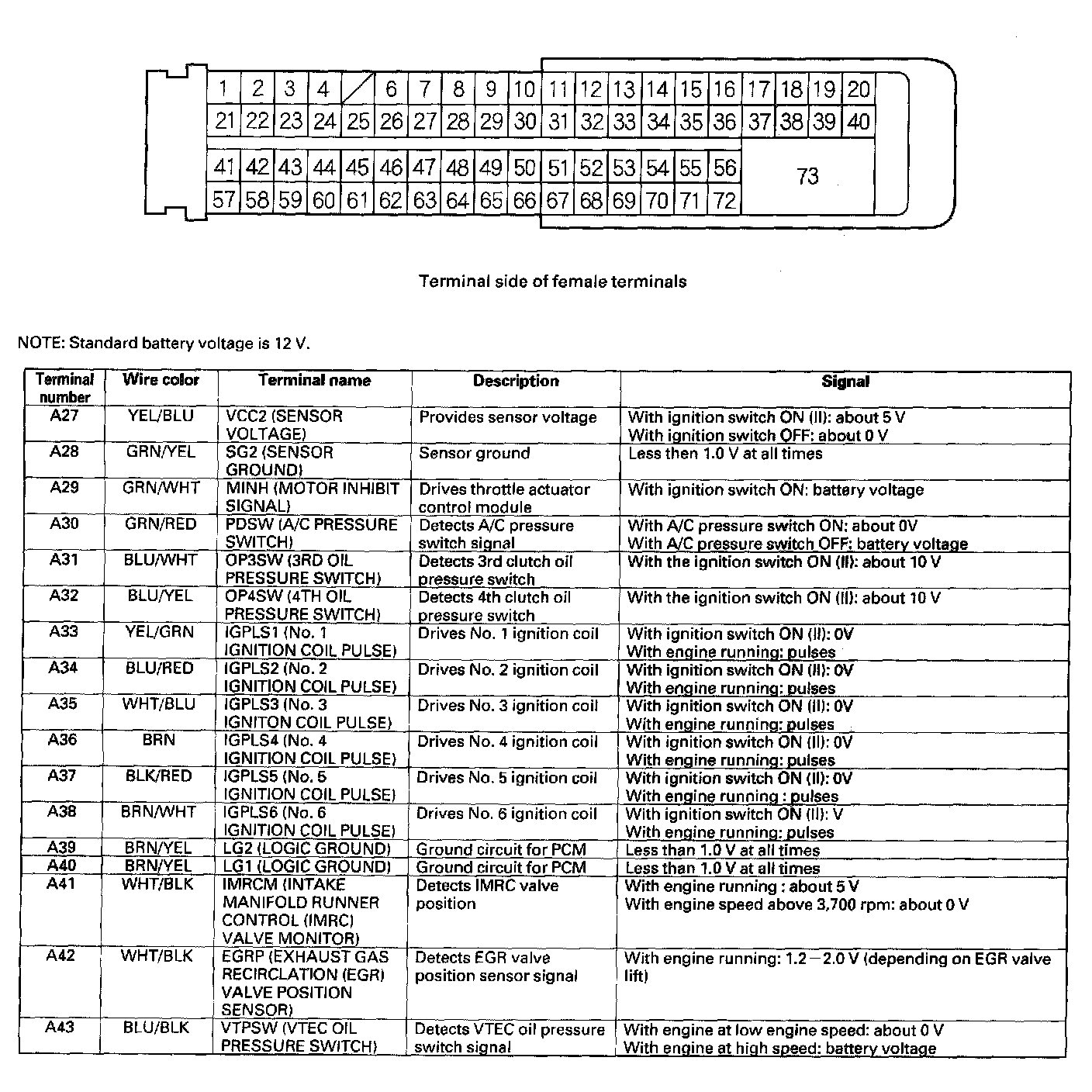

PCM Inputs And Outputs At Connector A Part 3:

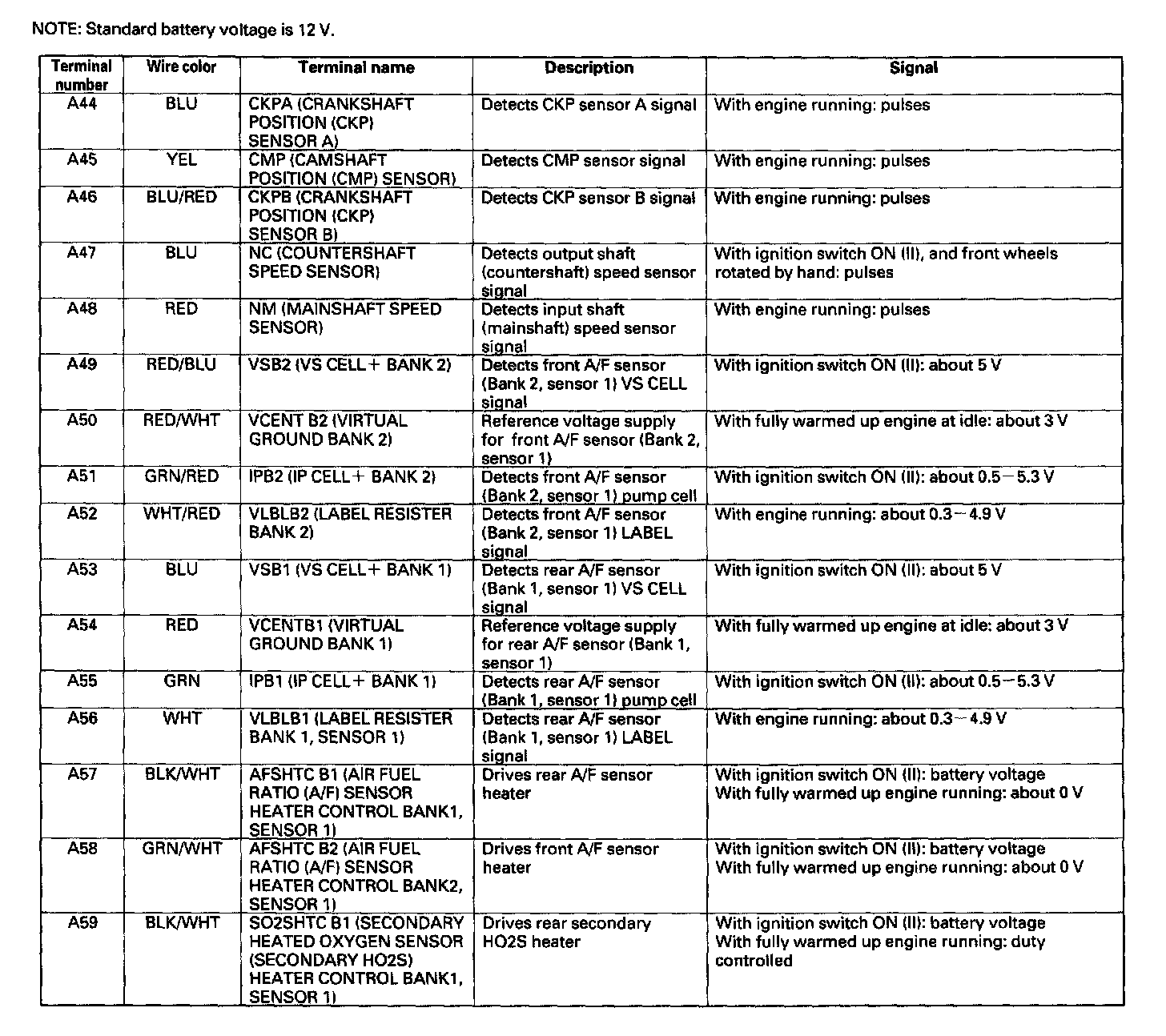

PCM Inputs And Outputs At Connector A Part 4:

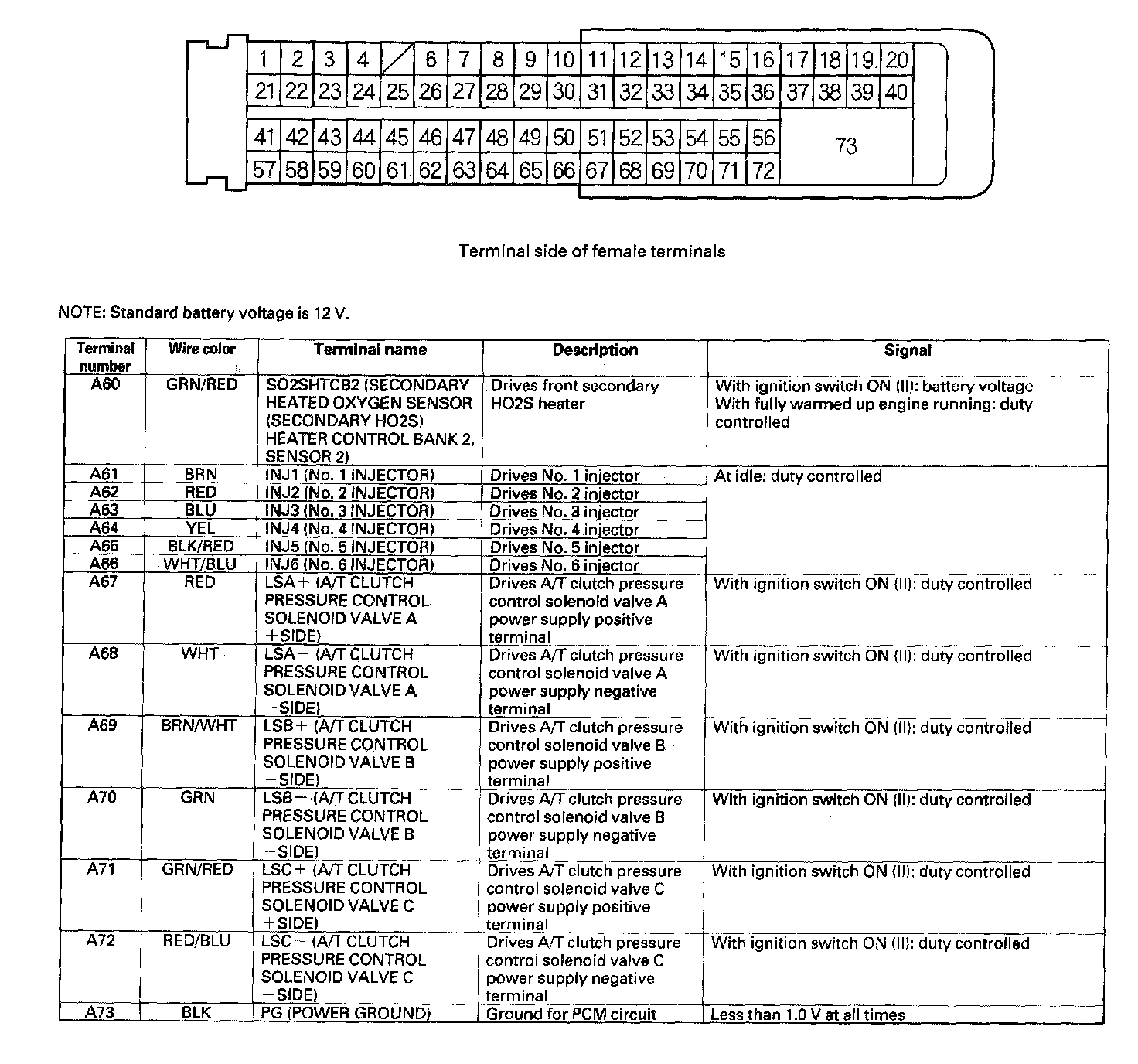

PCM Inputs And Outputs At Connector A Part 5:

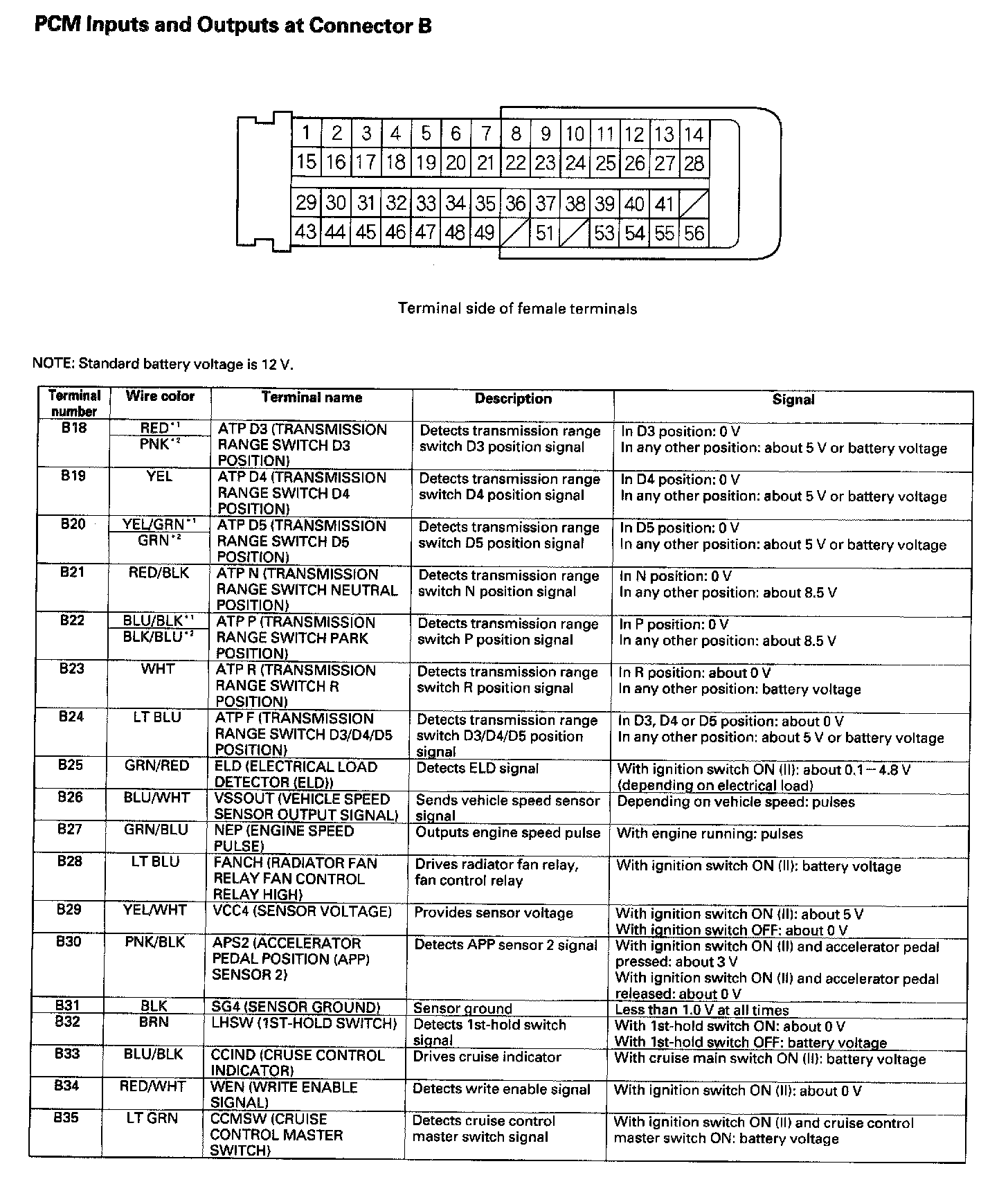

PCM Inputs And Outputs At Connector B Part 1:

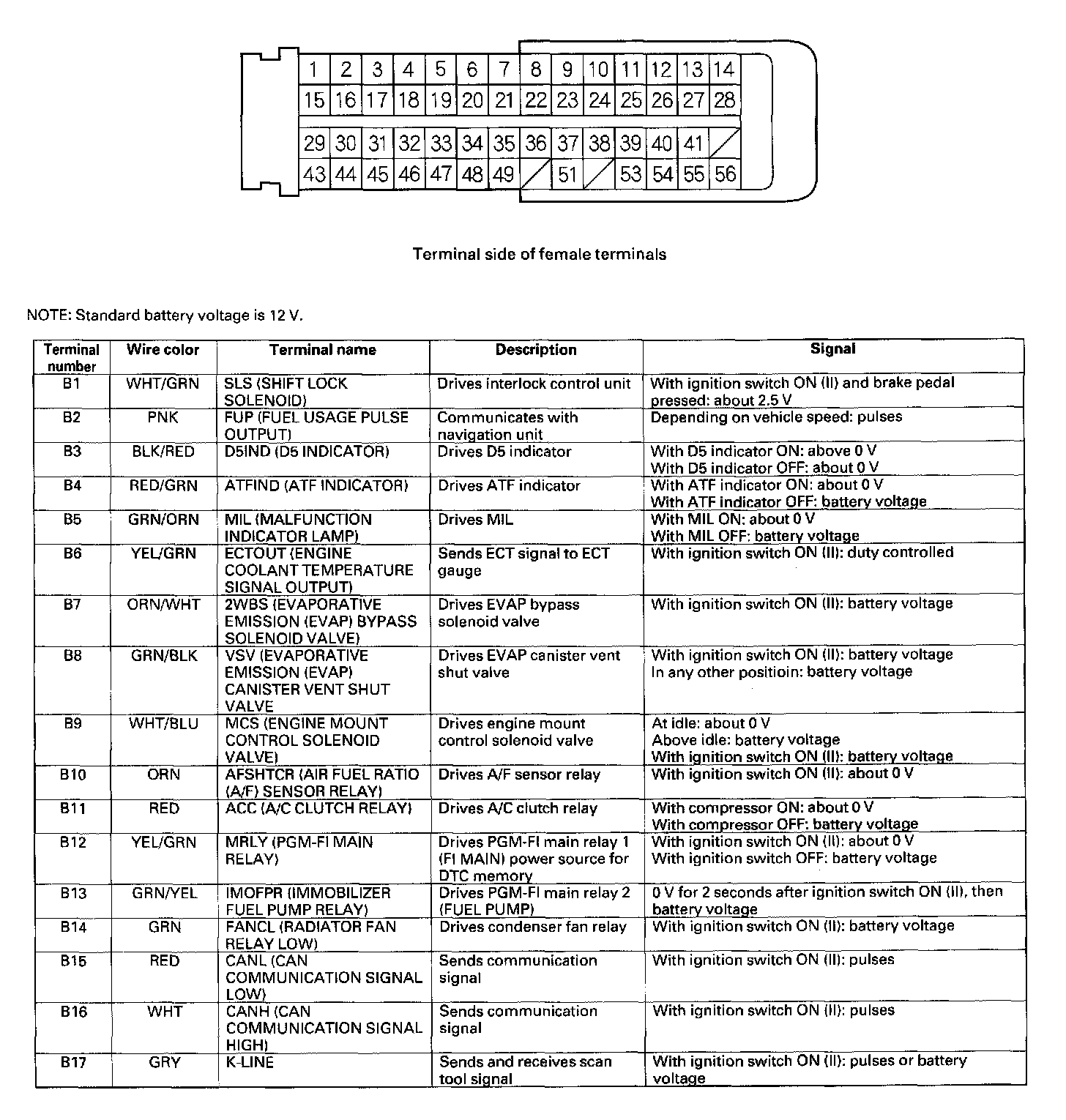

PCM Inputs And Outputs At Connector B Part 2:

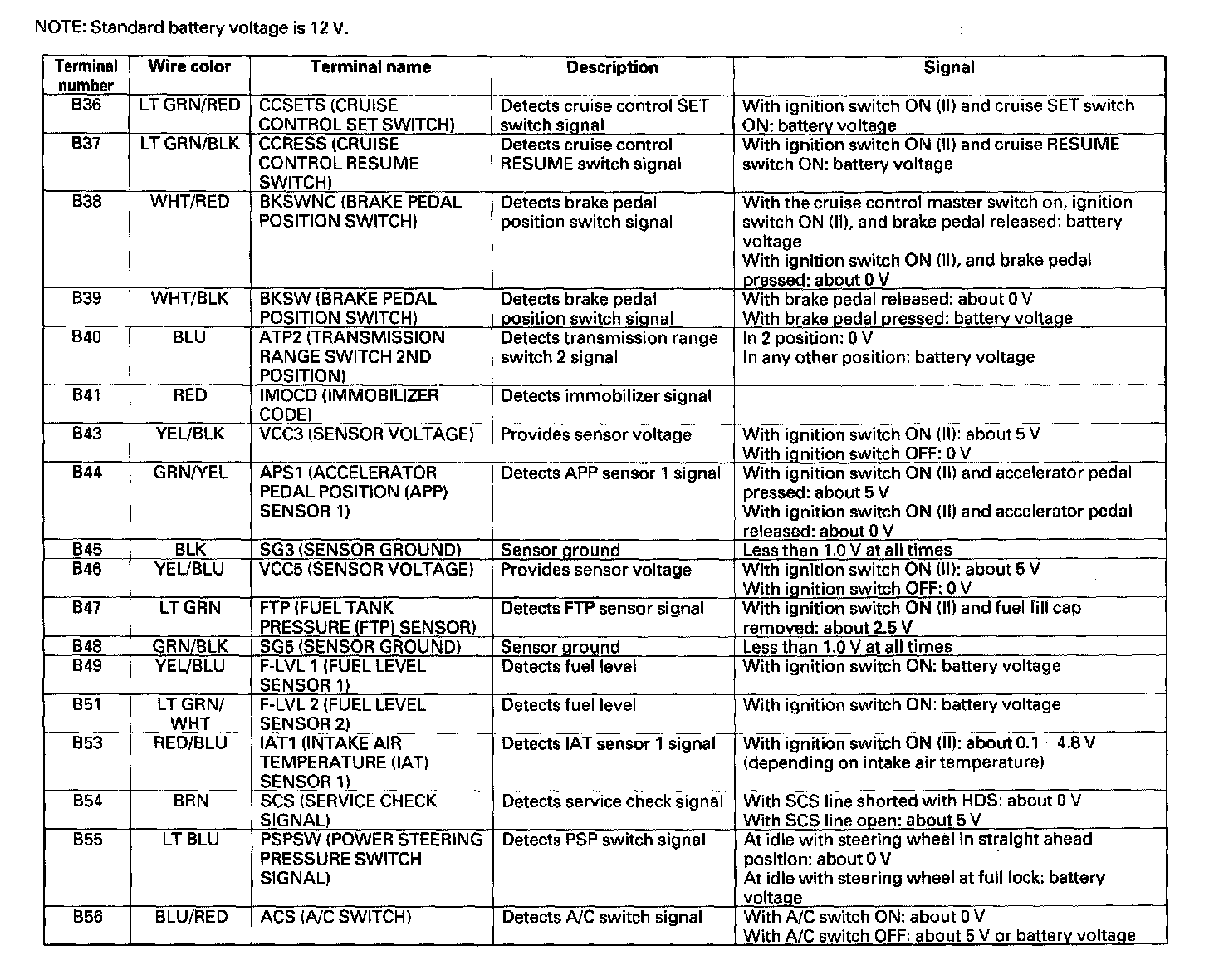

PCM Inputs And Outputs At Connector B Part 3:
